KHE STYLUS V2 Frame – Ultra-Lightweight Flatland BMX Frame

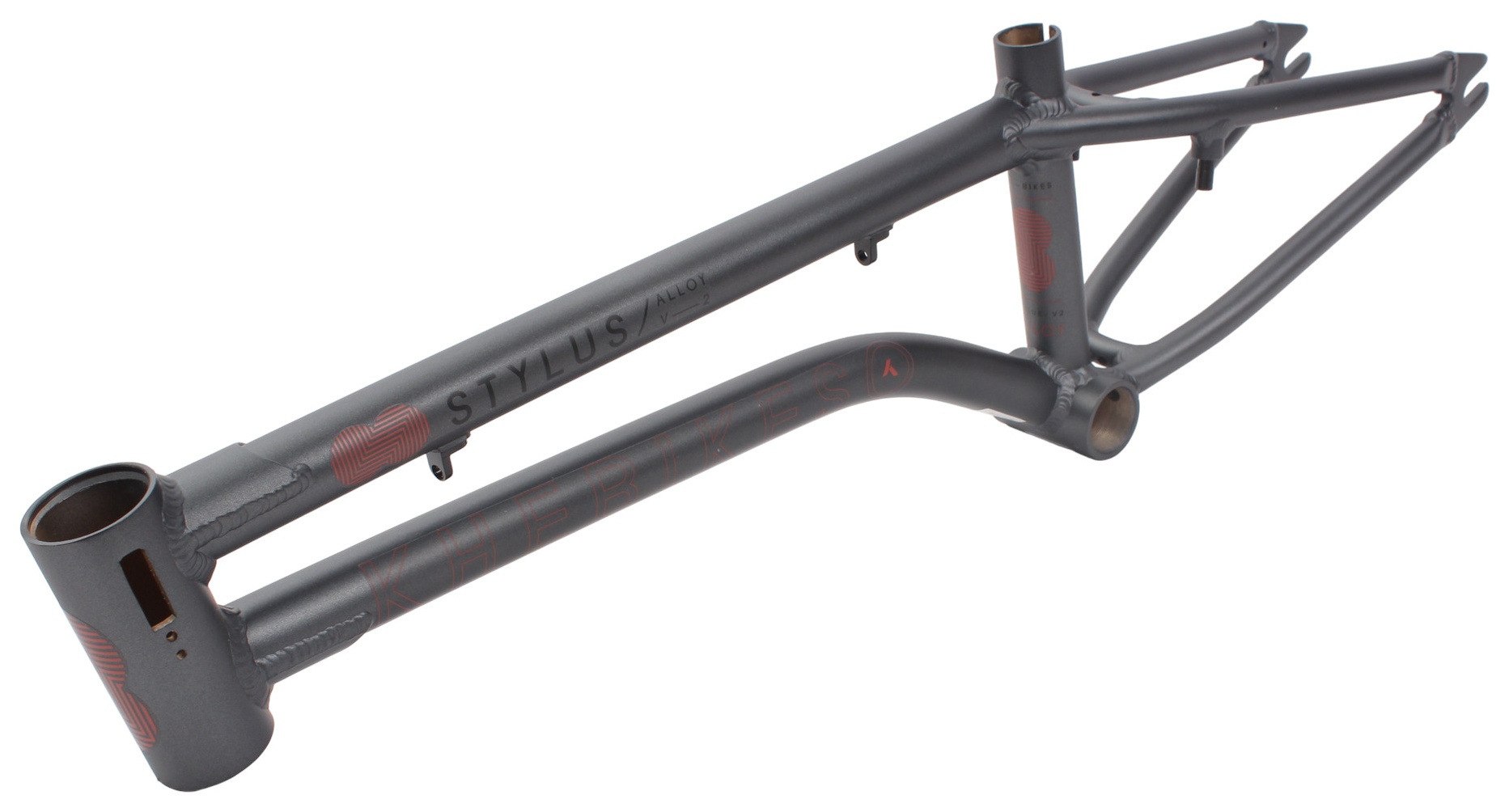

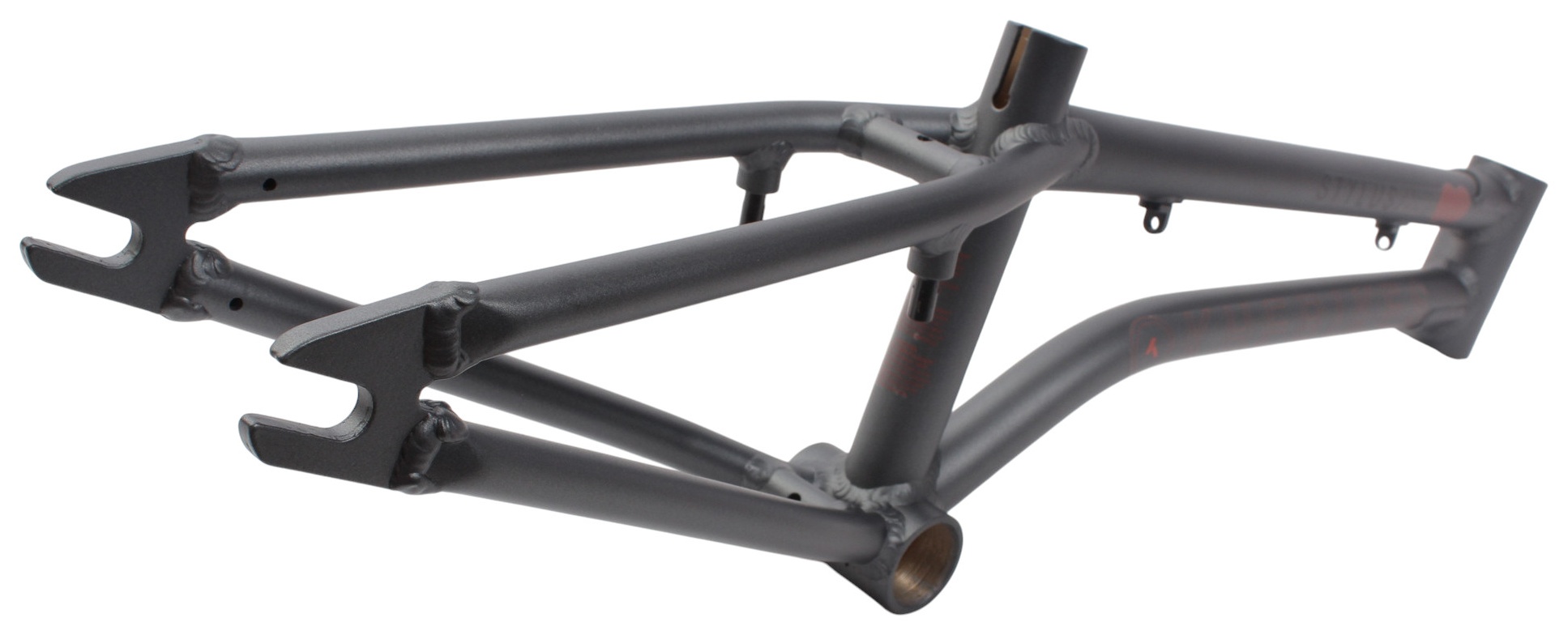

The KHE STYLUS V2 frame was developed specifically for modern flatland BMX and, weighing only about 1.22 kg, is one of the lightest flatland BMX frames in the world. Thanks to high-quality 6061-T6 aluminum, thick wall thicknesses, and additional reinforcements (gussets) on the top and down tubes, it offers high stability despite its low weight.

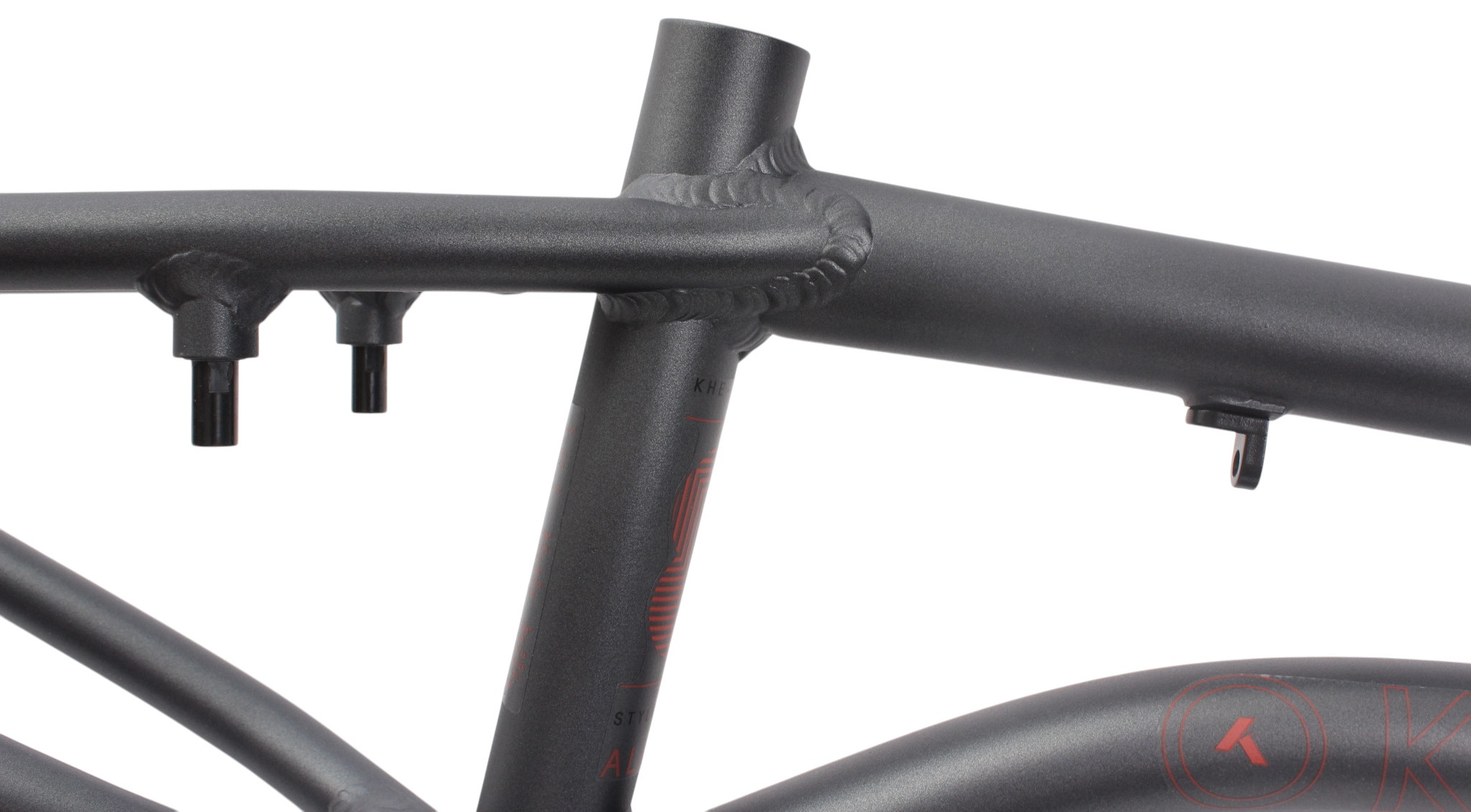

The frame is AFFIX Ready and can be equipped with the patented KHE AFFIX Rotor System. Alternatively, it can be ridden completely brakeless. Brake mounts, brake brackets, and cable guides can be completely unscrewed.

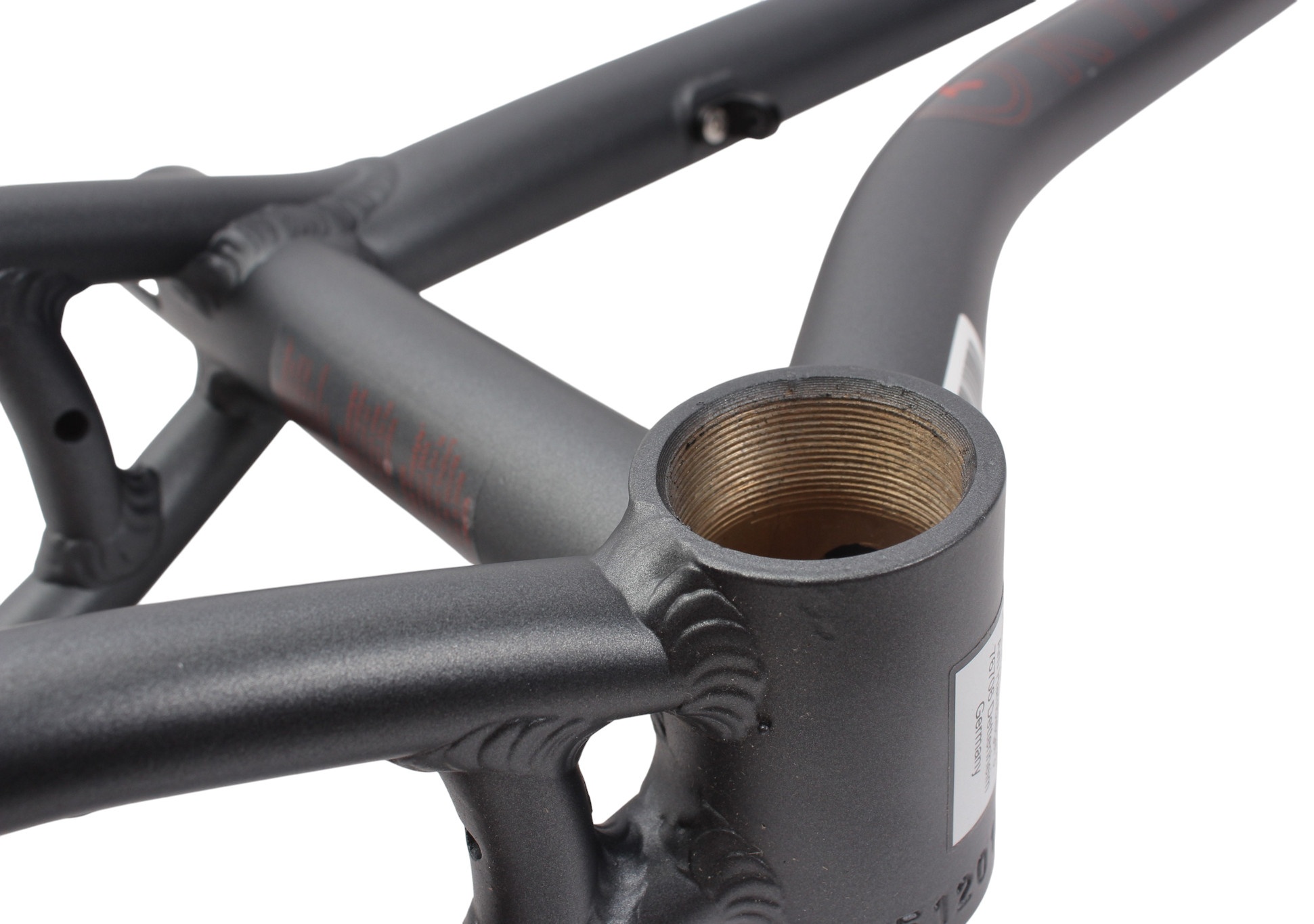

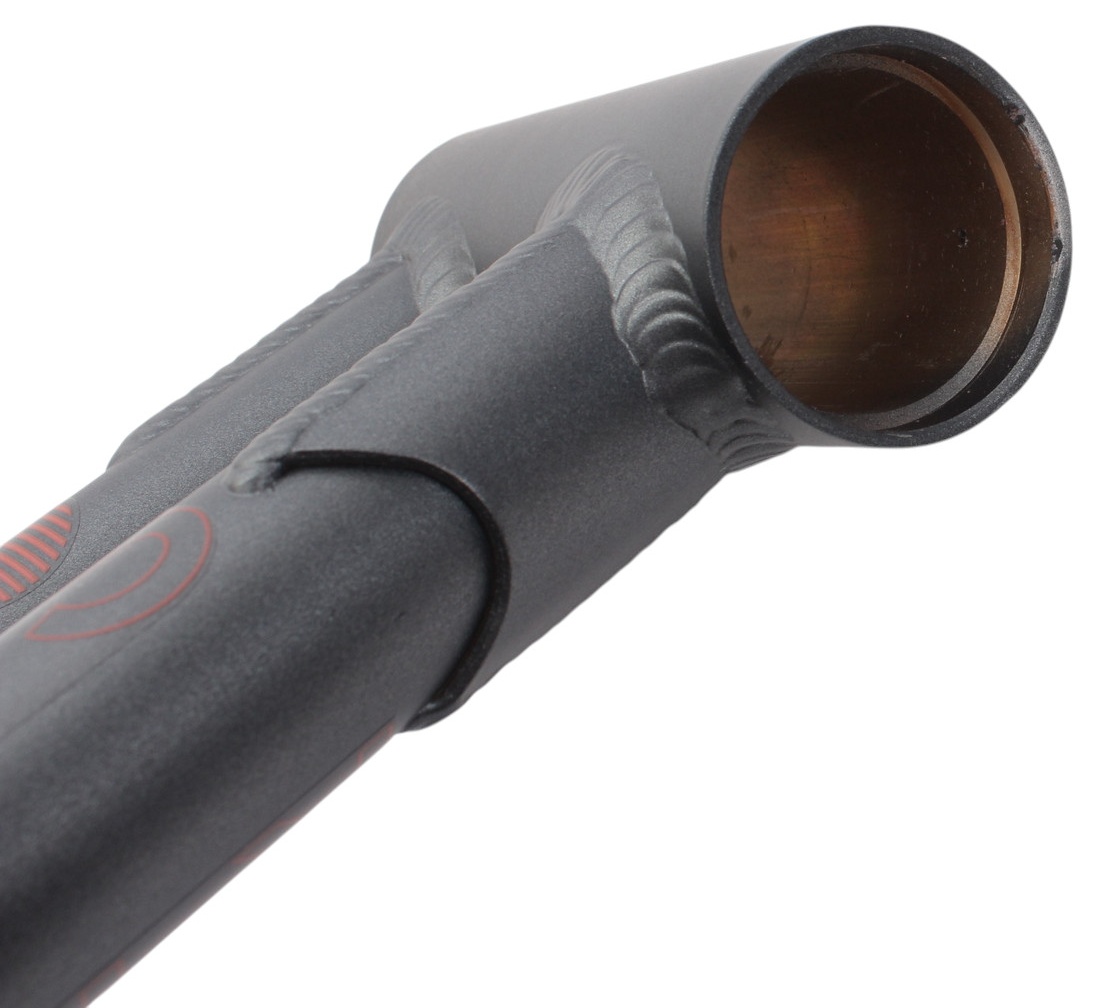

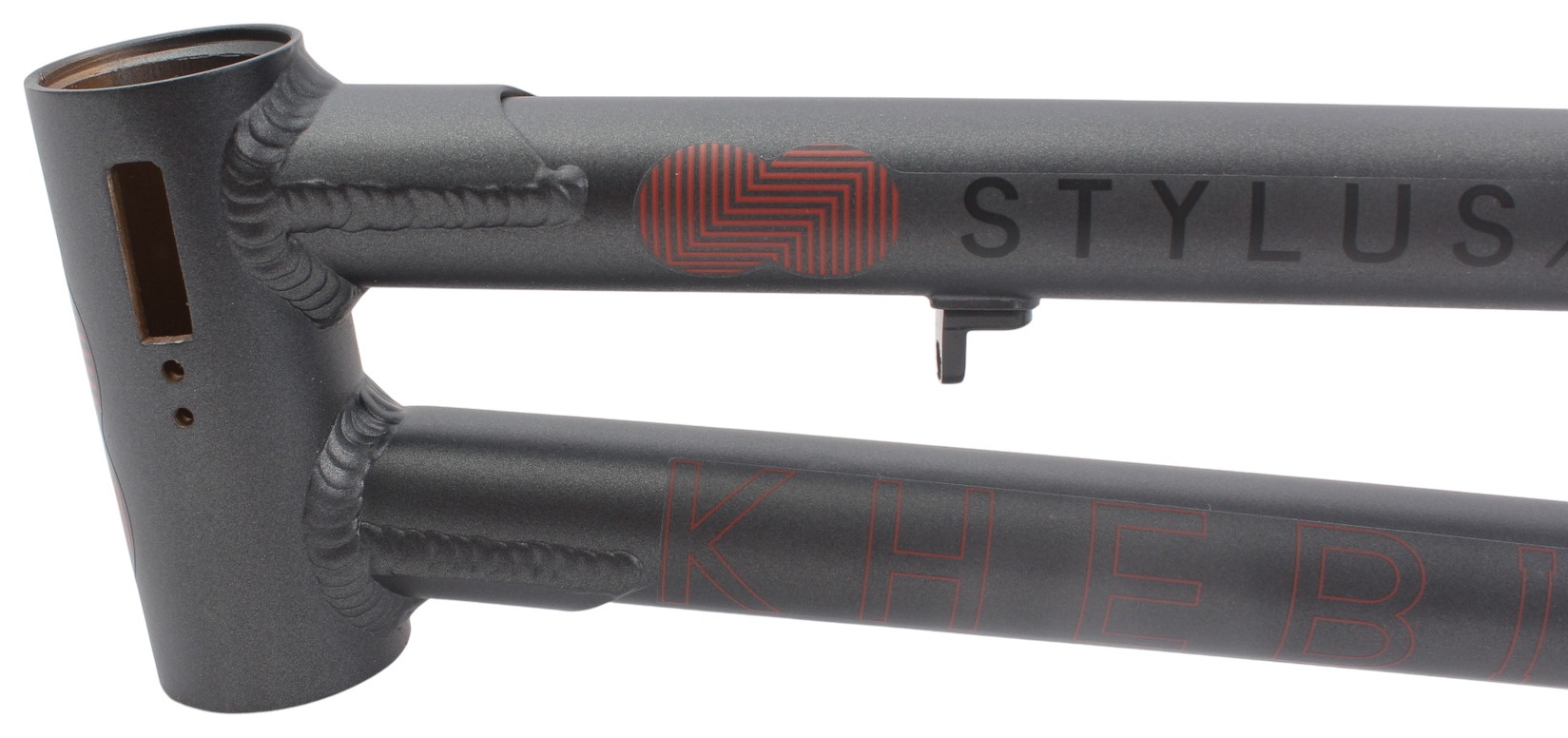

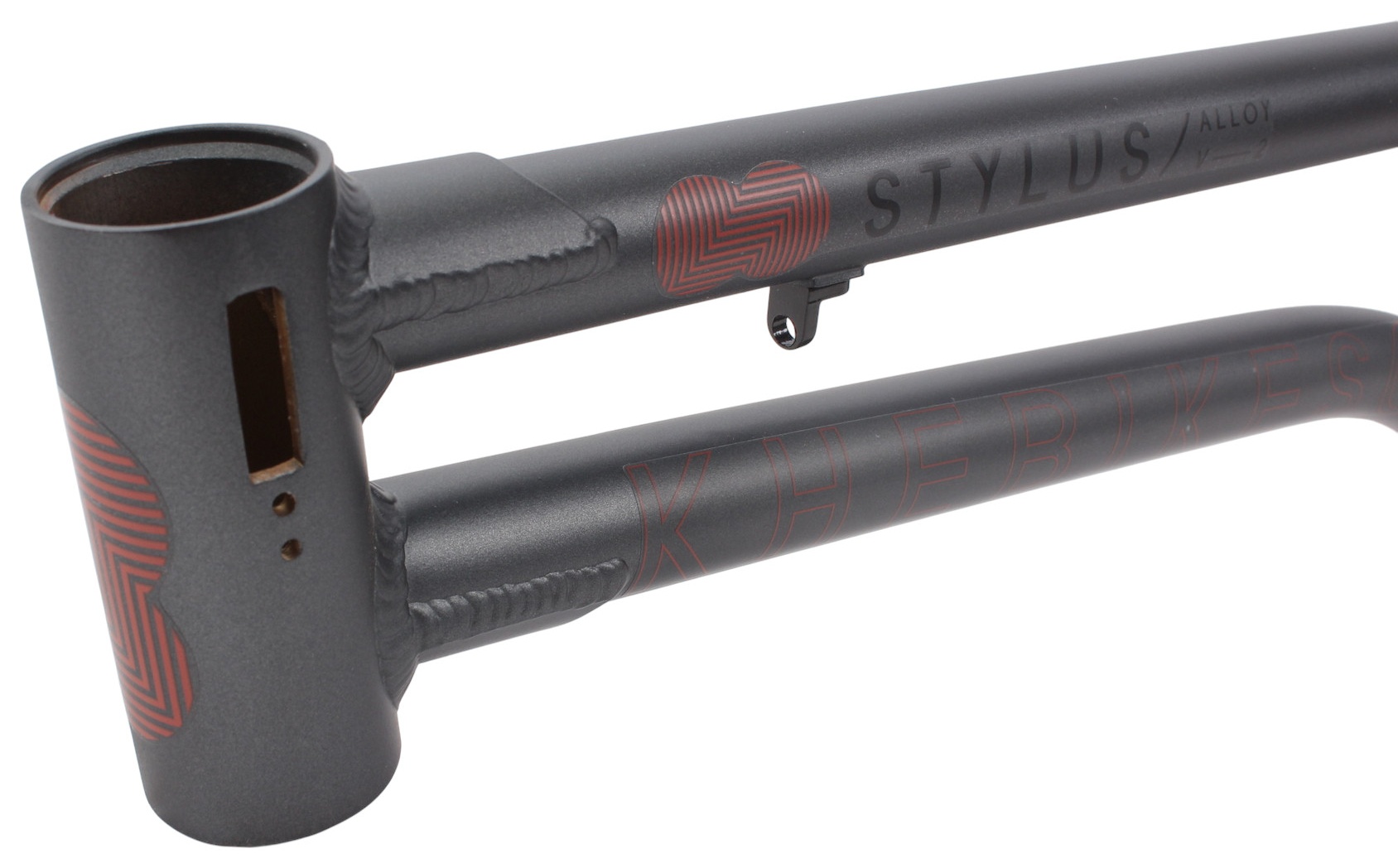

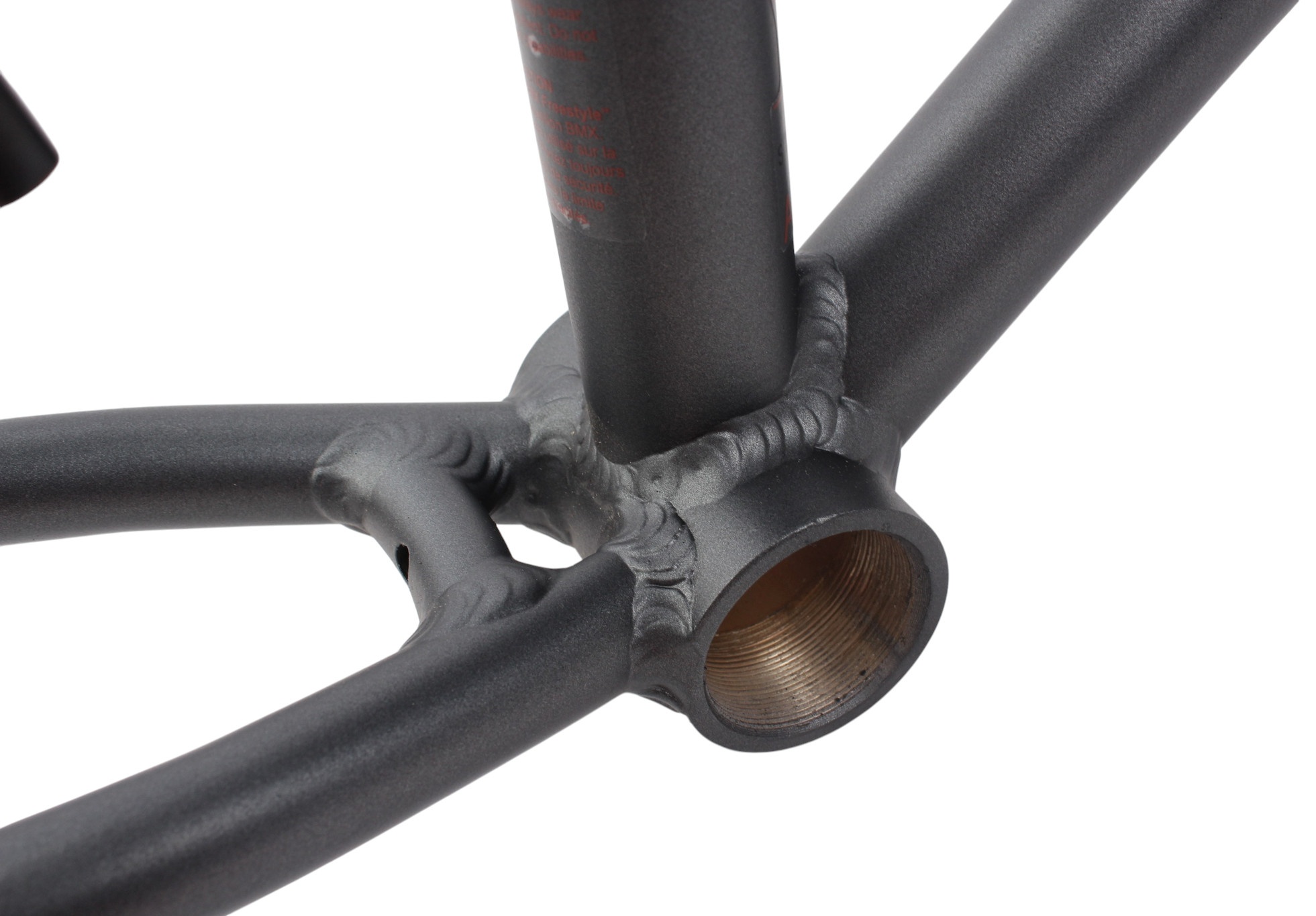

The integrated 1 1/8-inch head tube is designed for integrated headsets with industrial bearings. The Euro BB bottom bracket shell accommodates Euro bottom brackets for 19 mm, 22 mm, or 24 mm crank axles. The seat tube is designed for 27.2 mm seatposts.
Highlights
- Frame weight: only approx. 1.22 kg
- 6061-T6 aluminum
- AFFIX Ready
- Brakeless Ready
- Removable brake mounts and cable guides
- Compatible with integrated headsets
- Compatible with Euro BB

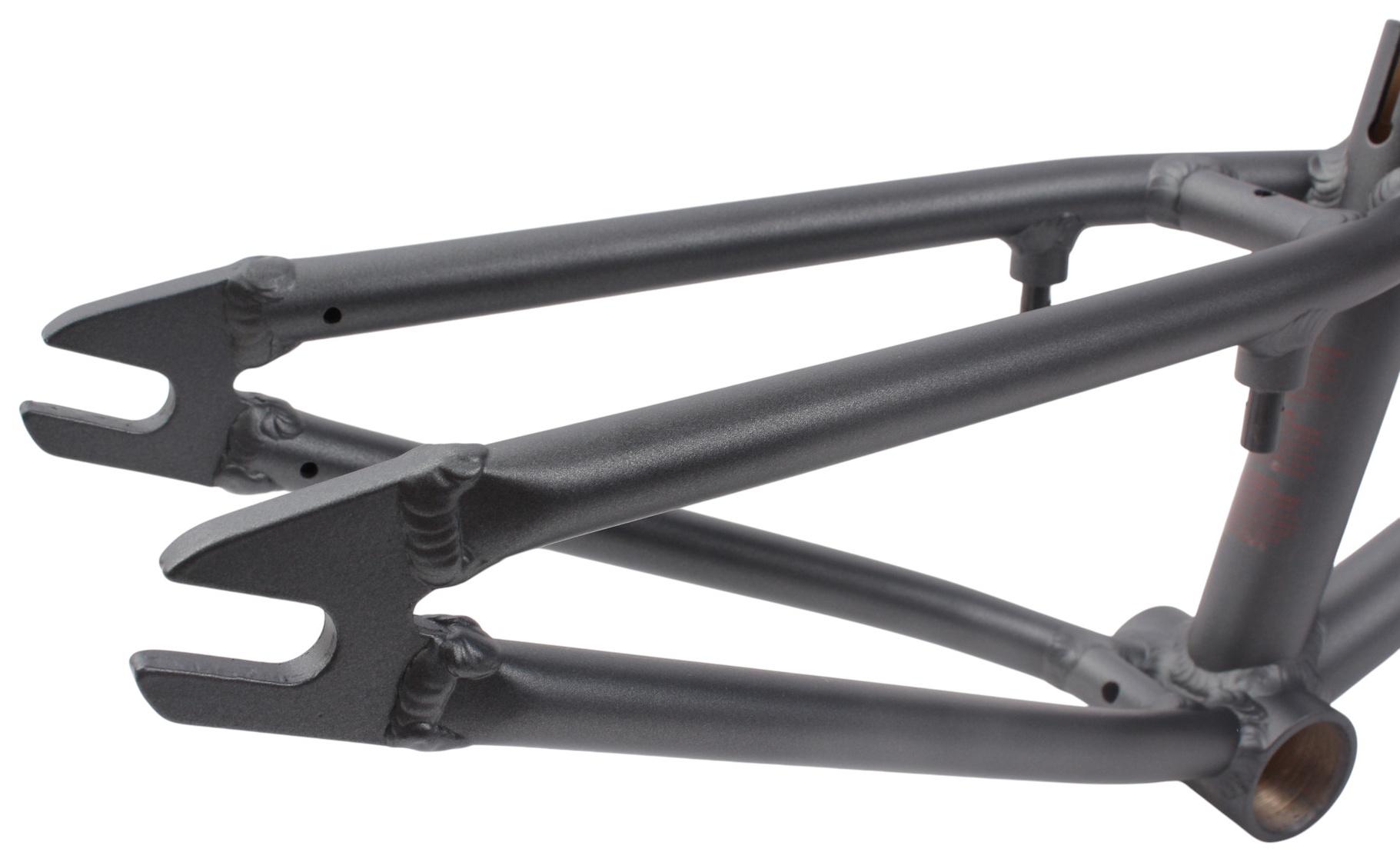

- 8 mm thick dropouts

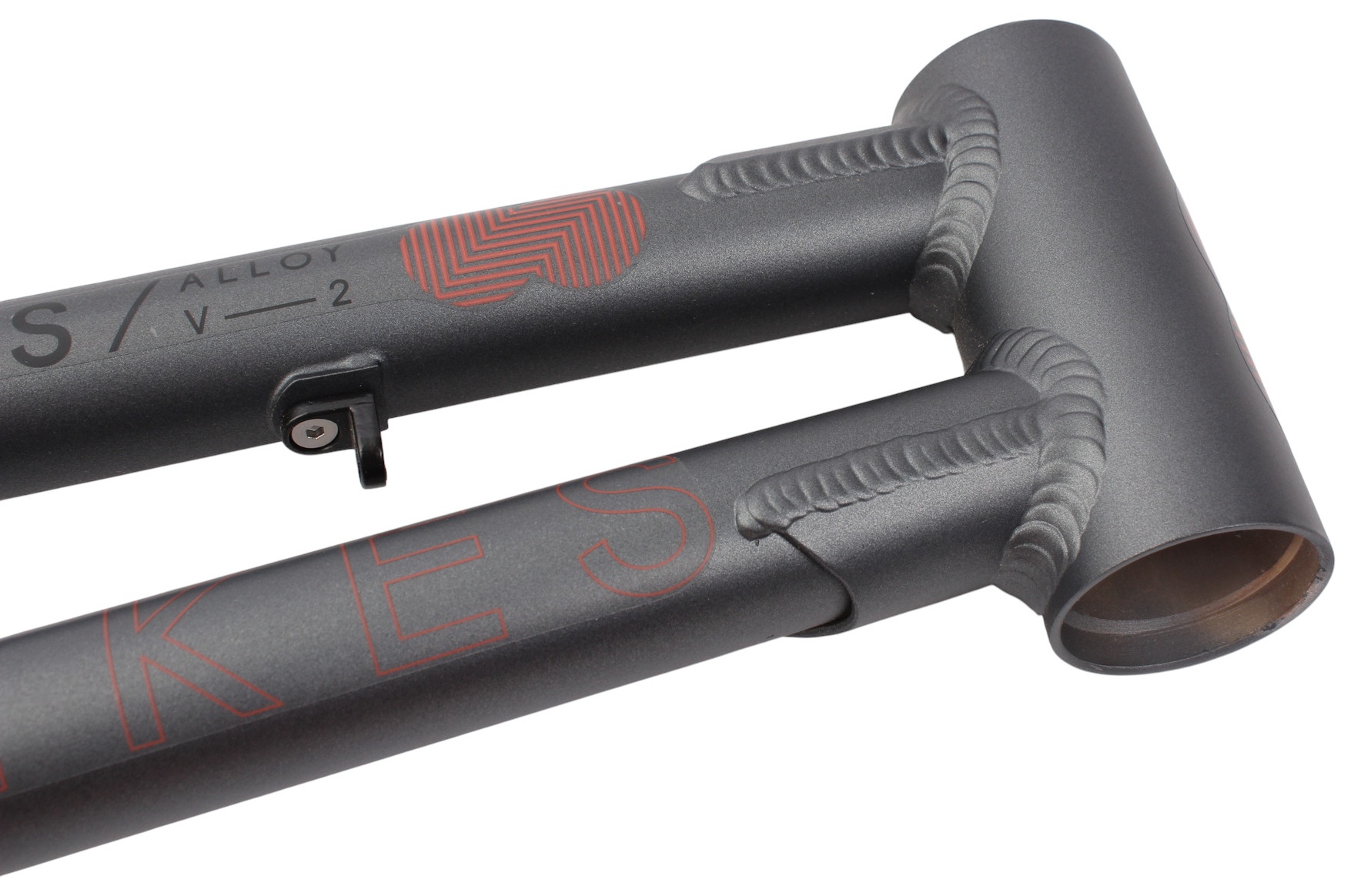

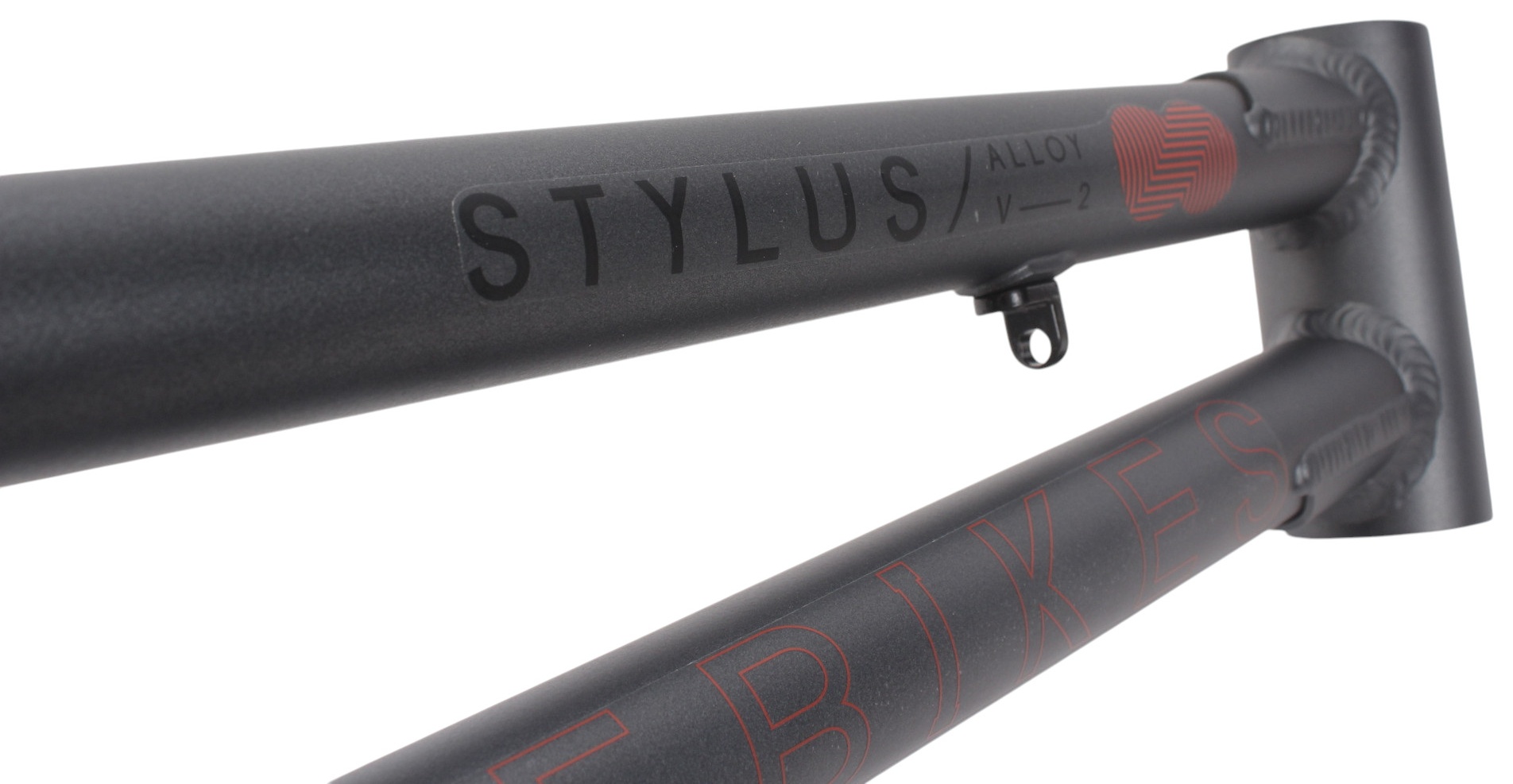

- Reinforced gussets on top and down tubes
- Suitable for 27.2 mm seatposts
Technical Specifications
- Top tube: 18.9 inches (480 mm)
- Chainstay: 12.75 inches (324 mm)
- Head angle: 75°
- Seat angle: 71.5°
- Head tube: Integrated 1 1/8"
- Bottom bracket: Euro BB
- Seatpost: 27.2 mm
- Rear axle: 14 mm
| Frame: | KHE 6061 aluminum, 14 mm dropouts, top tube 18.9", RC 324 mm (12.75"), HT 75°, ST 71.5°, integrated 1 1/8" |
|---|---|
| Top tube length: | 18,9" (480mm) |
| Bottom bracket: | Euro-BB |
| Material: | 6061 T6 Aluminium |
| Tire size: | 20 inch |
| Dropouts: | 0.55" / 14mm |
| Head tube angle (HT): | 75° |
Intended use: BMX frame for flatland and freestyle BMX riding. Use only with compatible BMX components and wheel sizes. Not suitable for motorised vehicles or any other purpose.
Installation / use: The frame must be assembled correctly using compatible components. Before every ride, inspect all bolts, the frame and the dropouts for cracks, deformation or damage. After crashes or heavy impacts, thoroughly inspect the frame and do not continue using a damaged frame.
Care and cleaning: Clean the frame regularly with water and a soft cloth. Do not use aggressive cleaning agents or pressure washers. Regularly inspect and maintain all attached components.
Replacement due to wear: Replace the frame immediately if cracks, deformation or any other visible damage are detected. A damaged frame may result in loss of control and serious injury.
