£69.95*
% £84.71* (17.42% saved)Available, delivery time: 2-5 business days **

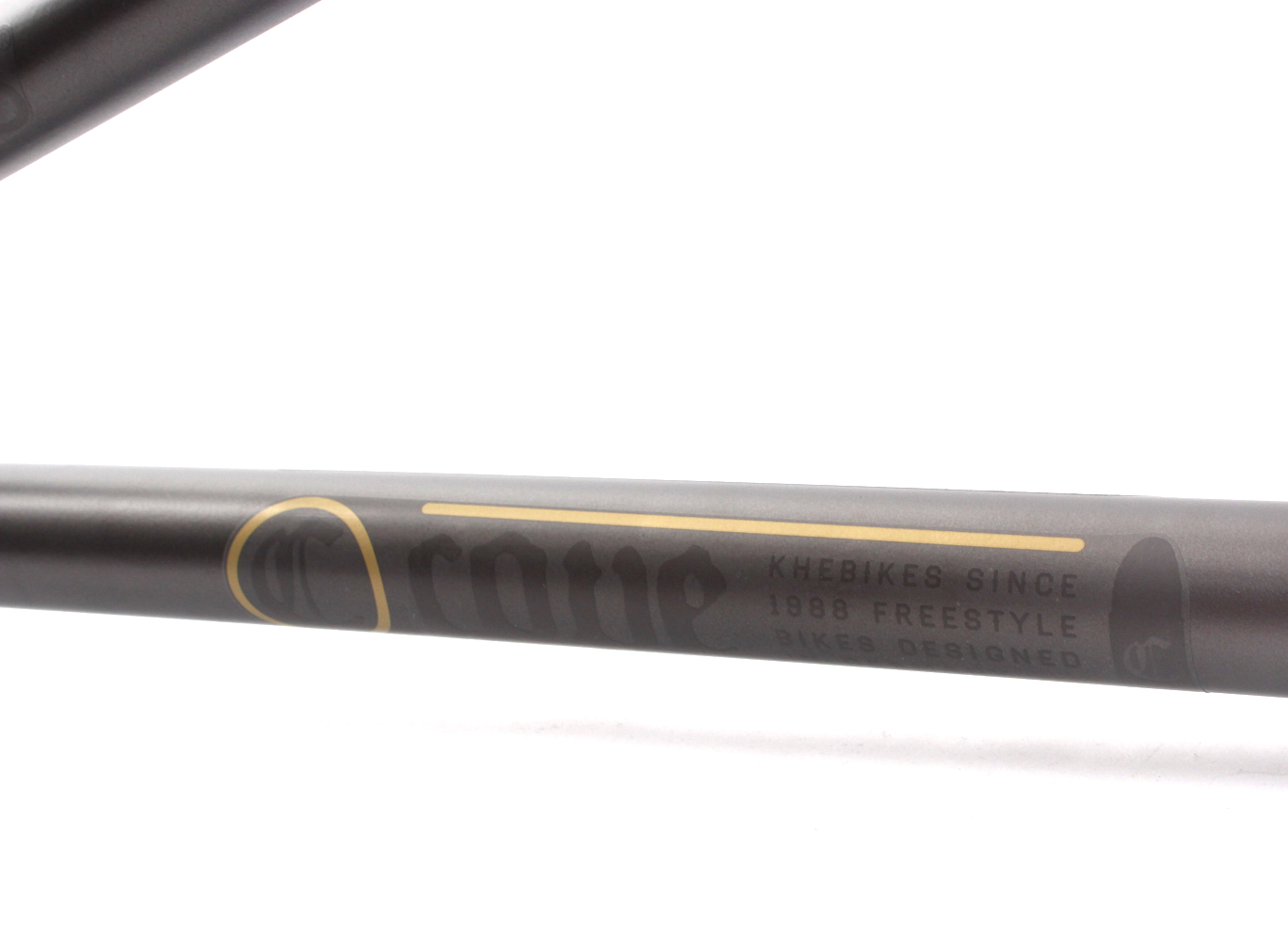

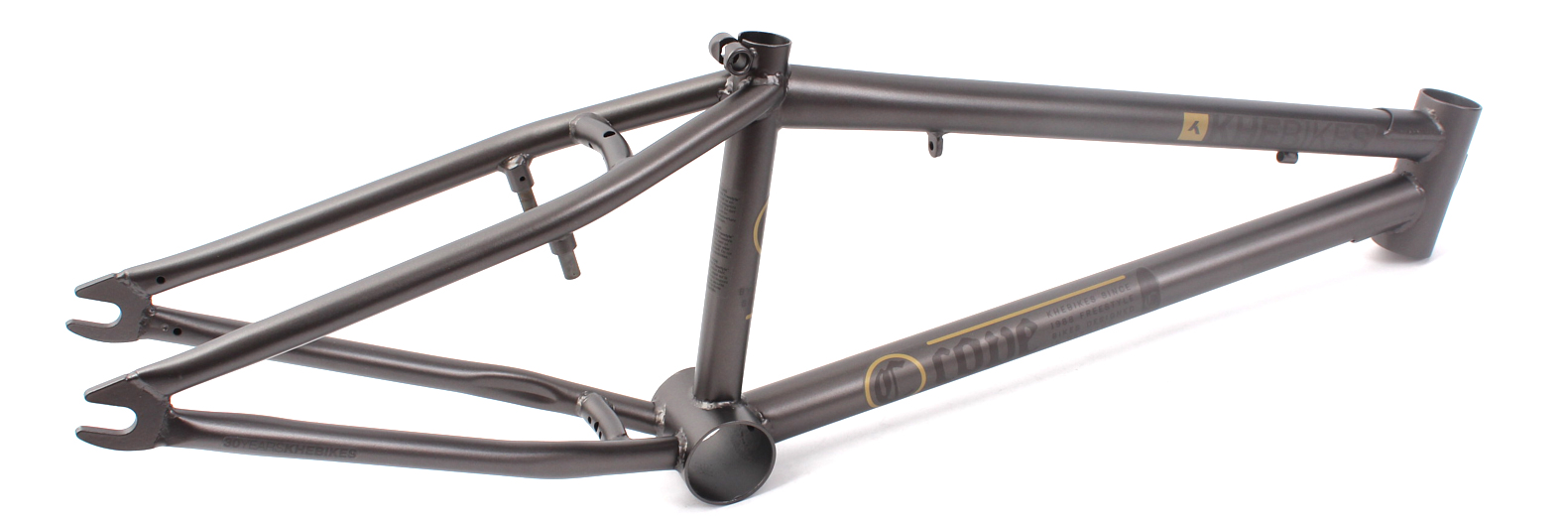

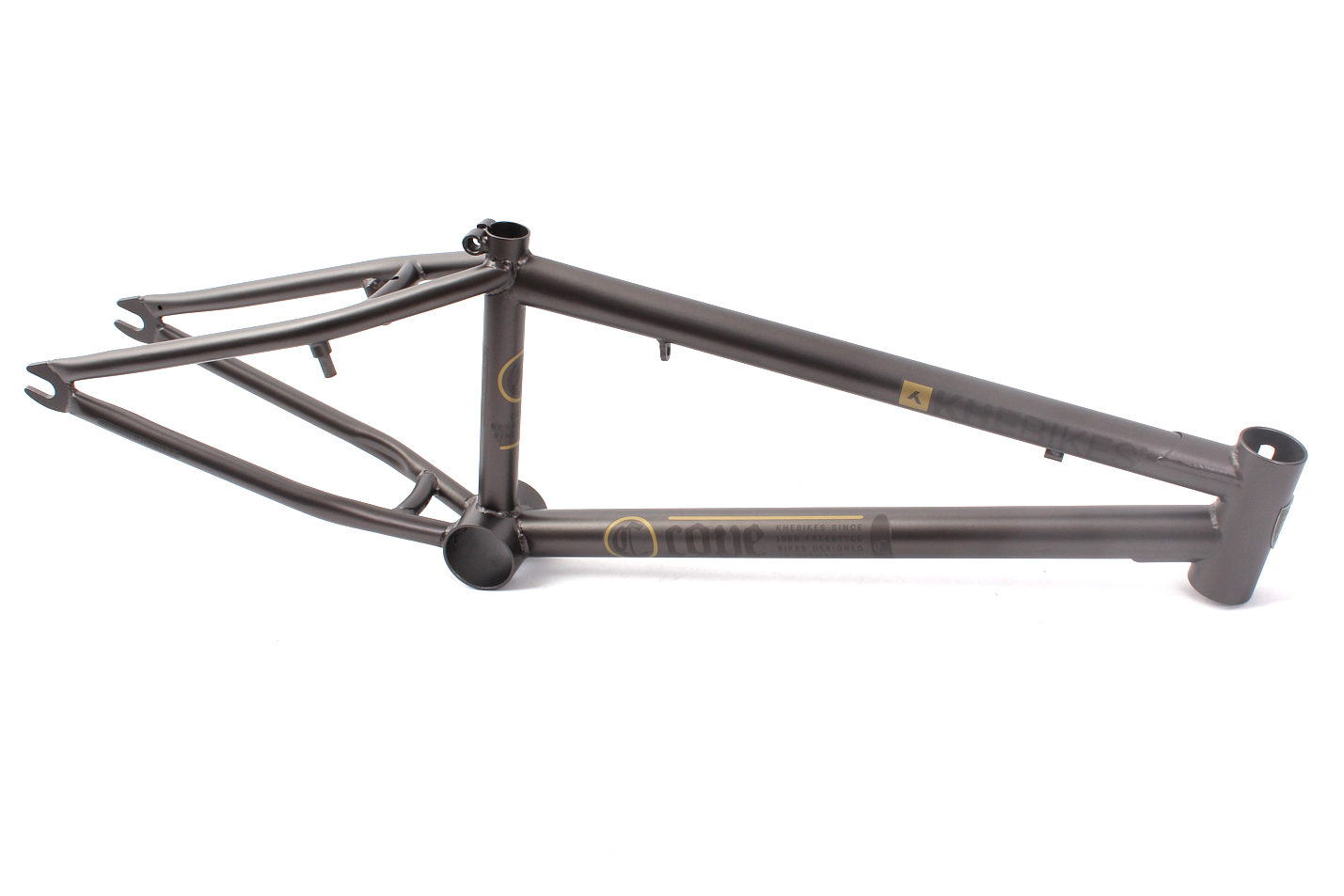

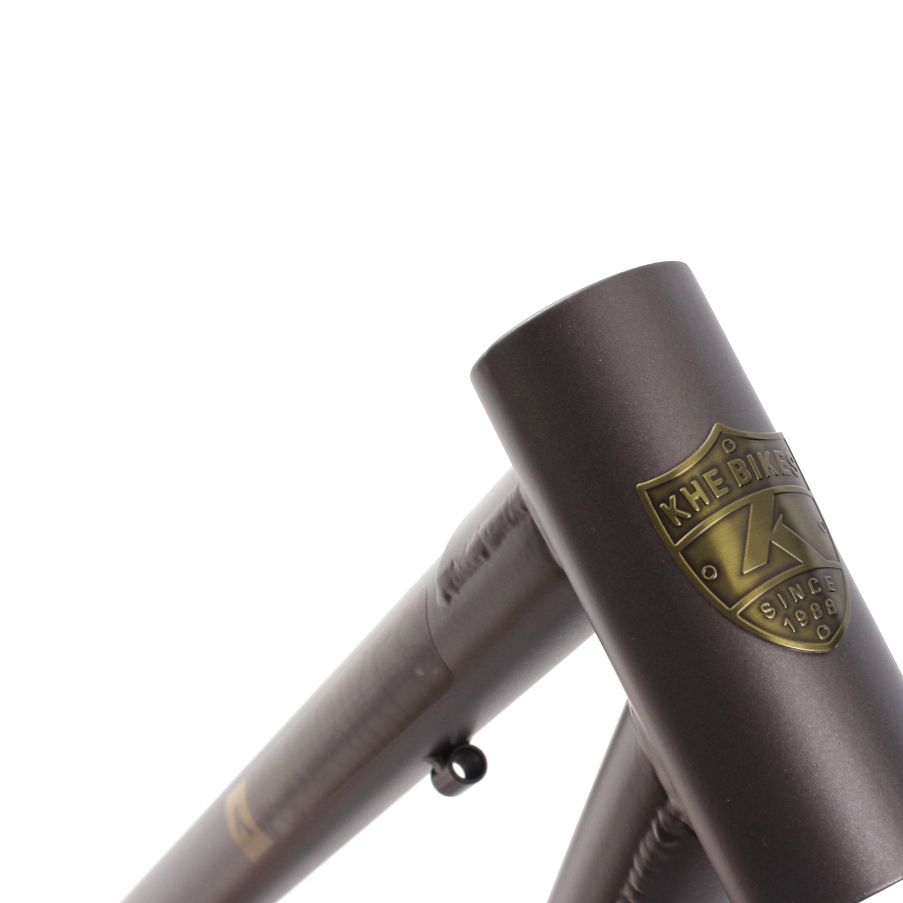

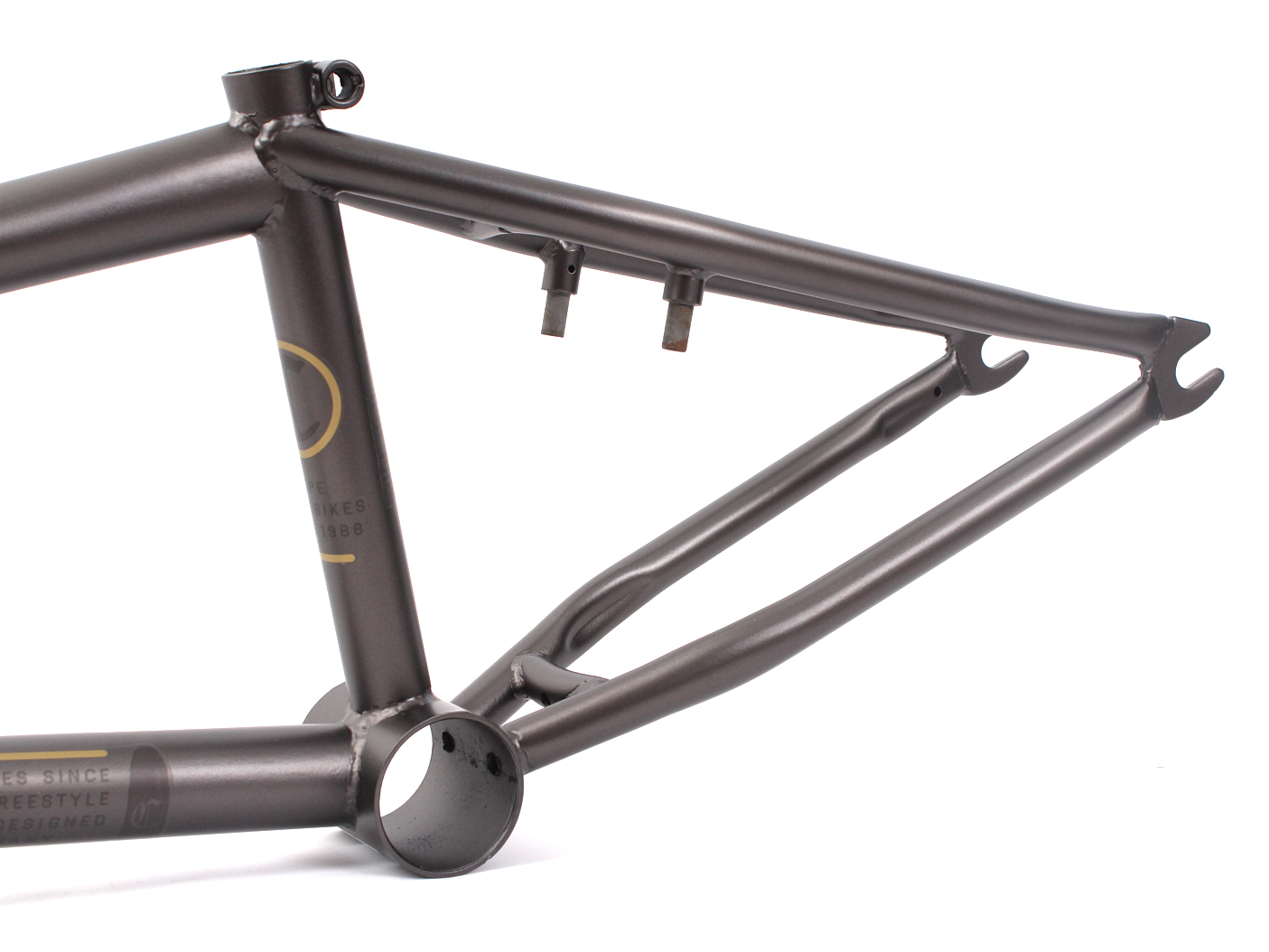

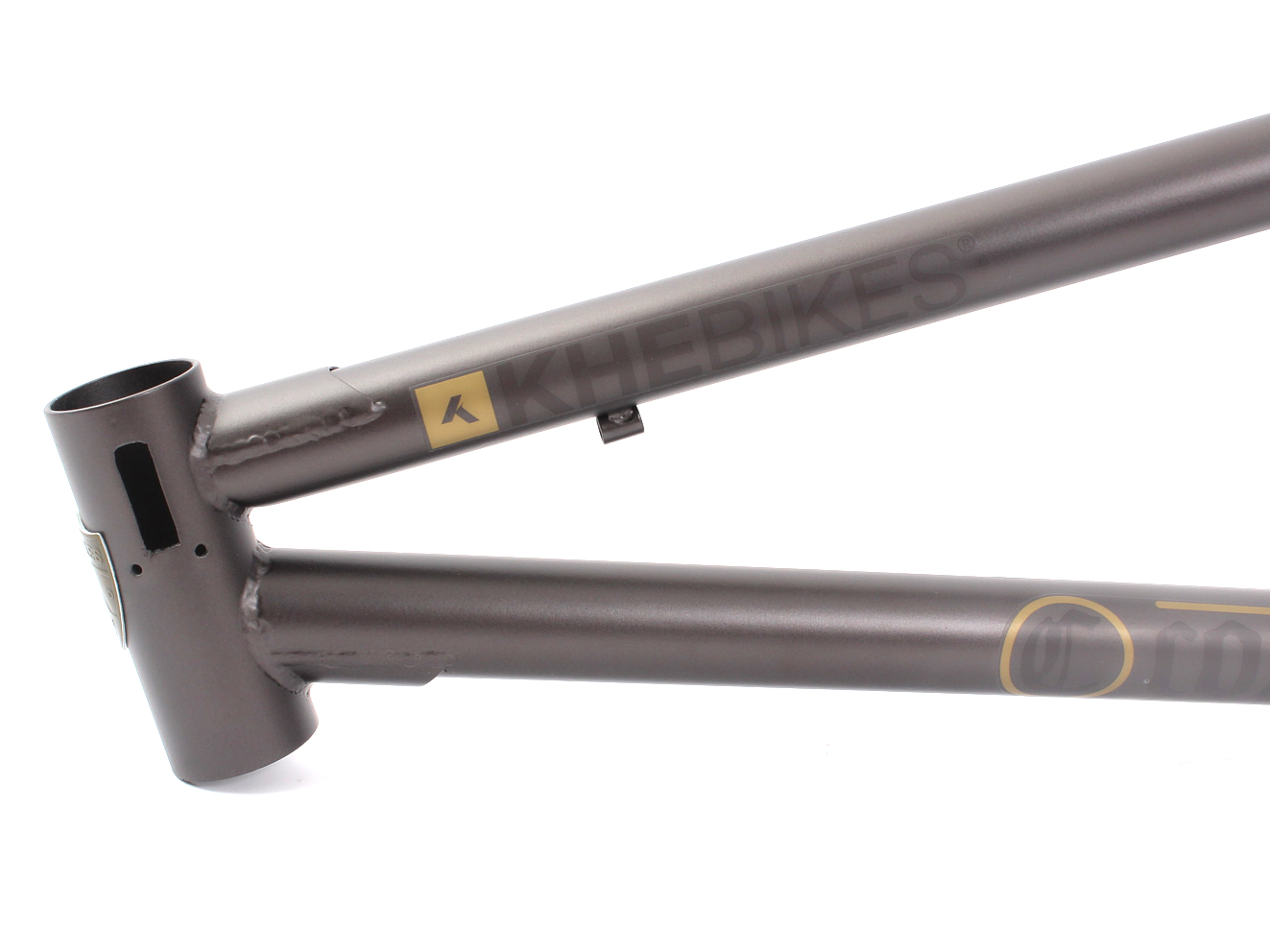

KHE COPE Frame
The frame is made of high-strength HiTen steel and is very robust. With a top tube length of 20.6 inches (524mm), it is ideal for park and street riding. This frame is identical to the one used on the complete KHE COPE bike. It is also AFFIX ready, allowing an Affix rotor to be installed.
Specifications at a glance:
- Brand: KHE
- Colour: Matt Black
- Material: High-strength HiTen steel
- Top tube length: 524mm (20.6")
- Rear centre (RC): 347mm
- Head tube angle (HT): 75 degrees
- Weight: only 2,480g ≈ 5.47 lbs
- Bottom bracket: US BB
- Headset: Affix headset
| Top tube length: | 20,6" (524mm) |
|---|---|
| Bottom bracket: | US-BB Loose Ball |
| Material: | HiTen steel |
| Colour: | Black |
| Weight: | 5.47 lbs / 2480g |
| Rear stay length (RC): | 13.66" / 347mm |
| Head tube angle (HT): | 75° |
Appropriate Use: This steel frame is ideal for BMX tricks, moderate jumps, and technical freestyle riding on the street and in the park.
Suitable Frame Size: The frame is suitable for riders with a height of 150 cm to 190 cm and a maximum body weight of 90 kg.
Fork Compatibility: Use only 20-inch forks that are compatible with this BMX frame.
Regular Inspection: Regularly check the welds and connections for cracks or weaknesses, especially in high-stress areas such as the head tube and bottom bracket. Perform safety checks on the entire frame and replace it immediately if any visible damage or cracks are found.
Avoid Contact with Chemicals: Contact with aggressive cleaning agents or salts can damage the frame's surface. Use only mild, frame-safe cleaning agents and rinse the frame thoroughly if it has come into contact with salty water (e.g., in winter).
