£54.95*
% £67.76* (18.9% saved)Available, delivery time: 2-5 business days **

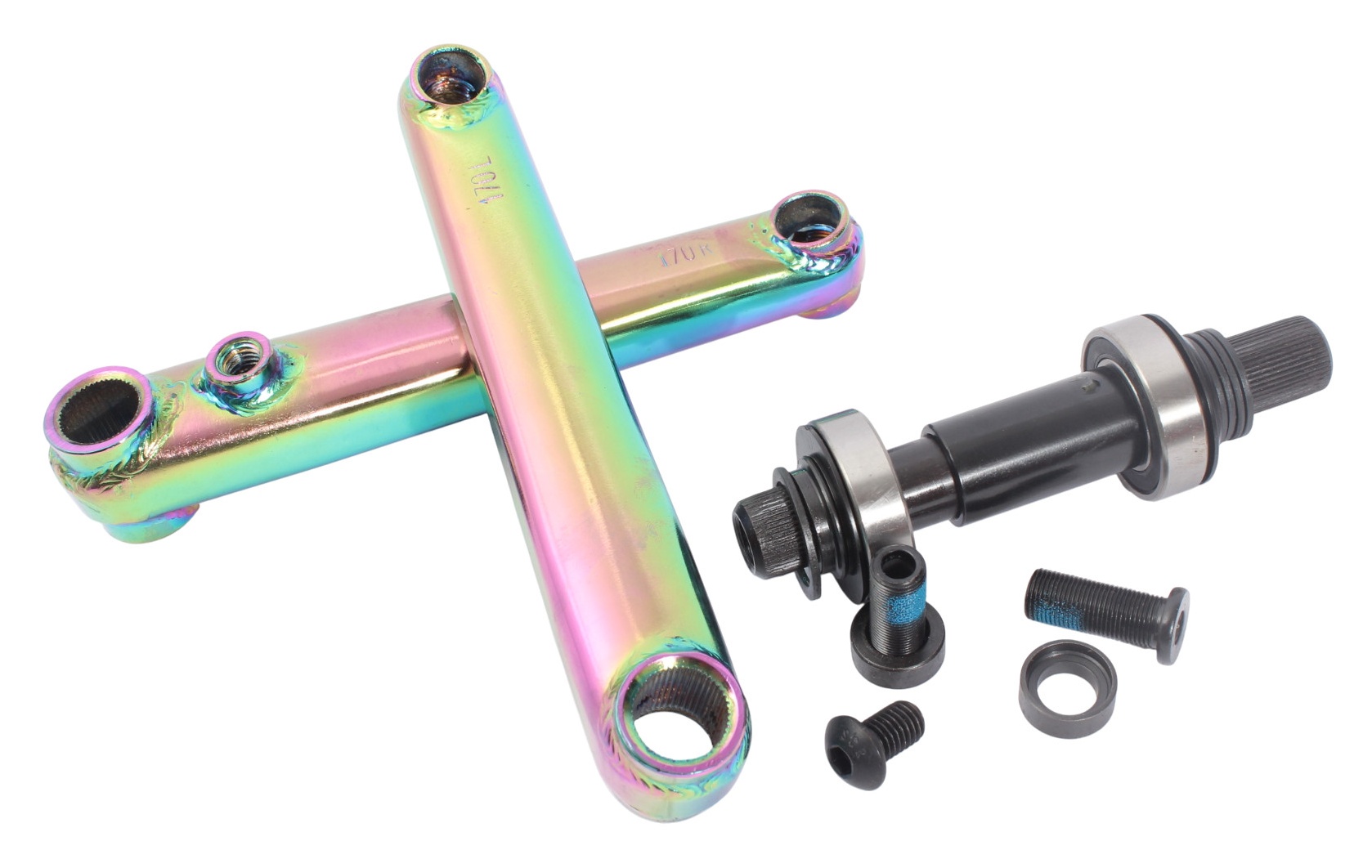

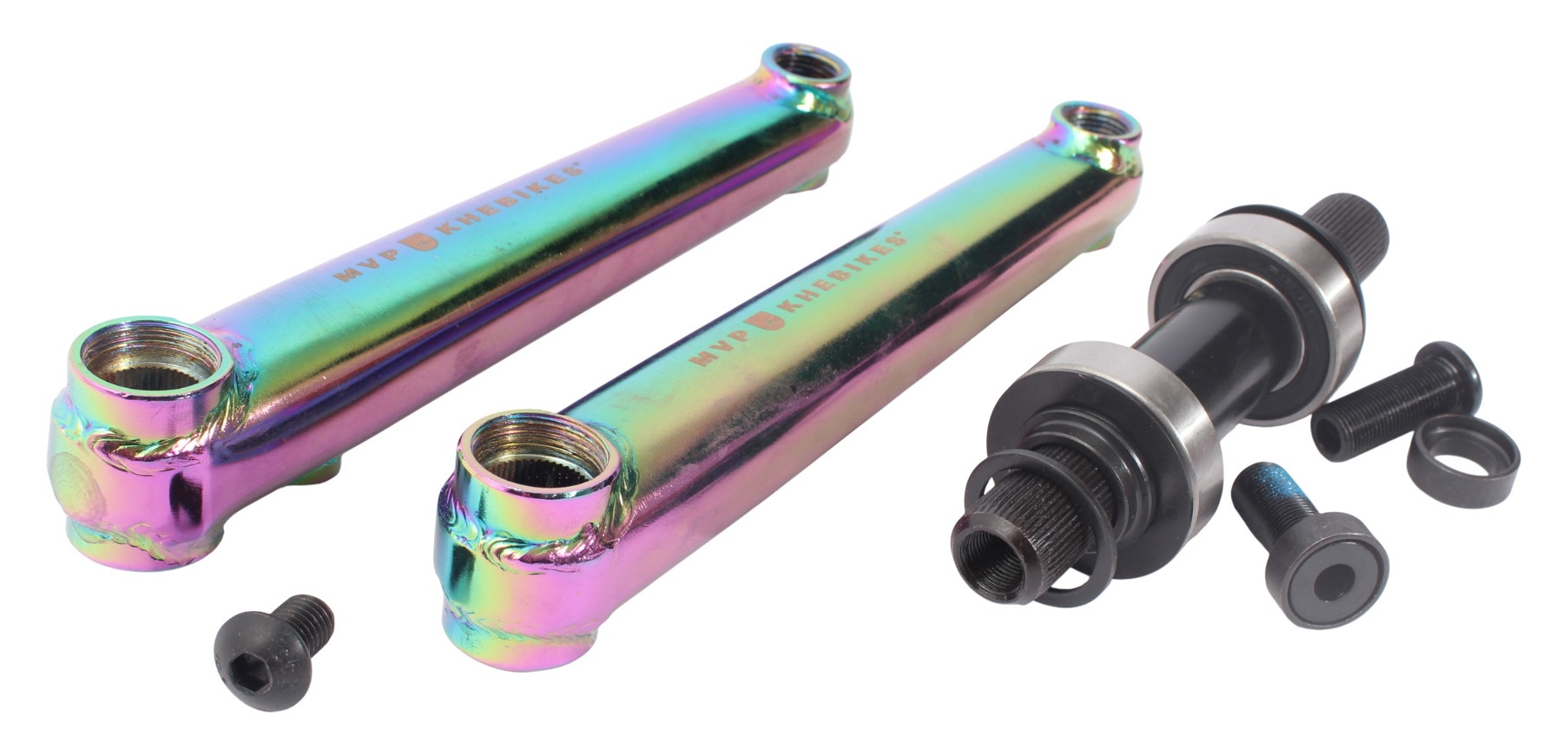

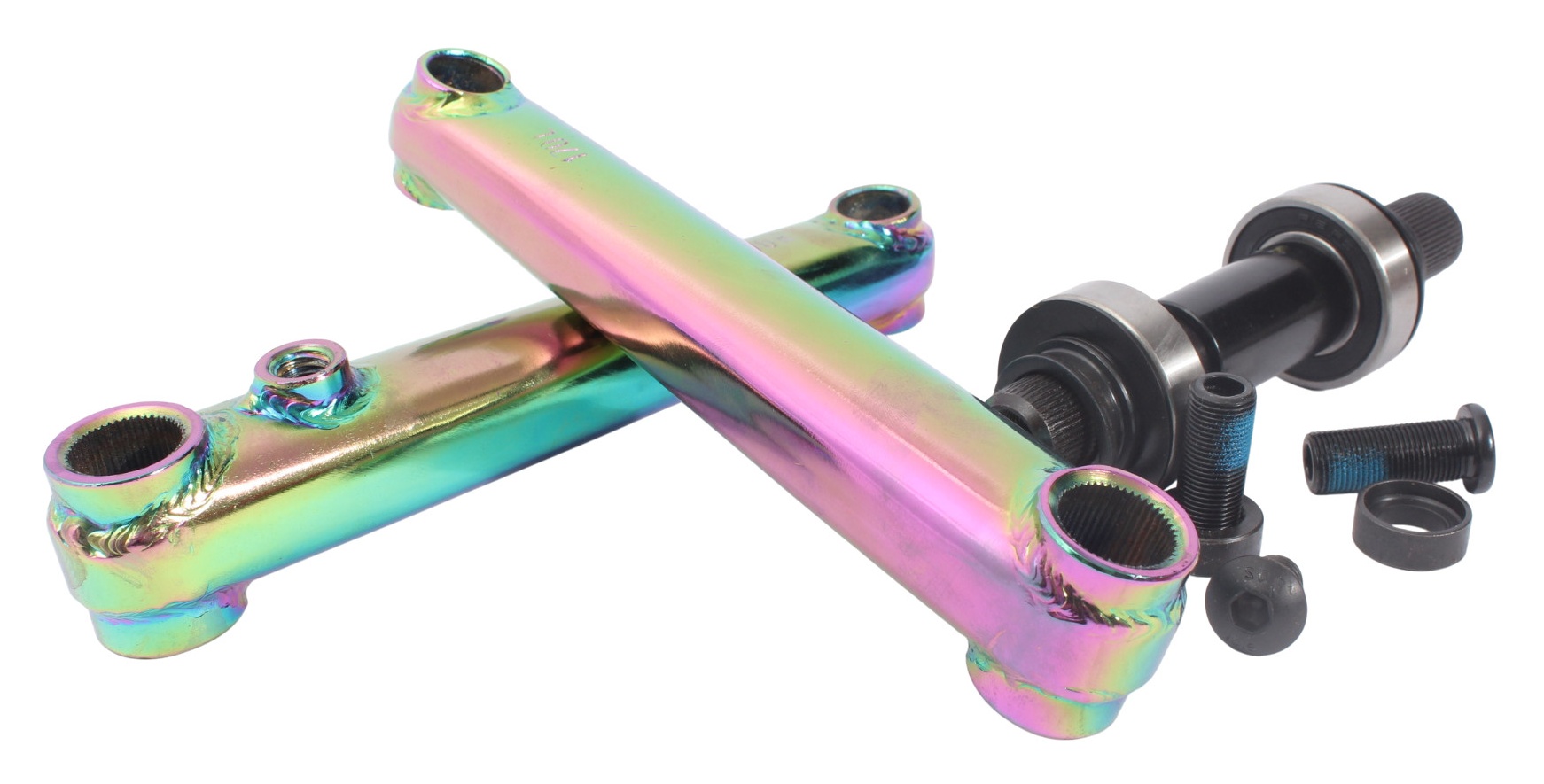

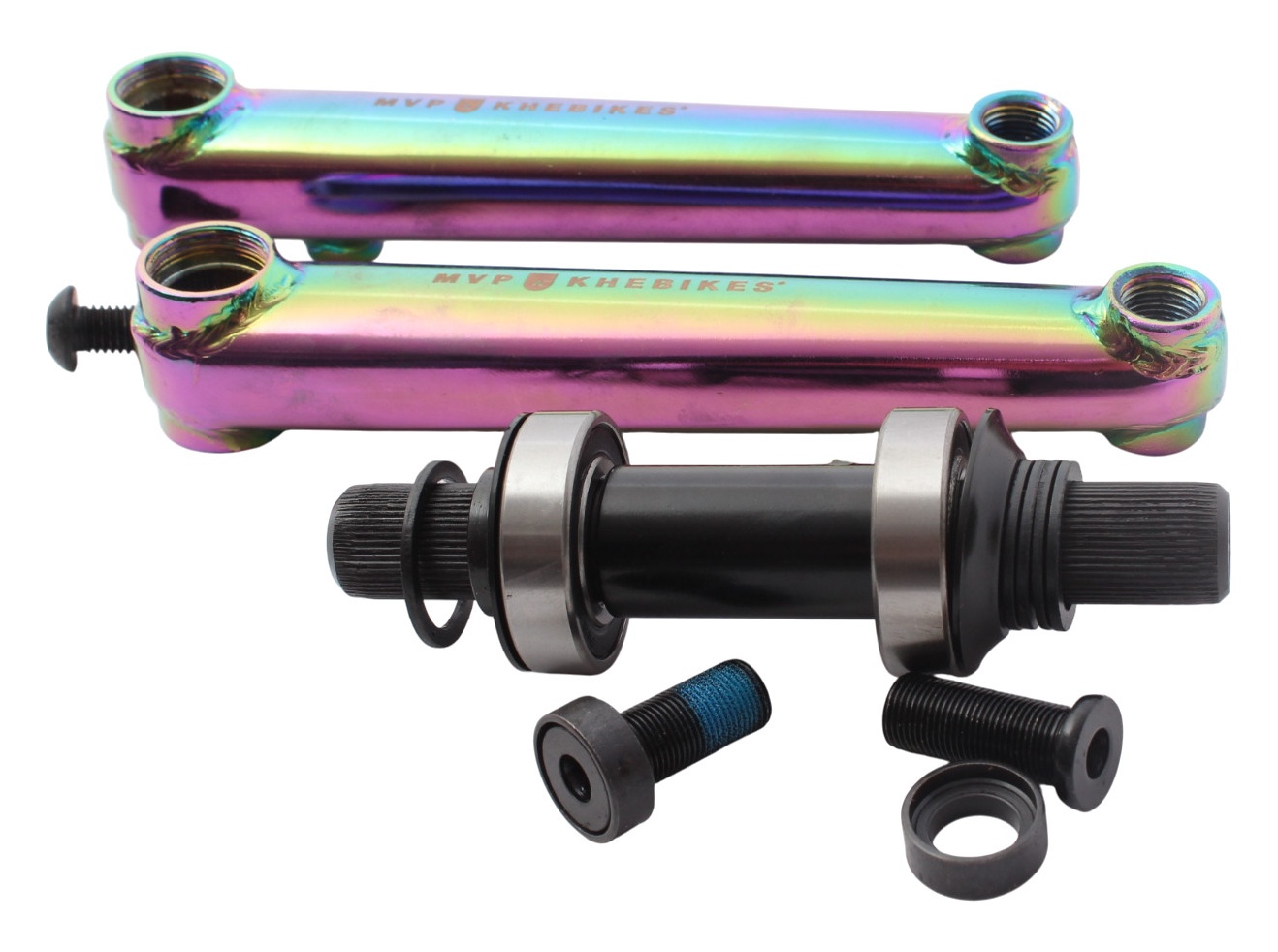

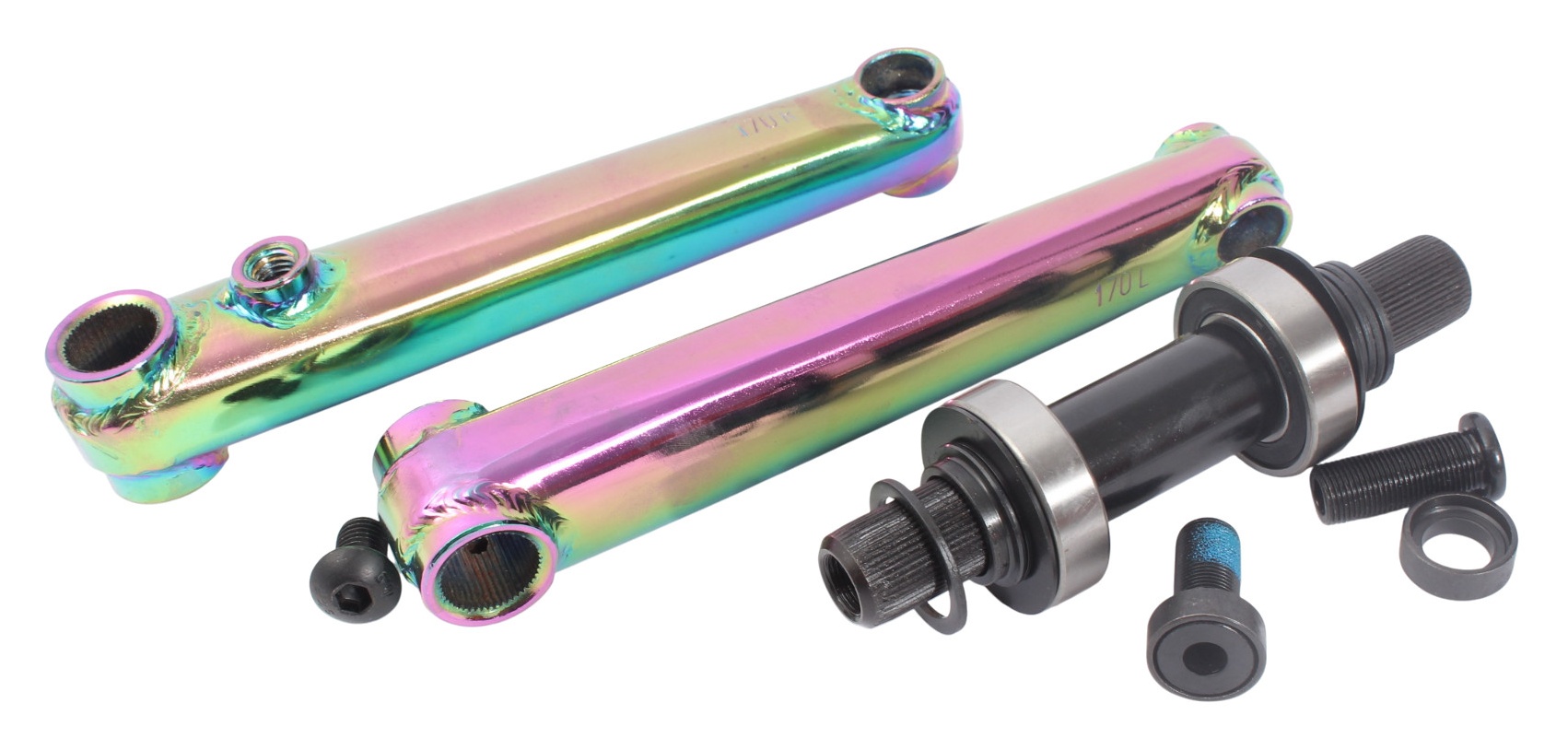

KHE MVP 48T BMX Crank Arms Set incl. MID BB Bottom Bracket
The KHE MVP 48T crank arm set is a high-quality BMX crank setup designed for riders who value strength, durability and eye-catching design. The crank arms are made from premium 4130 Japanese CrMo steel and feature an elegant oil slick finish, offering an affordable way to upgrade the look of any BMX.
The 170 mm crank arms are designed for 48-tooth (48T) setups and fit 19 mm axles. They are compatible with 9/16" pedals and feature a laser-etched KHE MVP logo.
Included is the KHE MID BB 48T bottom bracket, equipped with a 19 mm 4130 CrMo axle and sealed industrial bearings. The bearings are protected by additional covers for maximum durability. Adapters for Ø24 mm chainrings, spacers and bolts are included.
Crank Arm Features:
• High-quality 4130 Japanese CrMo steel crank arms
• Oil slick finish for premium appearance
• Length: 170 mm
• For 48T (48 tooth) setups
• Fits 19 mm axles
• Compatible with 9/16" pedals
• Laser-etched KHE MVP logo
Bottom Bracket Features (MID BB):
• Brand: KHE
• Axle: 19 mm, compatible with 48T
• Axle material: 4130 CrMo steel
• Bottom bracket: MID BB sealed industrial bearings
• Bearings sealed and protected by covers
• Bearing outer diameter: 41 mm
• Axle length: 140 mm
• Includes adapters for Ø24 mm chainrings
• Spacers & bolts included
• Total weight: 462 g (axle only 242 g)
• Color: Black
| Material: | 4130 CrMo |
|---|---|
| Size: | for 9/16" pedals |
| Colour: | Oil slick |
| Weight: | 1.02 lbs / 462g, 1.38 lbs / 628g |
| Length: | 6.69" / 170mm |
| Teeth: | 48T |
Intended use: The BMX crank arms and the included MID BB bottom bracket are designed as bicycle components for BMX bikes. They are used to transfer rider power to the drivetrain and are intended for BMX use only. The components must only be installed on compatible BMX frames, axles, chainrings and pedals.
Wearing instructions / Use / Assembly: The crank arms and bottom bracket must be installed correctly and professionally. Ensure that the crank arms are properly mounted on the 19 mm axle, all bolts are securely tightened and the bearings are correctly installed. Before each ride, check that all components are securely fastened, rotate smoothly and show no unusual noise or play. Improper installation or loose components may result in loss of control and serious injury.
Care and cleaning: The crank arms and bottom bracket should be cleaned regularly to remove dirt and debris using water and a mild cleaning agent. Avoid aggressive cleaners or solvents, as they may damage surfaces and bearings. Bearings should be inspected regularly and serviced or replaced if necessary.
Replacement in case of wear: Crank arms and bottom brackets are subject to natural wear. If cracks, deformation, excessive wear, damaged bearings, axle play or restricted rotation are detected, the affected parts must be replaced immediately. Continued use of worn or damaged components poses a significant safety risk.
