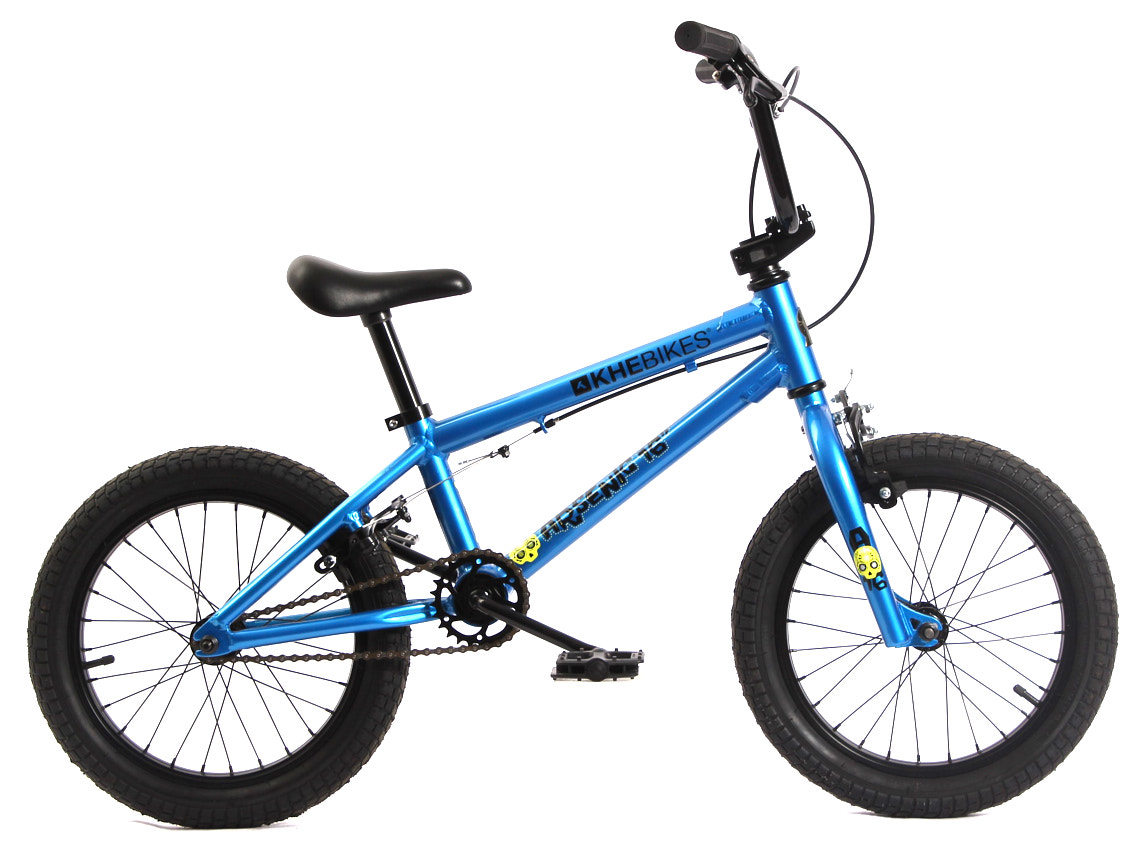

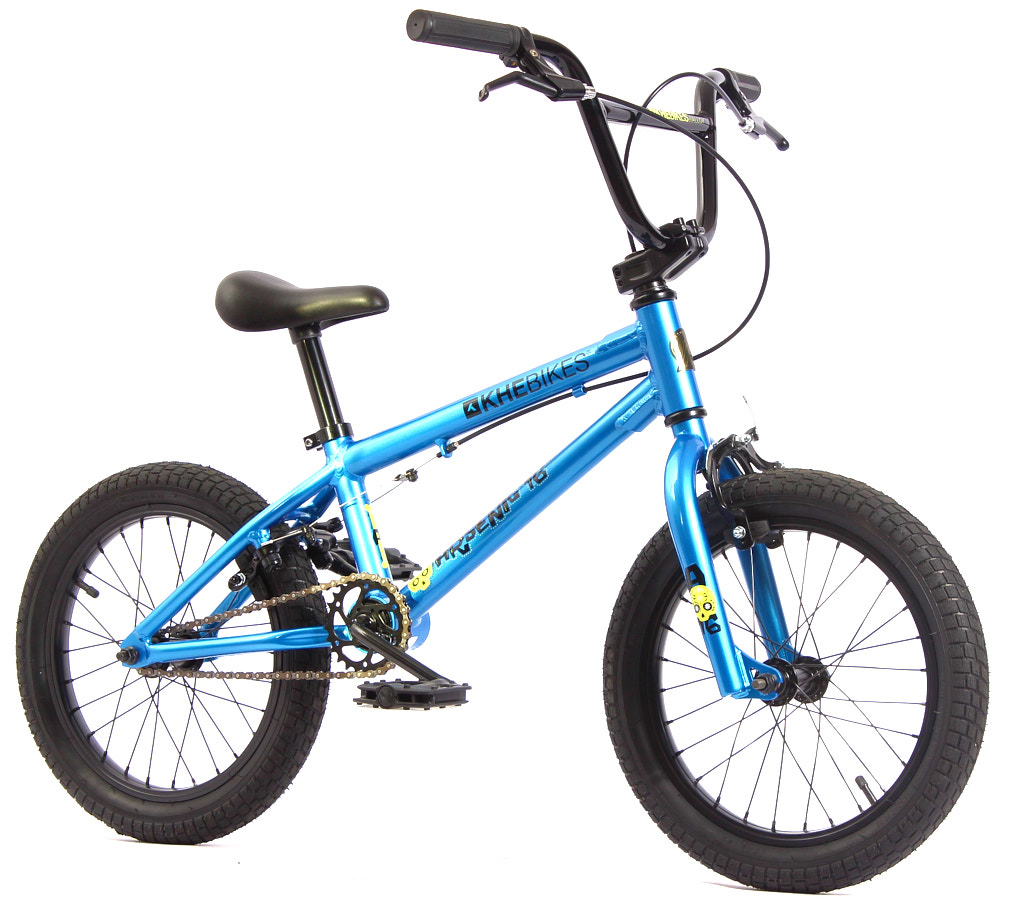

To make BMX riding possible even for children aged 5 and up with a height of 3'5" (105 cm), we developed the Arsenic 16 inch. With this bike, first tricks, jumps or just cruising off-road are no problem at all.
We are especially proud of its weight: Since the Arsenic LL 16” is equipped with a high-quality and durable aluminium frame and features an optimised geometry, it weighs only 17.6 lbs (8.0 kg). This is especially important because young riders often lack strength, and a BMX that is too heavy is difficult for kids to control. The bike features a blue anodised finish and fat tyres that offer grip and look great. With this KHE entry-level bike, fun and safety are guaranteed.
Your height should be: 3'5"–4'1" (105–125 cm)
Maximum rider weight: 88 lbs (40 kg)
Suitable for: Street / Park / Dirt
Pegs: Suitable for the KHE ARSENIC 16" LL are 10 mm pegs for front and rear. We recommend the KHE COP ALU pegs.
The BMX bike is approx. 90% pre-assembled. The manual can be found under “Datasheets”. A video tutorial is available under “Video”.
| Frame: | 6061 aluminum, top tube 15.8” |
|---|---|
| Top tube length: | 15,8" (402mm) |
| Fork: | made of aluminum |

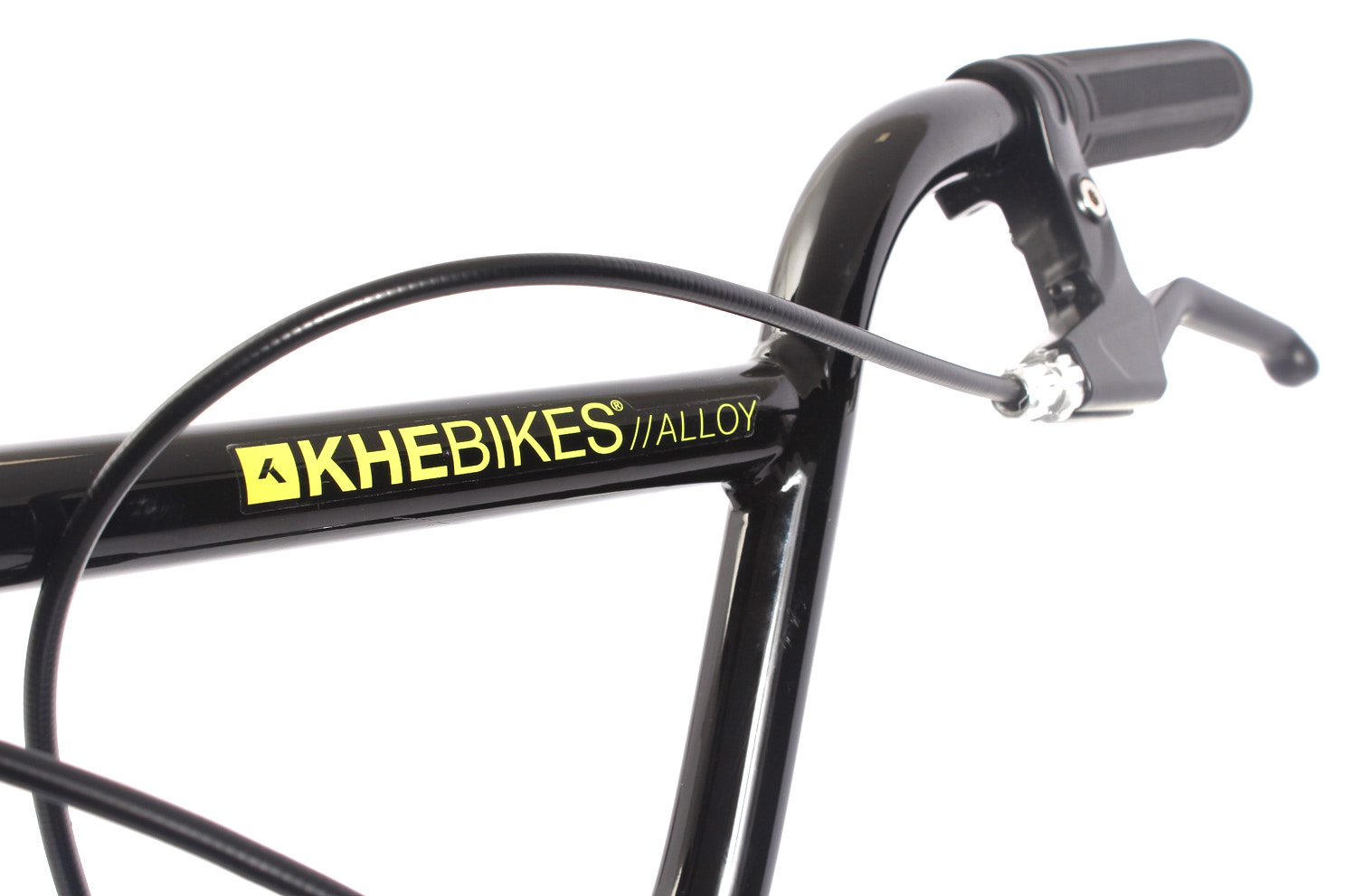

| Handlebars: | 2 pezzi in alluminio |

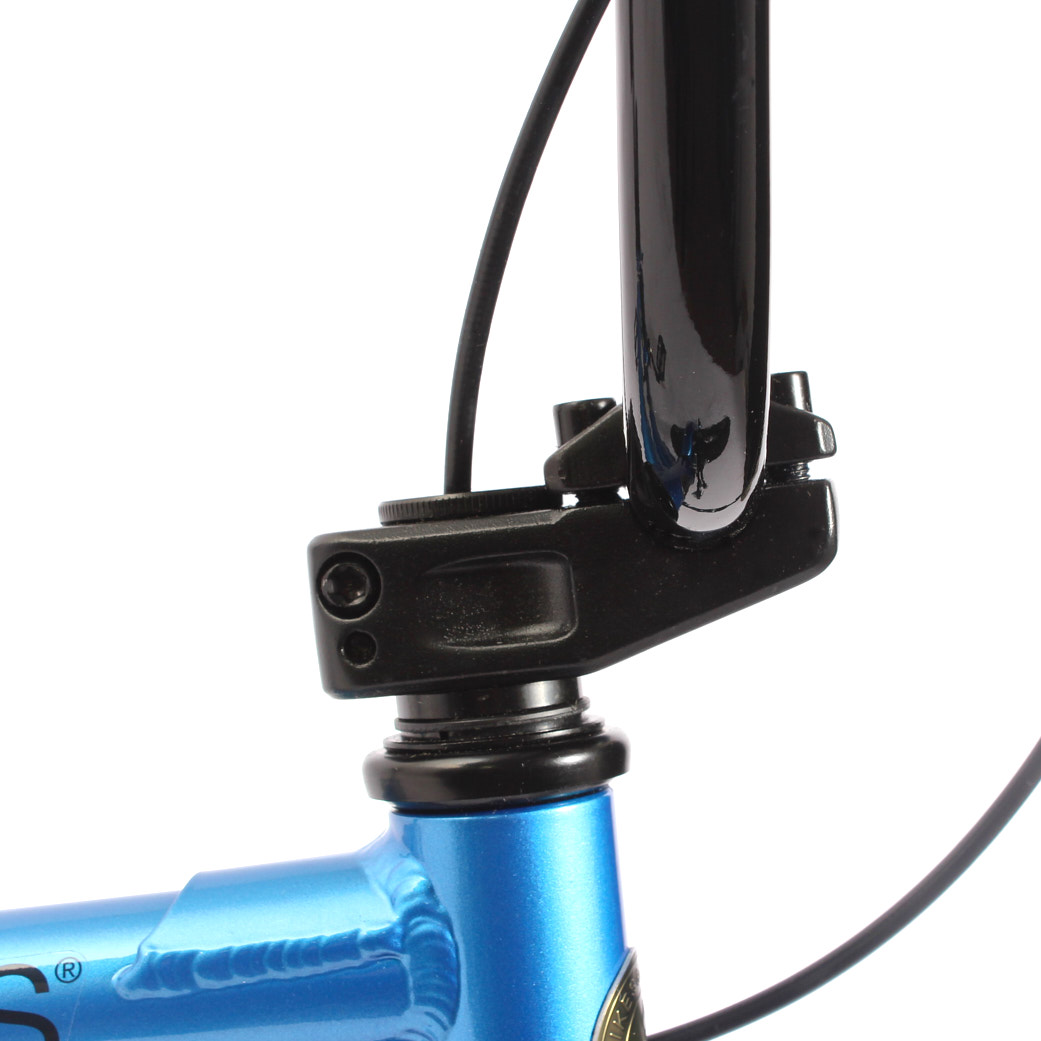

| Stem: | Top Loader |
| Headset: | 1 1/8“, Standard headset |
| Brake levers: | for U-Brake |

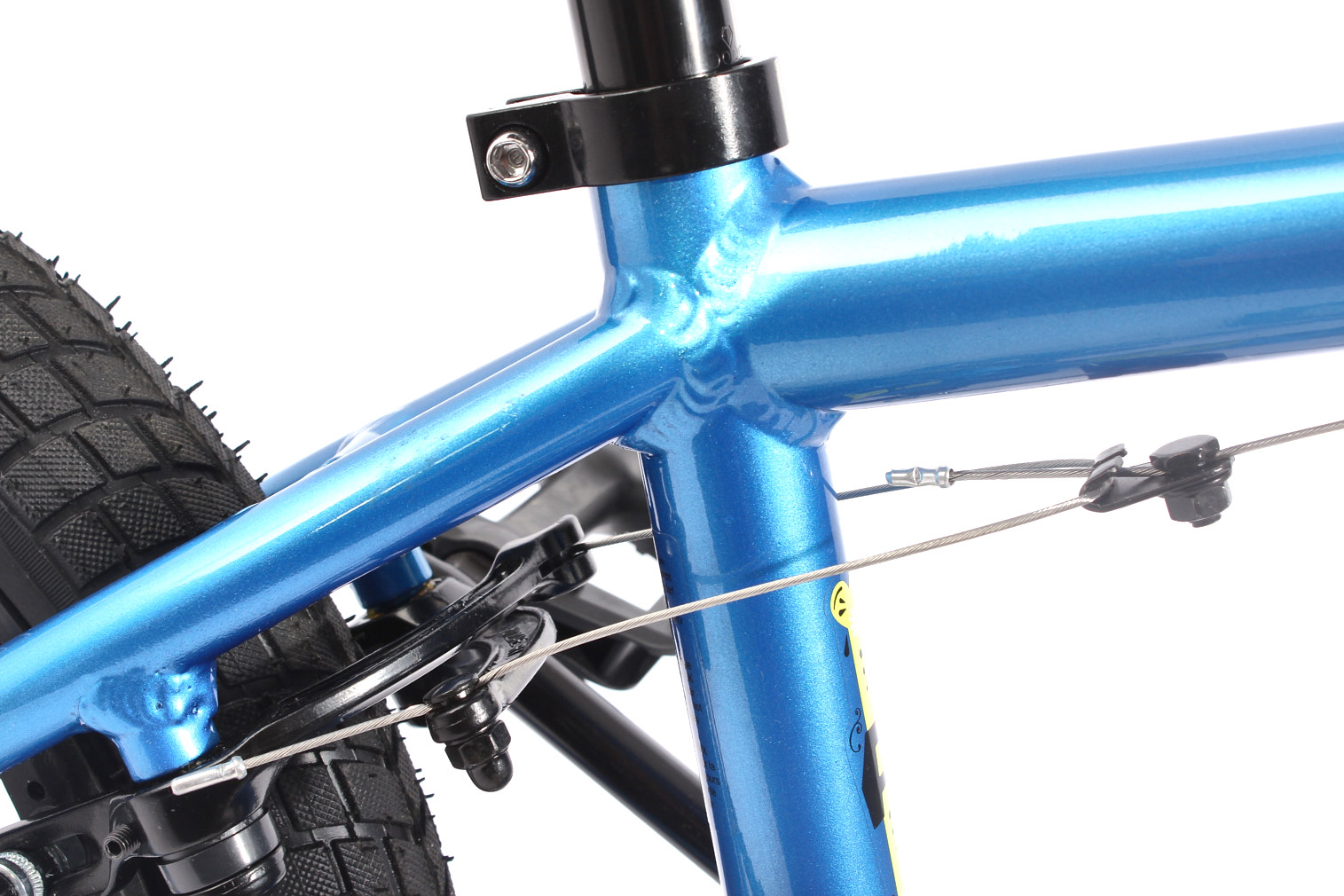

| Rear brake: | Aluminium U-Brake |

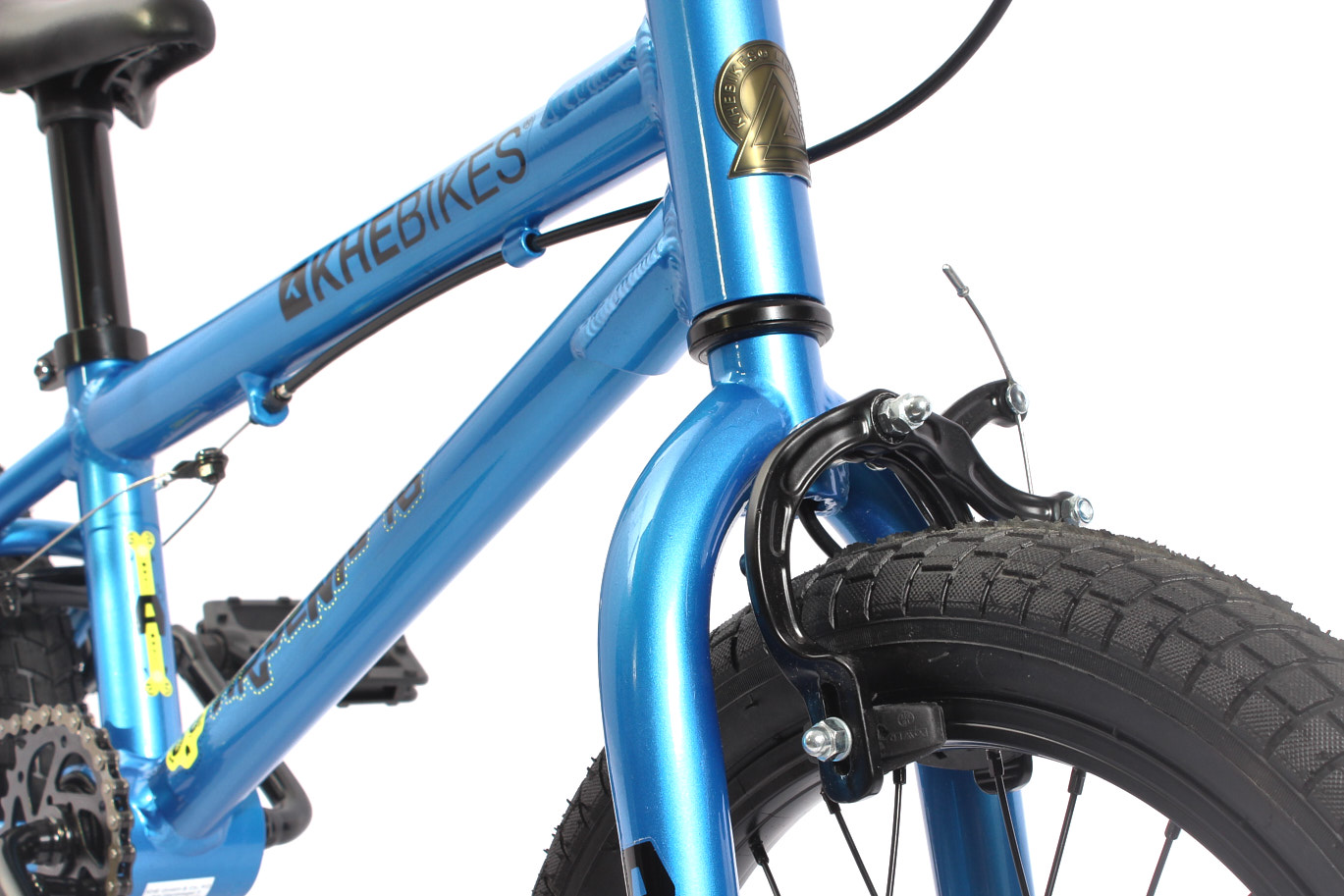

| Front brake: | Side pull (already installed!) |
| Crank: | very sturdy forged one-piece crank 140mm |
| Bottom bracket: | US-BB Loose Ball |
| Chainring: | 25T teeth steel |

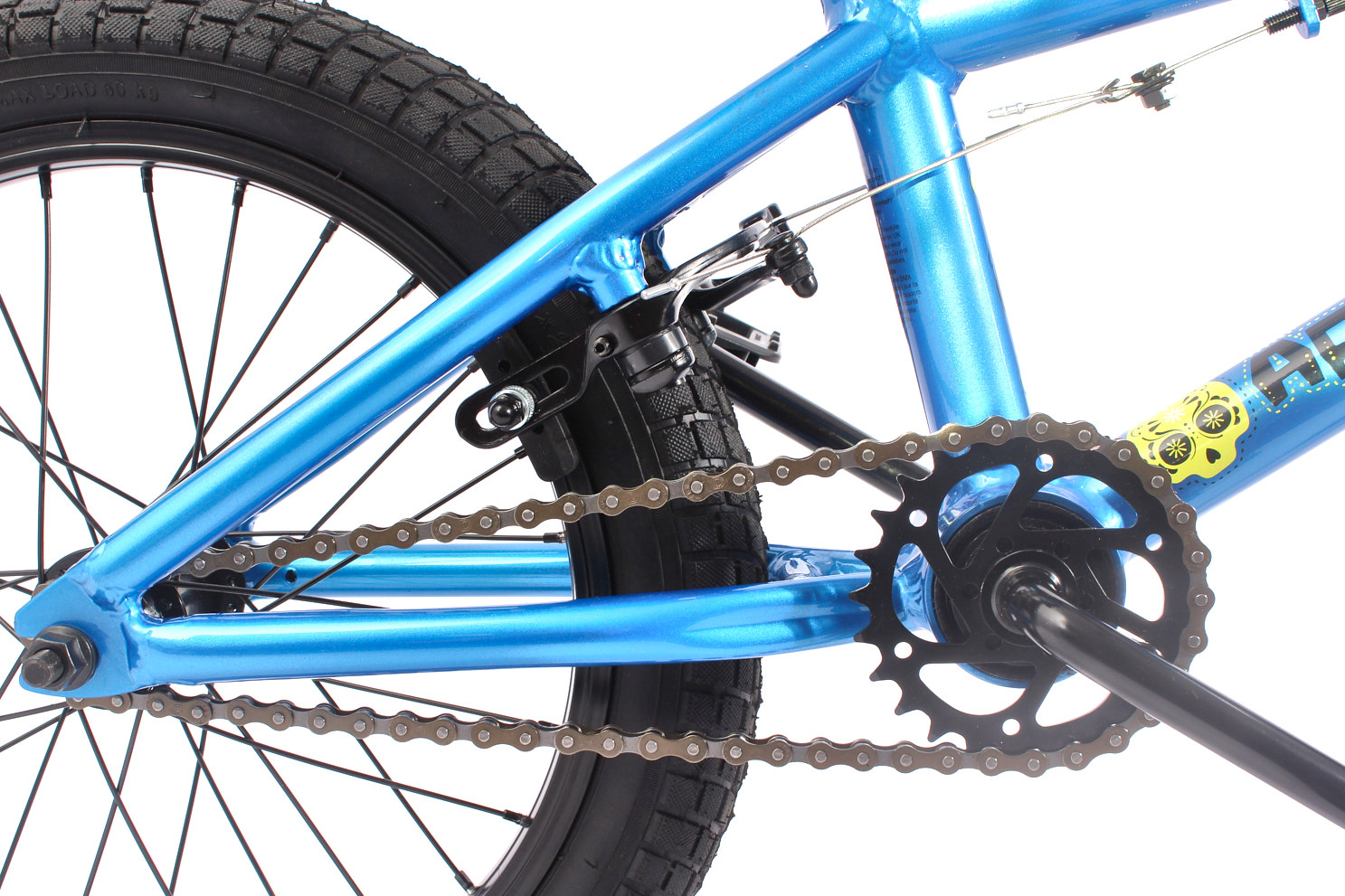

| Chain: | YBN |
| Pedals: | PVC 1/2" |
| Brake type: | U-brake |
| Saddle: | ammortizzata e con reggisella integrato |
| Brake cable: | extra long for handlebar turns |
| Seatpost: | Aluminium |
| Front wheel: | Aluminum rim, 28 hole prism hub 10mm axle |
| Rear wheel: | Aluminum rim, 28-hole Prism hub, 10 mm axle, 9-tooth cassette hub |
| Tyres: | 2.125" extra wide black tires |
| Material: | Aluminum |
| Tire size: | 16 inch |
| Category: | BMX Freestyle |
| Size: | 16 ", 3'5" - 4'1" in |
| Colour: | Blue |
| Weight: | 17.64lbs / 8,0kg |
| Model Year: | 2023 |
| Sale: | Sale |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight:
40kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
