BMX bike KHE EVO 20 inch 23.4 lbs

£419.00*

Available, delivery time: 2-5 business days **

21 % Stock
The KHE EVO 20 inch 2025 is an ultra-light street and park BMX with a CrMo 4130 frame and AFFIX rotor, ideal for ambitious riders seeking precise control and responsive handling at 23.4 lbs.
Product number: 1604-020-04
EAN: 4260640298359

Accessories

BMX brake set Sidepull KHE
BMX brake set Sidepull KHE
£24.95*
More…
Vorderansicht BMX Peg Set schwarz für 14mm Achsen hinten und 10mm vorne
BMX Peg Set KHE BLACK STEEL 14mm PAIR and 10mm pair
£14.95*
More…
Bicycle stand KHE 14 to 28 inch
Bicycle stand KHE 14 to 28 inch
£27.95*
More…
%Sale
BMX Handschuhe von KHE in Schwarz, Orange
BMX Gloves KHE 4130 M
£11.95* £16.91*
More…
%Sale
Tip
BMX Helm von KHE in Schwarz
BMX Helmet KHE PRO L
£24.95* £29.62*
More…
BMX elbow guards O’NEAL DIRT Youth one size
BMX elbow guards O’NEAL DIRT Youth one size
£33.95*
More…
BMX knee pads O’NEAL DIRT Youth L/XL
BMX knee pads O’NEAL DIRT Youth S/M
£42.95*
More…
BMX upper body protector O’NEAL PXR Stone Shield one size
BMX upper body protector O’NEAL PXR Stone Shield one size
£99.99*
More…
Tip
Aufkleber Bogen von KHE in Rot, Schwarz, Grau
Sticker sheet KHE Original
£8.95*
More…
%Sale
BMX Pegs KHEbikes Laser Pro 1 Paar für 10mm und 14mm Achsen
BMX Pegs KHE LASER PRO Pair
£18.95* £25.38*
More…
%Sale
Vorderansicht BMX Pegs KHEbikes CNC gedreht aus HiTen Stahl
BMX Pegs KHE CNC PRO PAIR
£16.95* £21.15*
More…
Product information "BMX bike KHE EVO 20 inch 23.4 lbs"



KHE EVO 20 inch BMX



KHE 2025 BMX Series

With over 35 years of experience, KHEbikes combines innovation, advanced engineering and outstanding riding performance. The new 2025 models feature optimised geometries, carefully considered details and high-quality components – direct from the manufacturer for maximum performance on any terrain.

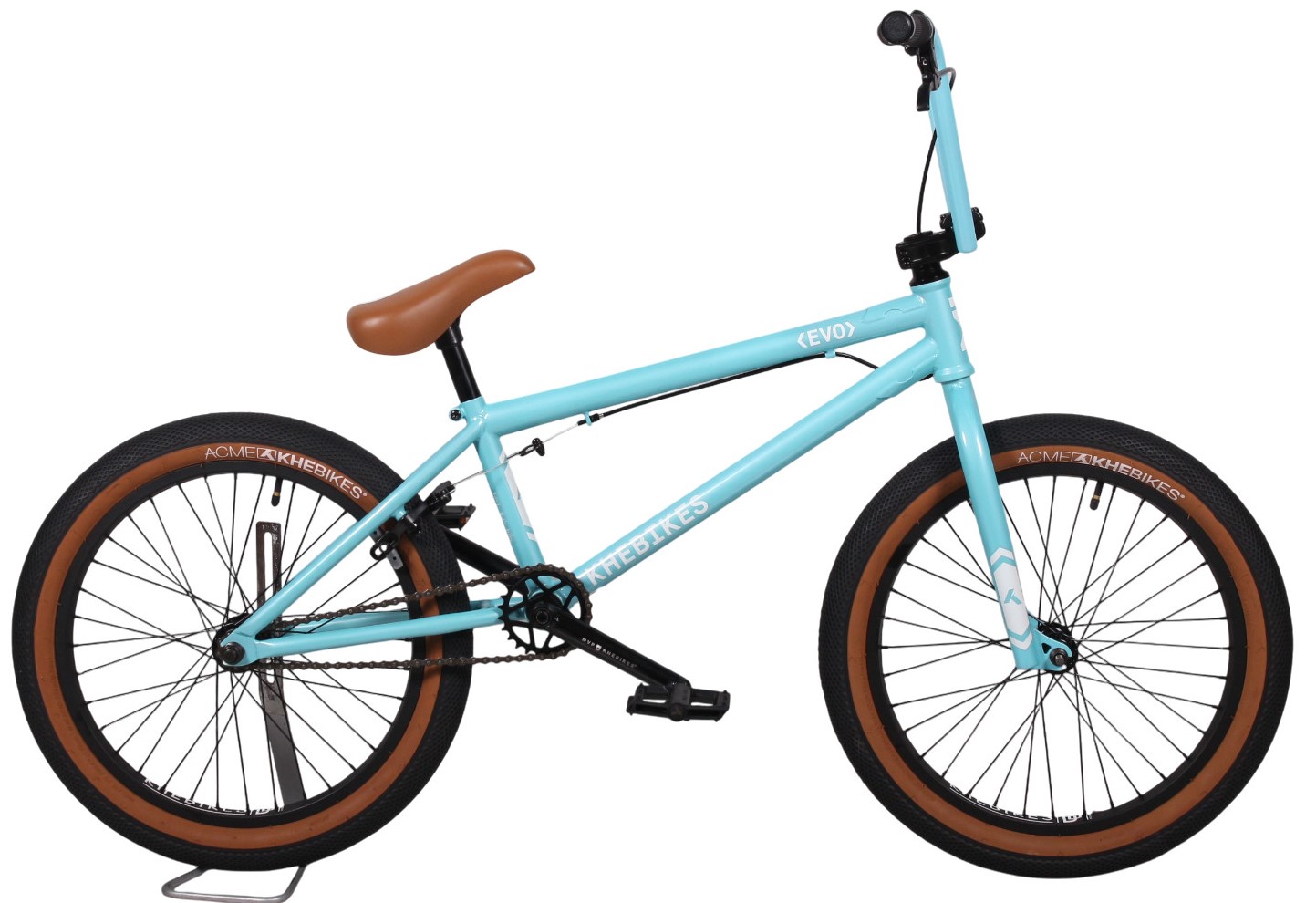

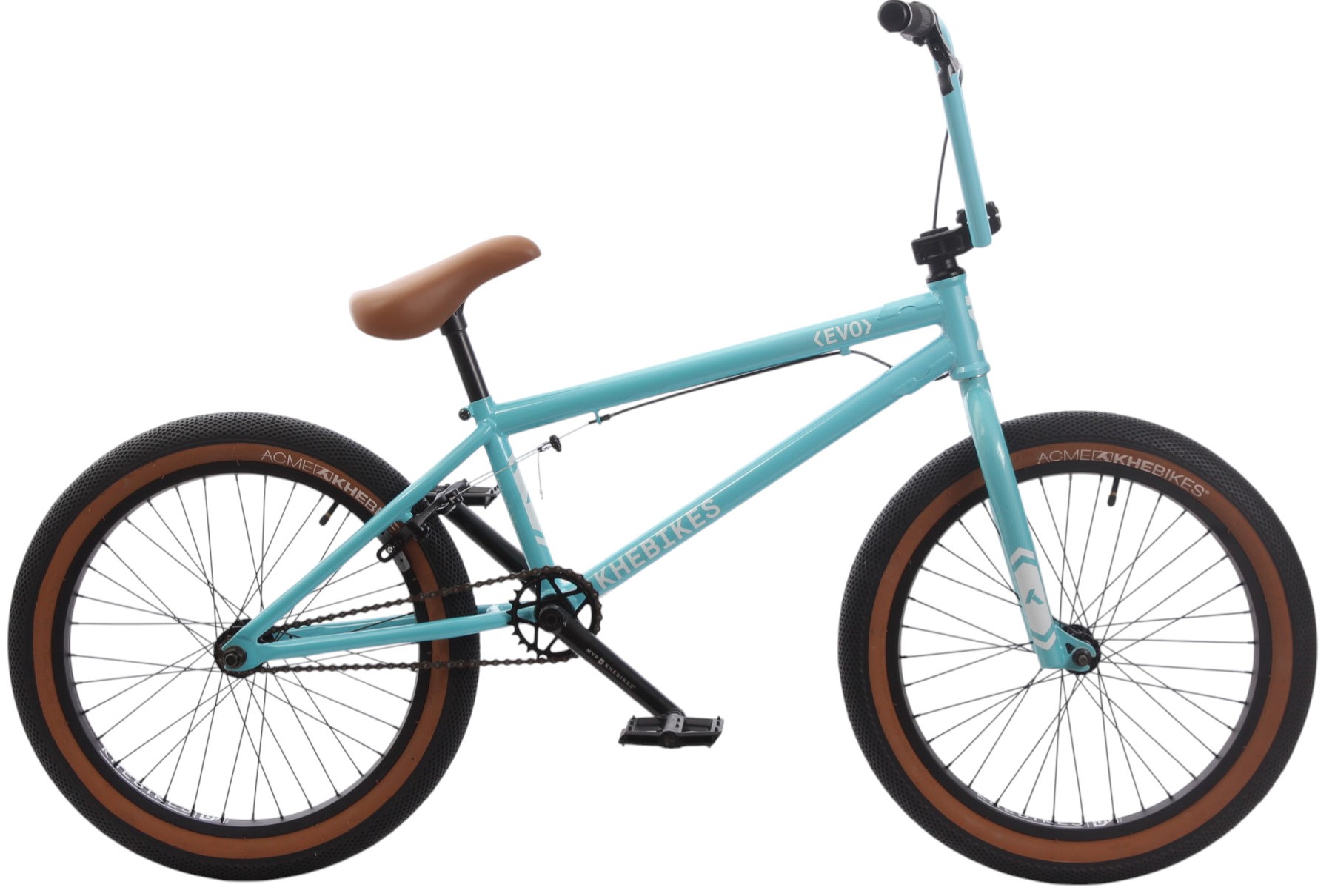

KHE EVO 20 Inch – Lightweight Street & Park BMX with Rotor

The KHE EVO 20-inch BMX is a lightweight, well-equipped Street and Park BMX designed for ambitious riders. Weighing just 10.6 kg (23.4 lbs) despite its rotor system, it offers agile handling and excellent control during tricks and jumps. The robust CrMo 4130 frame with a 20.6" (523 mm) top tube provides balanced geometry and is ideal for demanding BMX riding.

High-quality components include a 3-piece hollow CrMo crankset with a 48-spline spindle, precision-bearing hubs and an integrated headset. The KHE AFFIX rotor system allows barspins and 360° handlebar rotations without twisting the brake cables. The wide KHE ACME 2.40" (61 mm) tyres provide excellent grip and control. The bike is supplied without a front brake fitted, which is available separately as an optional accessory.

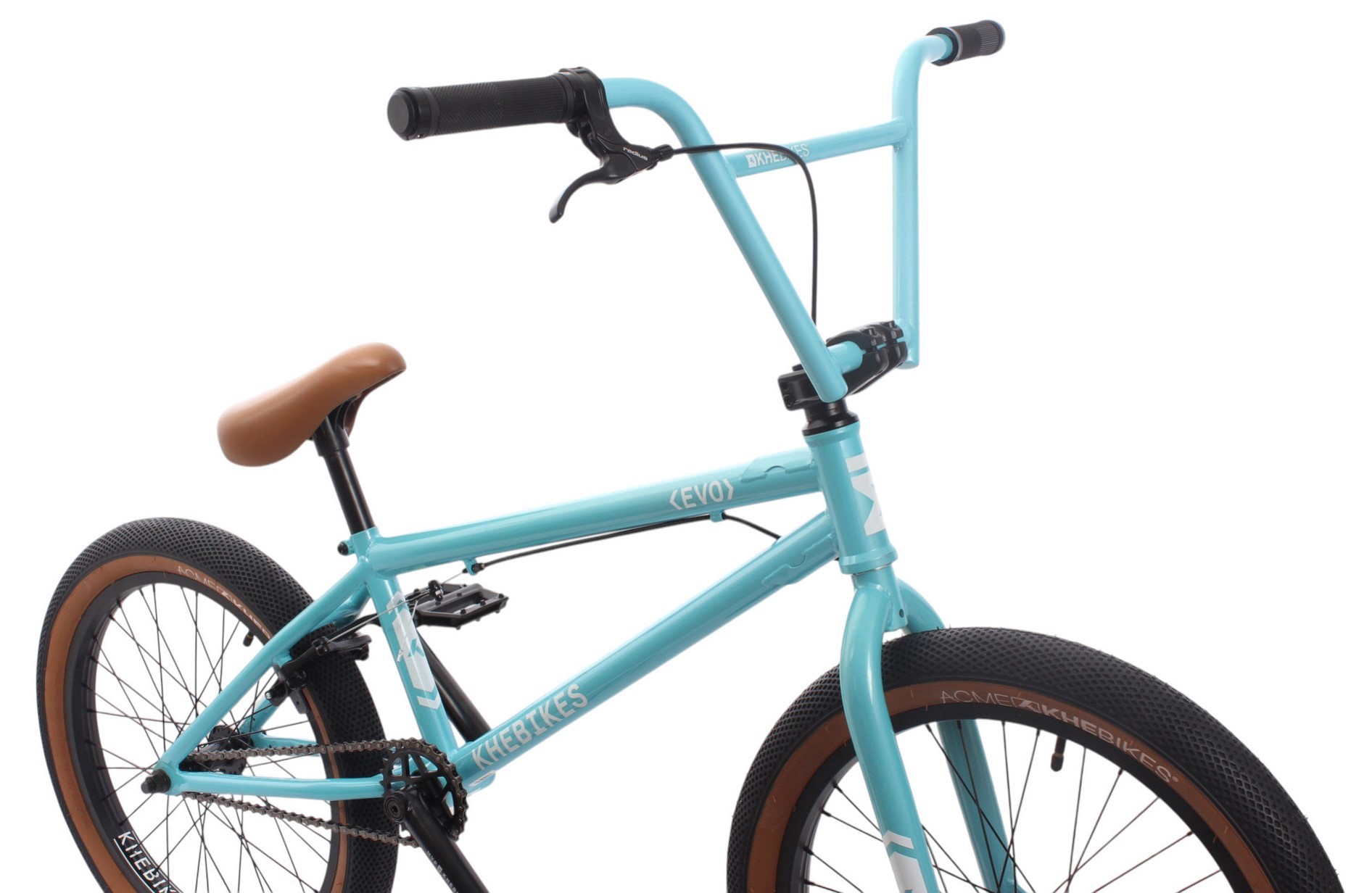

The EVO also stands out with its light blue frame, matching fork and handlebar. The matt black anodised double-wall rims and black components create a clean, modern look. KHE ACME tyres with brown sidewalls and the matching brown saddle add a classic contrast and complete the design.

Recommended rider height: 150–190 cm (4'11"–6'3")

Maximum rider weight: 120 kg (265 lbs)

Riding style: Street, Park, Dirt



Why Choose the KHEbikes EVO 20-inch BMX:

  • Just 10.6 kg (23.4 lbs) total weight despite the rotor system
  • High-quality CrMo 4130 frame with a 20.6" (523 mm) top tube
  • KHE AFFIX rotor system for barspins and 360° handlebar rotations
  • 3-piece hollow CrMo crankset with a 48-spline spindle
  • KHE ACME tyres, 2.40" (61 mm) wide for grip and control
  • Light blue design with black double-wall rims and brown accents



Pegs: The KHE EVO 20" is compatible with 10 mm front and 14 mm rear pegs. We recommend the KHE CNC PRO or LASER PRO plug-in pegs.

The BMX bike arrives approximately 90% pre-assembled. You can find the instruction manual under "Datasheets" and an assembly video under "Video".

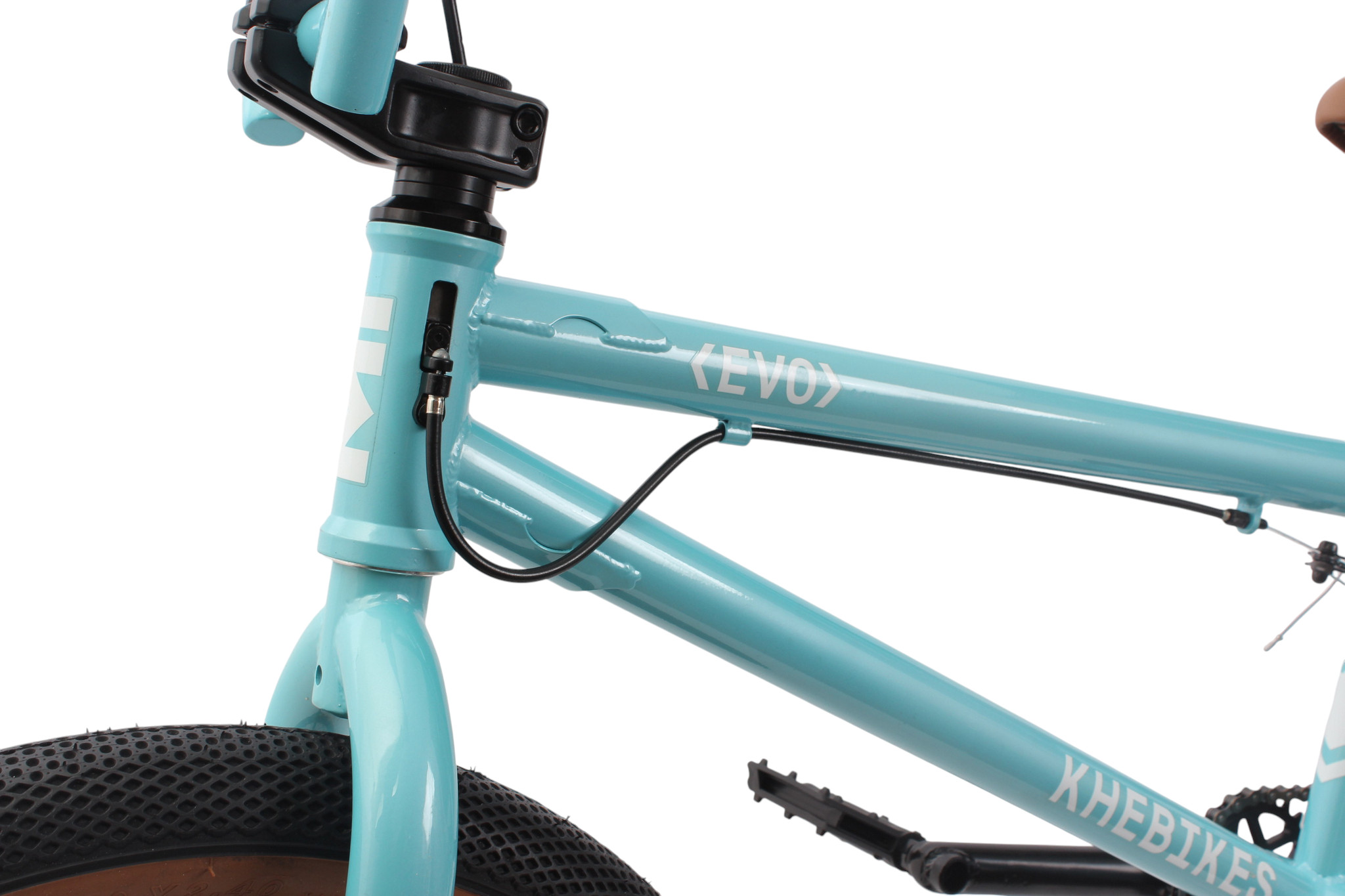

Frame: Main tubes made of CrMo 4130 steel, top tube 20.6", RC 13.7", HT 75°
Top tube length: 20,6" (524mm)

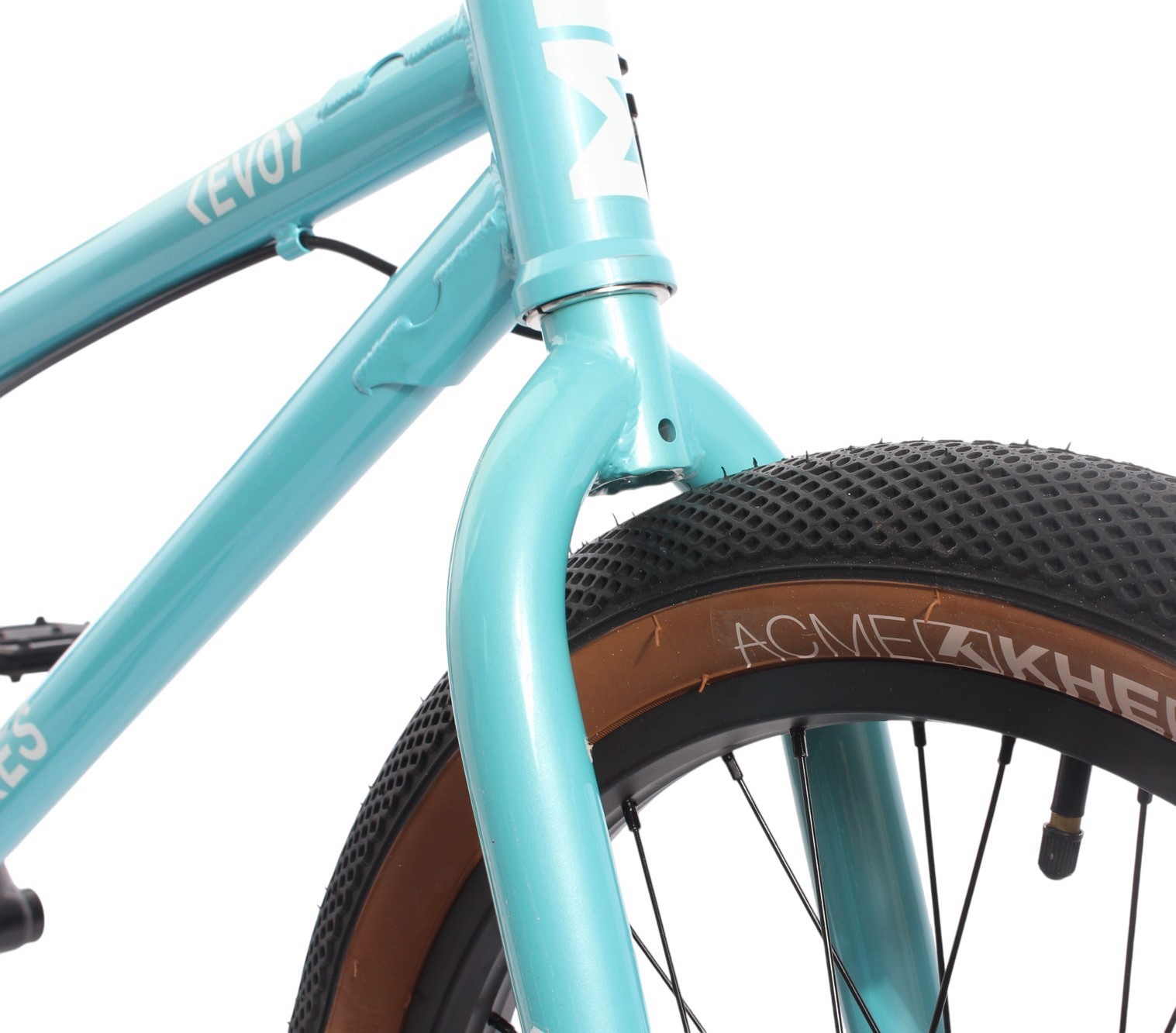

Fork: CNC steerer made of CrMo steelRotor: equipped with the AFFIX Pro Free60 Rotor System

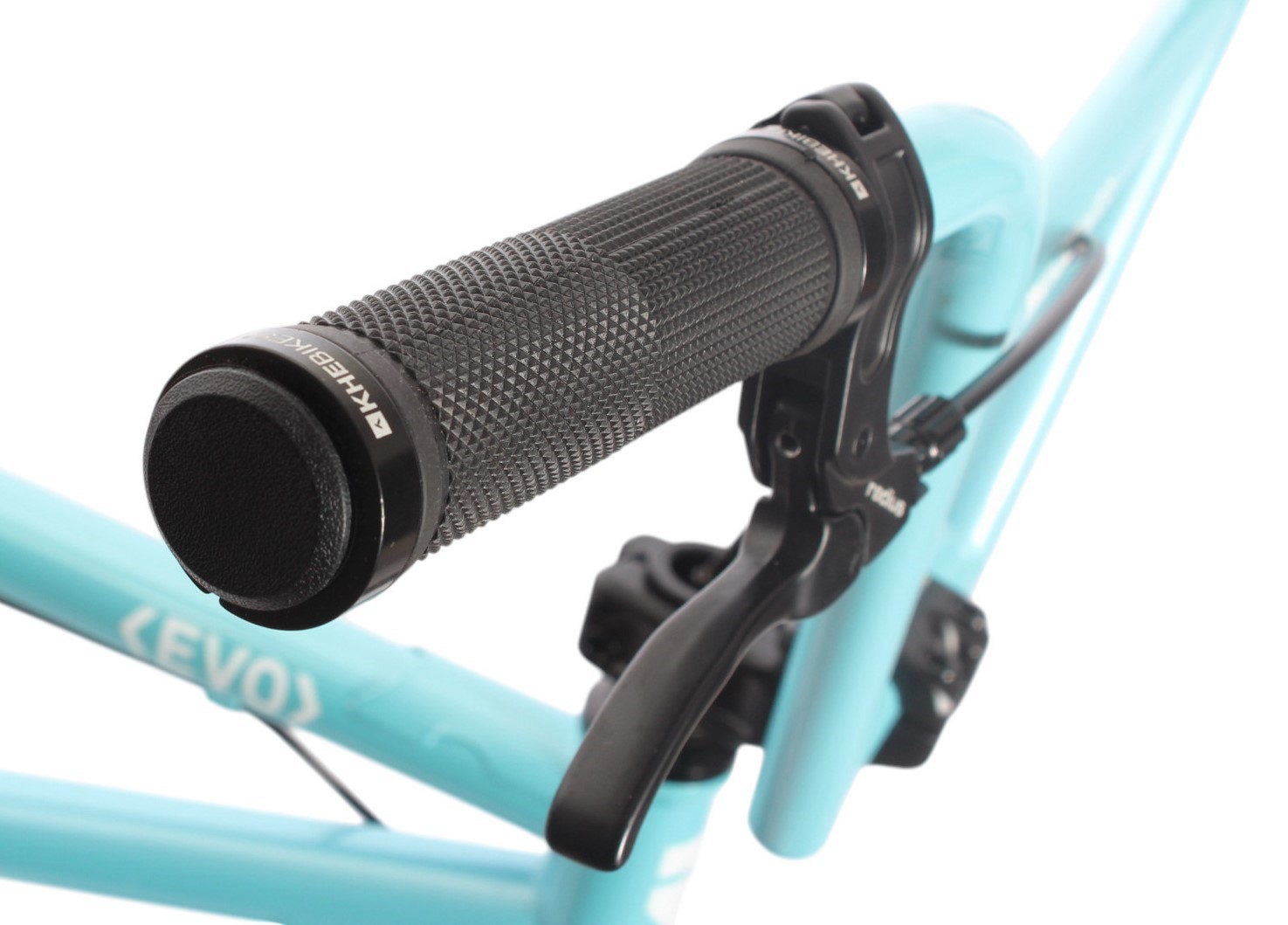

Handlebars: KHE Multiple butted, 4-piece, 9" rise

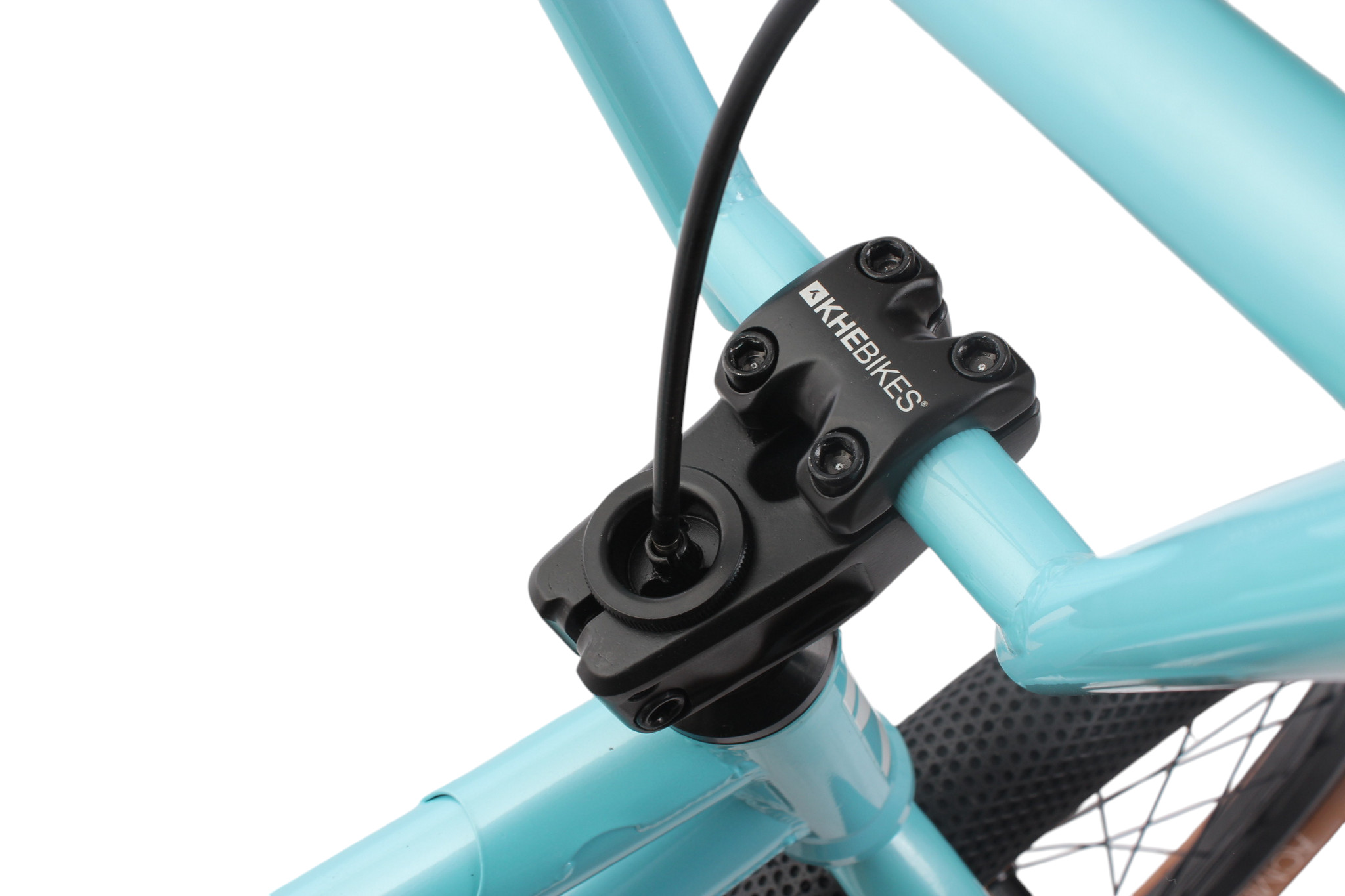

Stem: Top Loader
Headset: Intigrated headset with indusriel bearings

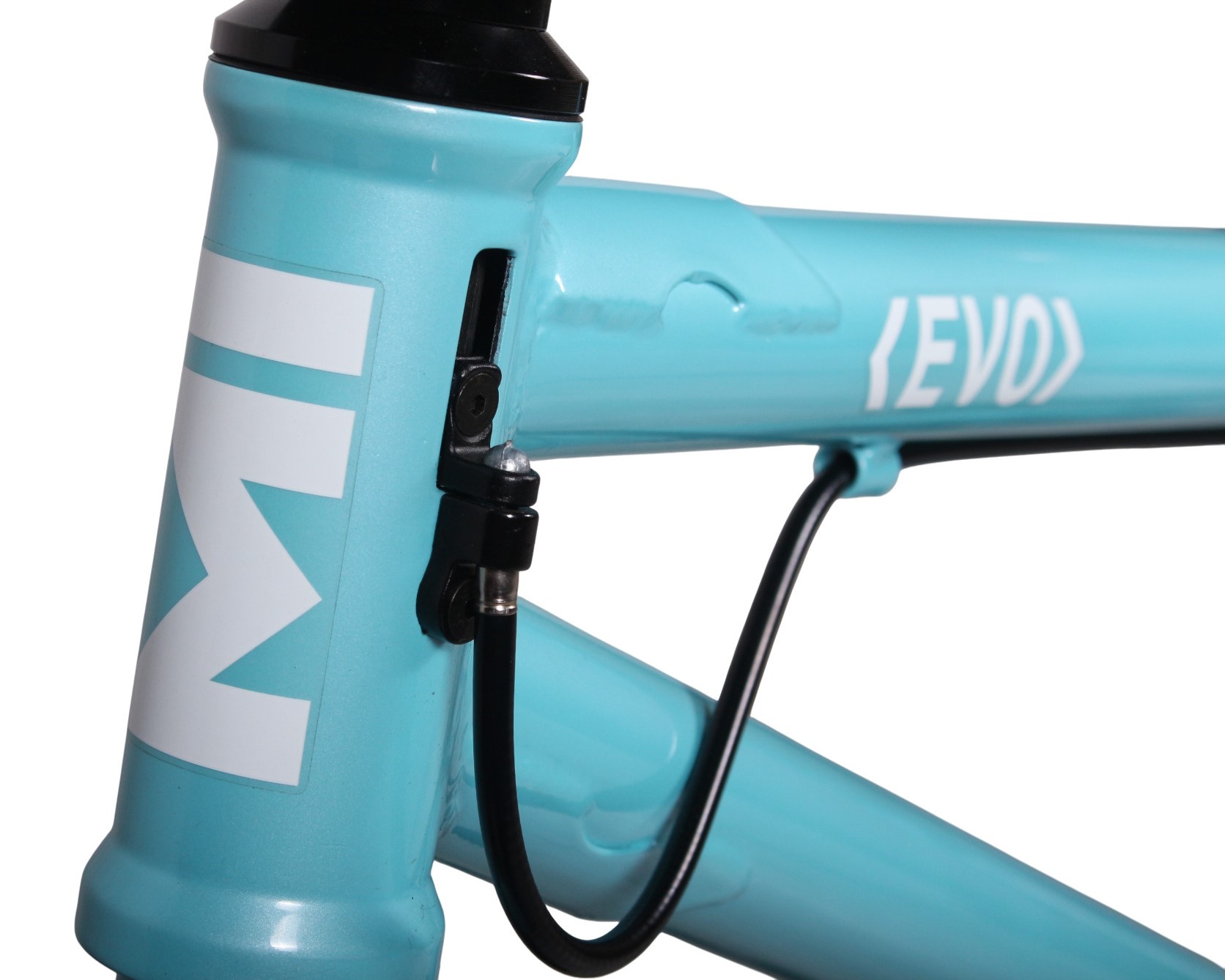

Rotor: AFFIX

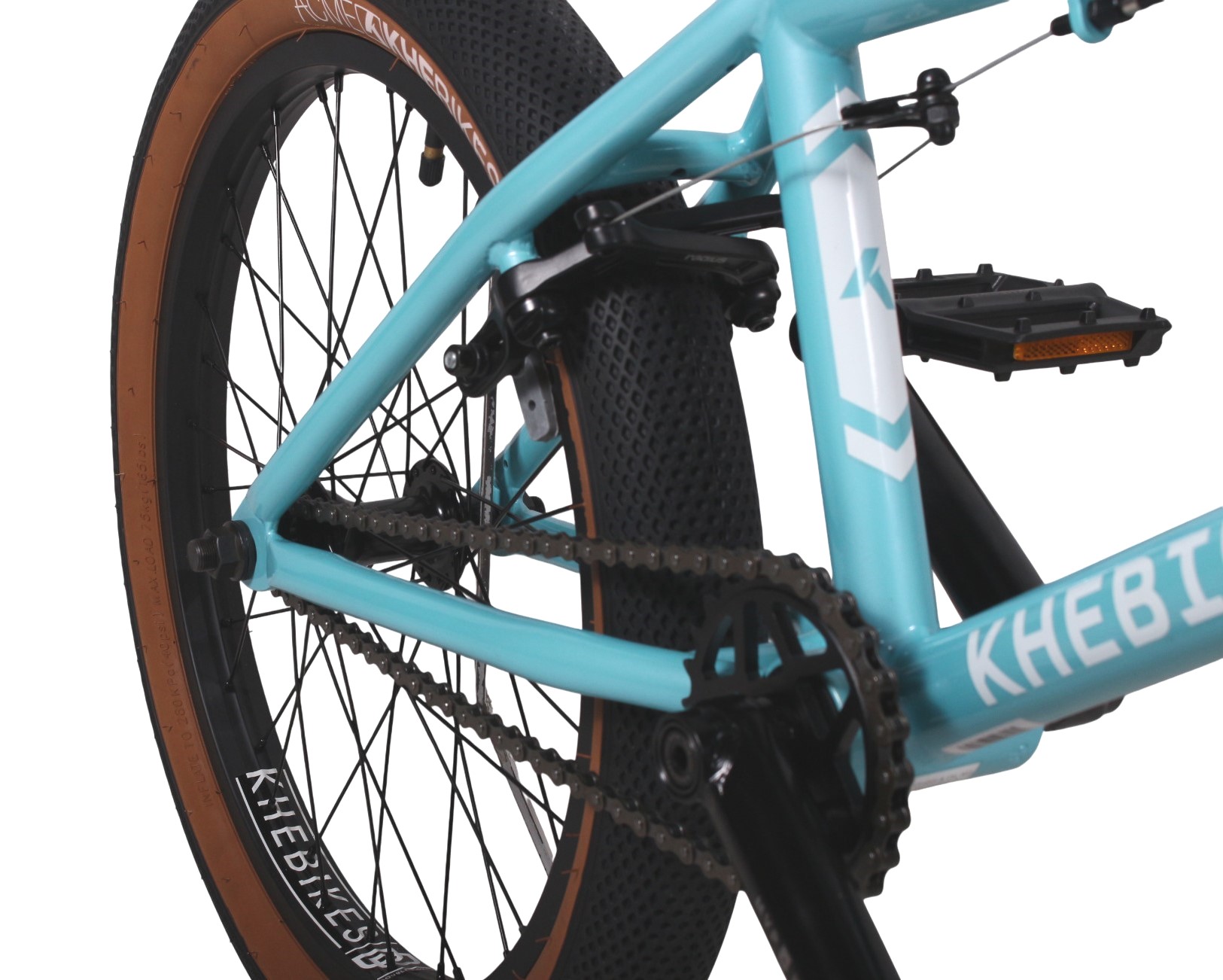

Rear brake: KHE RADIUS Aluminum U-Brake

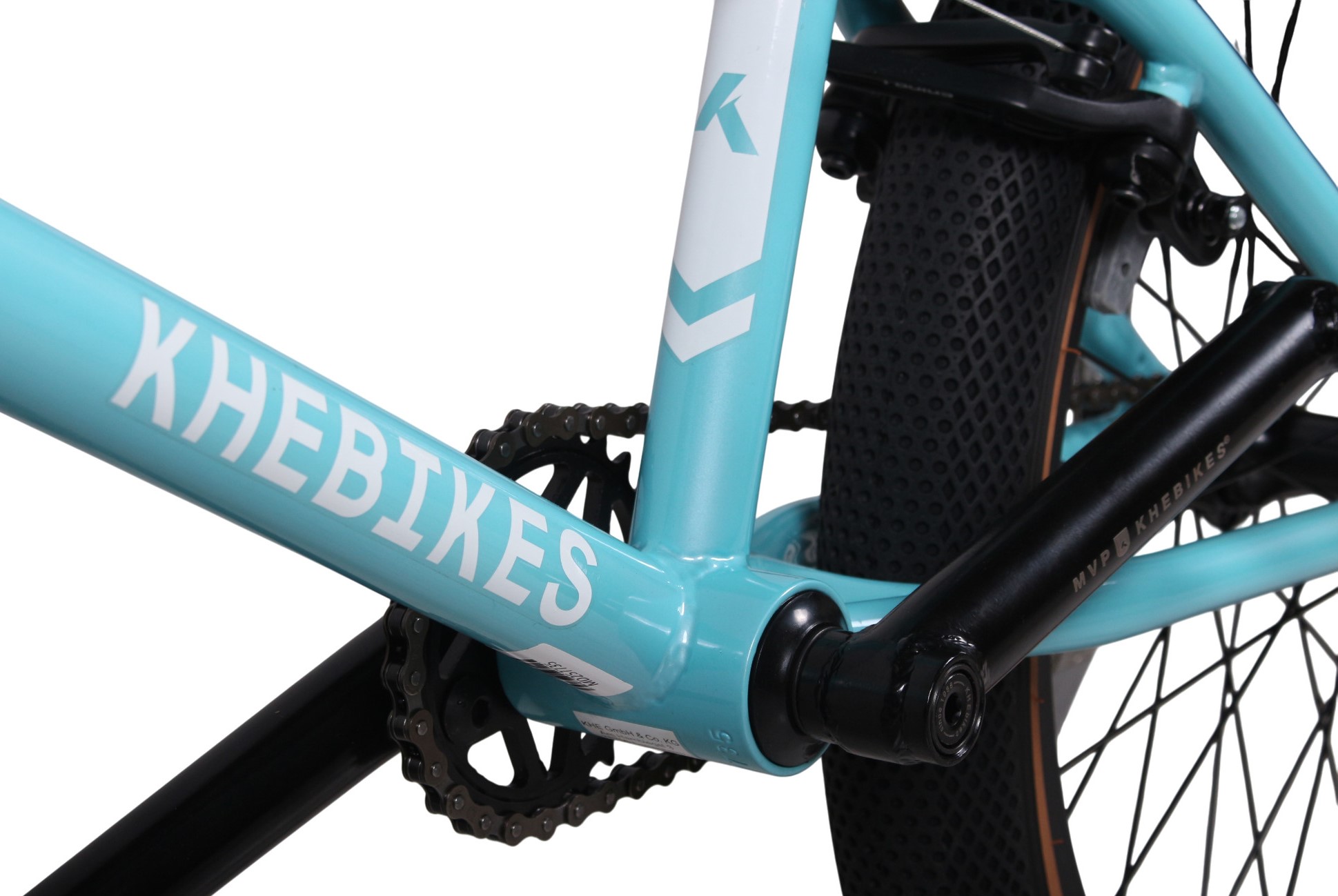

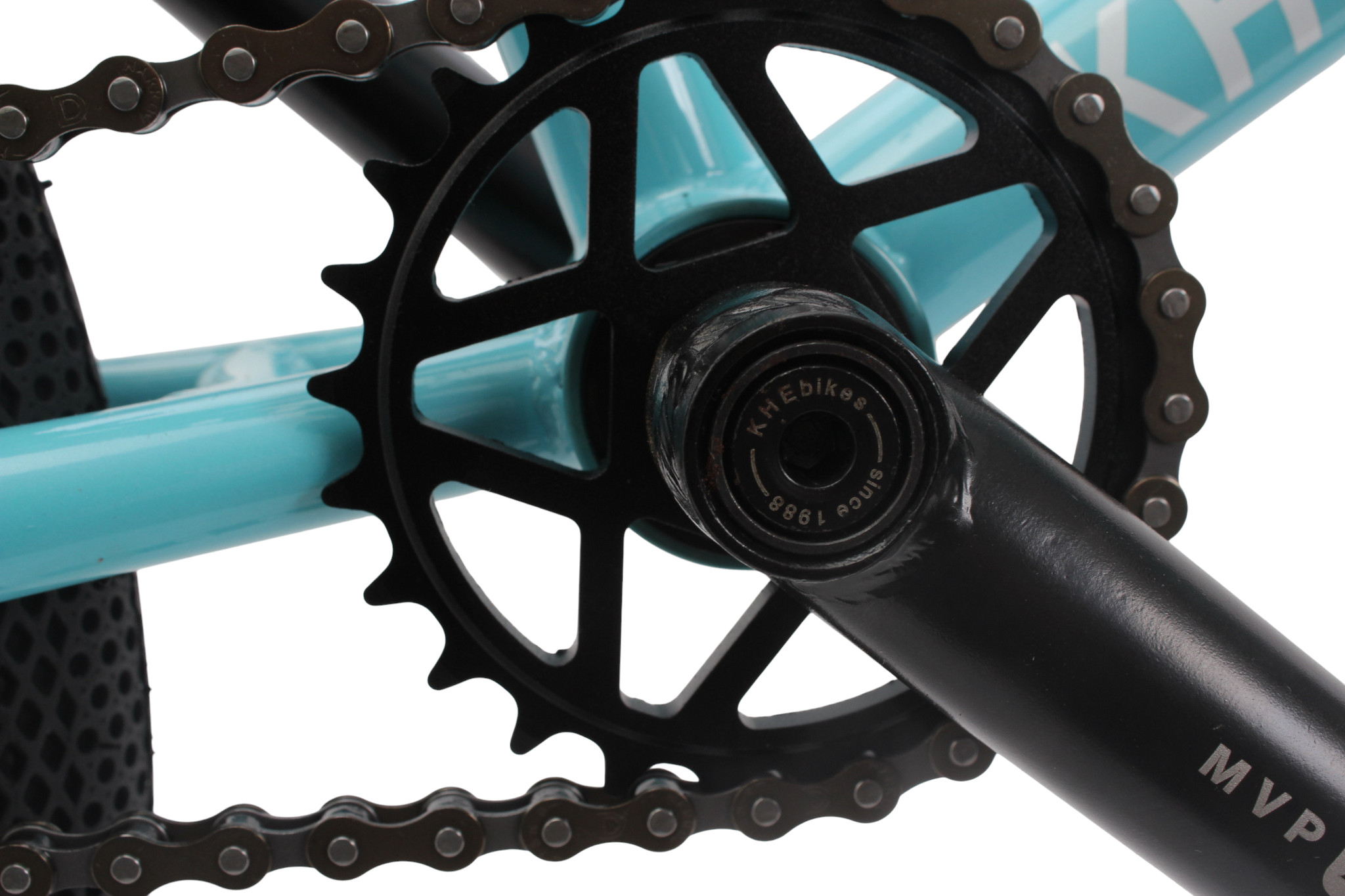

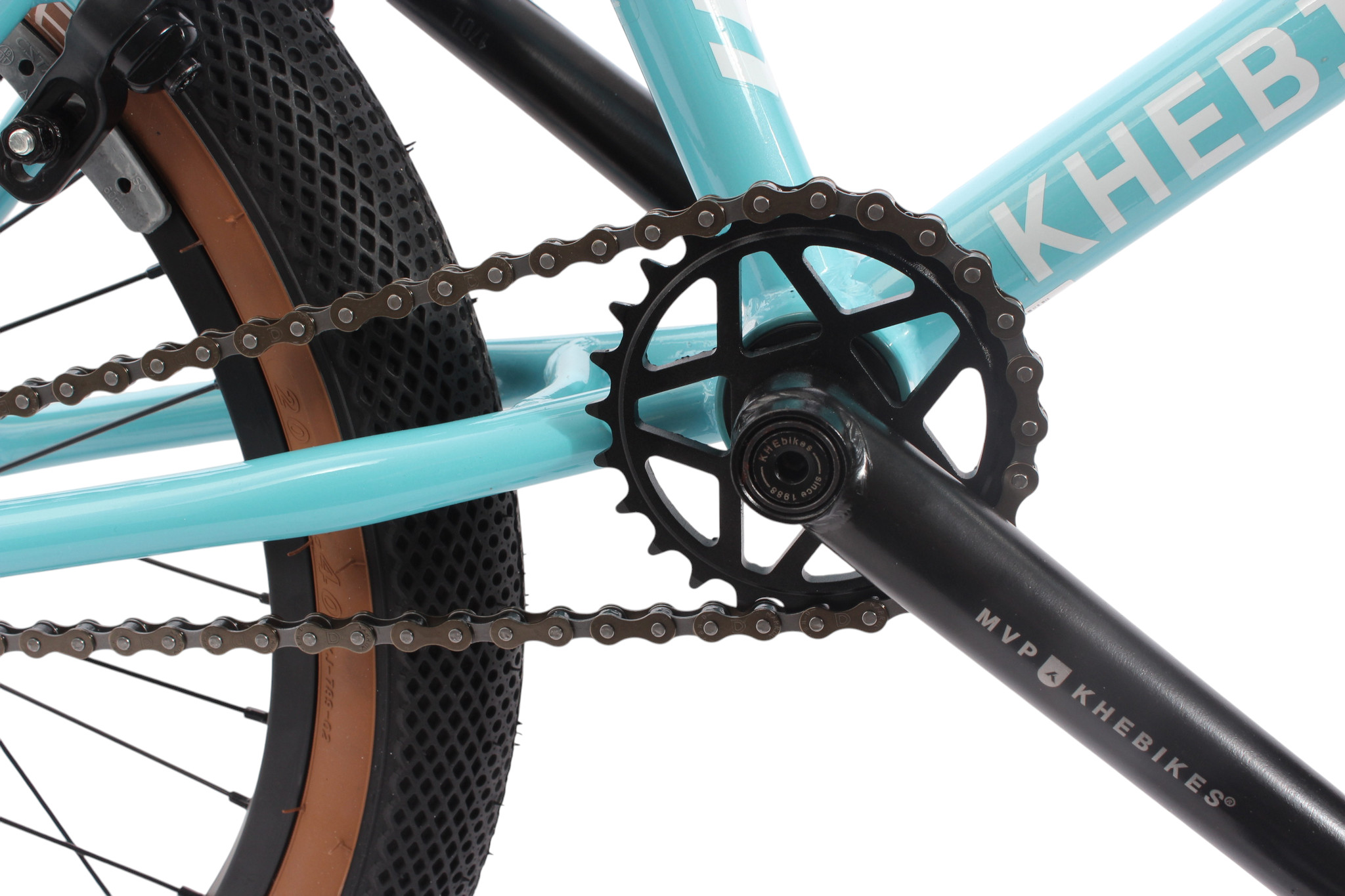

Crank: very high quality 3-piece 48 Spline CrMo hollow crank in black
Bottom bracket: MID BB
Chainring: 25T aluminum CNC
Chain: KMC

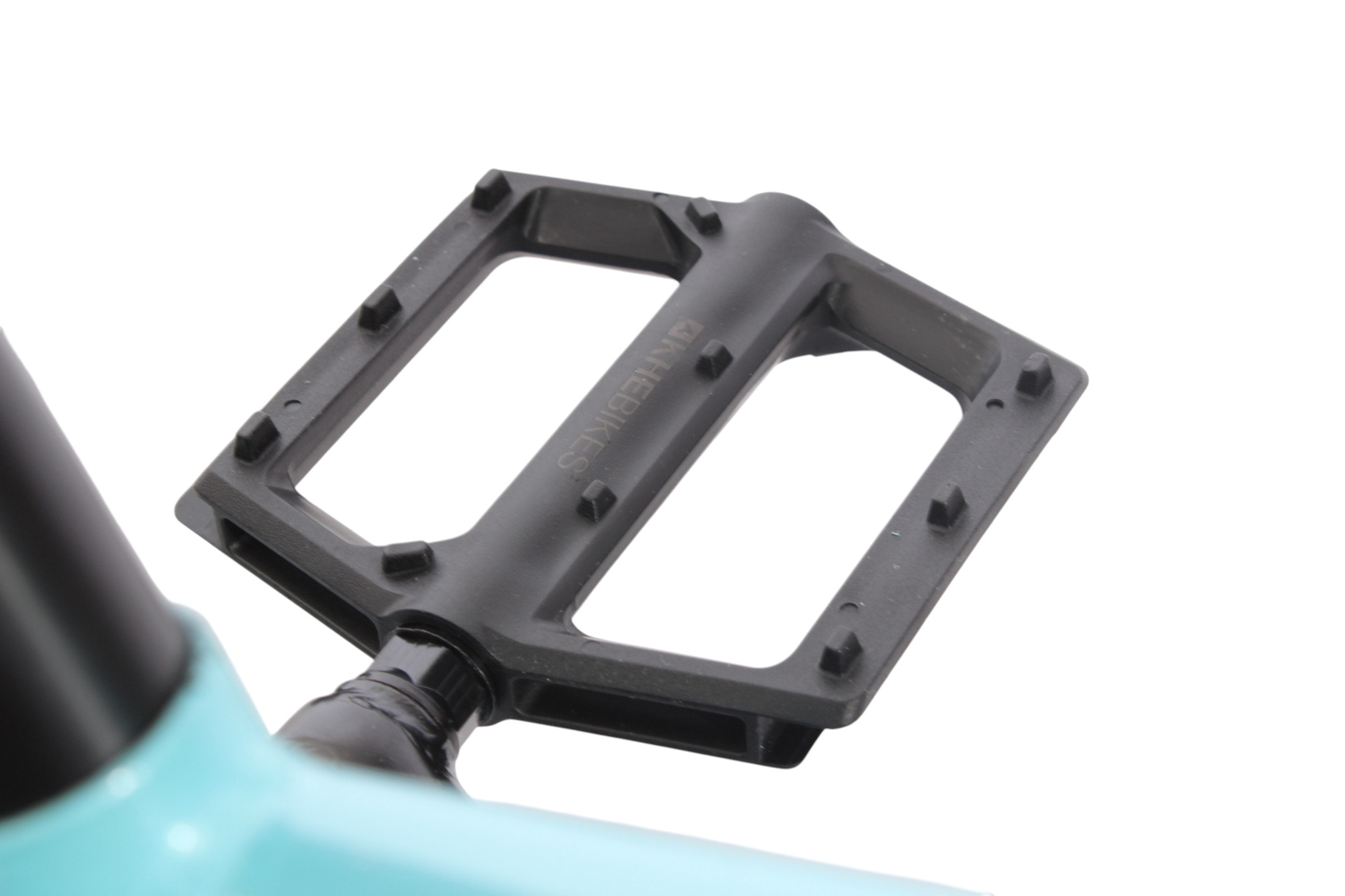

Pedals: KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle
Brake type: U-brake

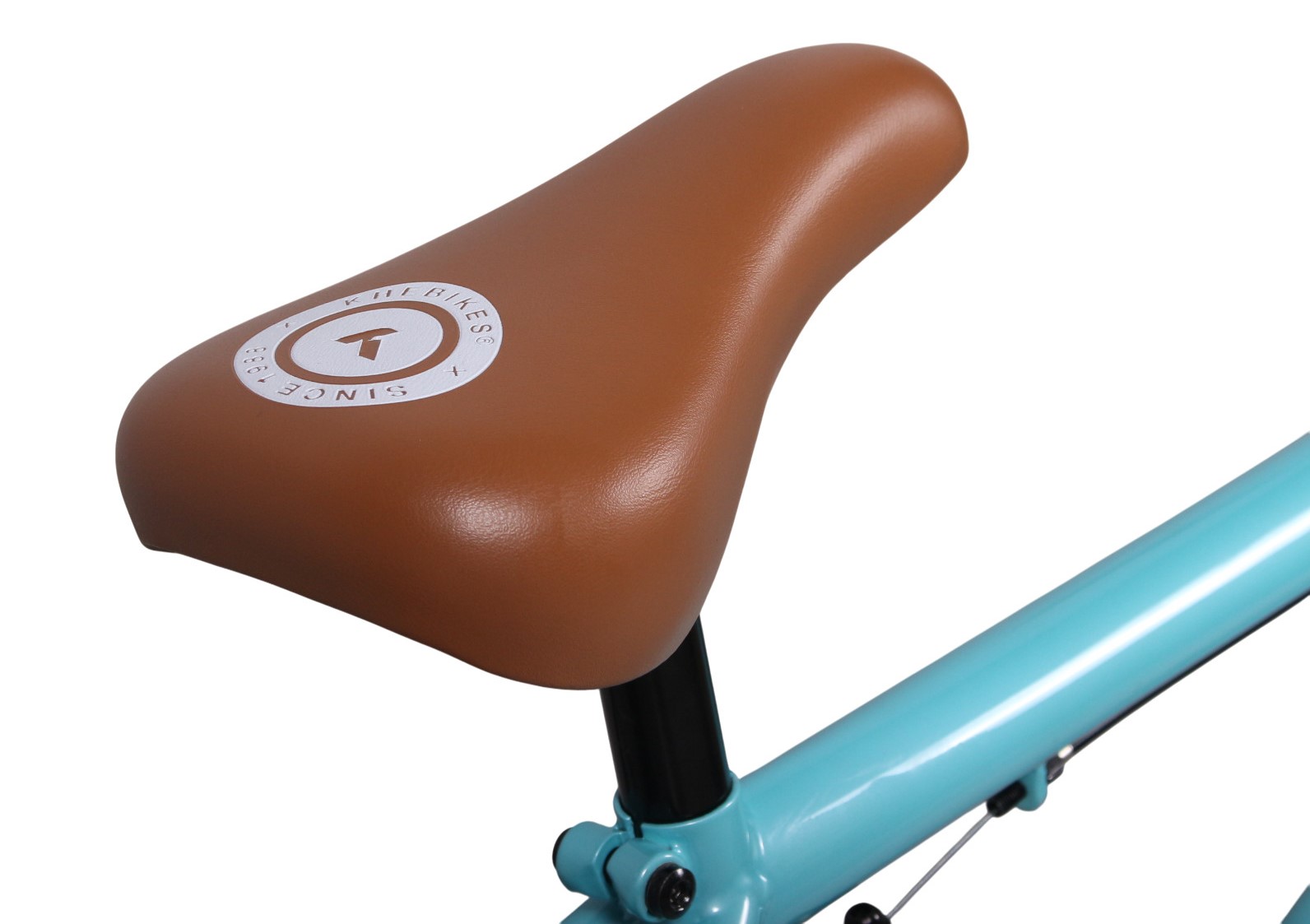

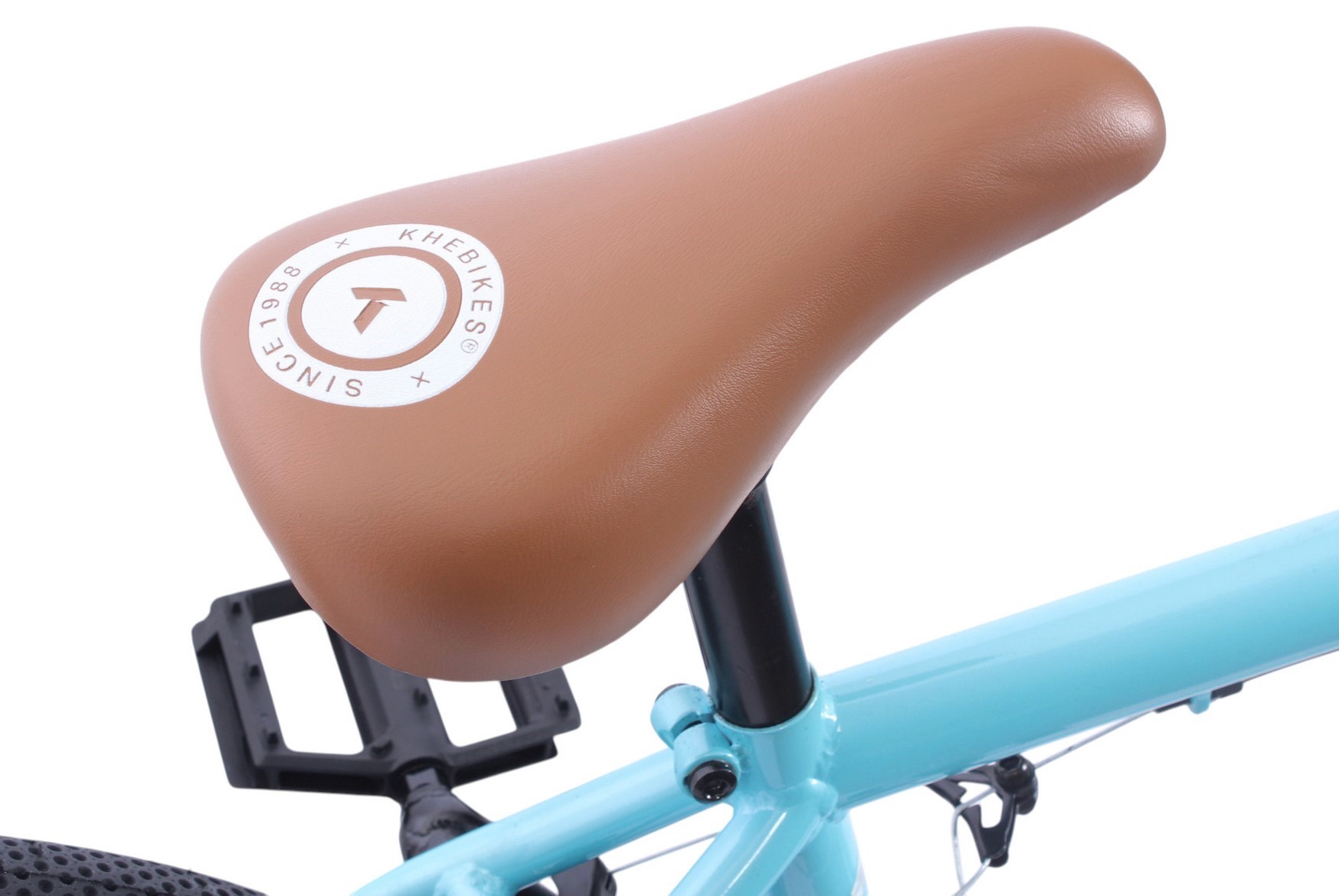

Saddle: Extra light and padded KHE saddle combo
Seat clamp: Integrated
Front wheel: KHE BIG400 rim 35 mm wide, precision-bearing hub, 10 mm axle!

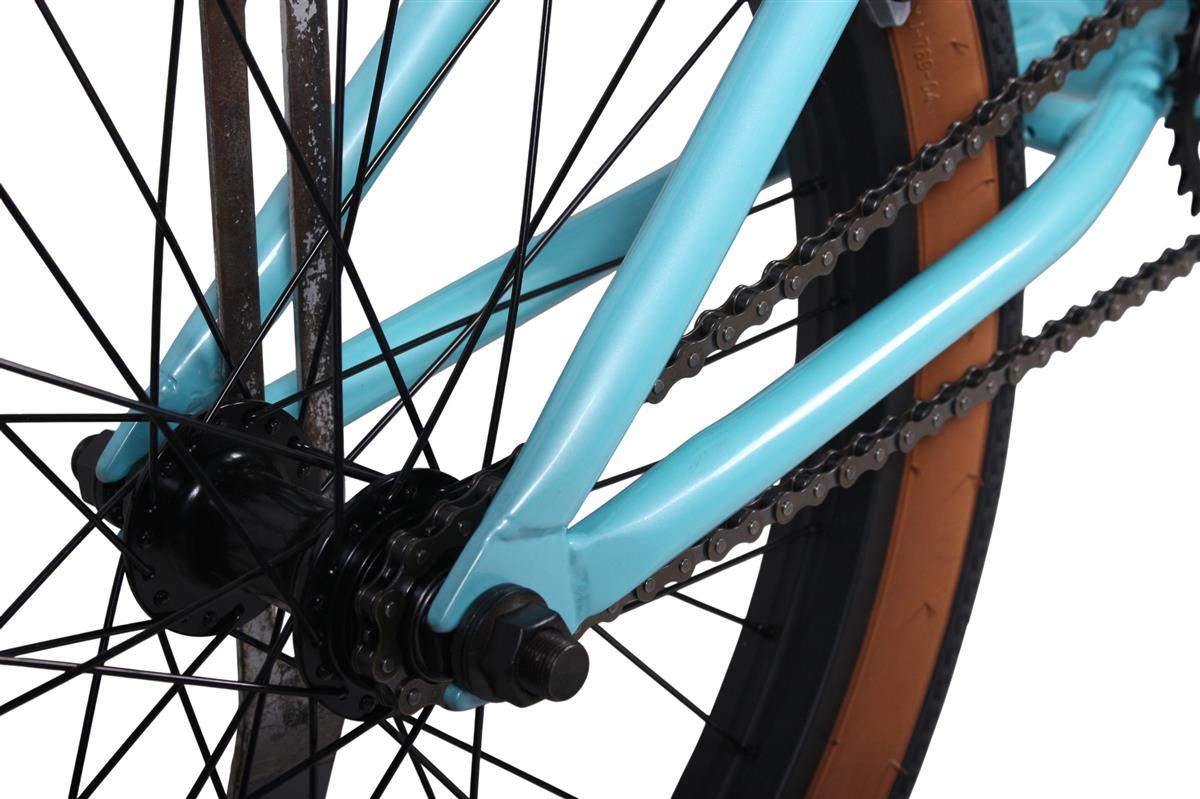

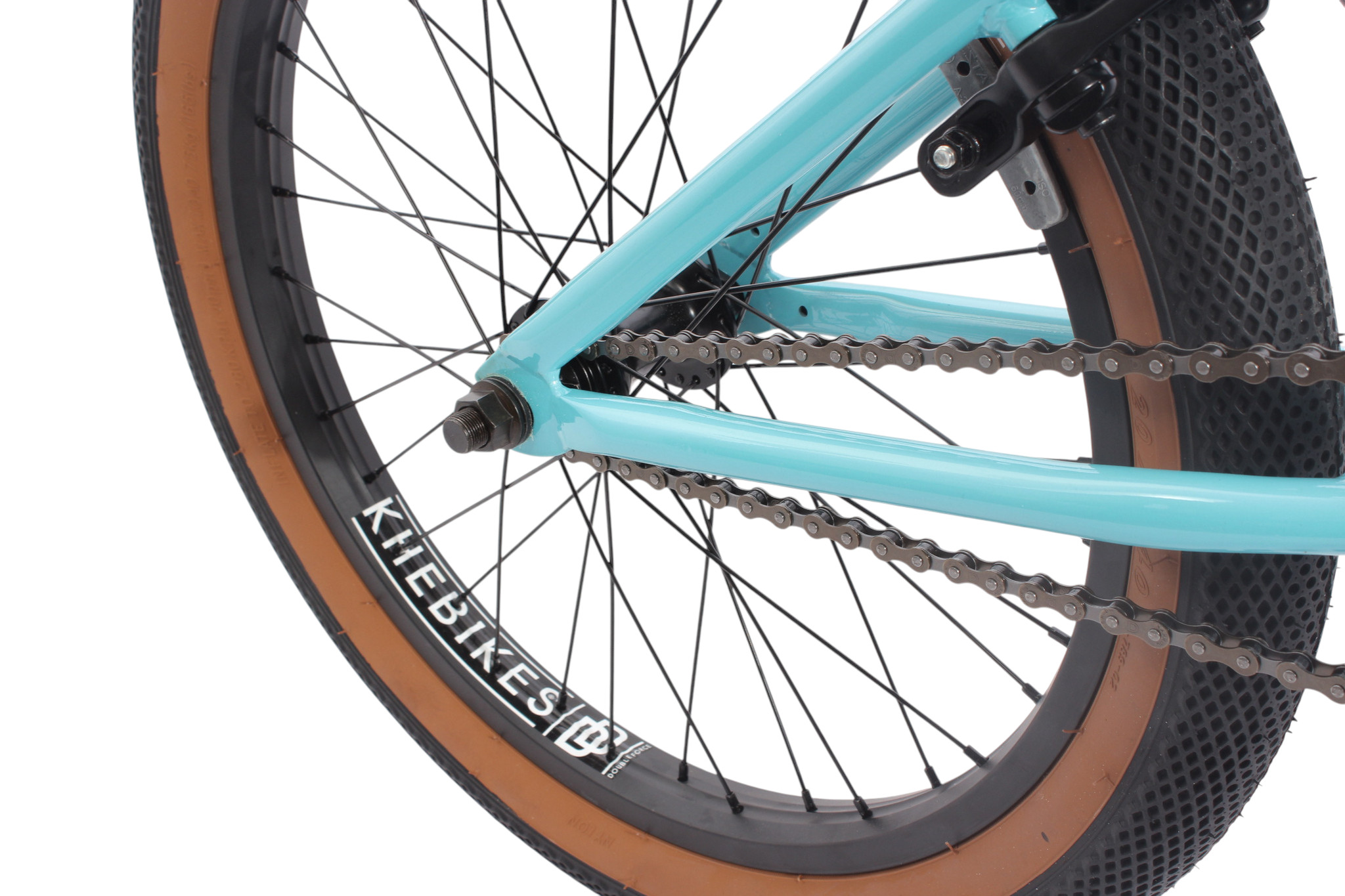

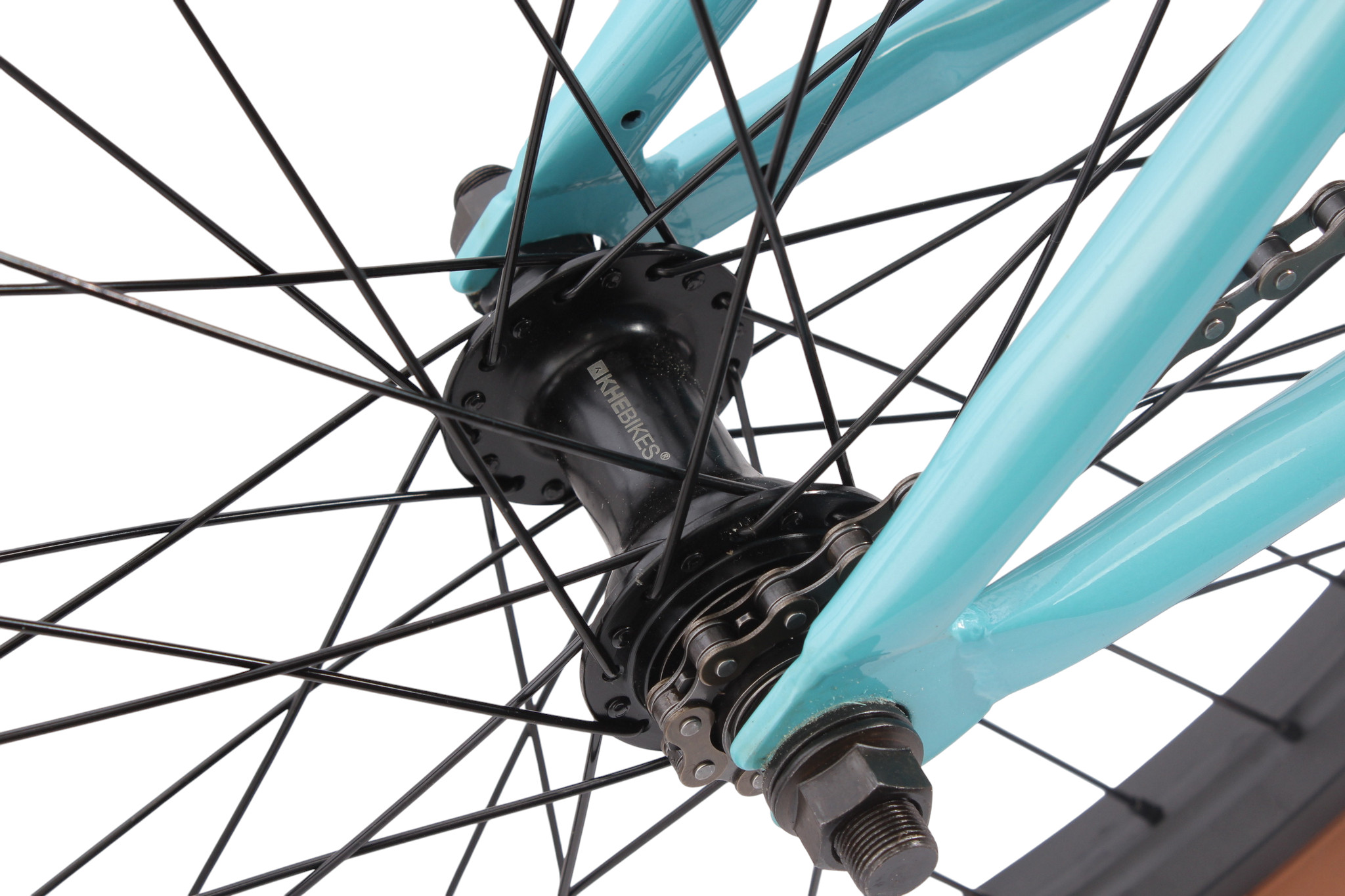

Rear wheel: KHE BIG400 rim 35mm wide, 9T cassette hub, 14mm axle!

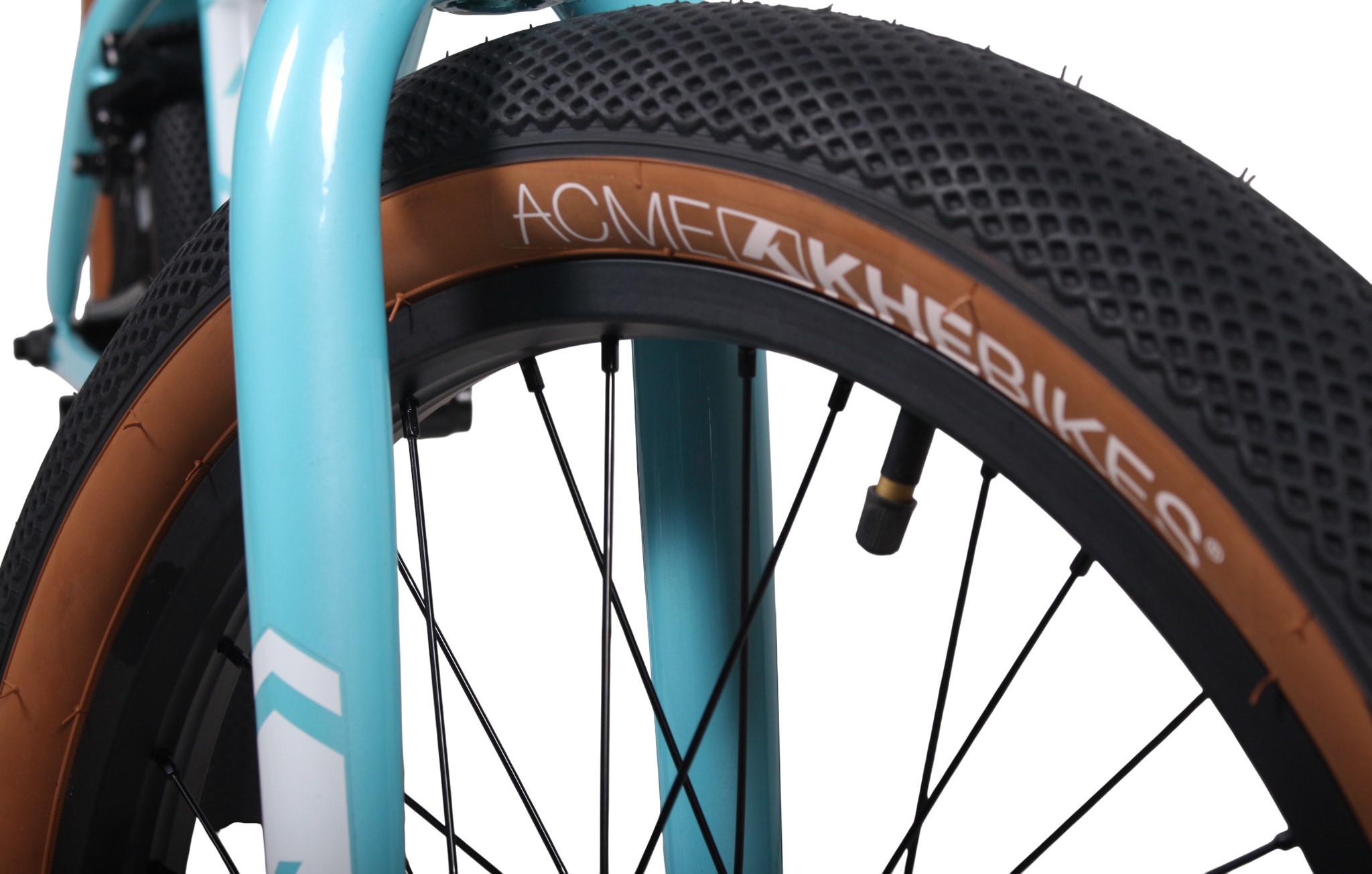

Tyres: KHE ACME 20 inch x 2.40”
Material: 4130 CrMo
Tire size: 20 inch
Category: BMX Freestyle
Size: 20"; 4'11" - 6'3" in
Colour: Blue
Weight: 23.4lbs / 10,6kg
Model Year: 2025

Product safety information for BMX Bike KHE EVO 20 inch 10,6kg:

Intended use: The BMX bike is intended for sporting use in the BMX discipline. It is suitable for street, park and dirt riding on appropriate surfaces. The bike is designed for riders with a height of 150–190 cm and a maximum body weight of 120 kg. Any use outside the intended applications is not considered proper use.

Wearing instructions / Use / Assembly: The BMX bike is supplied approximately 90% pre-assembled and must be correctly fully assembled before first use. Before each ride, brakes, handlebar, headset, tyres, chain, axle fixings and the rotor system must be checked for correct installation and function. The use of suitable protective equipment such as a helmet, gloves, knee pads and elbow pads is strongly recommended. The bike is not intended for road traffic use without legally required equipment.

Care and cleaning: Clean the BMX bike regularly to remove dirt, dust and moisture. Use a soft cloth and mild cleaning agents. High-pressure cleaners must be avoided as they may damage bearings, seals, the rotor system and moving parts. After cleaning, the chain and moving components should be re-lubricated.

Replacement in case of wear: The BMX bike and its components are subject to natural wear. Worn or damaged parts such as tyres, brake components, chain, bearings, fasteners or rotor parts must be replaced immediately. Continued use of worn components may result in loss of function or safety risks.
