£439.00*
% £465.28* (5.65% saved)Available, delivery time: 2-5 business days **
KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering, and outstanding riding dynamics. The new 2025 models offer optimised geometry, smart details, and high-quality components – directly from the manufacturer for top performance on any terrain.

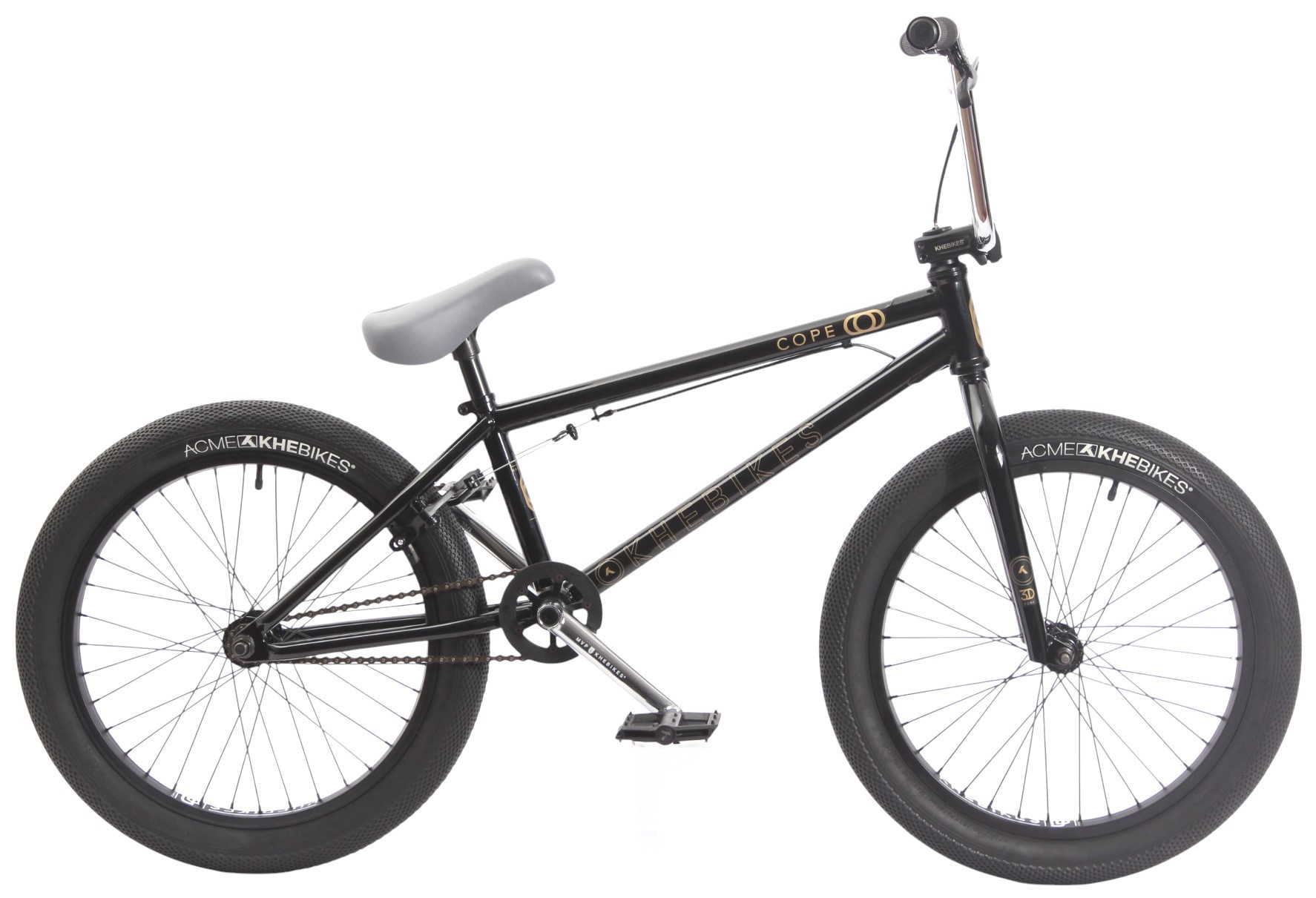

KHE COPE 20"

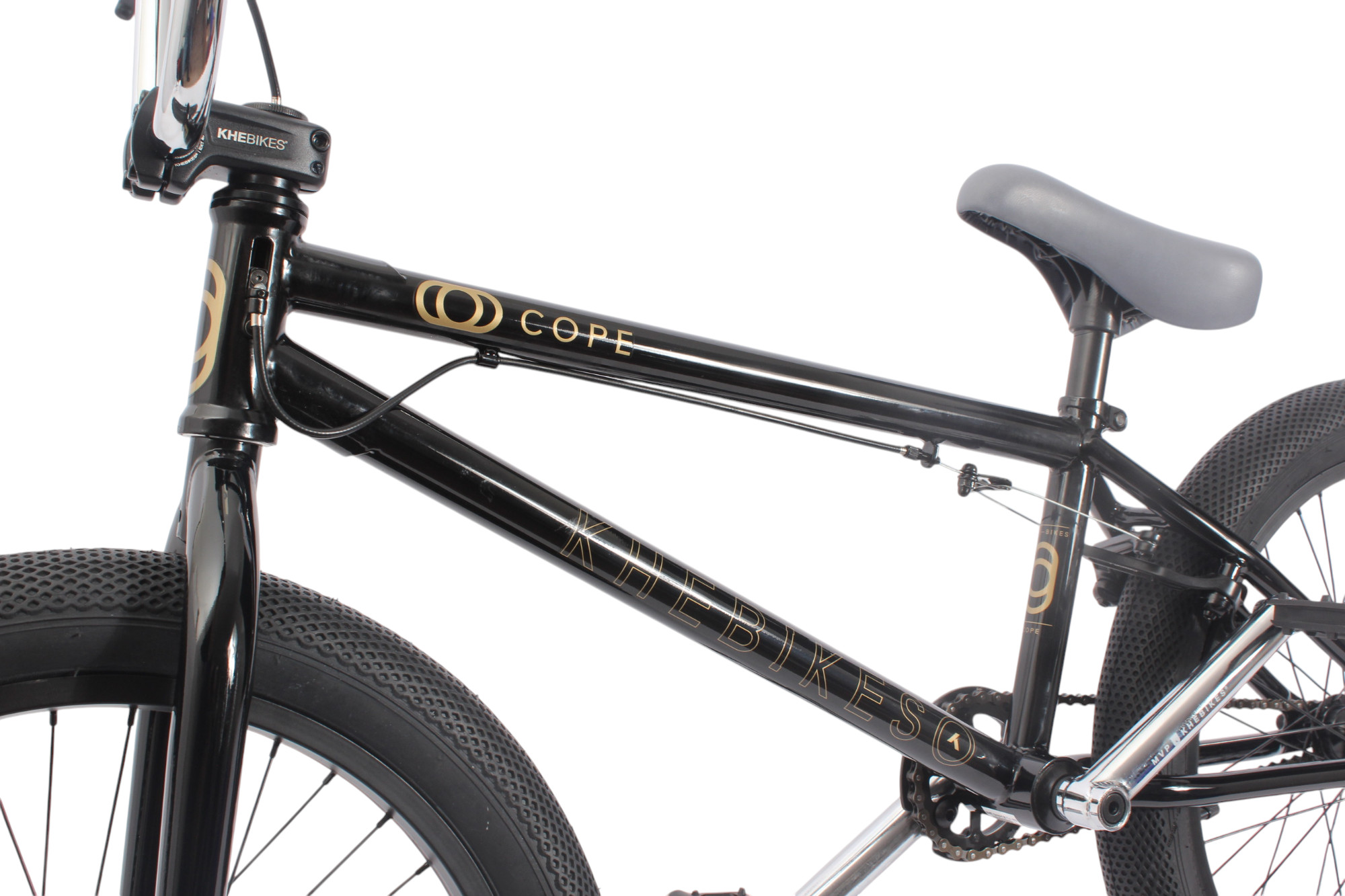

The KHE Cope 20 inch BMX in Gloss Black is a high-quality and very stable bike developed for beginners and advanced BMX riders. The HiTen steel frame with a 20.5" toptube offers stability and ideal riding characteristics, while the integrated headset with sealed bearings ensures precise steering.

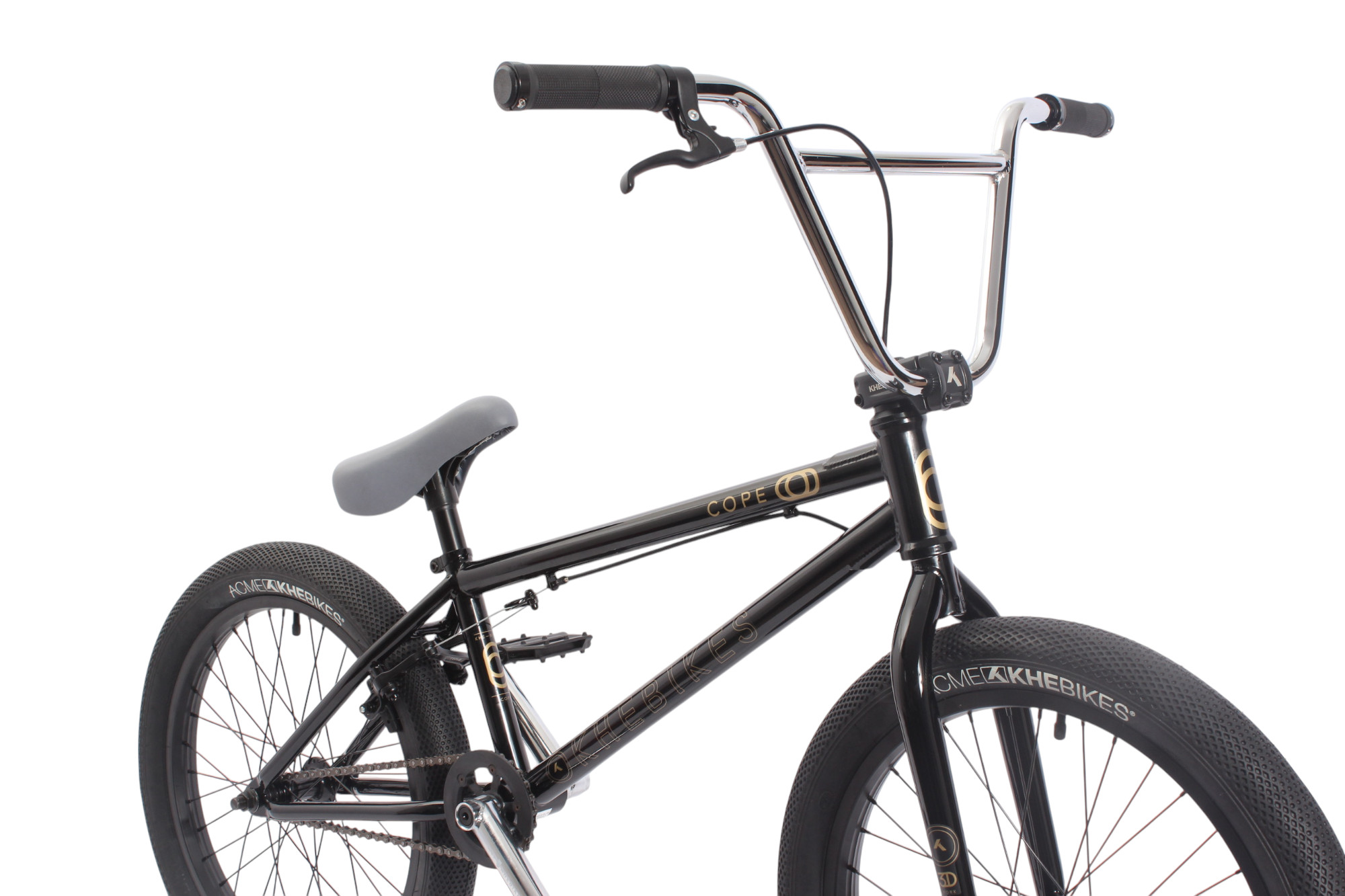

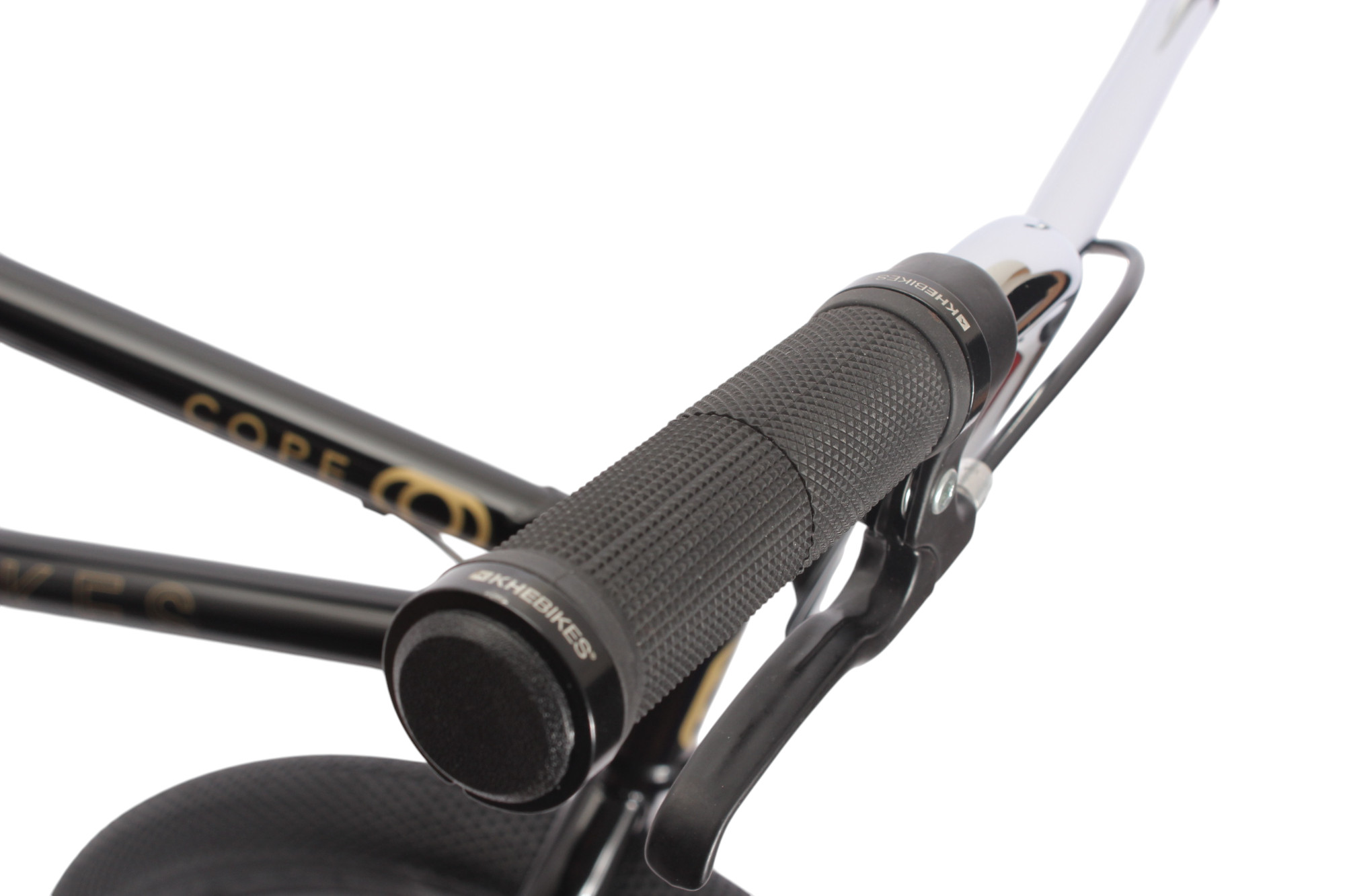

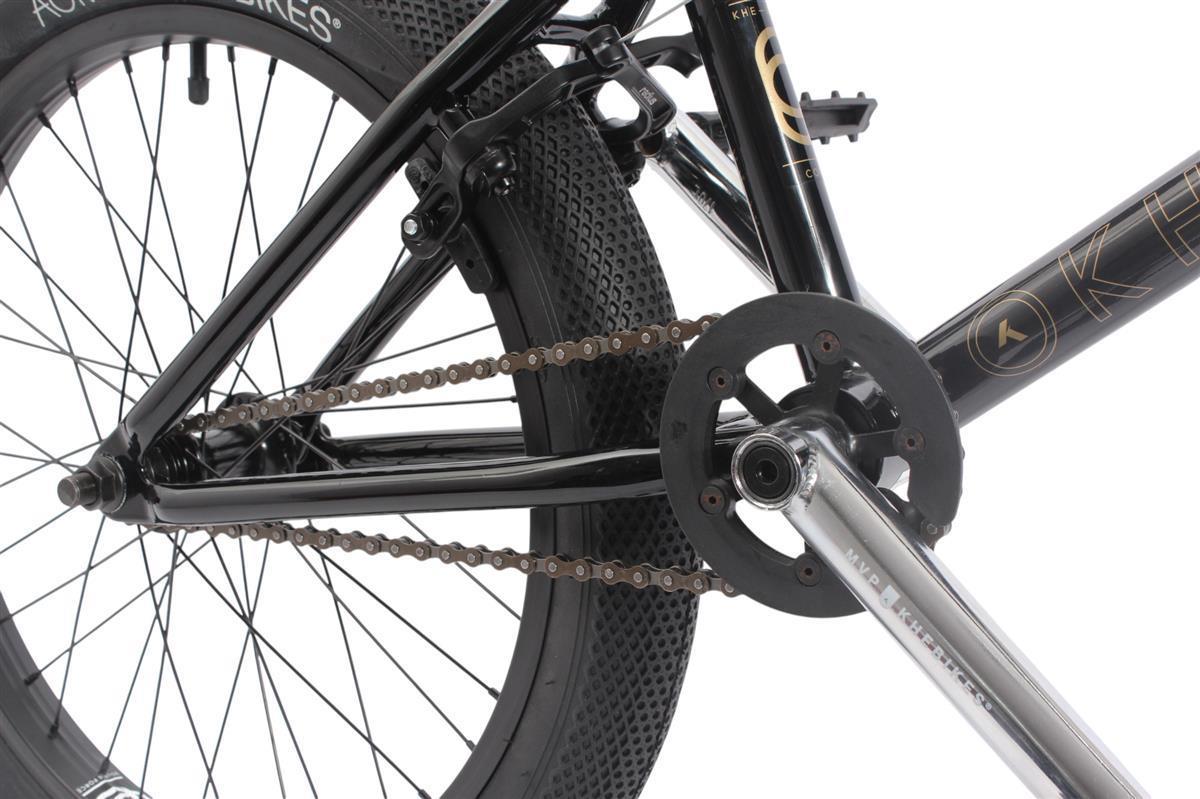

With the KHE Affix Rotor System, 360-degree handlebar spins are possible, making the Cope perfect for tricks and stunts. The wide 736 mm handlebar (9” high) and the 50 mm frontloader stem made of chrome provide comfort and control. The 3-piece chromoly crank with 170 mm length and the 25-tooth chainring with nylon grindguard ensure optimal power transfer and protection while grinding.
The 20-inch double-wall rims made of aluminium and the wide KHE MVP 2.40-inch tyres ensure perfect grip and stability. The grey saddle and chrome details on the handlebar and crank arms enhance the bike’s sleek look.
An ideal bike for park, street and pump track.
Recommended rider height: 4,6"-6,1" / 140–185 cm
Max. rider weight: 209 lbs / 95kg
Use: Park, Street, Pump Track

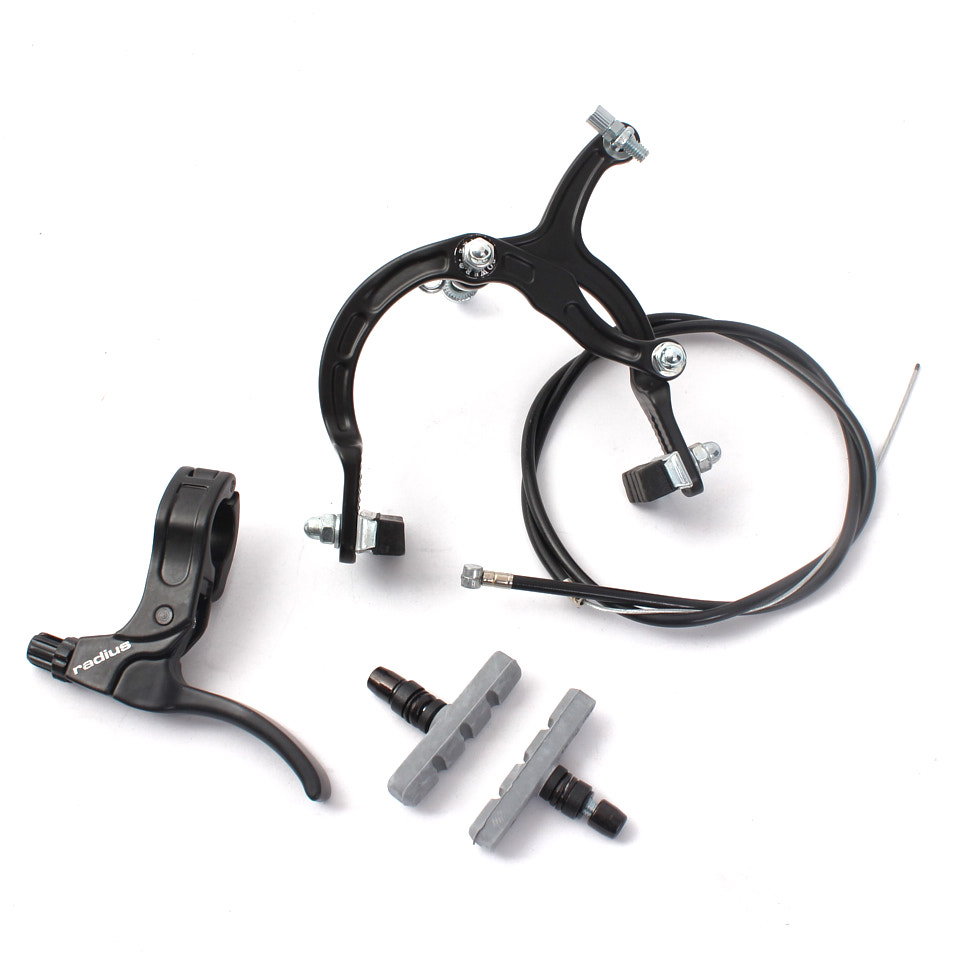

Important Note: This bike is delivered without a front brake. A suitable front brake is available separately (Item No.: BR-SET).
Why the COPE 20 inch from KHEbikes:
- Direct from the manufacturer – best prices
- At 24.5 lbs, one of the lightest 20 inch BMX bikes with rotor
- Globally patented KHE BMX rotor for 360-degree handlebar spins
- 3D frame and fork dropouts
- With grindguard chainring
- With 48-spline CrMo hollow crank
Pegs: The COPE 20" is compatible with 10 mm front pegs and 14 mm rear pegs. We recommend the CNC PRO and LASER PRO.
The BMX bike is approx. 90% pre-assembled. You can find the manual under “Datasheets” and a setup video under “Video”.
| Frame: | HiTen steel, 14mm dropout, top tube 20.5", CS 13.2", HT 75°, ST 71°, Integrated 1 1/8" |
|---|---|
| Top tube length: | 20,5" (521mm) |

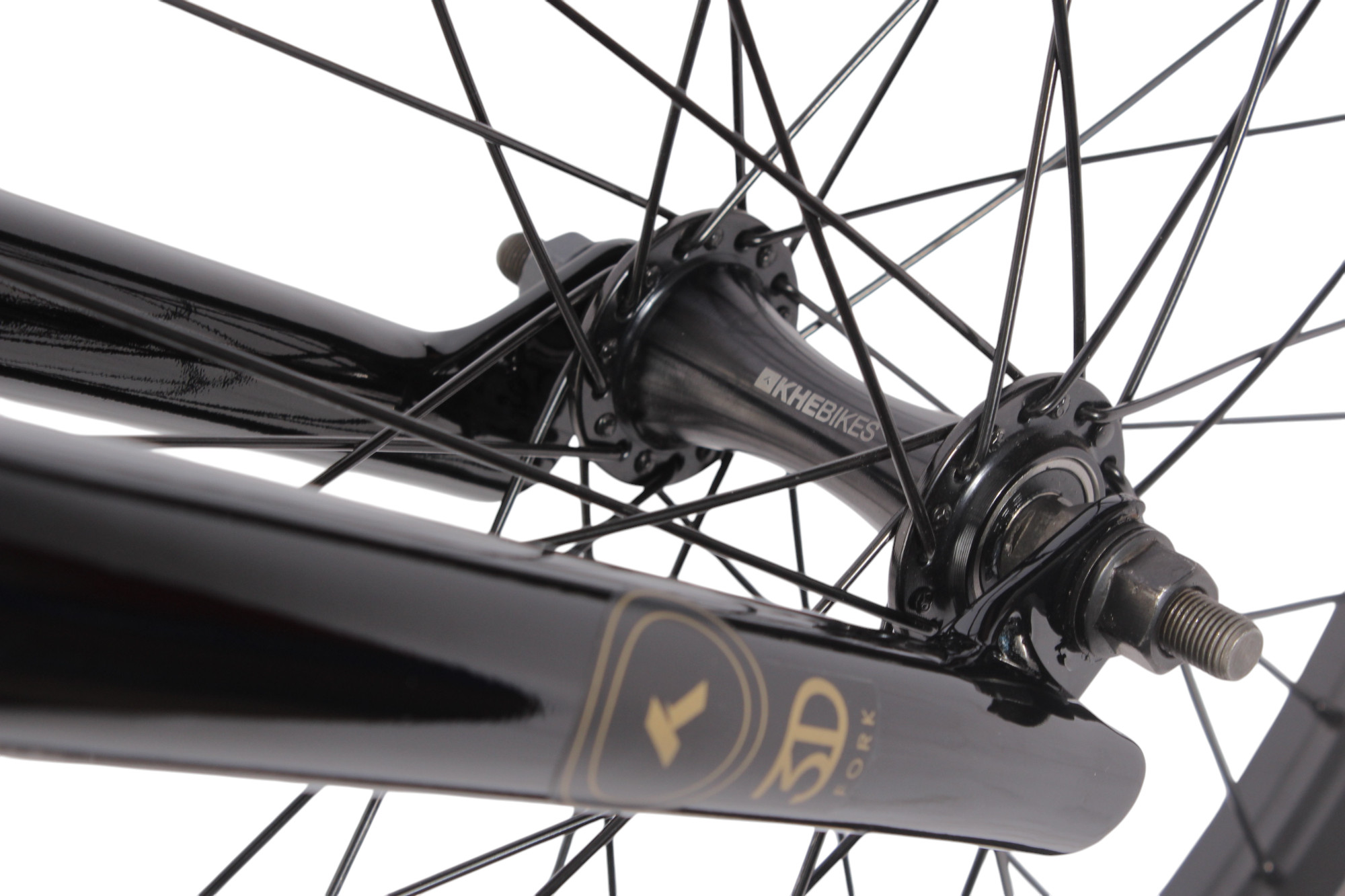

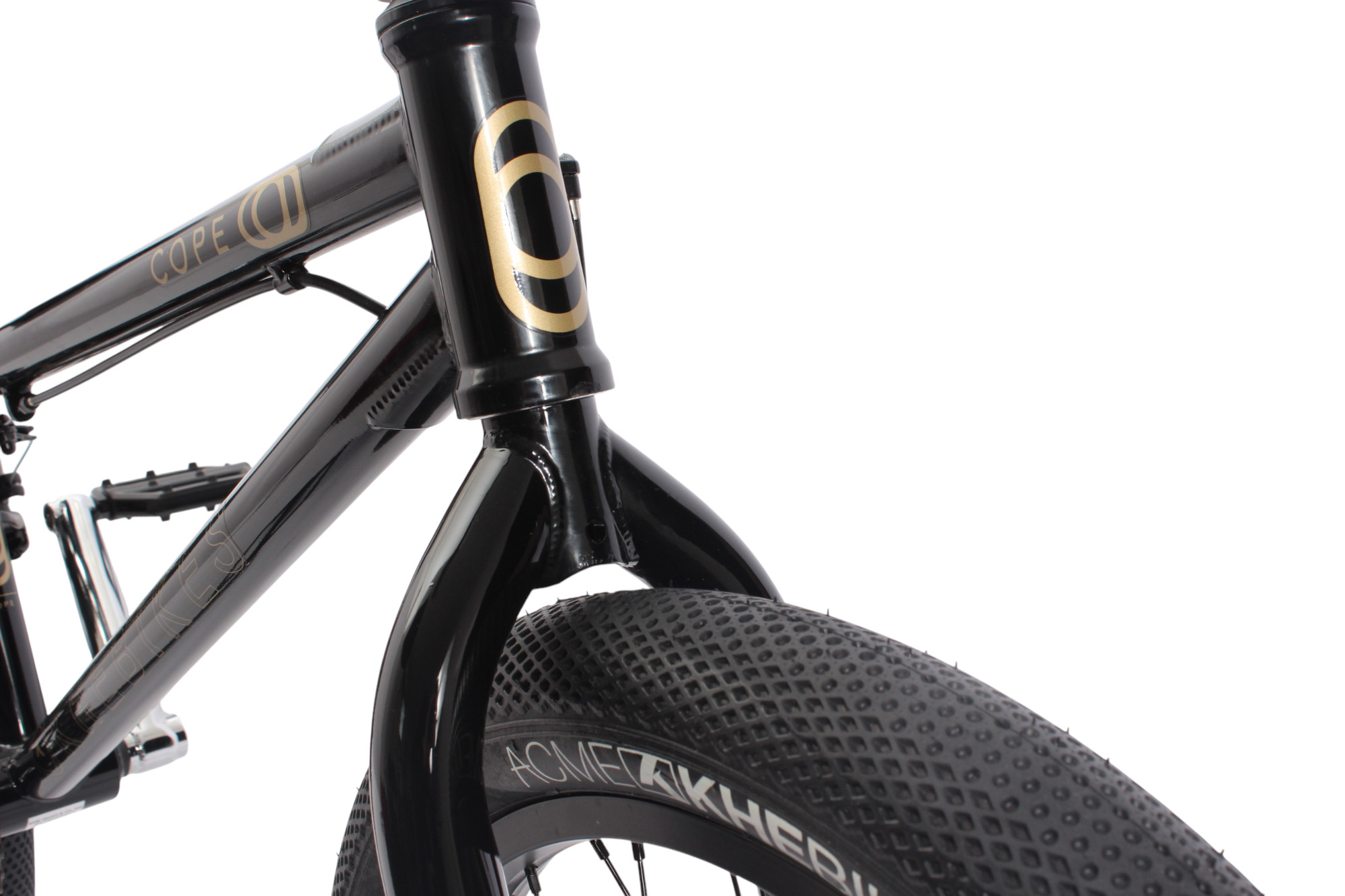

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

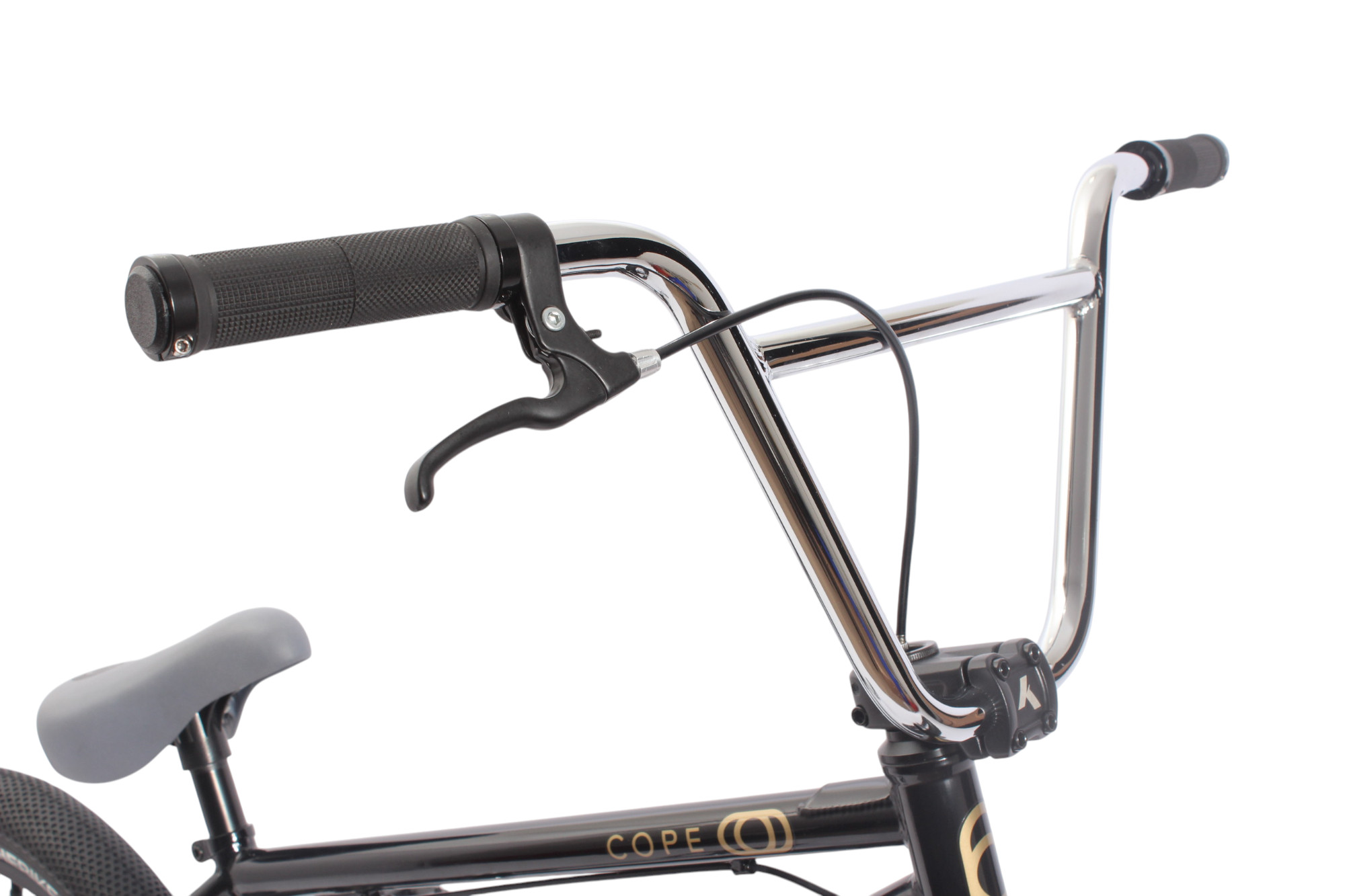

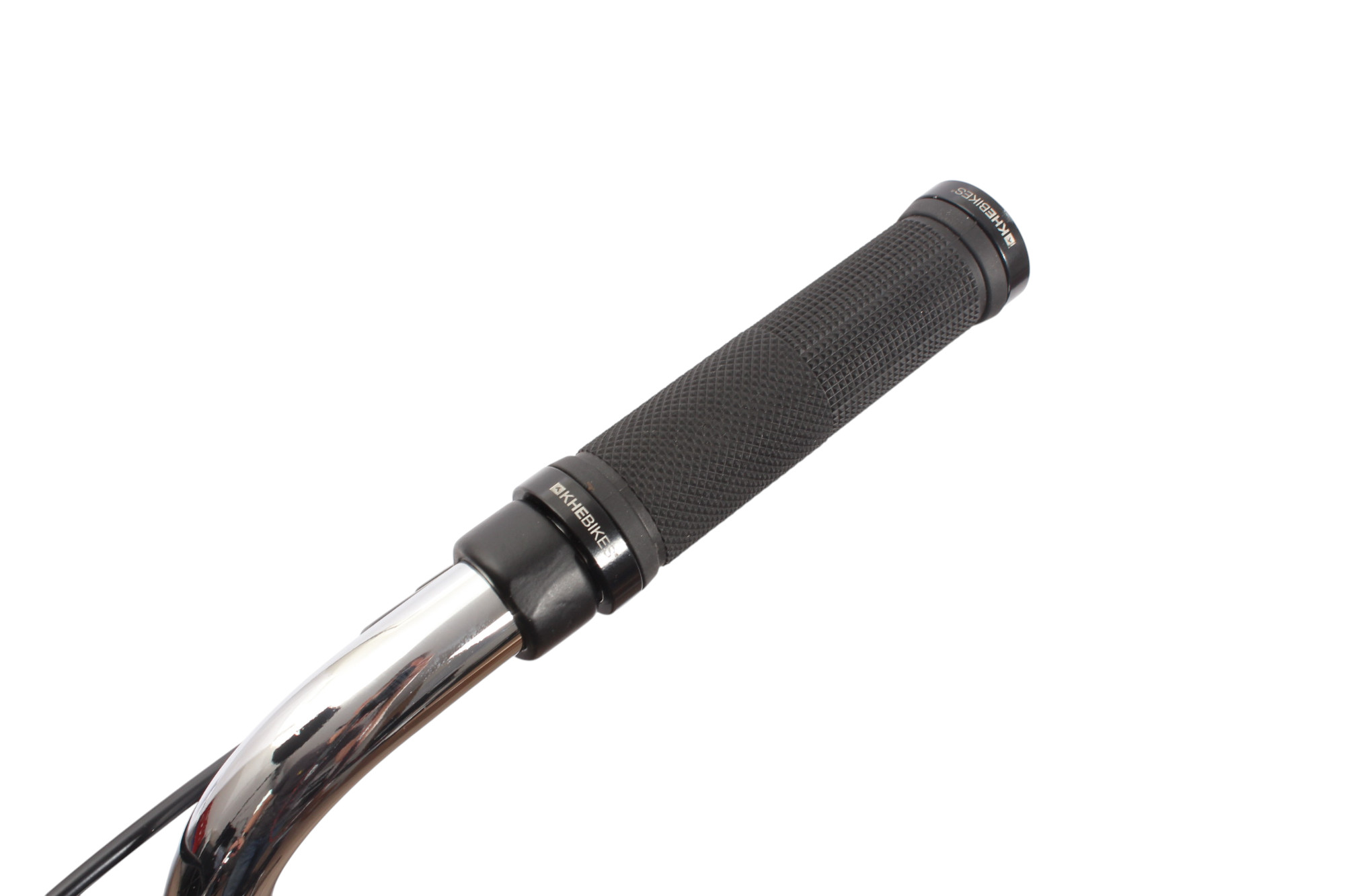

| Handlebars: | KHE HiTen steel 736mm width (29”) x 228mm (9”) height, Backsweep 9”, Upsweep 2” |

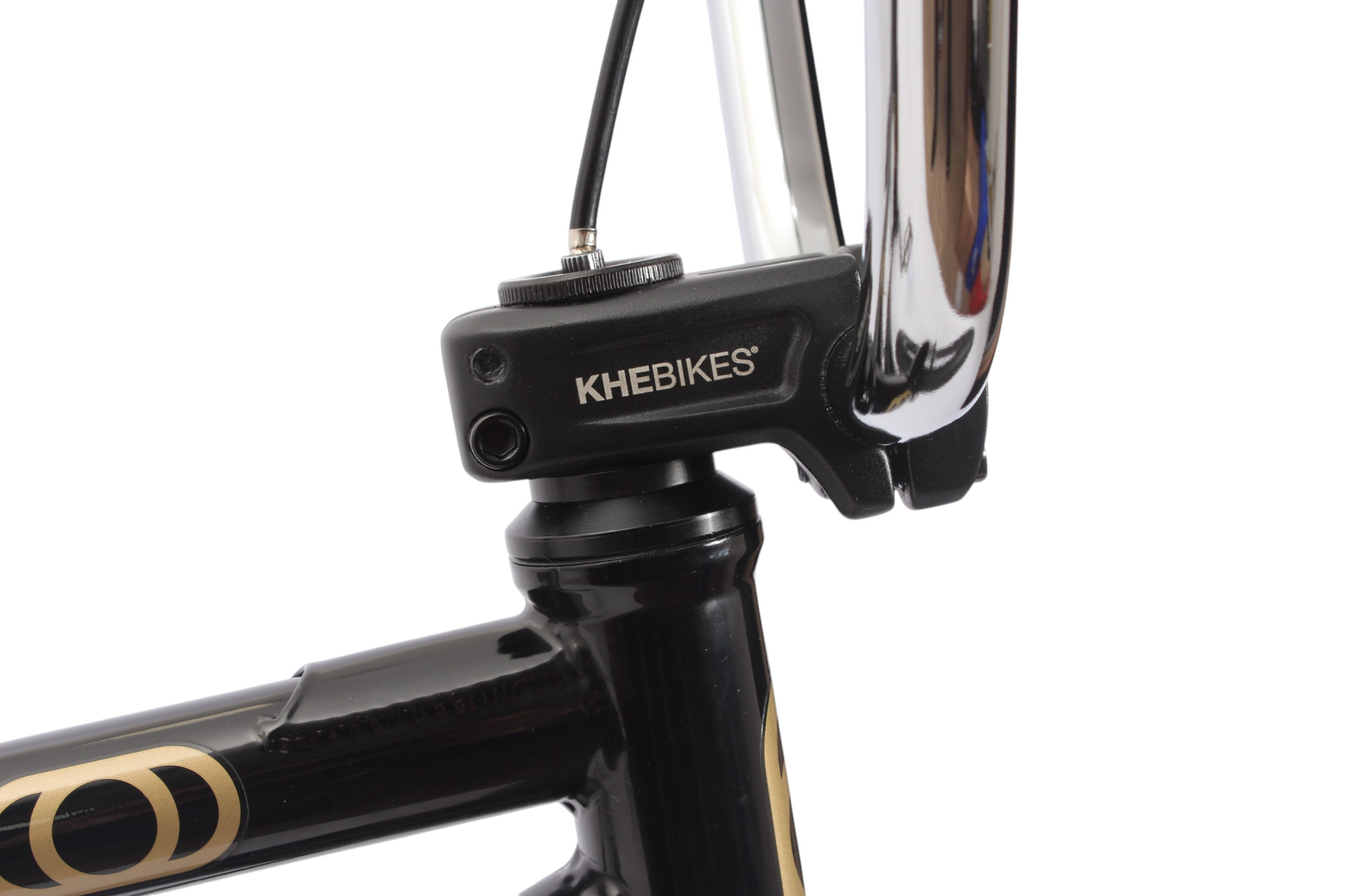

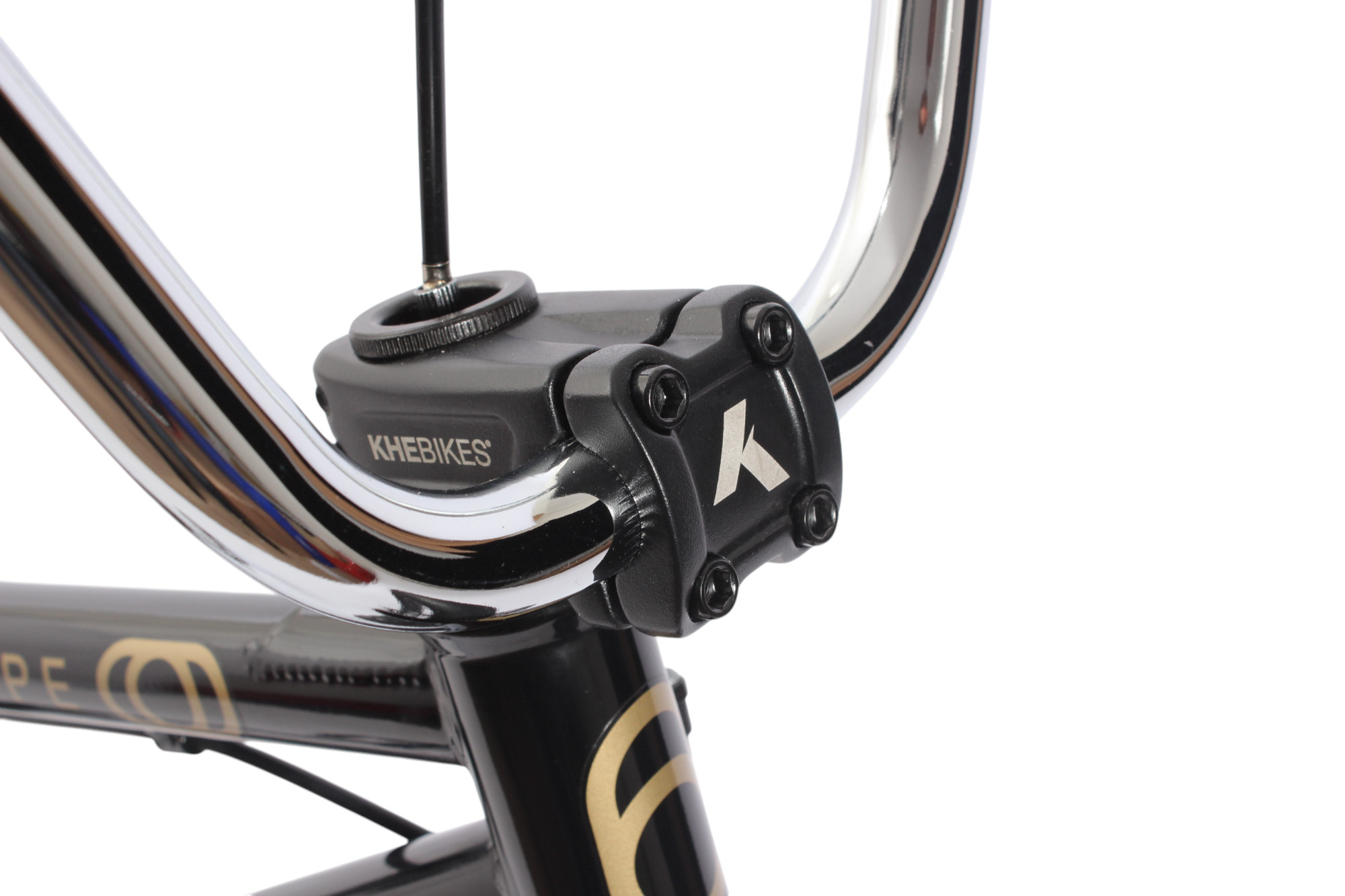

| Stem: | KHE Front Loader Ext.50mm |
| Headset: | Intigrated headset with indusriel bearings |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |
| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |

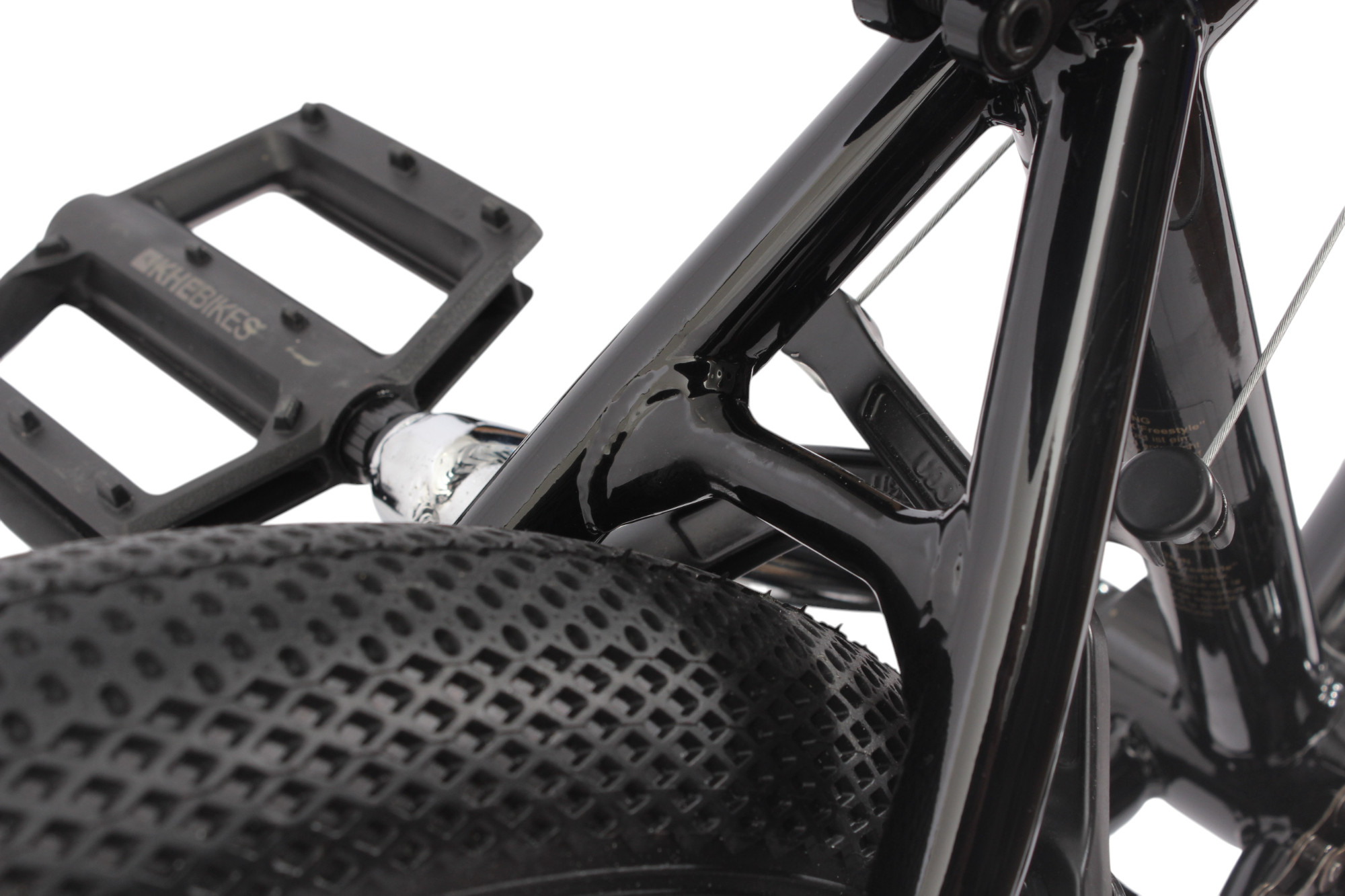

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

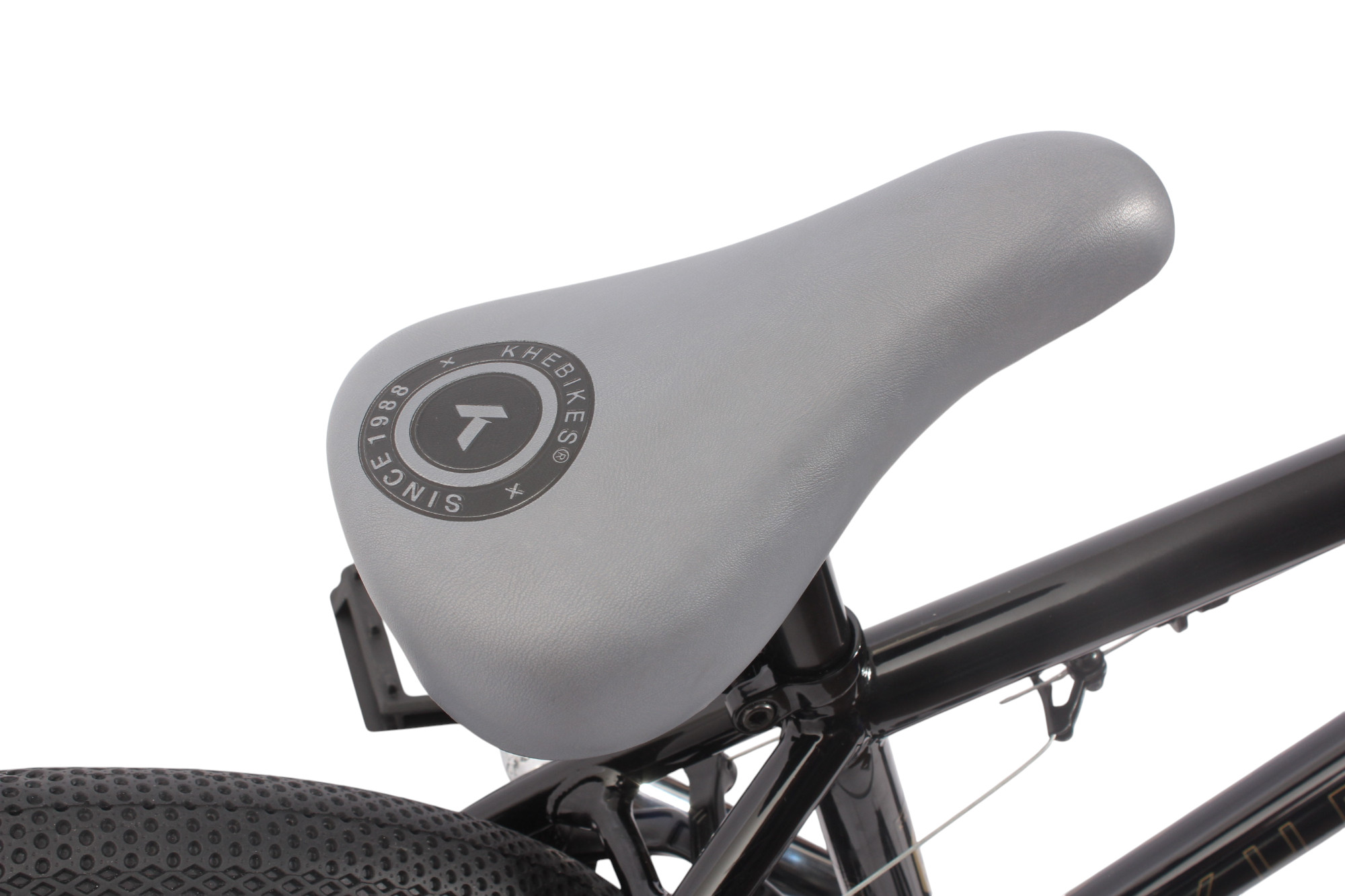

| Saddle: | Padded 220 x 125mm with embossed KHEbikes logo |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |

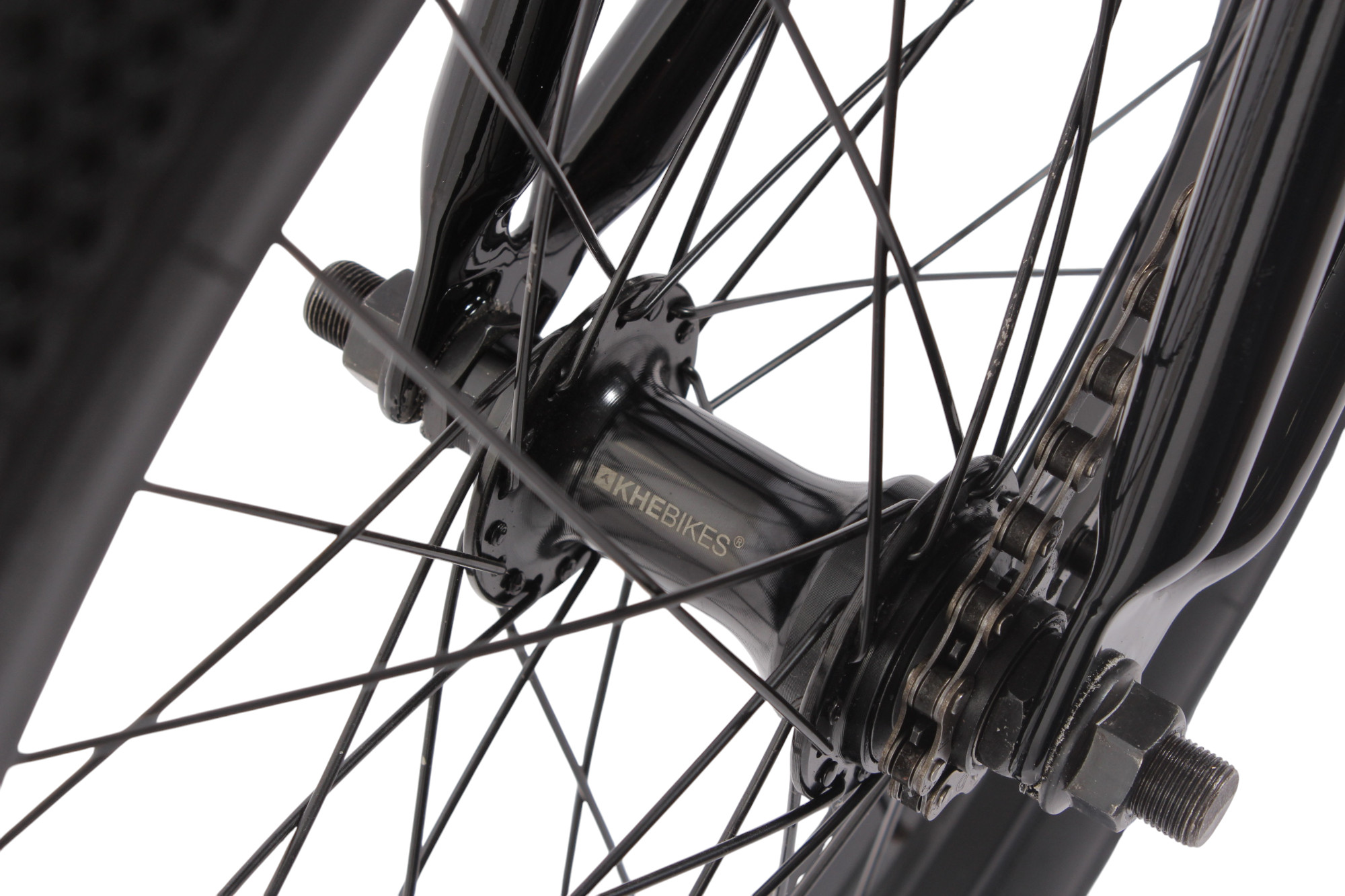

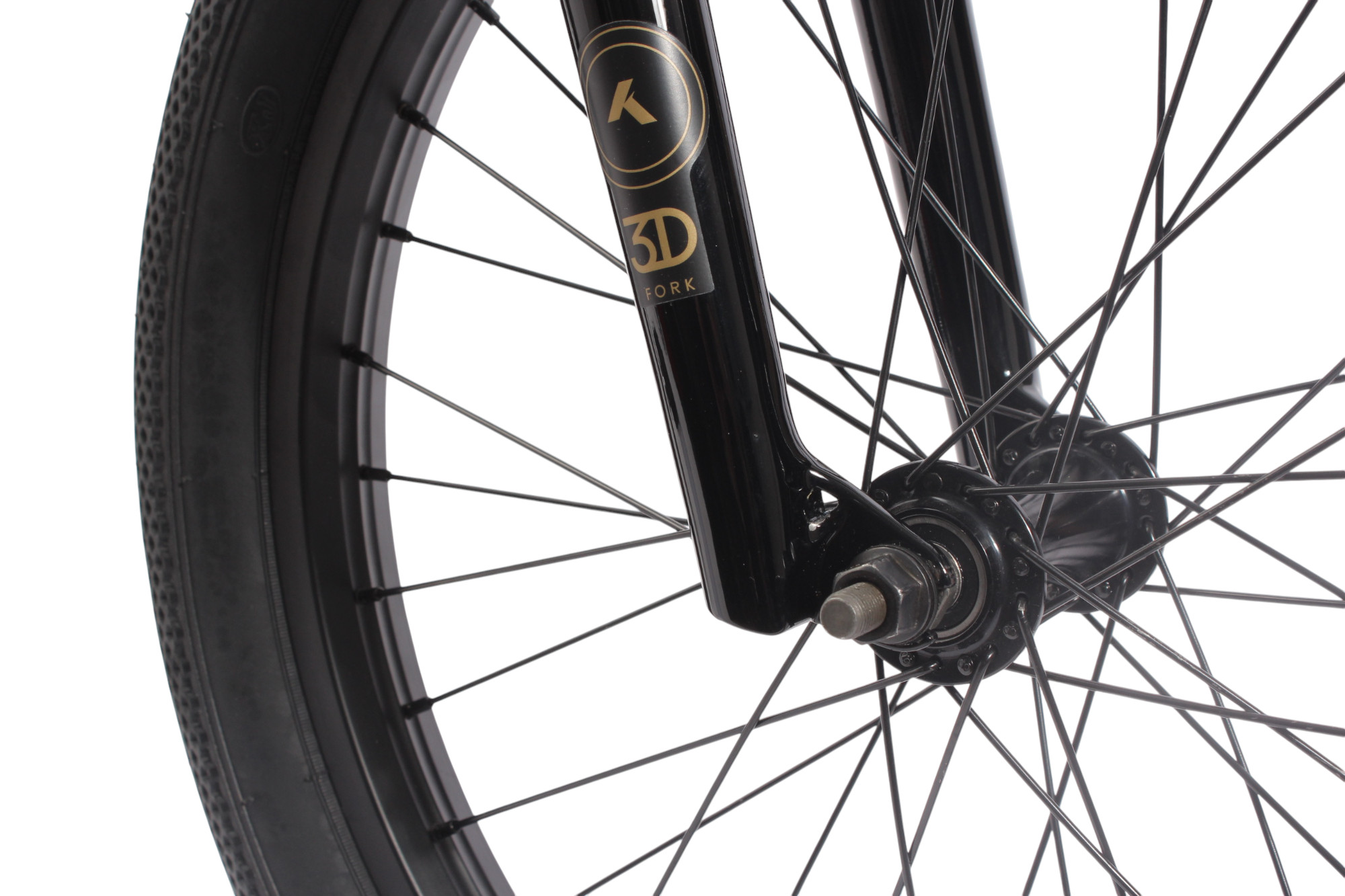

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

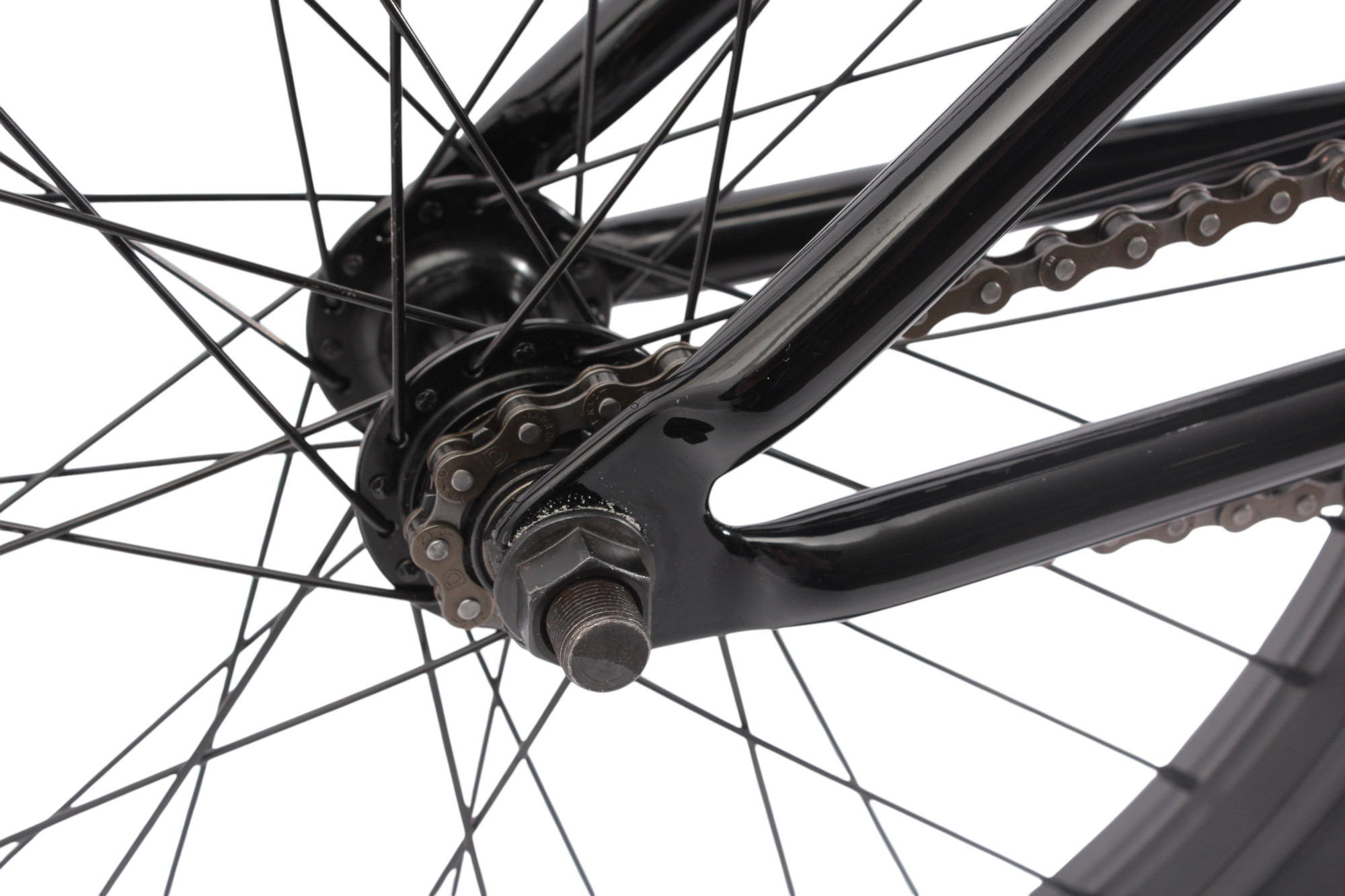

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |

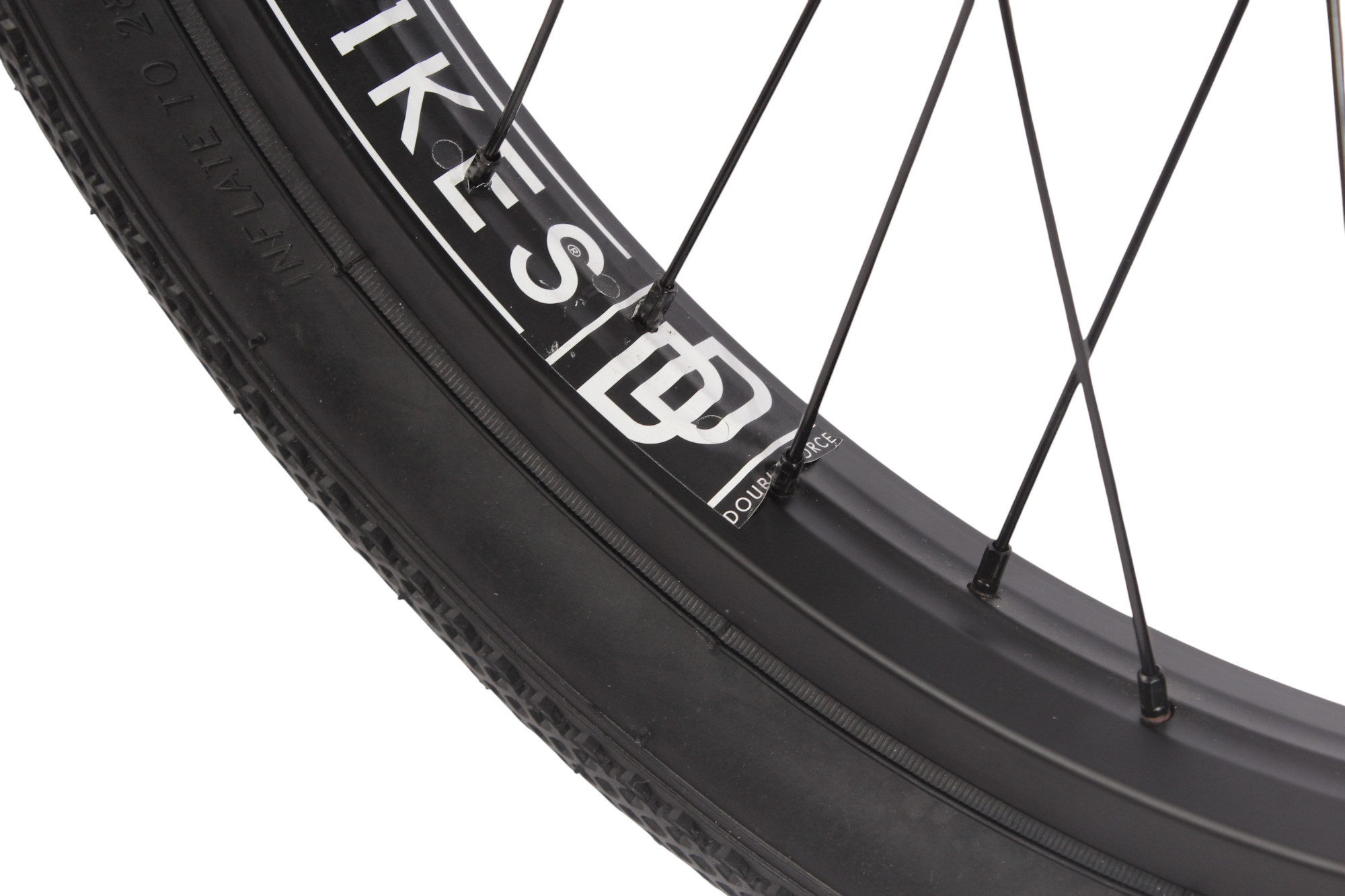

| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Street, Park, Pumptrack |
| Size: | 4'7" – 6'1" |
| Colour: | Black |
| Model Year: | 2025 |
Bestimmungsgemäßer Gebrauch:
Dieses BMX-Fahrrad ist für den Einsatz im Bereich Park, Street und Pumptrack konzipiert. Es ist nicht für den Straßenverkehr oder Downhill-Fahrten zugelassen.
Montage und Kontrolle: Vor der ersten Fahrt sind alle sicherheitsrelevanten Komponenten (Lenker, Bremsen, Achsen, Pedale, Kette, Sattel) sorgfältig zu prüfen und korrekt zu montieren. Es wird empfohlen, die Endmontage durch eine fachkundige Person oder eine Fahrradwerkstatt durchführen zu lassen. Regelmäßige Kontrolle der Verschleißteile (z. B. Reifen, Bremsbeläge, Kette) ist unerlässlich.
Wartung & Pflege:
Reinigen Sie das BMX regelmäßig von Schmutz und Staub. Verwenden Sie keine aggressiven Reinigungsmittel.
Bewegliche Teile (Kette, Lager, Rotor-System) regelmäßig schmieren.
Lagern Sie das Fahrrad trocken und geschützt vor Witterungseinflüssen.
Maximale Belastung & Sicherheit: Das Fahrrad ist für Nutzer mit einer Körpergröße von 140–185 cm und einem Körpergewicht von maximal 95 kg ausgelegt. Bei sichtbaren Schäden, Rissen oder Materialermüdung darf das Fahrrad nicht weiterverwendet werden. Vor der Nutzung stets auf festen Sitz aller Schraubverbindungen und eine funktionierende Bremsanlage achten.
