£319.00*
Available, delivery time: 2-5 business days **
Lightweight 14-inch BMX freestyle bike with an aluminum frame, only 16.5lbs, ideal for young riders from 3'1" - 3'9" in.

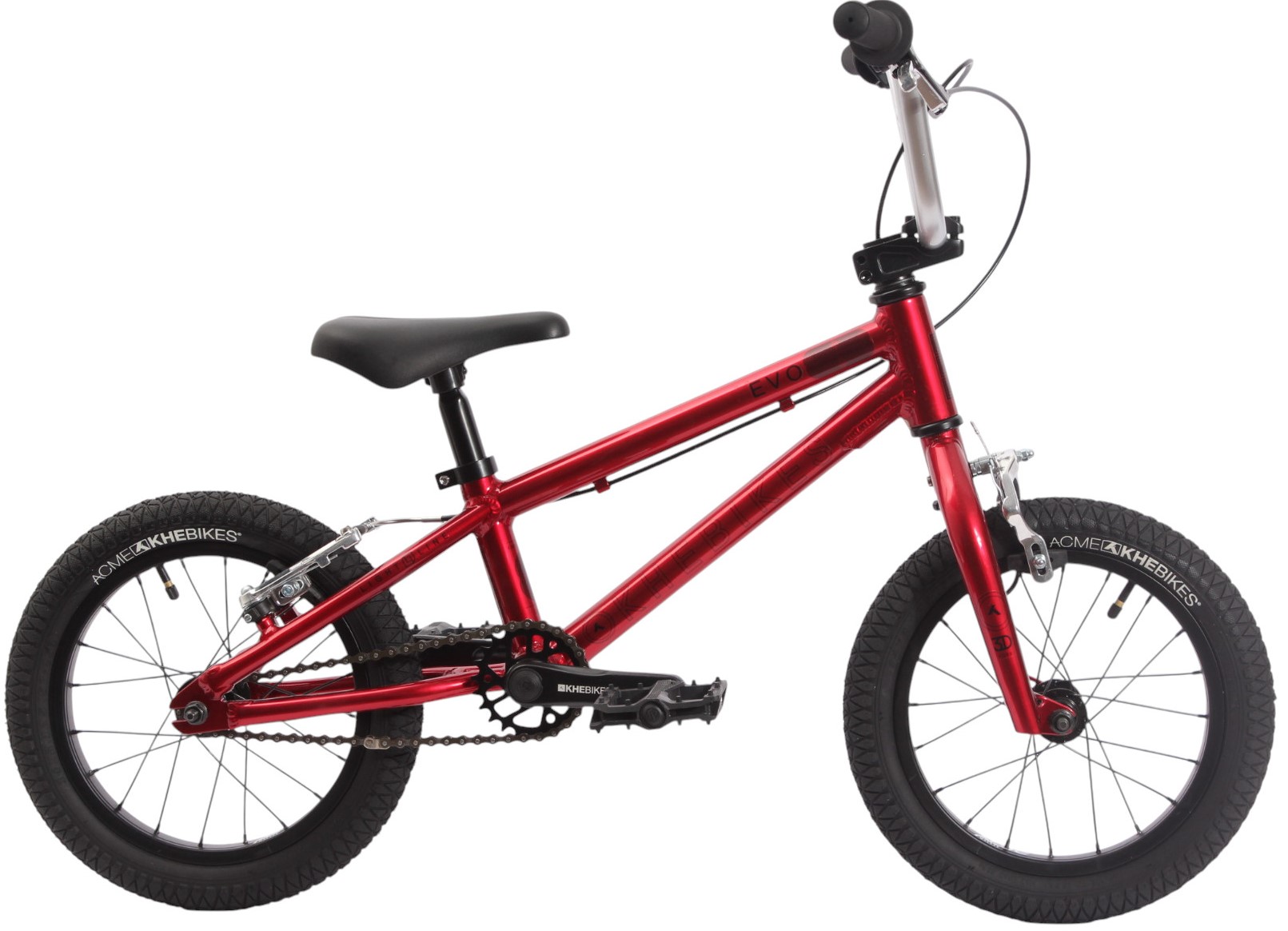

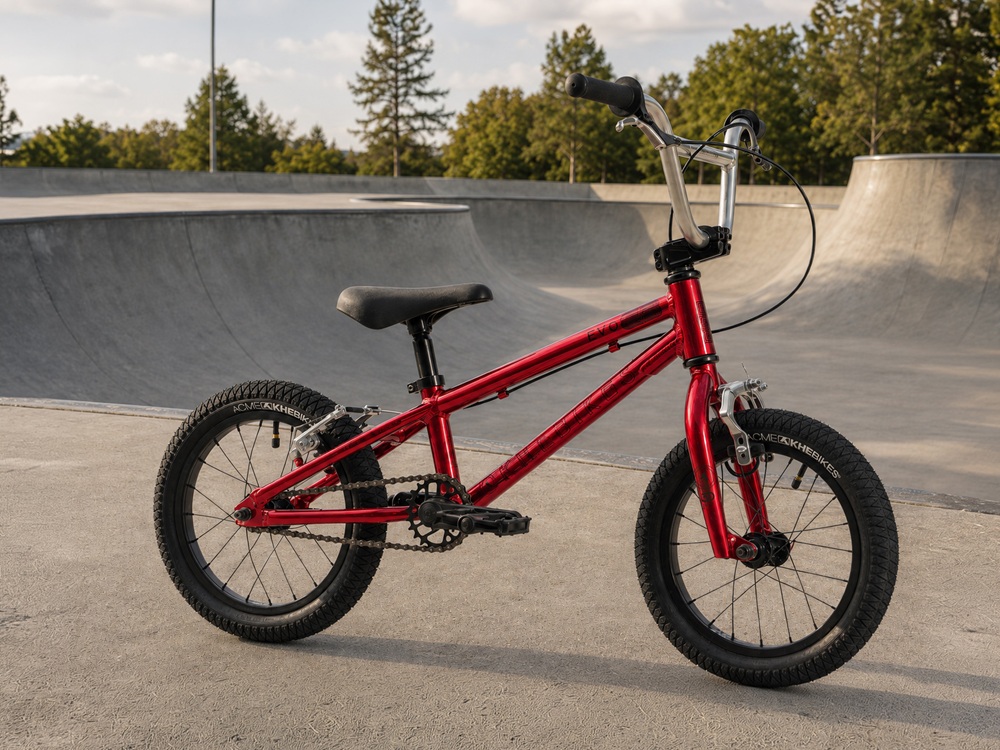

KHE EVO LL 14"
The KHE EVO LL 14-inch BMX is a lightweight and stable freestyle bike for young riders who want to learn their first tricks. The aluminum frame and aluminum handlebars provide agility and control at just 16.5 lbs (7.5 kg).
With 3D dropouts (Investment Cast), the fork is particularly strong. The compact 14-inch (35.6 cm) size is suitable for riders between 3'1" and 3'9" (95 to 115 cm). Thanks to the wide 2.1-inch (5.3 cm) tires, the bike offers excellent grip on any surface.
A reliable rear V-brake ensures safe braking. The KHE EVO 14" is perfect for pump track, street, park, race, and flatland.
Recommended rider height: 3'1" - 3'9" (95-115 cm)
Maximum rider weight: 99.2 lbs (45 kg)
Best for: Pump track, street, park, race, flatland.
Why choose the KHE EVO 14-inch from KHEbikes?
- Directly from the manufacturer, ensuring the best prices
- One of the lightest 14-inch BMX bikes at 16.5 lbs (7.5 kg)
- Aluminum frame & aluminum handlebars
- Equipped with two brakes
- Sealed industrial bottom bracket
Pegs: The KHE EVO LL 14" is compatible with 10mm pegs front and rear. We recommend the KHE COP ALU Pegs.
The BMX bike comes about 90% pre-assembled. The manual can be found under "Datasheets." An assembly video is available under "Video."

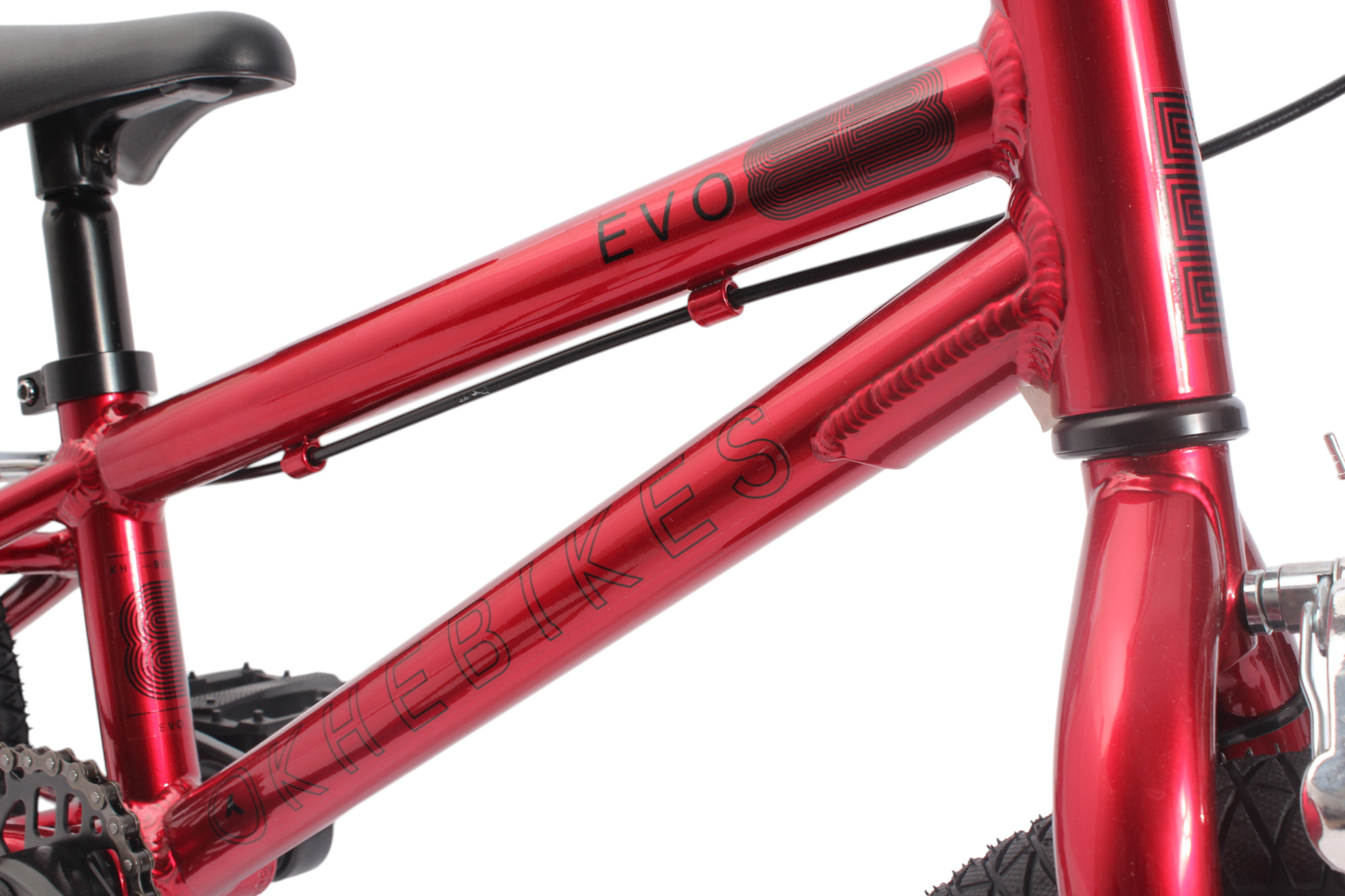

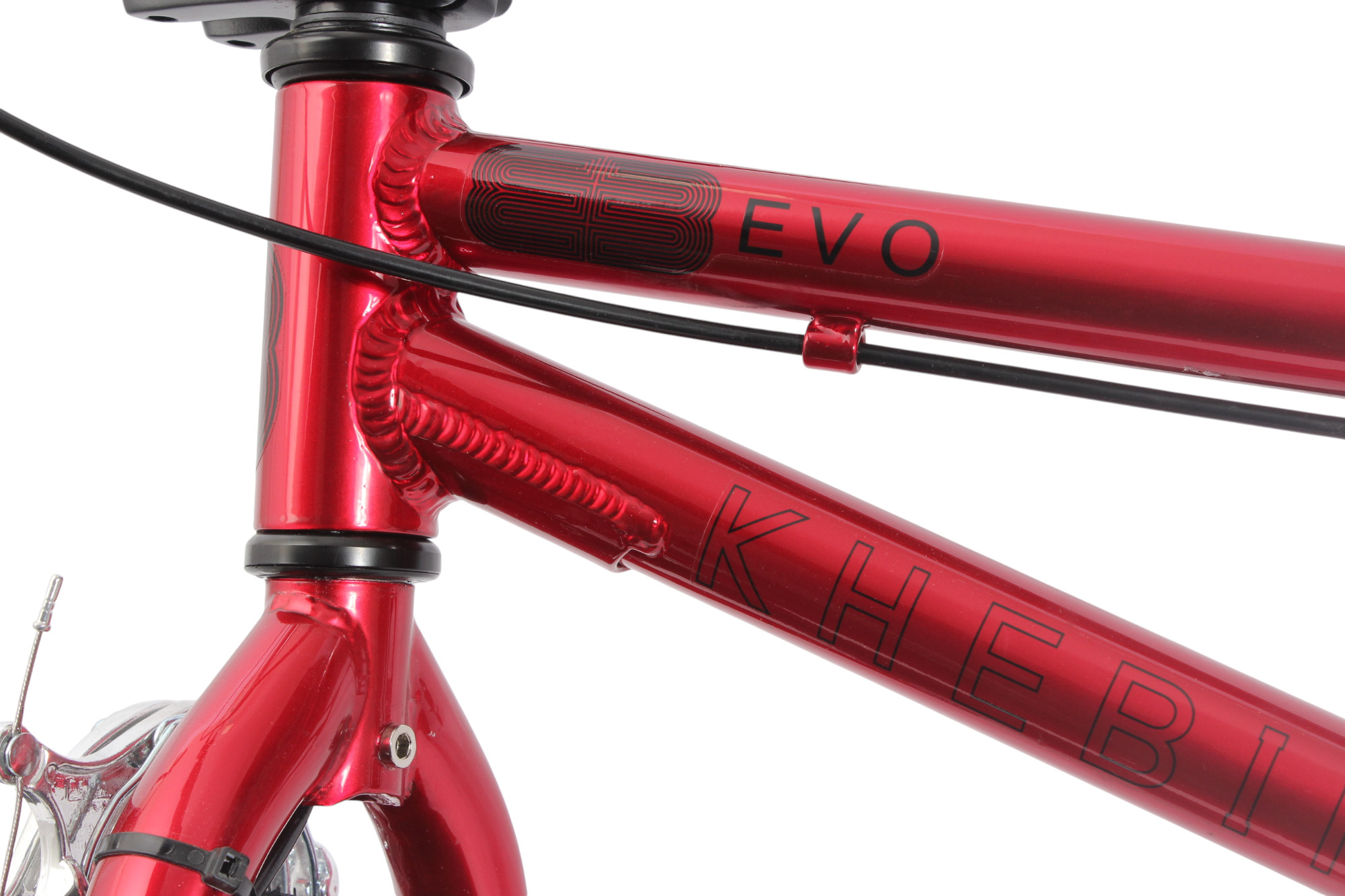

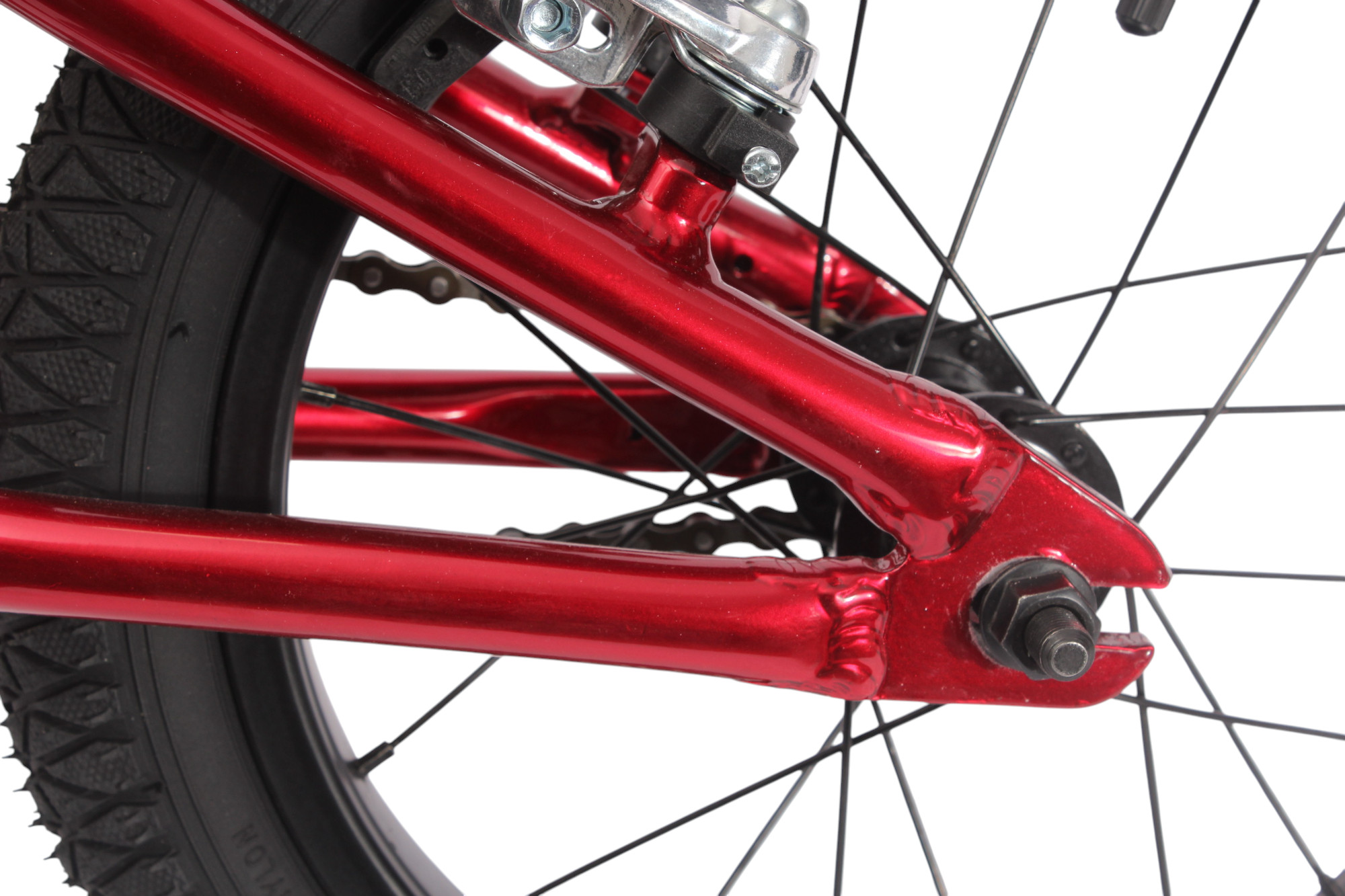

| Frame: | KHE 6061 aluminum, 10mm dropout, top tube 14.7", CS 10.7", HT 74°, ST 73°, A-headset 1 1/8" 38x34mm |
|---|---|
| Top tube length: | 14,7" (373mm) |

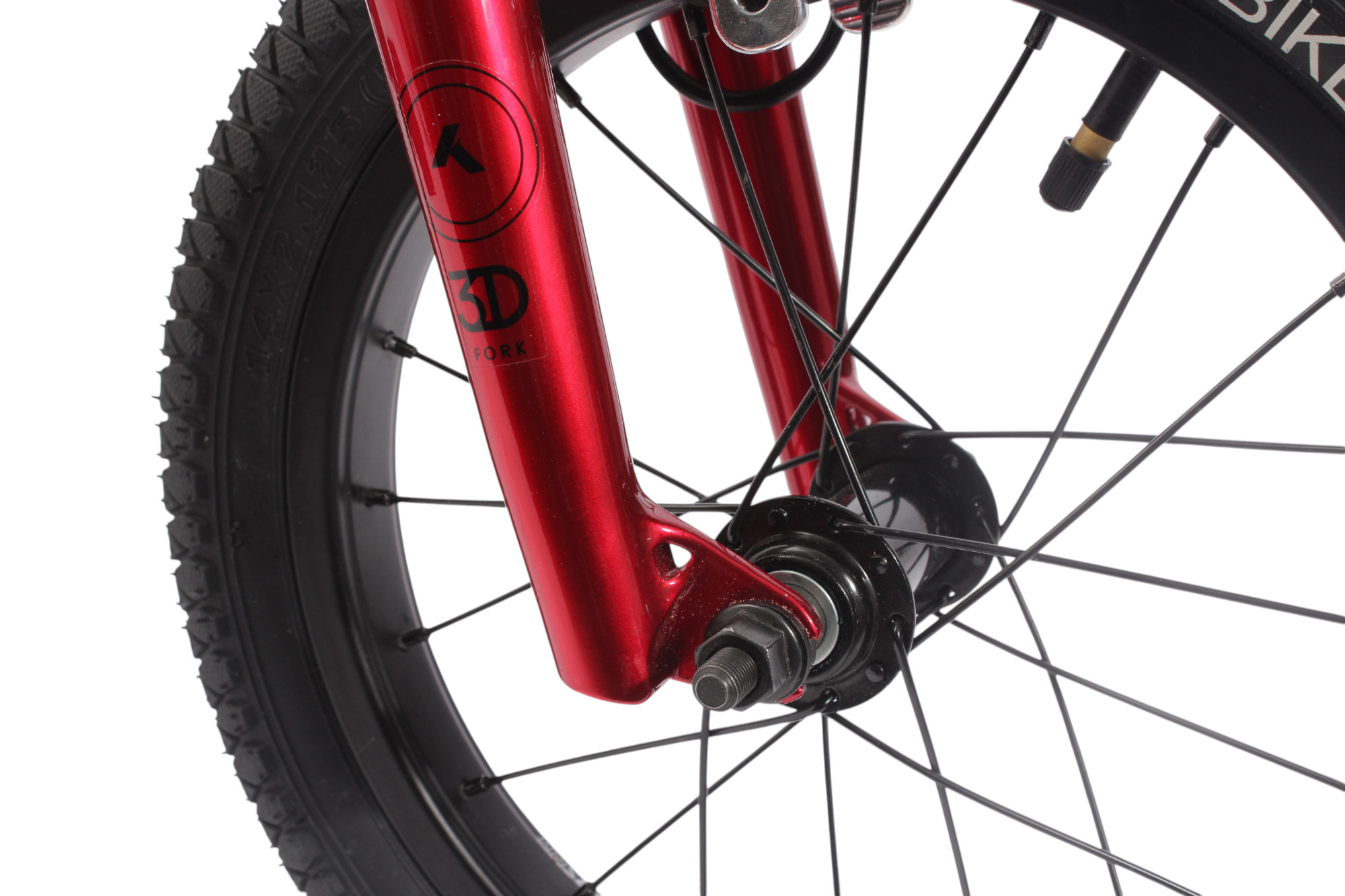

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

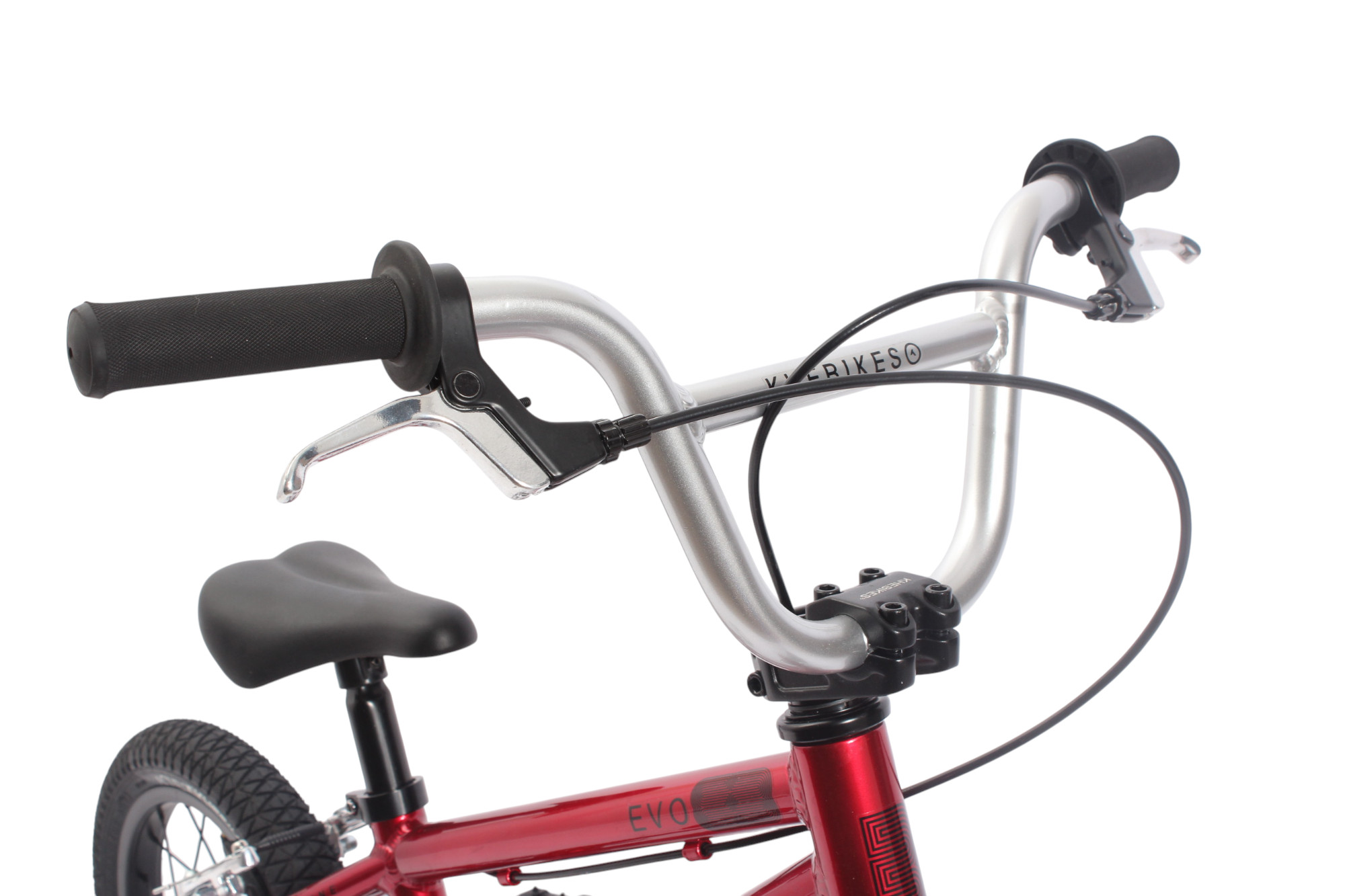

| Handlebars: | KHE aluminum 585mm width x 165mm (6.5“) height, backsweep 8”, upsweep 2.5” |

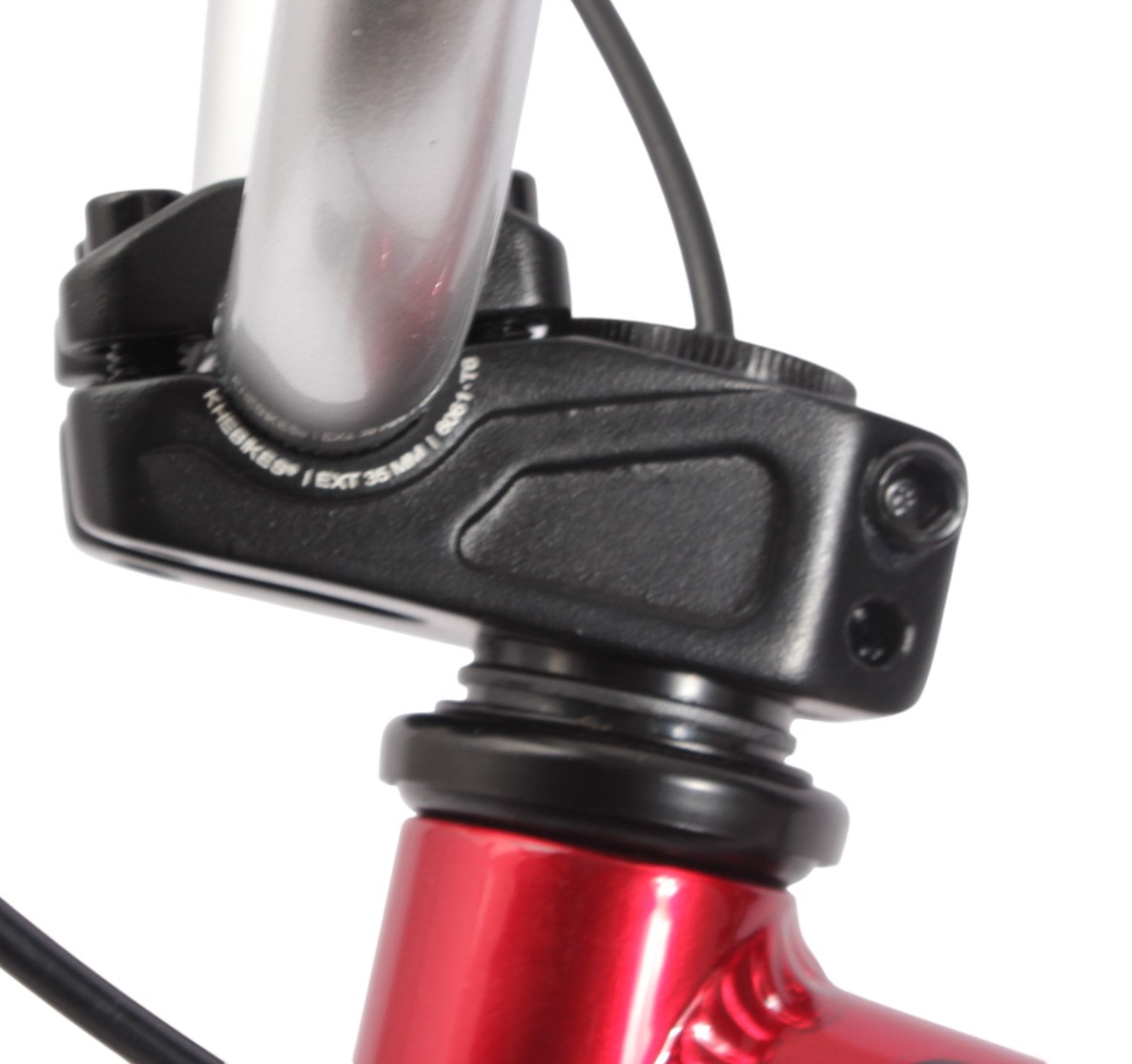

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | Aheadset 38x34mm Loosball 1 1/8” |
| Handles: | with flange 110mm, rubber diamond cut profile |

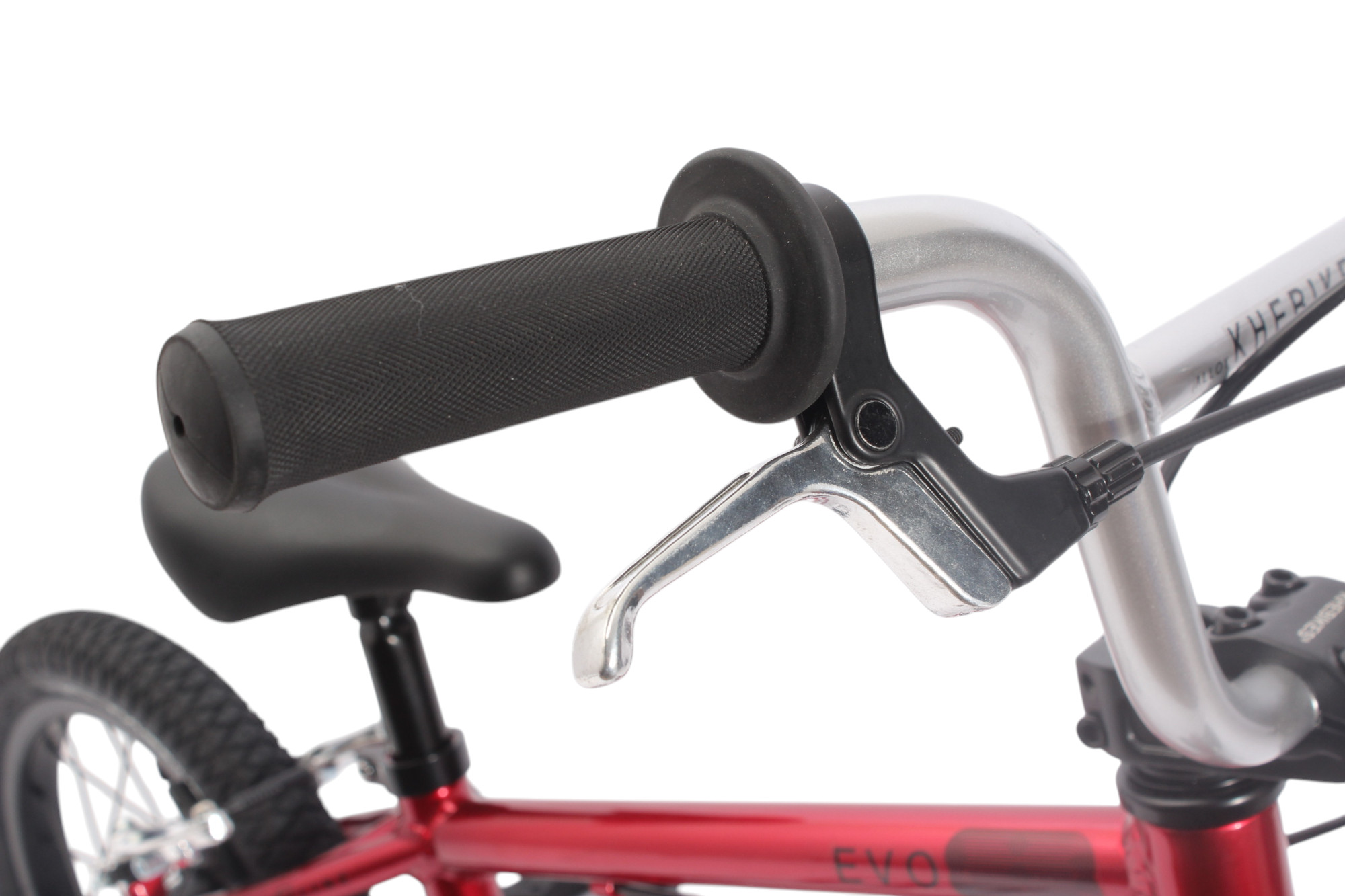

| Brake levers: | Aluminum with adjusting screw |

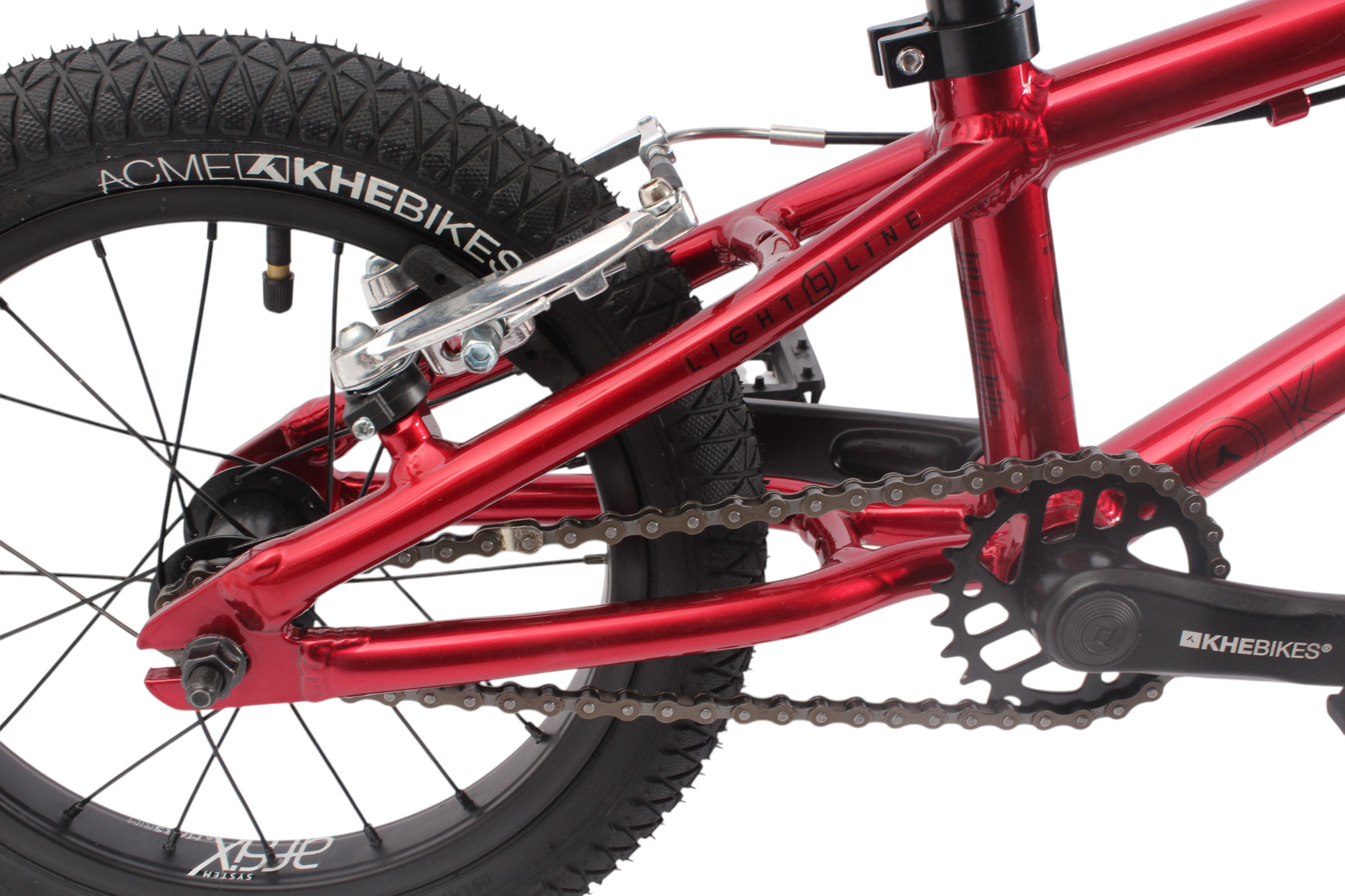

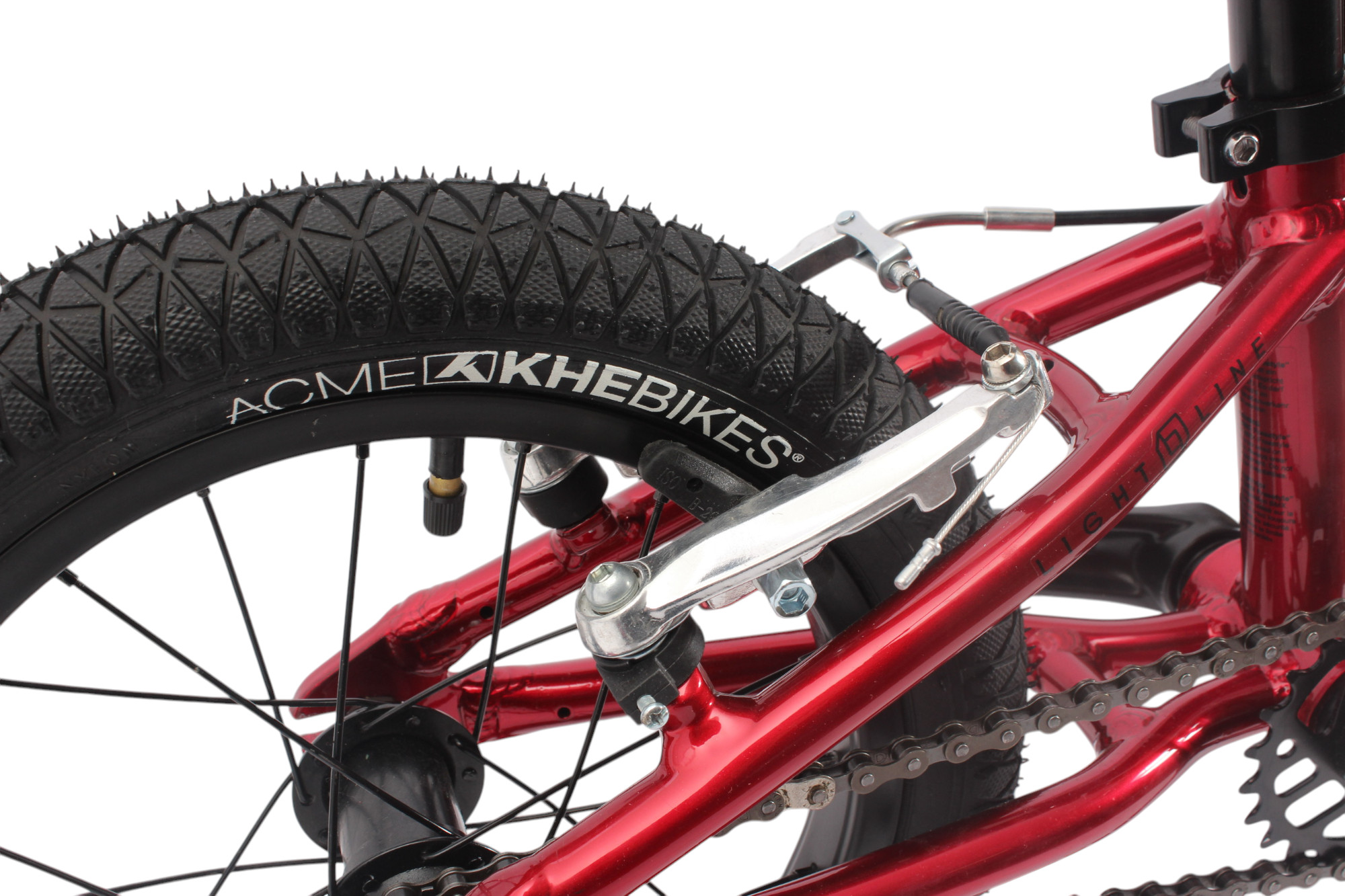

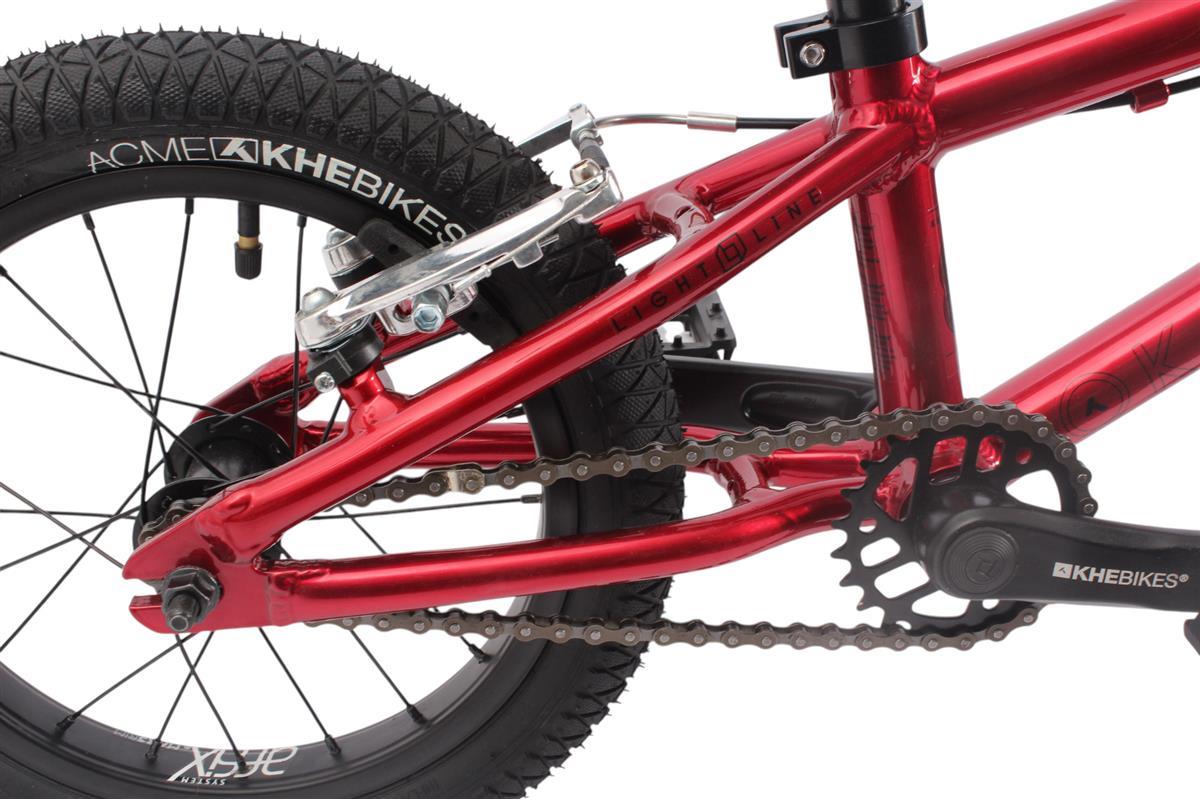

| Rear brake: | 102mm aluminum V-brake with adjustment screw |

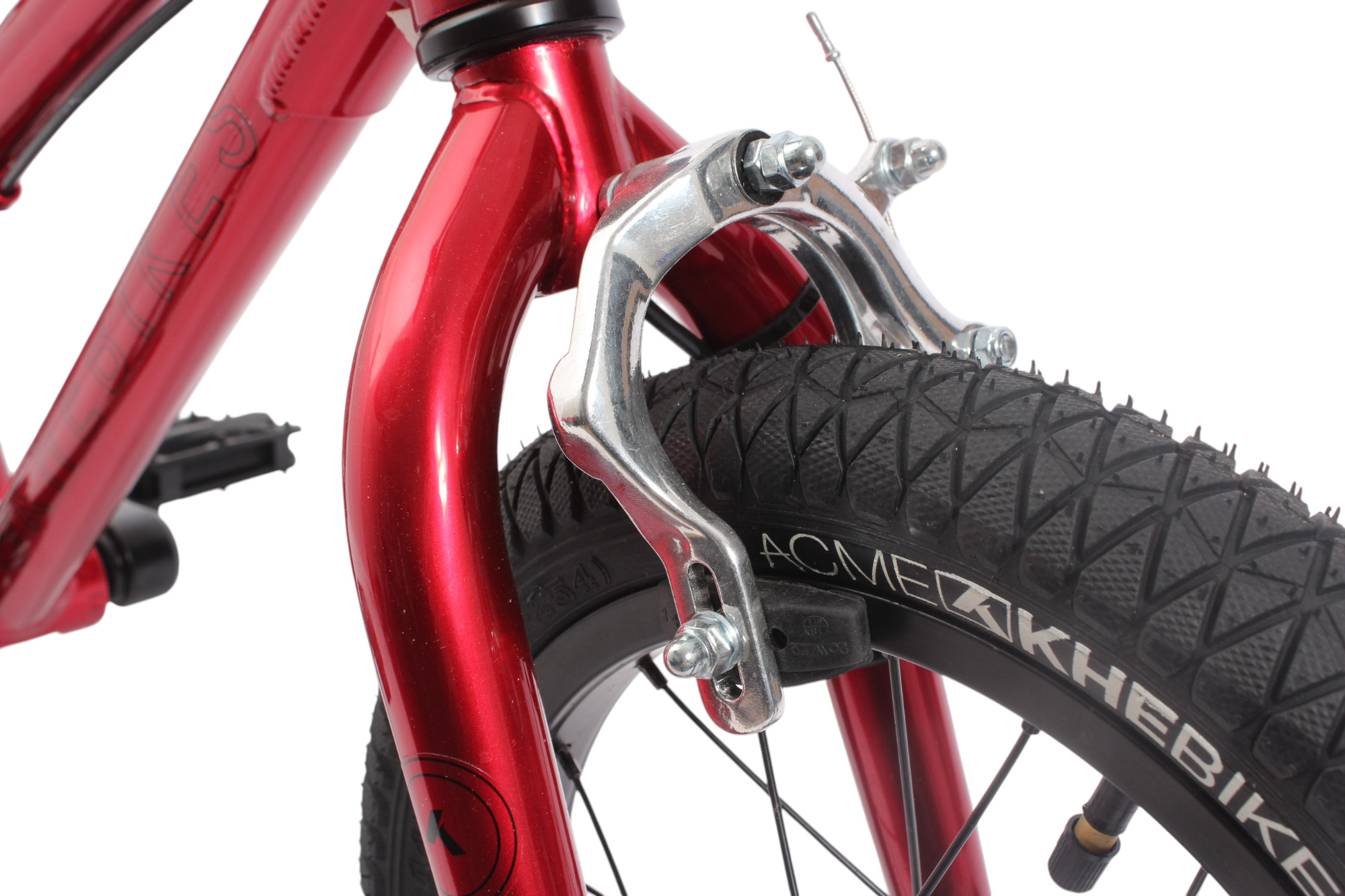

| Front brake: | Side pull (already installed!) |
| Crank: | KHE 3-piece forged aluminum 110mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 110mm |
| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | FEIMIN PVC with Baron axle 9/16” |

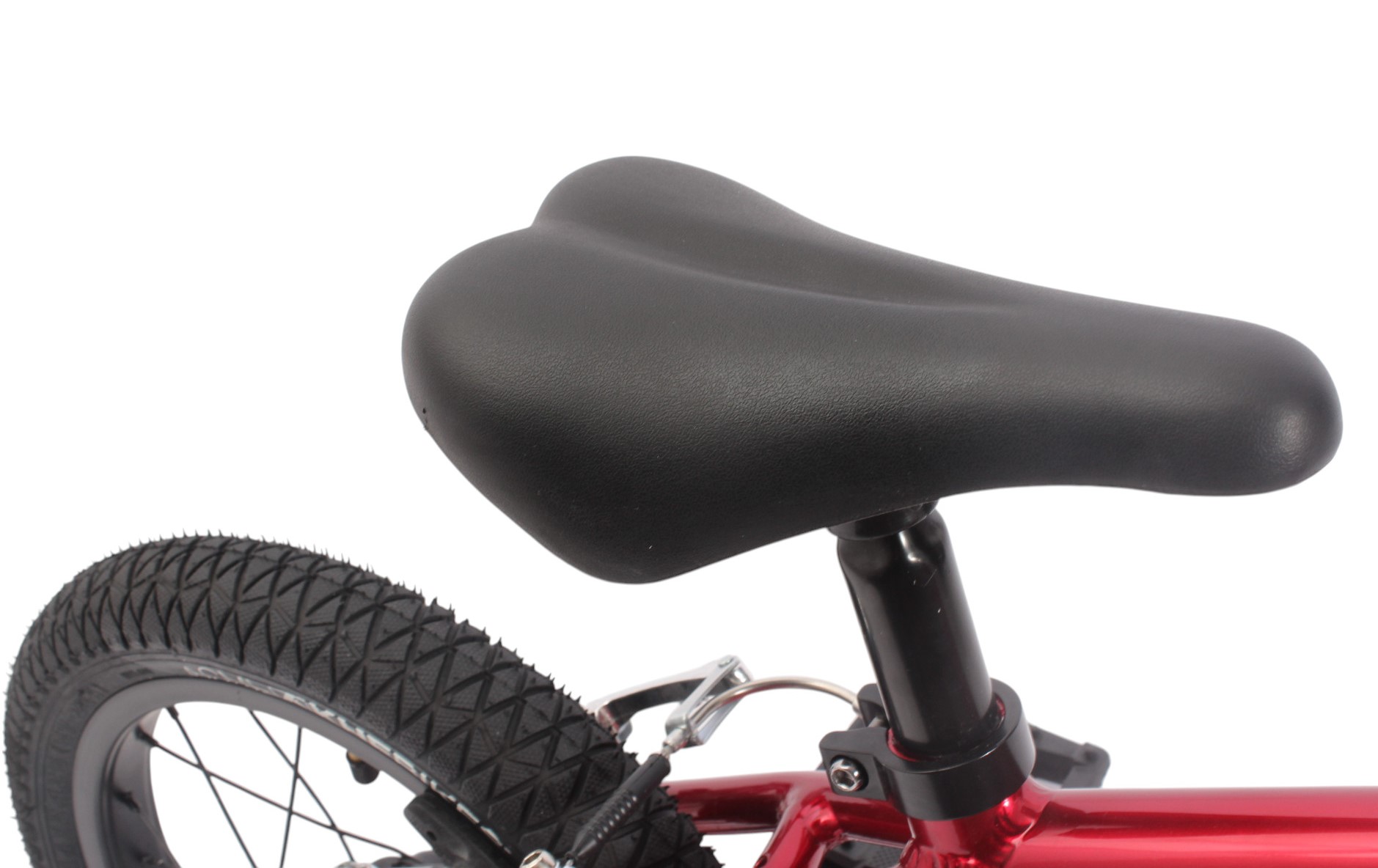

| Saddle: | Padded 210 x 120mm with silver embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |
| Front wheel hub: | 3/8” (10mm) x 155mm axle, steel, loose ball, 20H |
| Rear wheel hub: | 3/8” (10mm) x 170mm axle, steel, cassette hub 9 teeth, 20H |
| Rim: | 14 inch aluminum, 20 hole, 32.5mm wide |
| Tyres: | KHE 14 inch x 2.125” wide |
| Material: | Aluminum |
| Tire size: | 14 inch |
| Category: | Pumptrack, Street, Park, BMX Race |
| Size: | 14 inch, 95 - 115cm |
| Colour: | Red |
| Weight: | 7.5 kg (weight is stated without front brake), 16.53lbs / 7,5kg |
| Model Year: | 2025 |
Instructions d'utilisation :
Le KHE EVO LL 14 pouces BMX est idéal pour les jeunes cyclistes de 95 cm à environ 115 cm qui souhaitent apprendre leurs premiers tricks et figures. Il convient aux pumptracks, pistes de course, street, park et flatland.
N'utilisez pas le BMX sur des surfaces mouillées, glissantes ou verglacées.
Non adapté à la circulation routière, sauf si le vélo est équipé d’un éclairage et de réflecteurs conformes aux réglementations StVZO.
Poids maximal de l'utilisateur : 45 kg.
Consignes de sécurité :
Portez toujours un casque adapté et un équipement de protection (genouillères, coudières et gants).
Avant chaque sortie, vérifiez que toutes les vis, connexions et composants sont bien fixés.
Contrôlez régulièrement l'état des freins et des pneus.
Assurez-vous que la chaîne est correctement tendue et ne présente aucun dommage visible.
Aucune modification autorisée : Ne modifiez pas le BMX en perçant, coupant ou effectuant d'autres changements. Toute utilisation inappropriée annule la garantie.
Entretien et maintenance :
Nettoyez régulièrement le BMX et protégez-le contre la rouille.
Utilisez uniquement des pièces de rechange d'origine. Effectuez l'entretien conformément au manuel d'utilisation.
Remplacement en cas d'usure : Vérifiez régulièrement les composants tels que le guidon, le cadre et la fourche du BMX pour détecter des fissures, des déformations ou des microfissures, en particulier au niveau des soudures. Remplacez immédiatement les composants en cas de fissure ou de dommage.
