KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering and outstanding riding dynamics. The new 2025 models offer optimized geometry, well-thought-out details and high-quality components – directly from the manufacturer for maximum performance on any terrain.

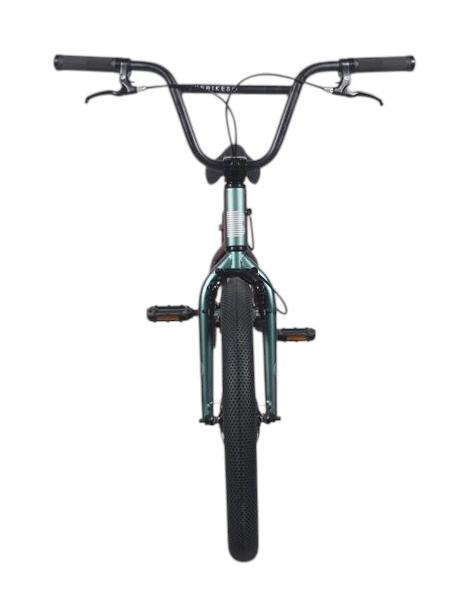

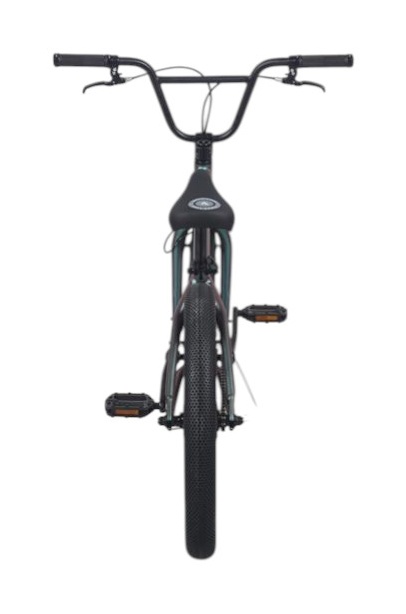

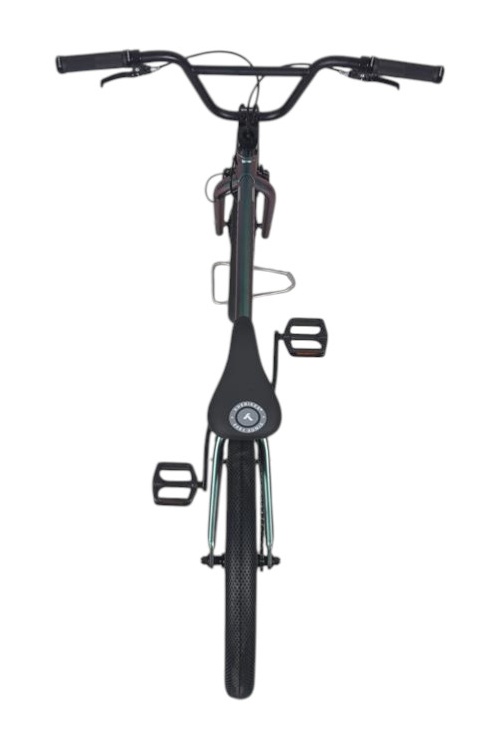

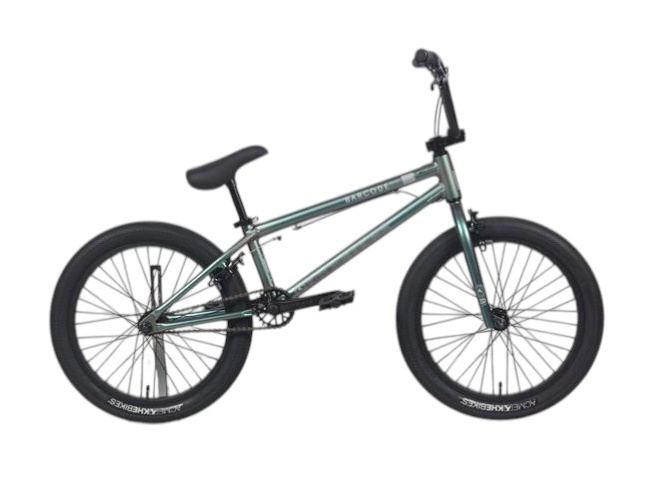

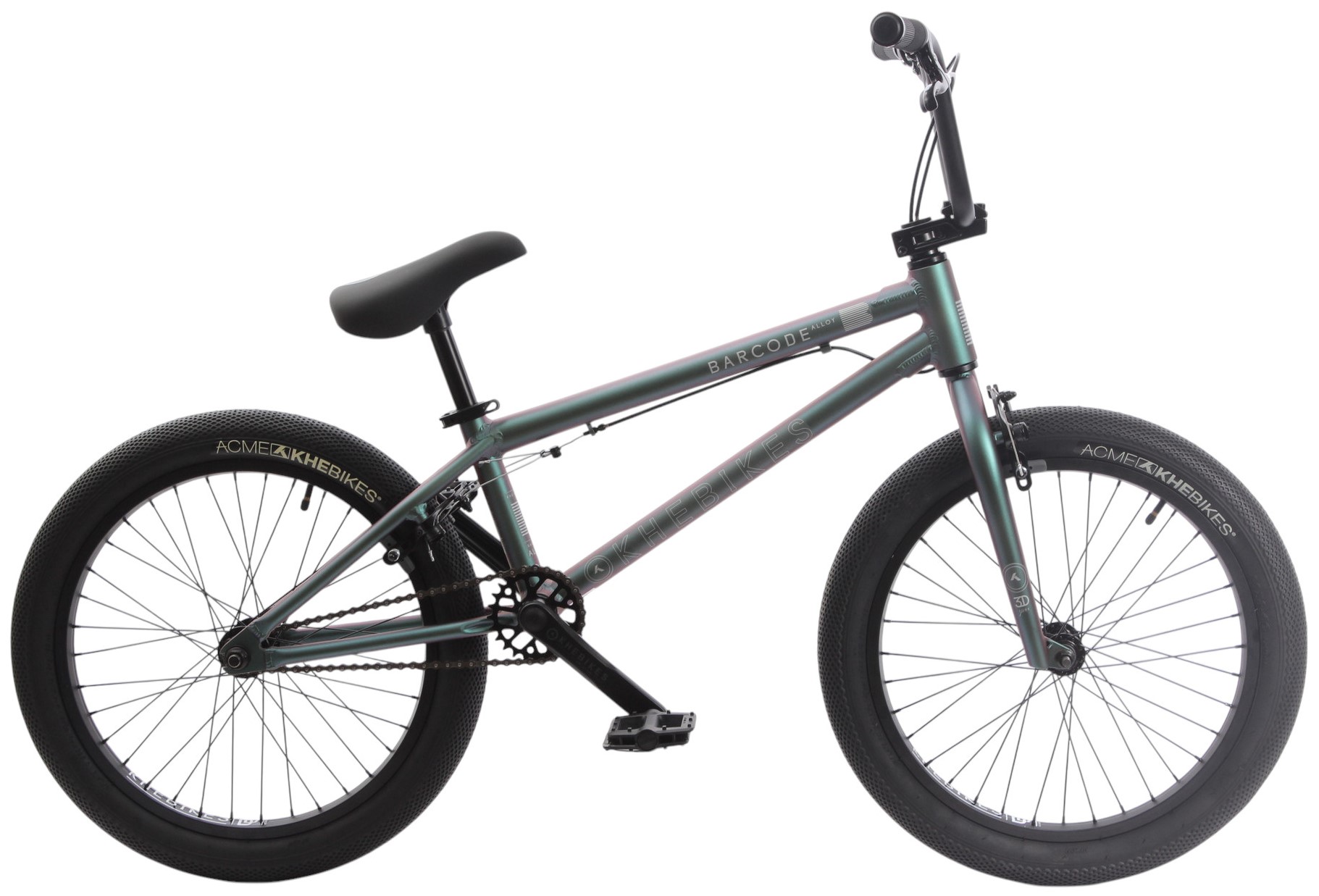

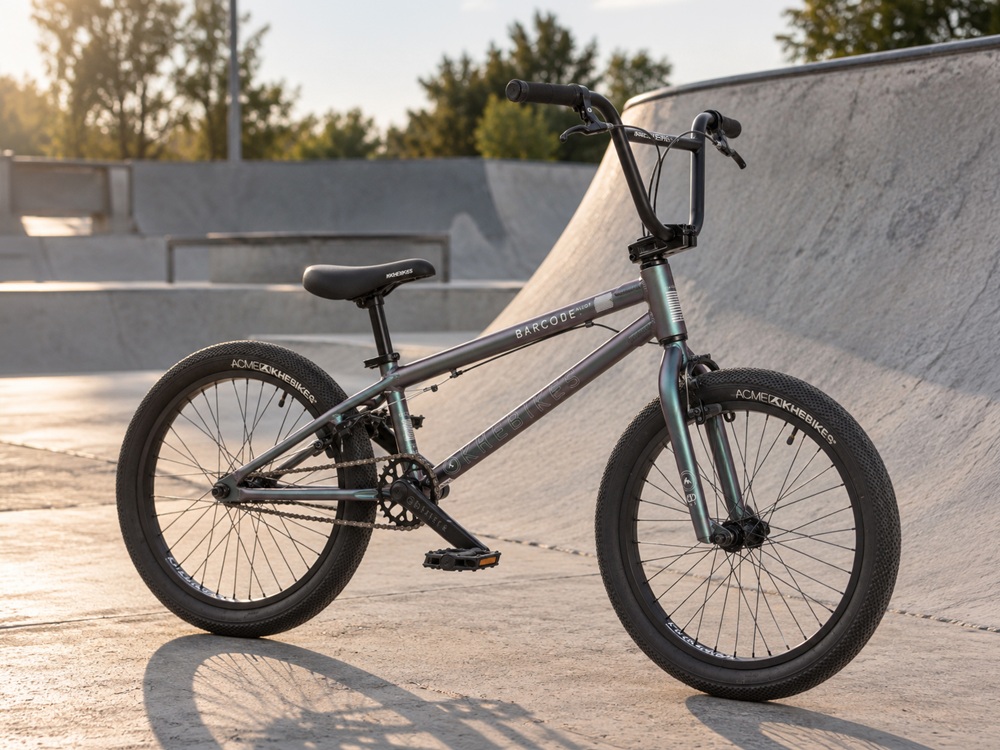

KHE Barcode LL 20"

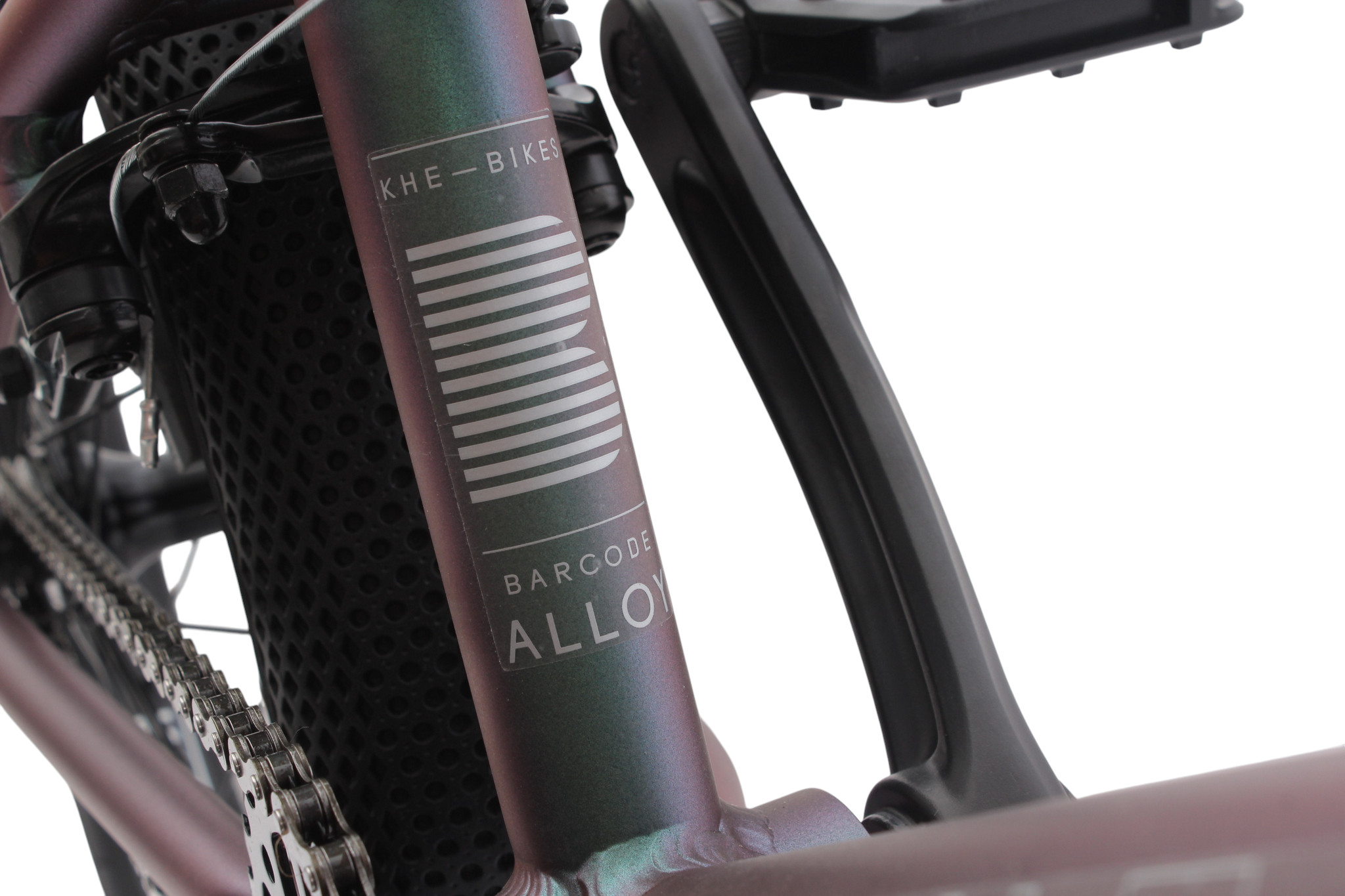

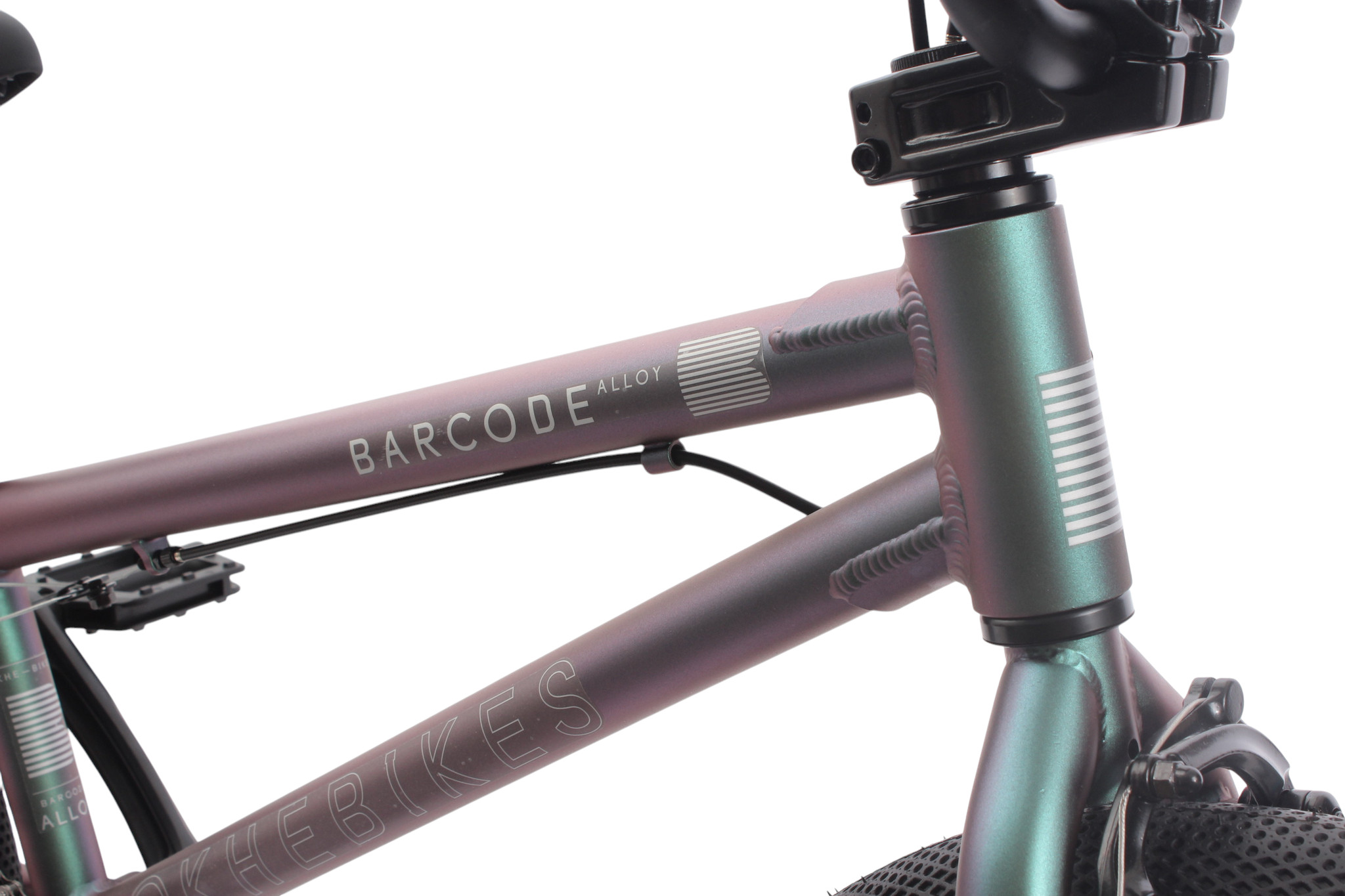

The KHE Barcode LL 20 inch BMX is a lightweight and stylish all-round BMX bike. The frame features a special flip-flop paint finish. The base color is flip-flop green, which changes appearance depending on the light and creates a unique high-quality look.
With an aluminum frame and a 20.4 inch top tube, the bike offers excellent stability and riding performance while weighing only 10.4 kg.

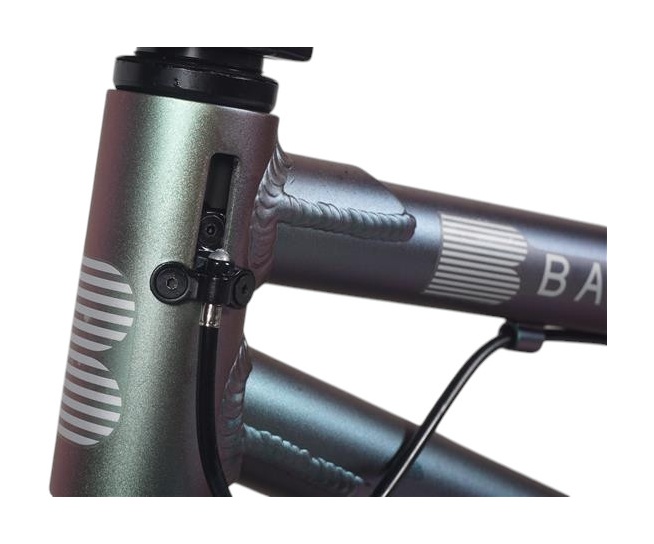

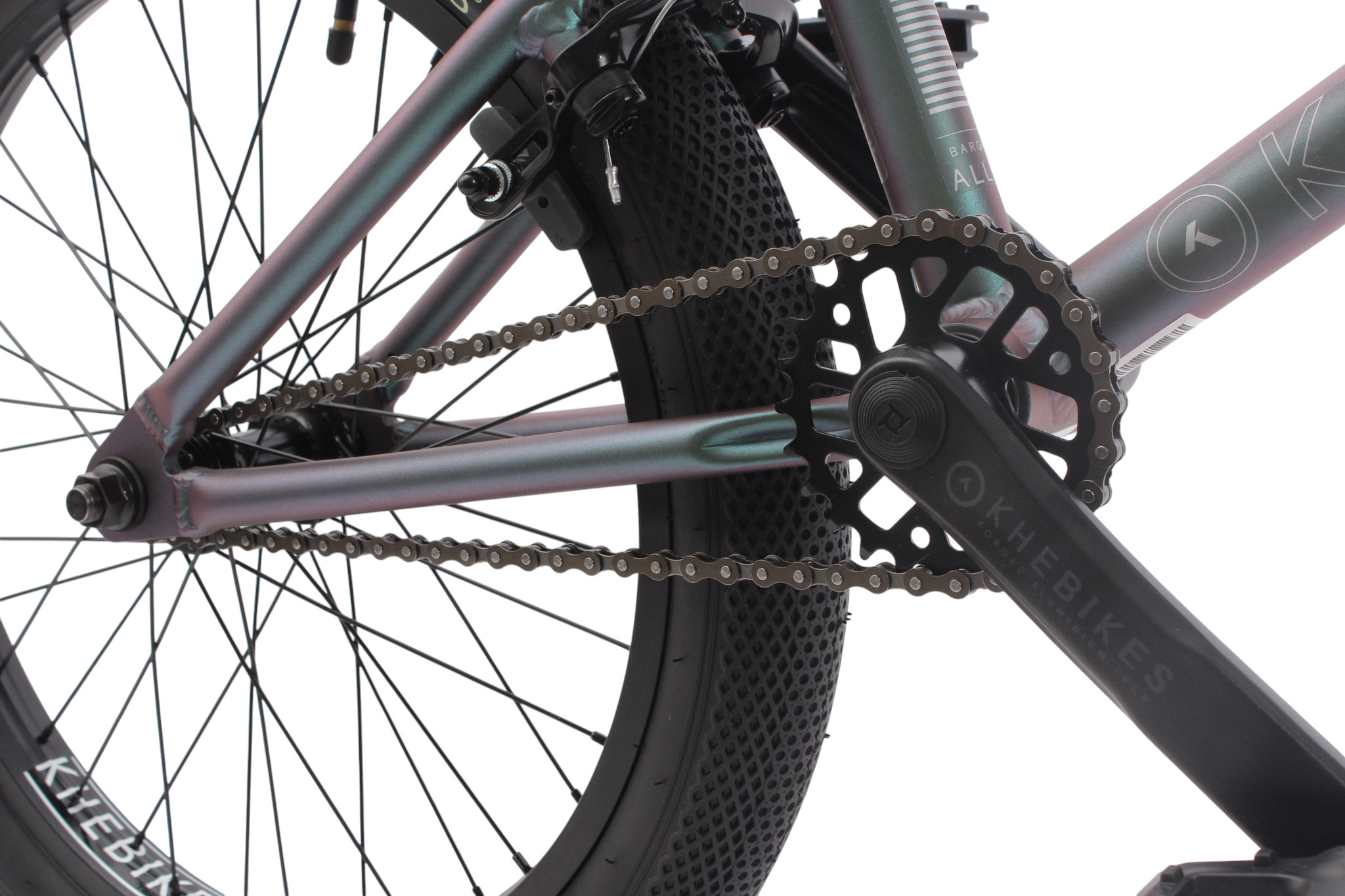

Equipped with the patented KHE Affix Rotor System, the bike allows 360° handlebar rotations for tricks and jumps. The 680 mm wide aluminum handlebar and 50 mm toploader stem provide maximum control and plenty of leg clearance. The 3-piece aluminum crank (165 mm) combined with a 25T sprocket and 9T sealed cassette hub ensures efficient power transfer.

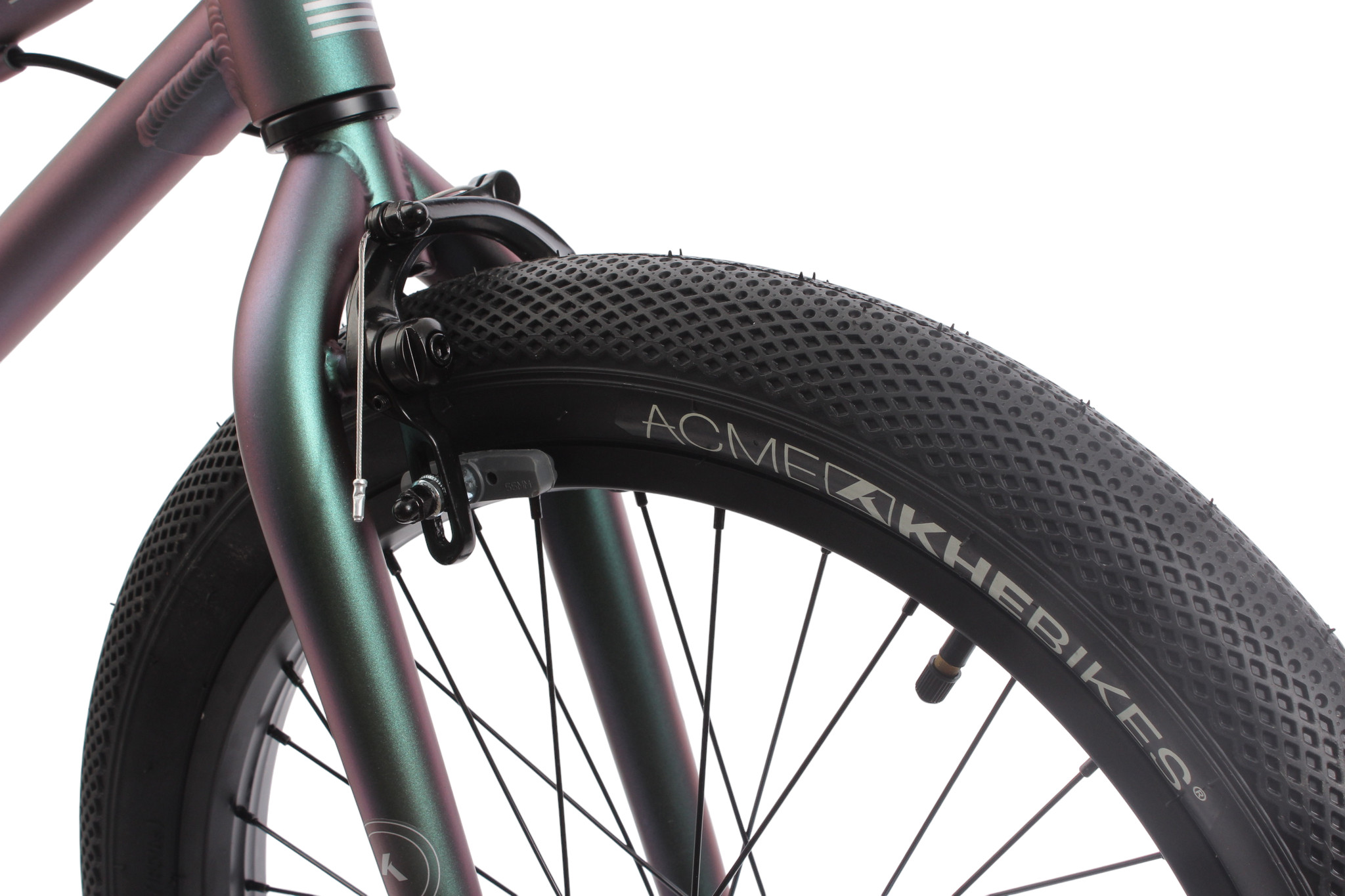

With double wall aluminum rims, 2.40 inch KHE ACME tires with grey sidewalls, and fully sealed bearings in front and rear hubs, the Barcode LL is extremely durable. Front and rear U-brakes ensure powerful braking performance. The seat cover and tire sidewalls perfectly match the frame color, giving the bike a clean design. Whether park, pumptrack, street or flatland – this bike is a true all-rounder.
Recommended rider height: 140–180 cm
Maximum rider weight: 85 kg
Riding style: Park, Pumptrack, Street, Flatland
Why choose the Barcode LL 20" from KHEbikes?
Direct from the manufacturer – best price
At only 10.4 kg, one of the lightest 20 inch BMX all-round bikes

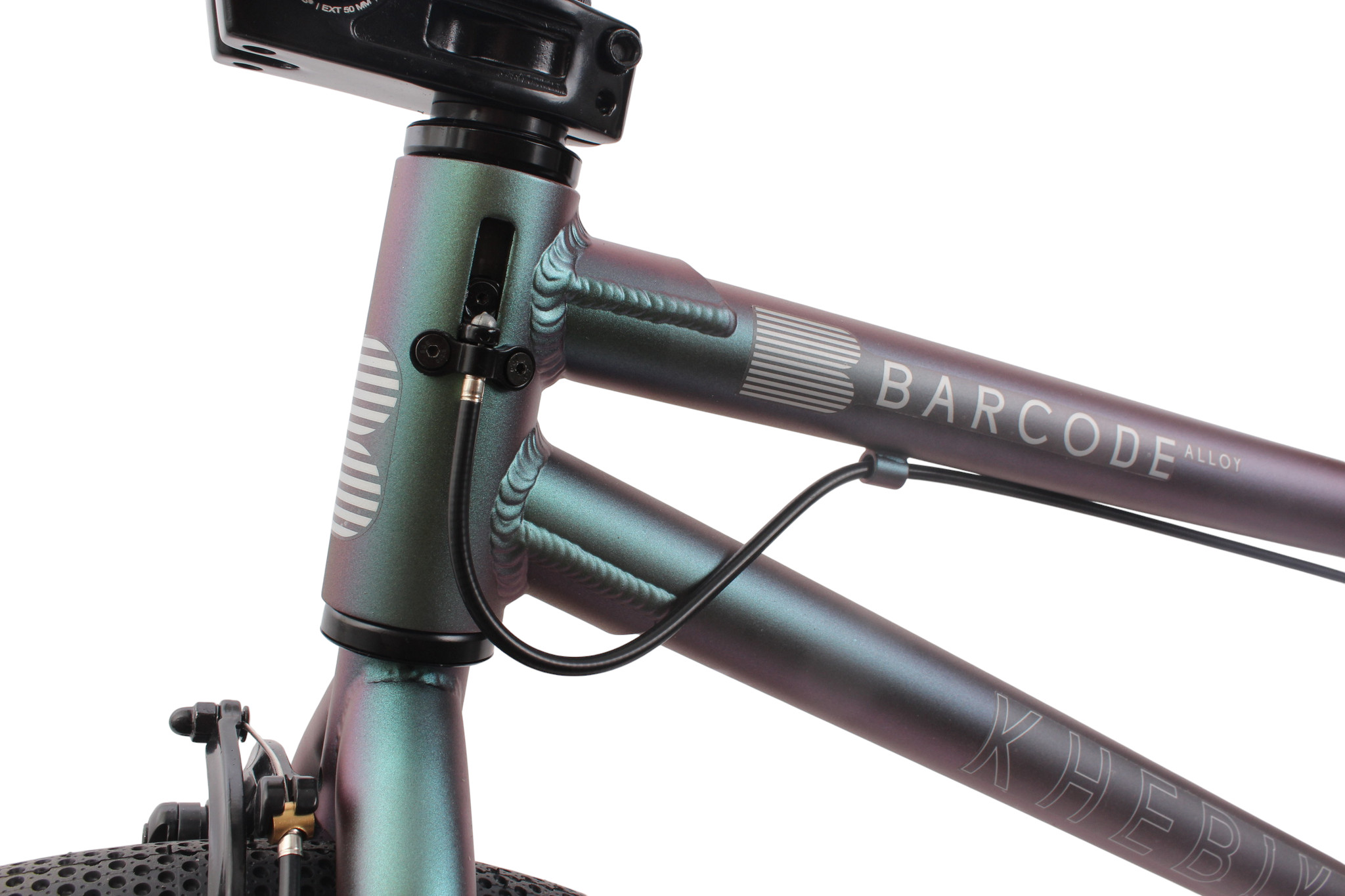

KHE BMX rotor system for 360° handlebar spins
Aluminum frame with 3D dropouts
Equipped with two powerful U-brakes
Sealed Euro bottom bracket for long durability
Pegs: Compatible with 10 mm front pegs and 14 mm rear pegs. We recommend BLACK STEEL Pegs.
The BMX bike is about 90 % pre-assembled.
The manual can be found under “Datasheets”.
An assembly video is available under “Video”.

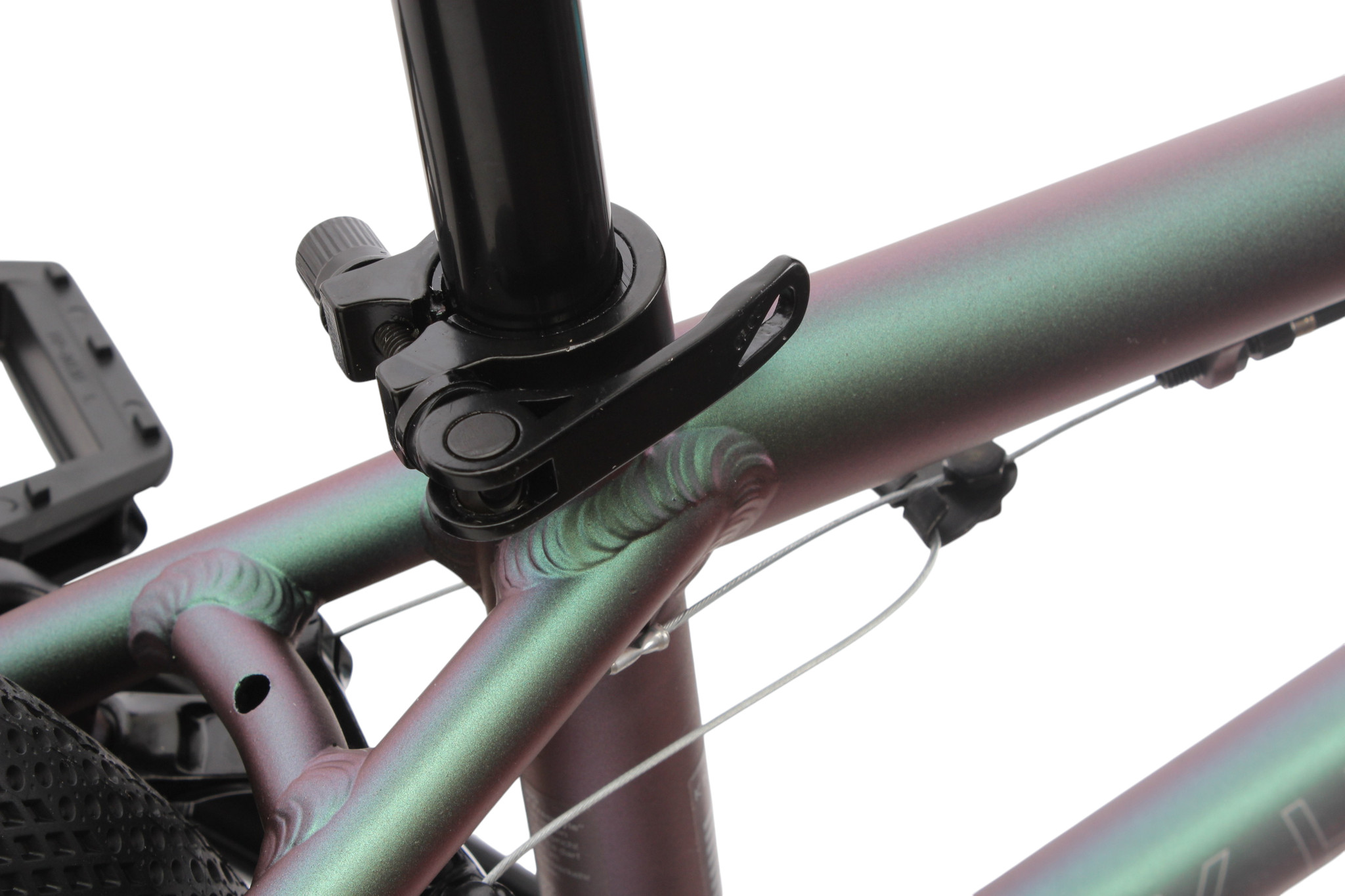

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 20.4", CS 12.8", HT 75°, ST 71.5°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 20,4" (518mm) |
| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

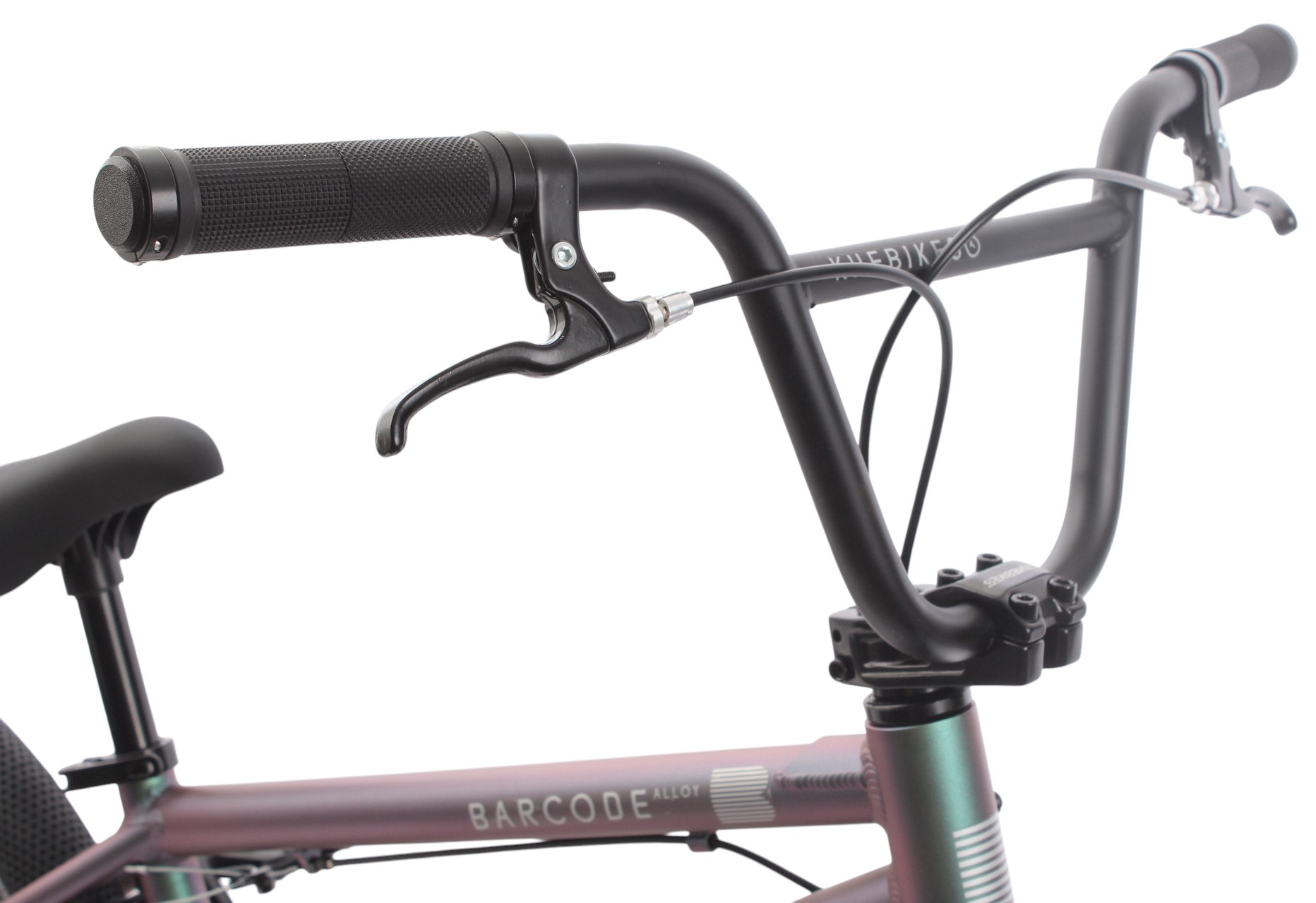

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

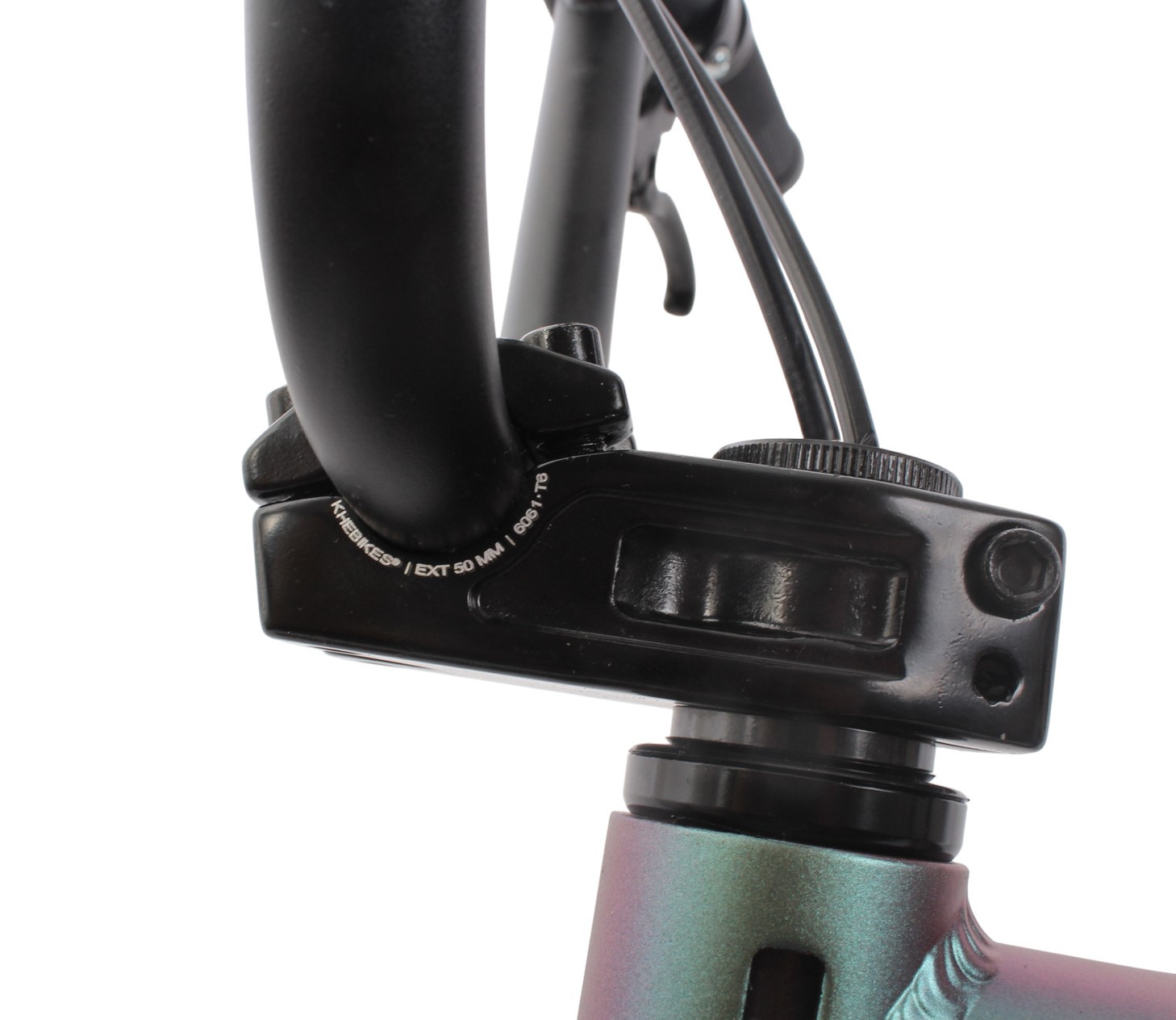

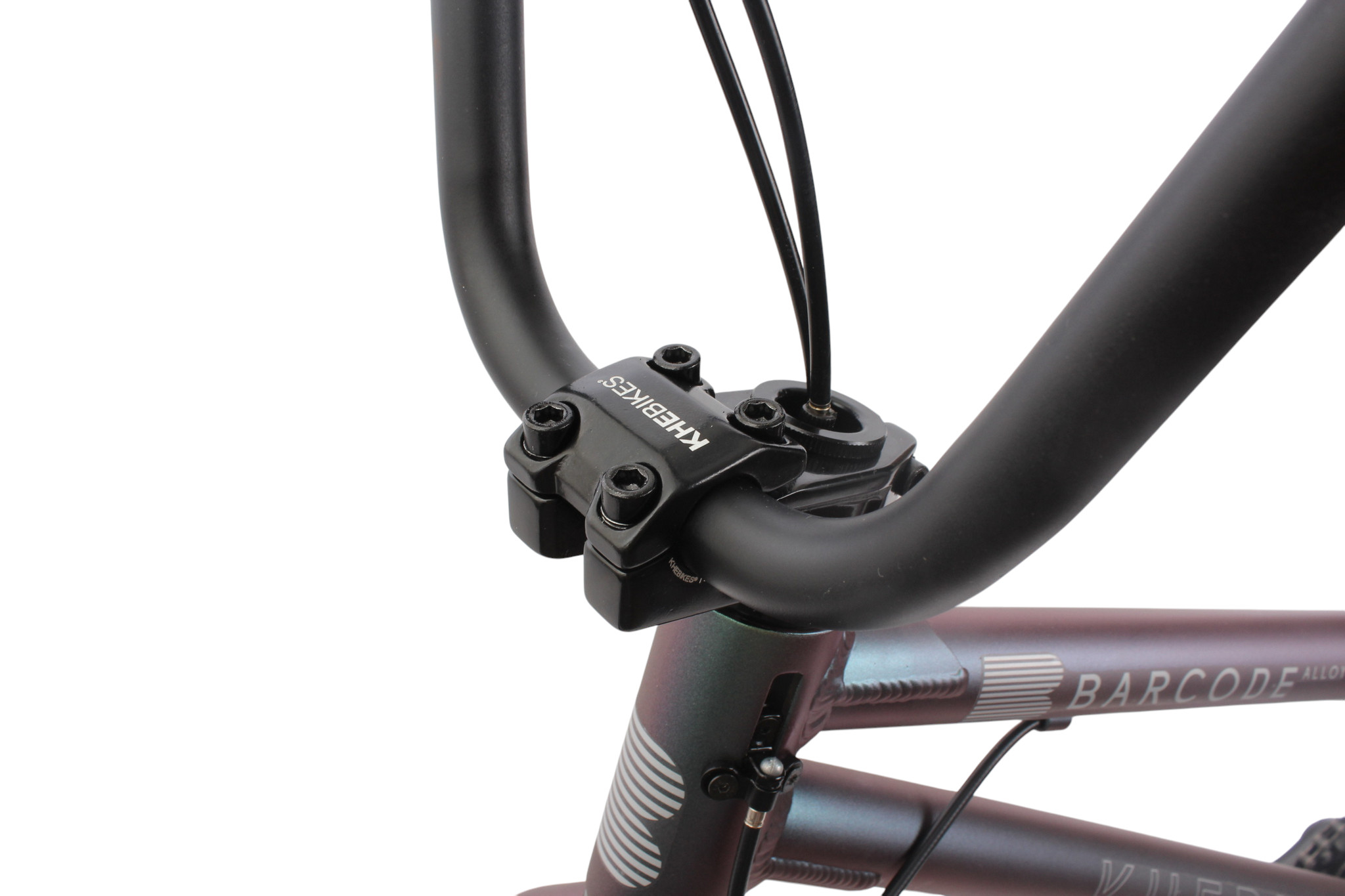

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patentierter KHE AFFIX 360 Grad Rotor |

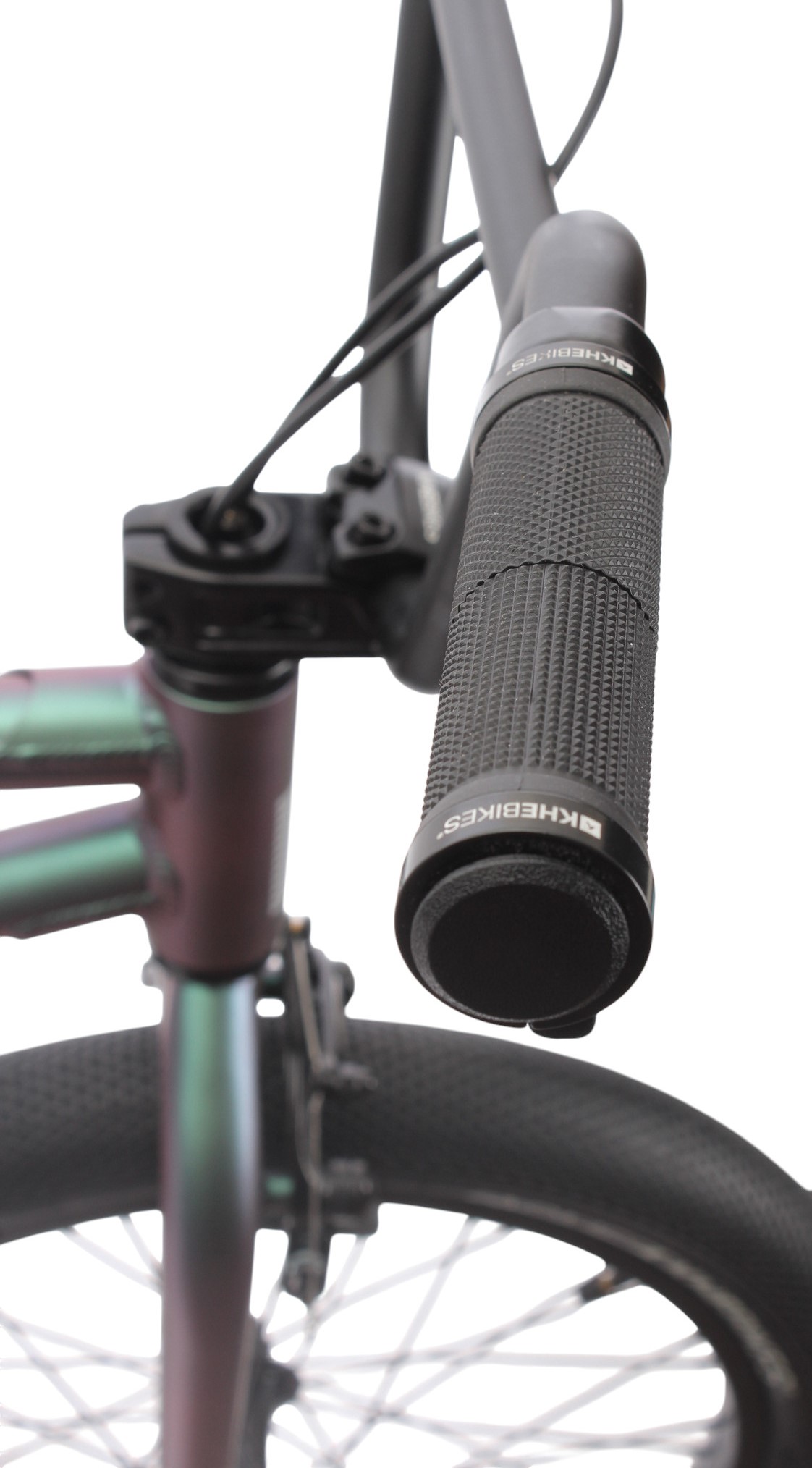

| Handles: | Lock On 140mm high quality rubber with aluminum clamps and KHEbikes laser logo |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

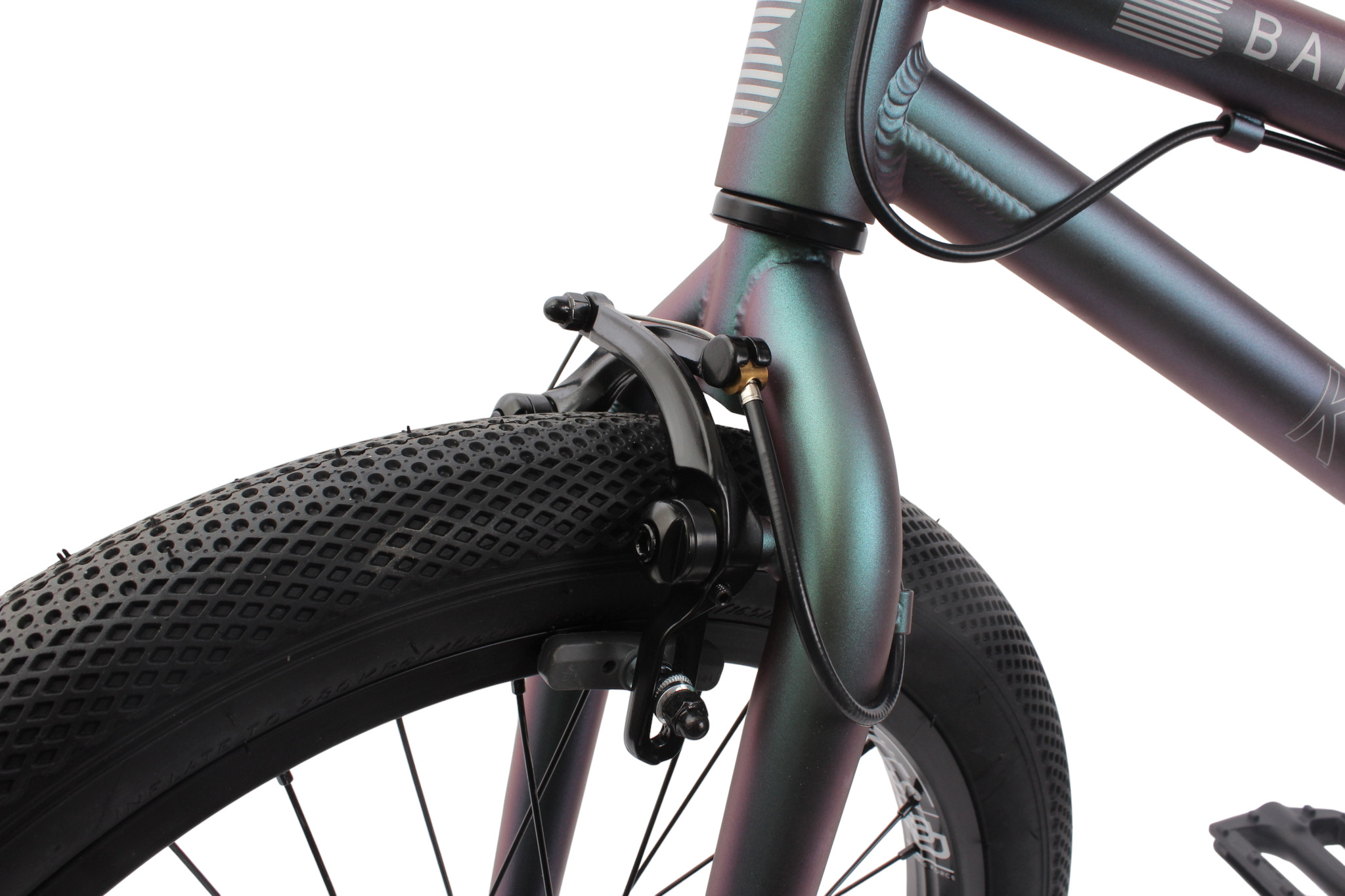

| Front brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece forged aluminum 165mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |
| Chainring: | 25T teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

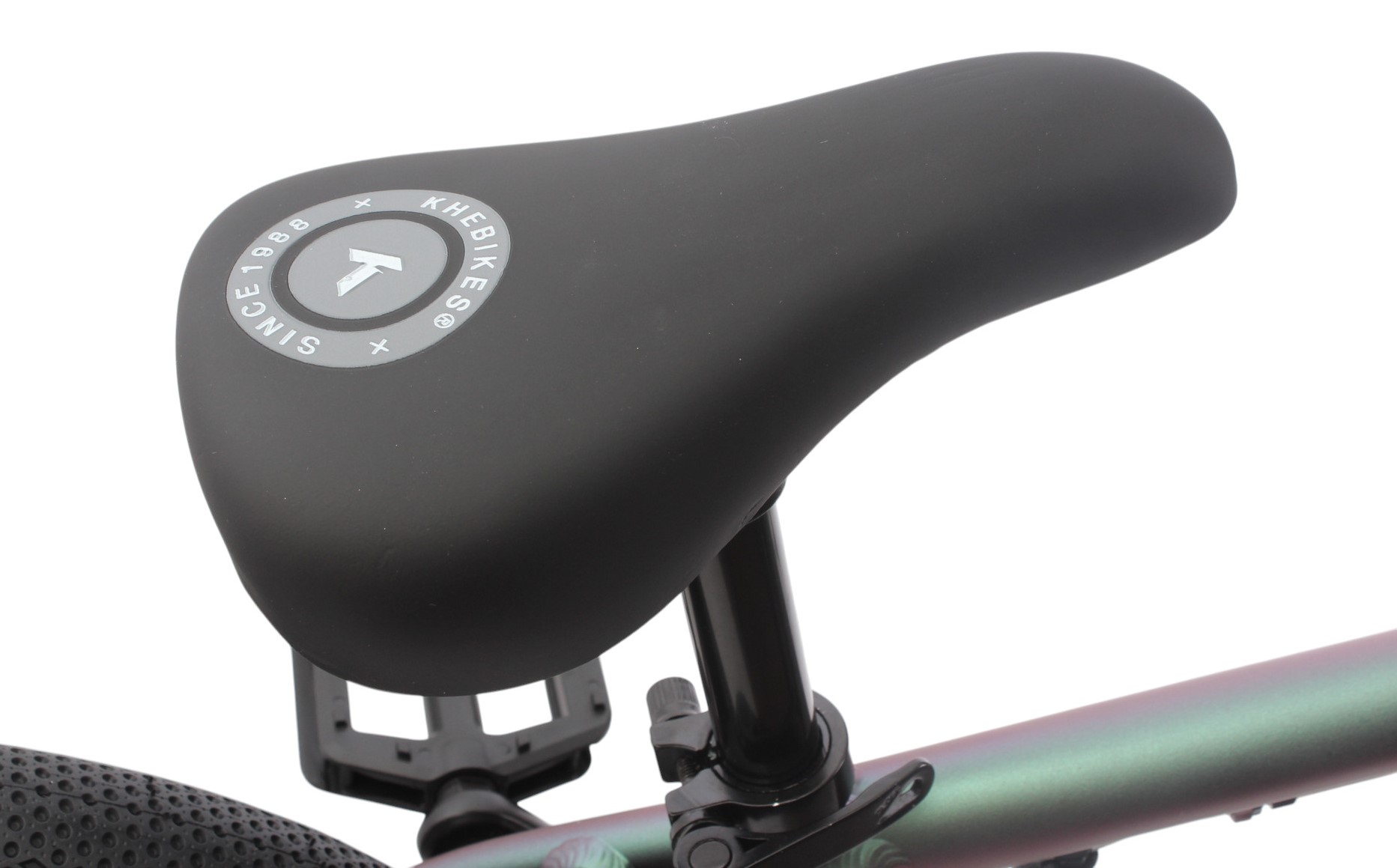

| Saddle: | Padded 220 x 125mm with embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |

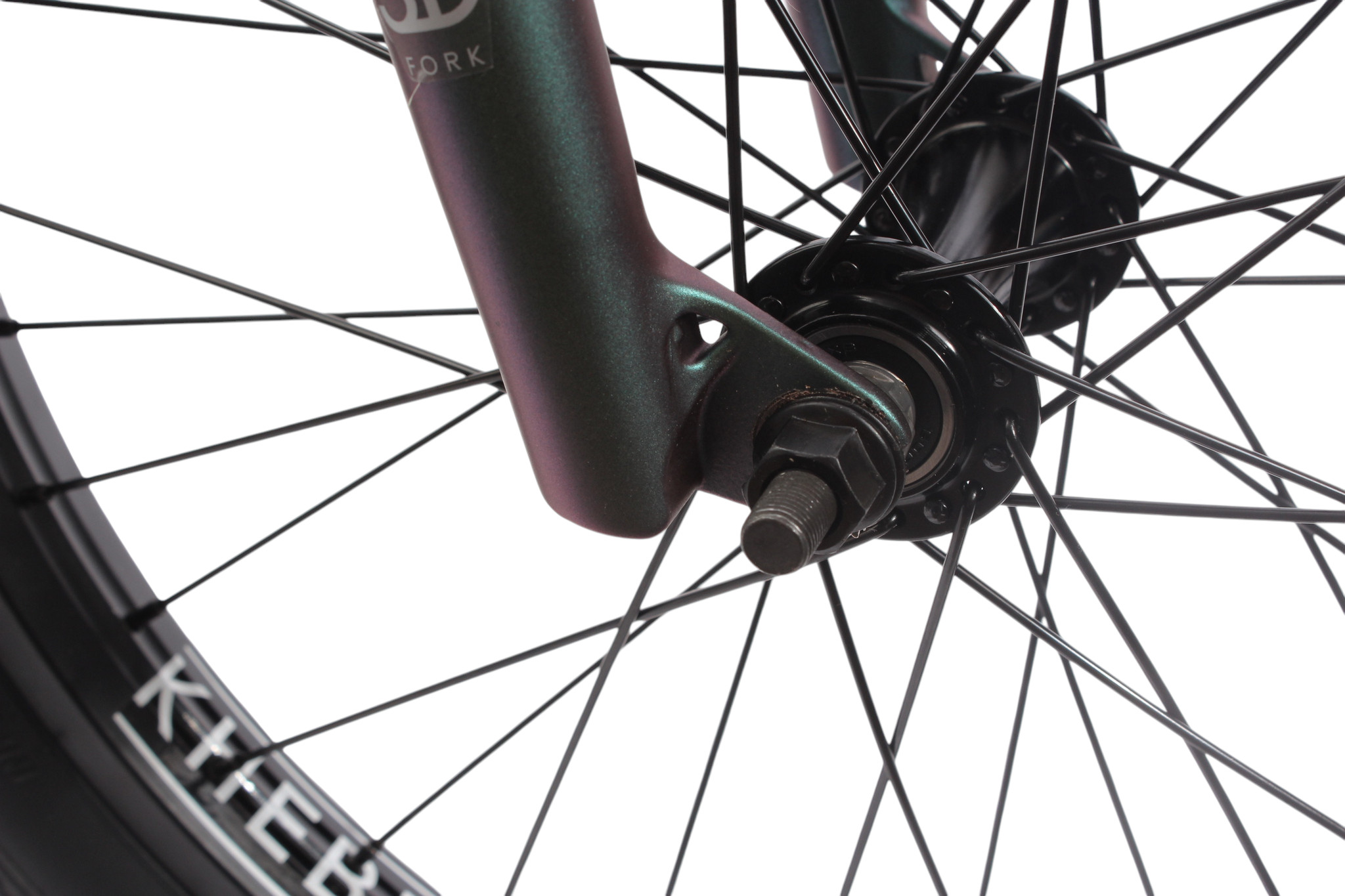

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

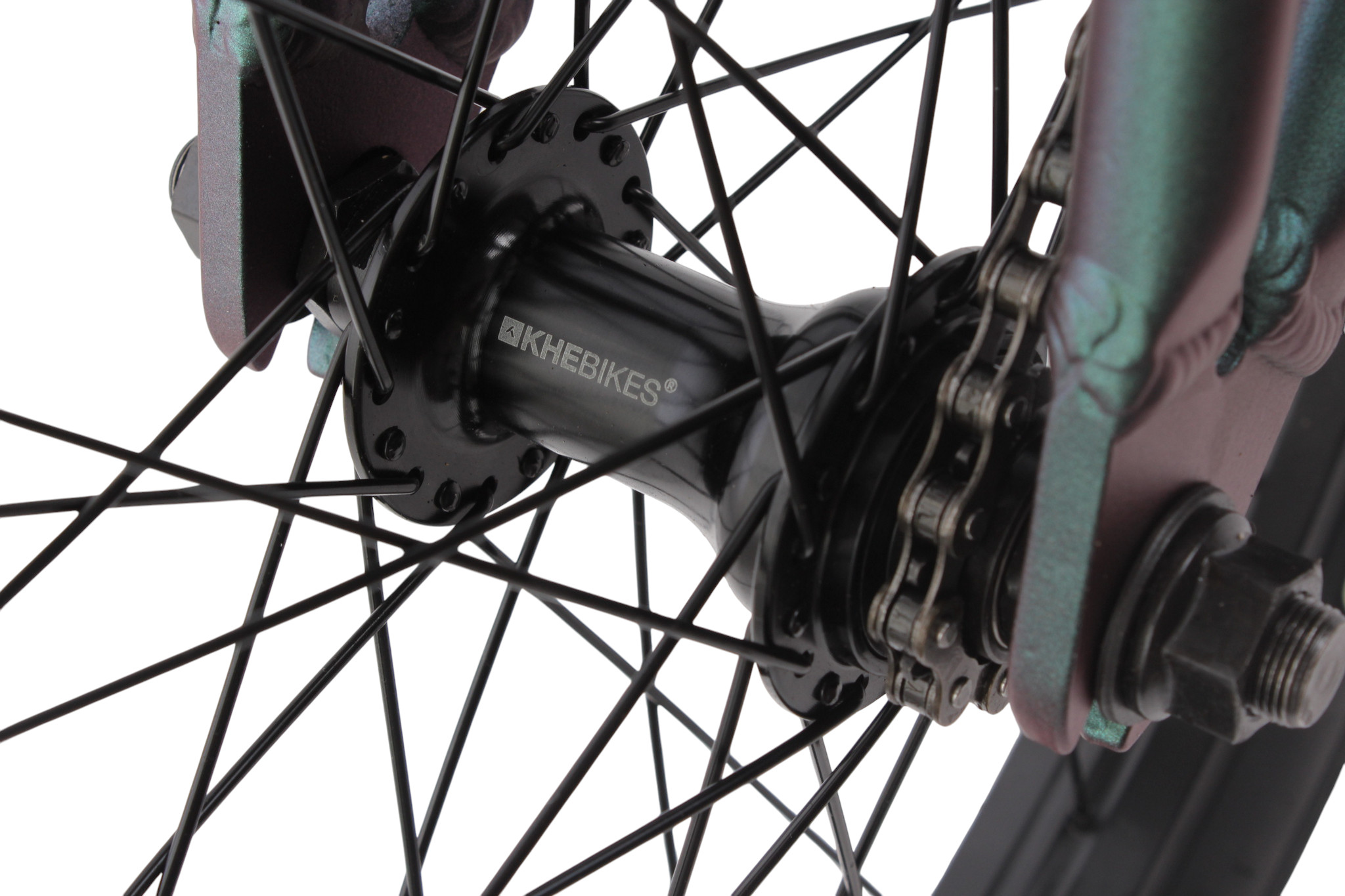

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |

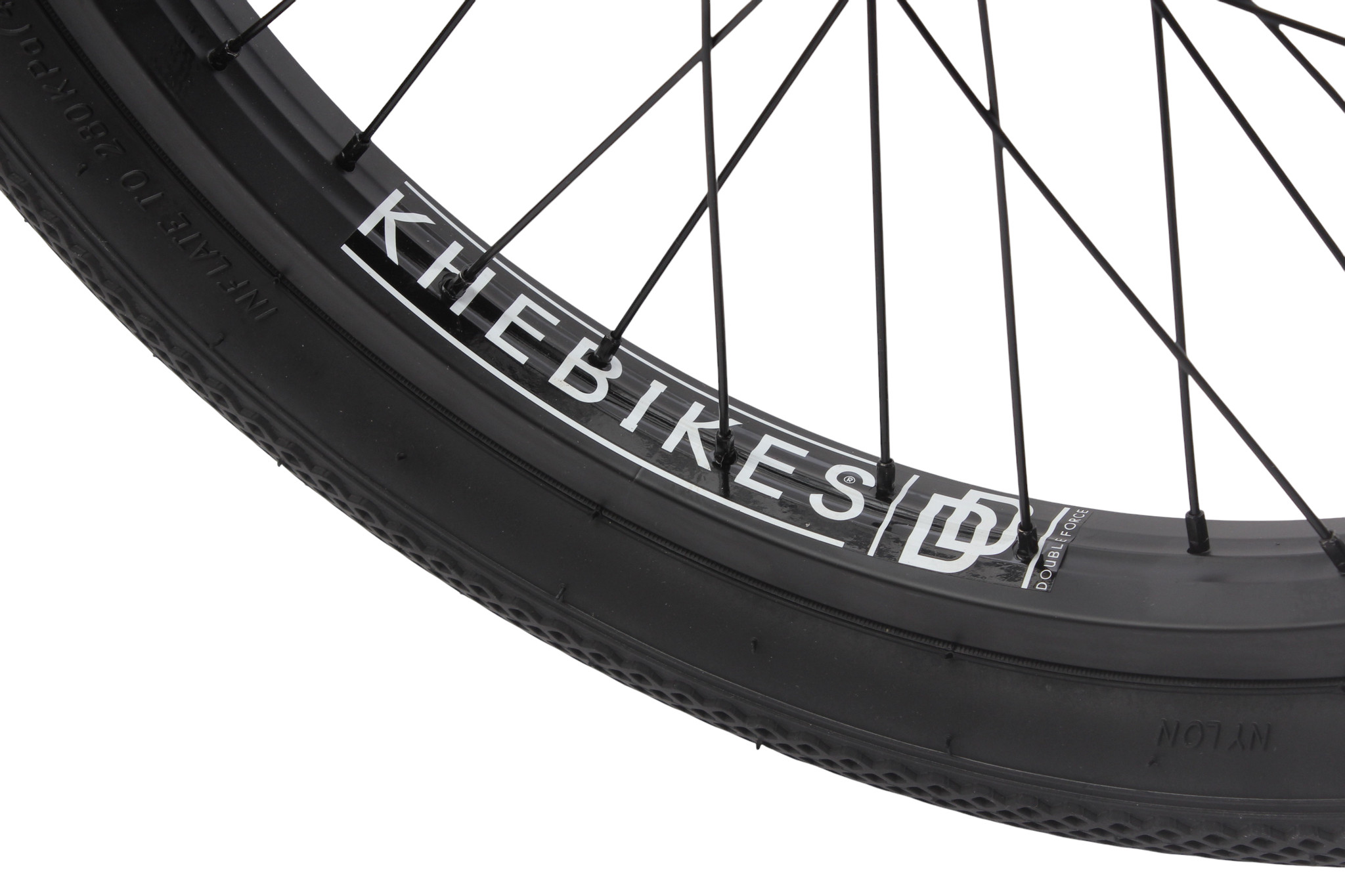

| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | Aluminum |
| Tire size: | 20 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Green |
| Weight: | 22.93lbs / 10,4kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended use: This BMX bicycle is designed for use in park, pump track, street and flatland riding. It may only be used on suitable surfaces and is not intended for road traffic without appropriate equipment.
Usage / installation instructions: The bicycle is approximately 90% pre-assembled and must be properly assembled before use. All bolts must be checked and tightened before each ride. Brakes, handlebar and drivetrain must be correctly adjusted. The maximum rider weight of 85 kg must not be exceeded. Check all safety-relevant components before each use.
Care and cleaning: Clean only with water and a mild detergent. Do not use aggressive cleaners, solvents or high-pressure cleaners. Lubricate moving parts regularly and store the bicycle in a dry place to prevent corrosion.
Replacement in case of wear: Regularly check all safety-relevant components such as brakes, tyres, chain and bearings for wear, damage or malfunction. Worn or damaged parts must be replaced immediately to ensure safe use.
