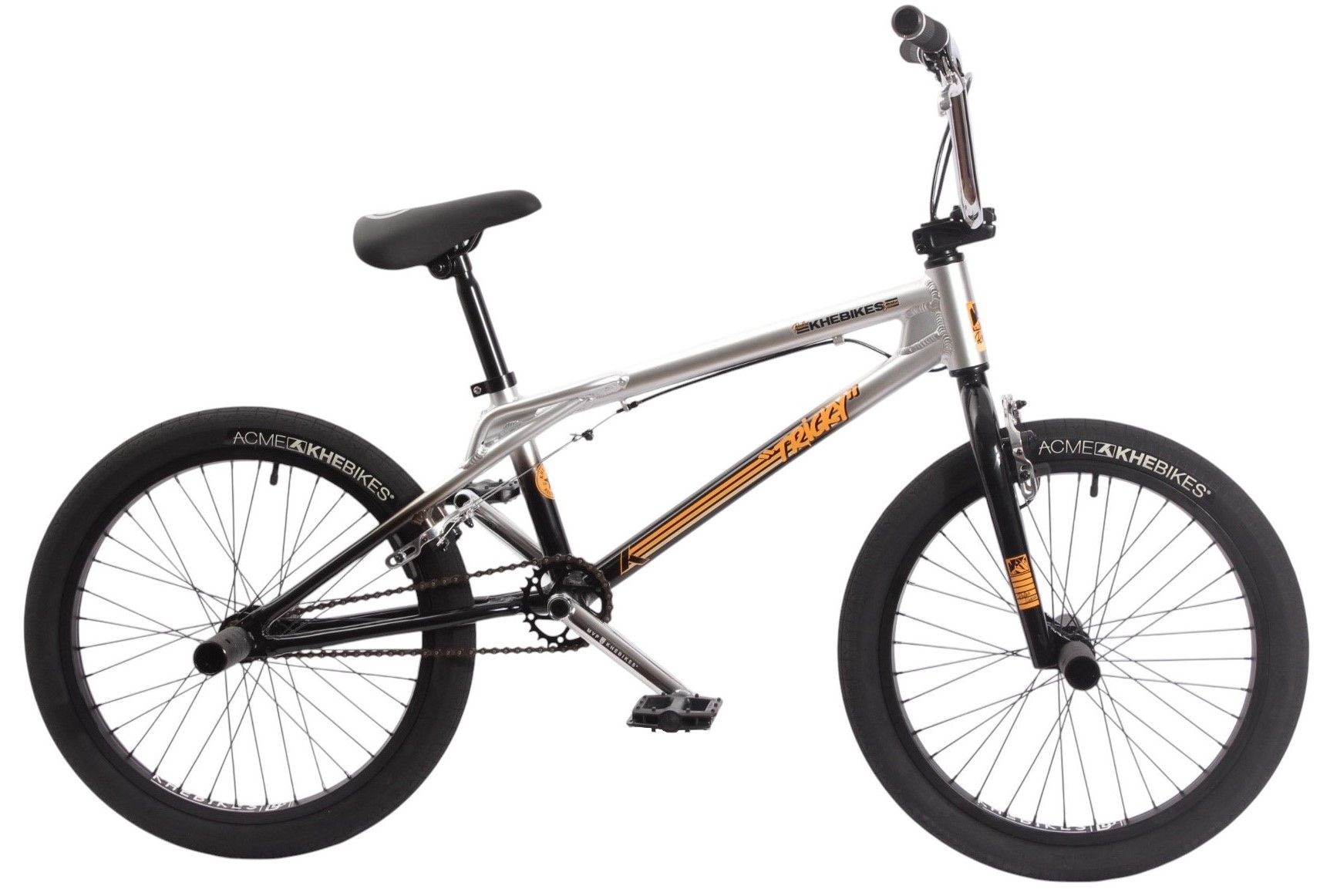

Aluminum BMX bike KHE TRICKY FC AL 20 inch 11 kg
KHE TRICKY AL 20 inch
The KHE TRICKY AL 20 inch BMX is the perfect “All Around” bike for kids or old-school riders who want to learn flatland tricks. The lightweight aluminium frame with integrated platform, 19.7-inch top tube and 14.25-inch chainstay length offers excellent manoeuvrability. The two-tone finish in chrome silver / gloss black is complemented by the chrome-plated handlebar, chrome-plated crank and black details.
With the patented KHE Affix Rotor System, 360-degree handlebar rotations are no problem, while the 8-inch high handlebar, 40 mm top-loader stem and 3-piece Chromoly crank with 48 teeth provide excellent control. A special highlight is the KHE Greyhound Freecoaster rear hub. It is ideal for flatland tricks because the pedals do not rotate backwards when rolling backwards. This makes backwards tricks easier and more controlled. Equipped with two U-brakes, robust double-wall rims, KHE ACME tyres (1.95 inch) and two pairs of aluminium pegs, the TRICKY is highly versatile.
At only 11 kg, it is ideal for all types of BMX riding such as flatland, park or pump track.
Recommended rider height: 140–185 cm
Maximum rider weight: 95 kg
Intended use: Flatland, park, pump track
Why choose the TRICKY 20 inch from KHEbikes:
- Direct from the manufacturer, therefore the best prices
- At only 11 kg, a lightweight 20-inch BMX all-rounder including rotor and freecoaster
- Worldwide patented KHE BMX rotor for 360-degree handlebar rotations
- KHE Greyhound Freecoaster – the pedals do not rotate when rolling backwards

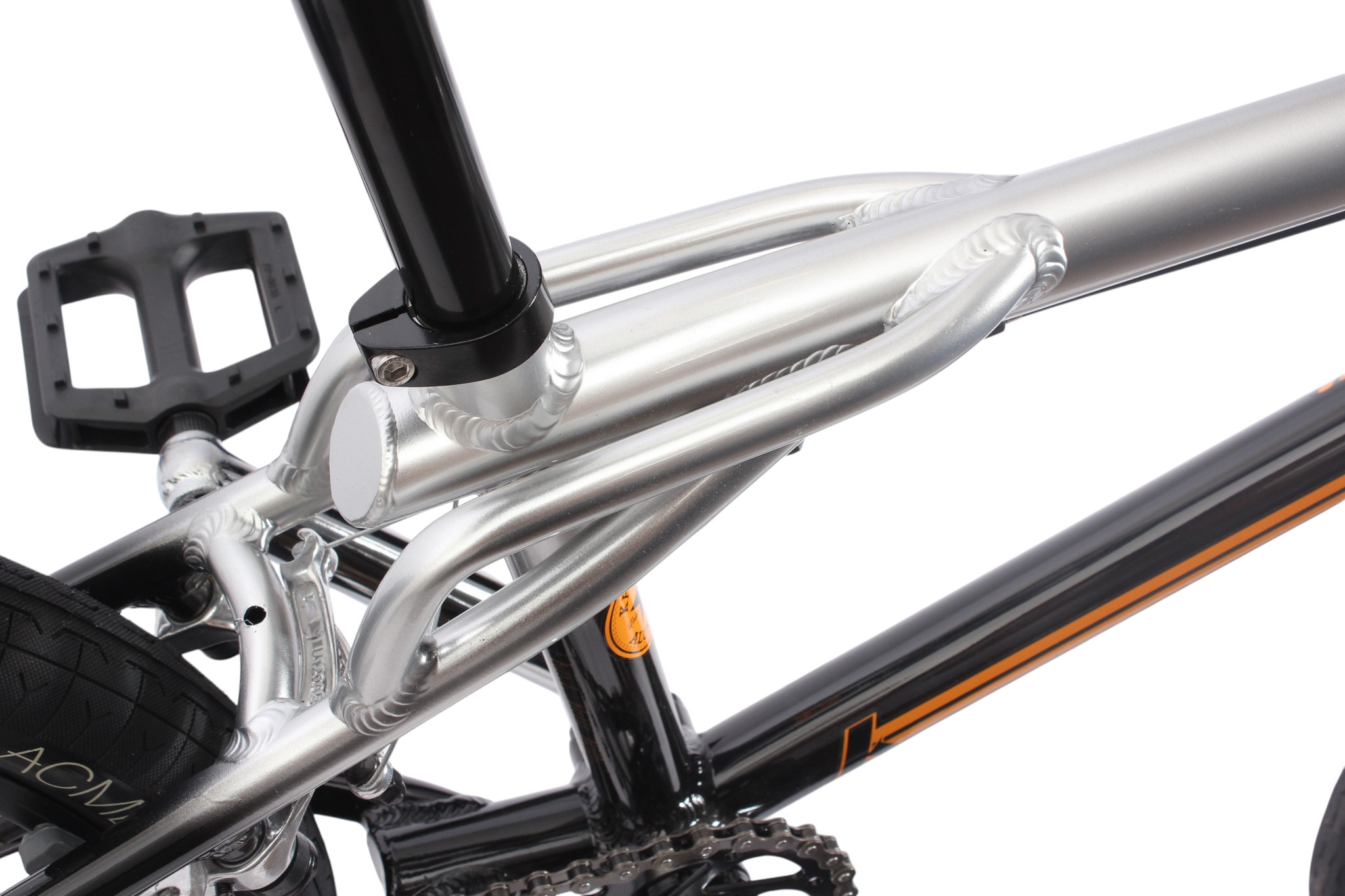

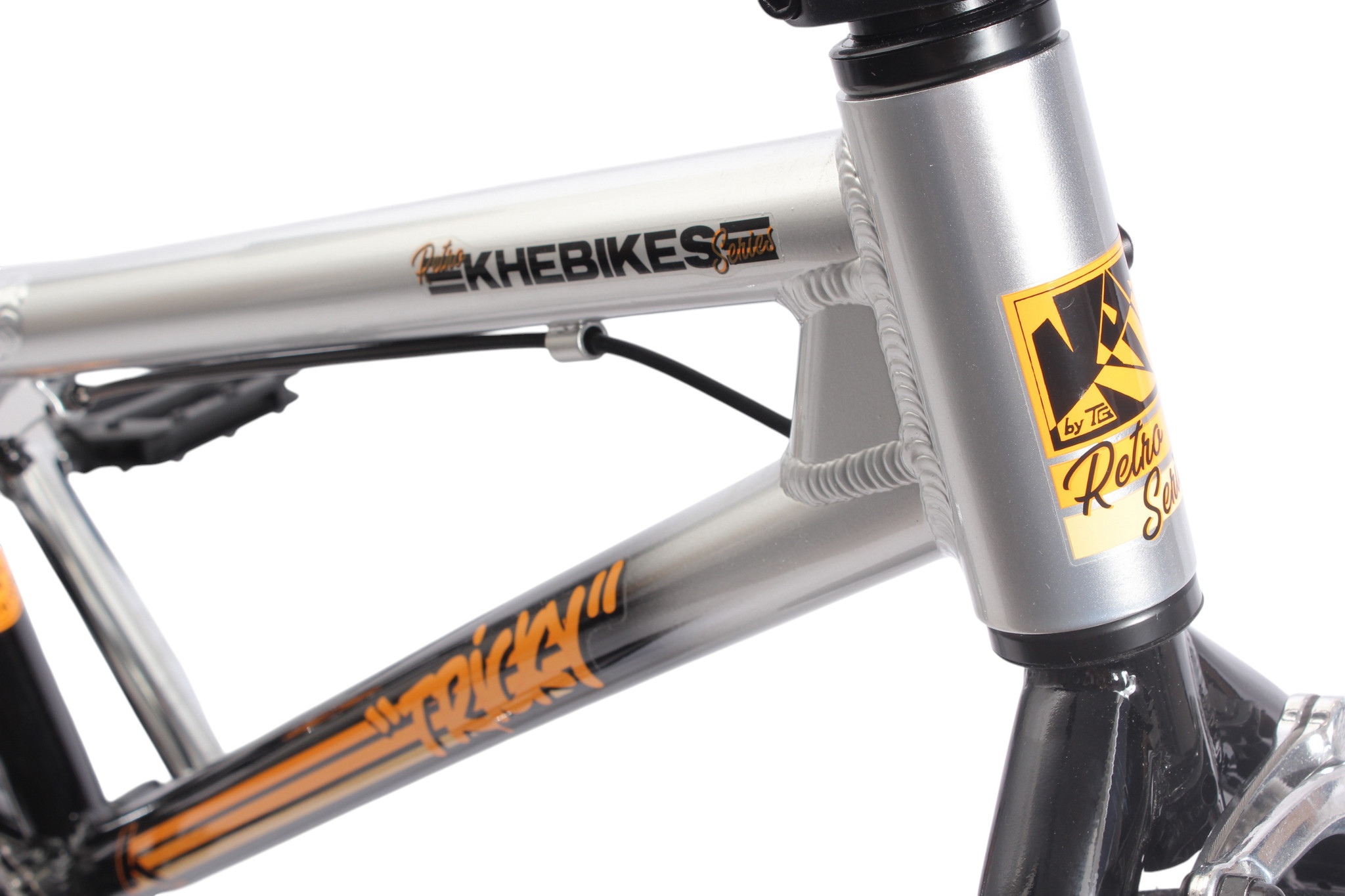

- Aluminium frame with integrated platform
- Equipped with two powerful U-brakes
- Sealed Euro industrial bottom bracket with 48-tooth axle

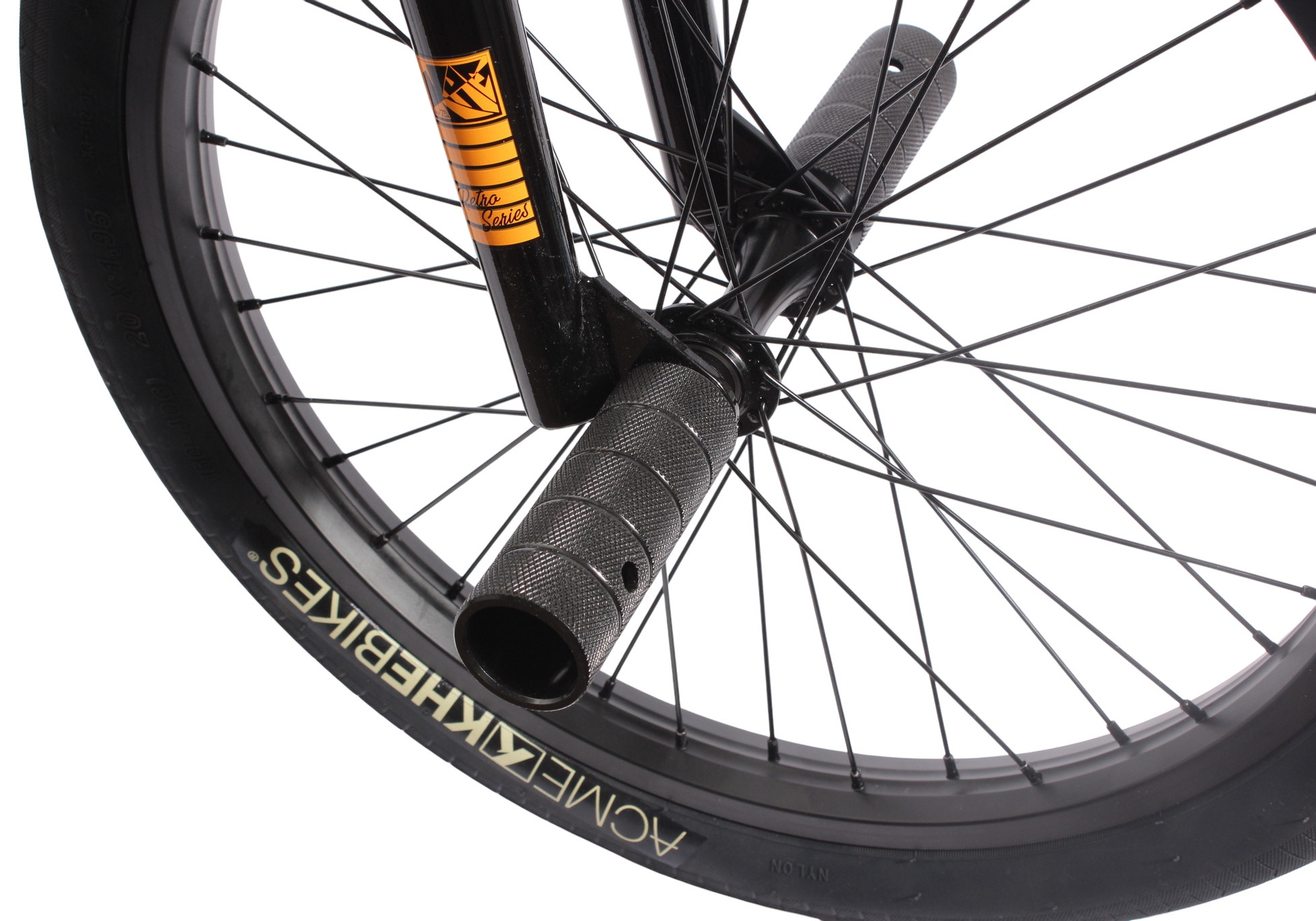

- Pegs included (2 pairs)
The BMX bike is approximately 90 percent pre-assembled. You can find the instruction manual under “Data sheets”. An assembly video can be found under “Video”.

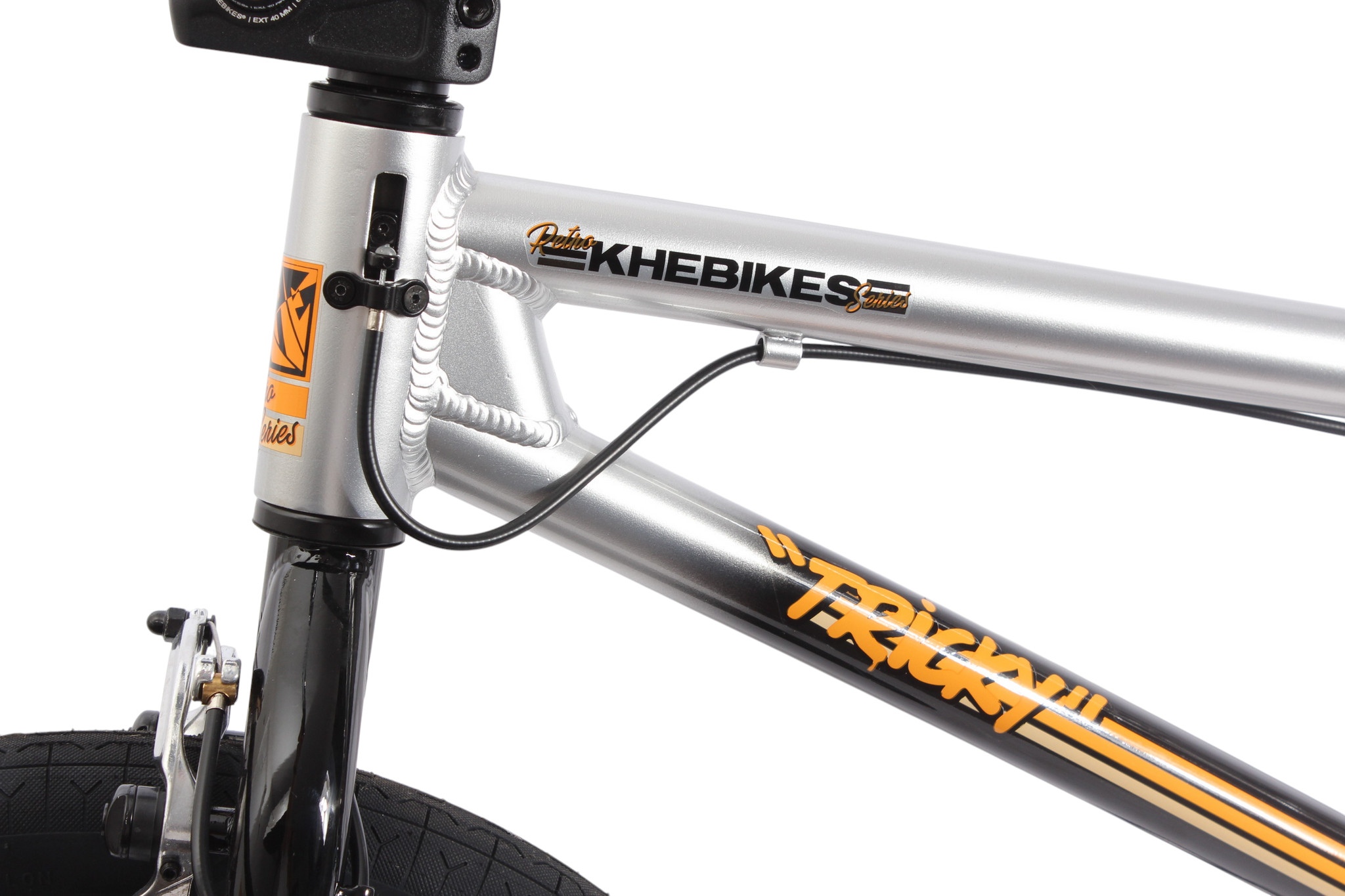

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 19.7", CS 14.3", HT 74.5°, ST 71°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 19,7" (500mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

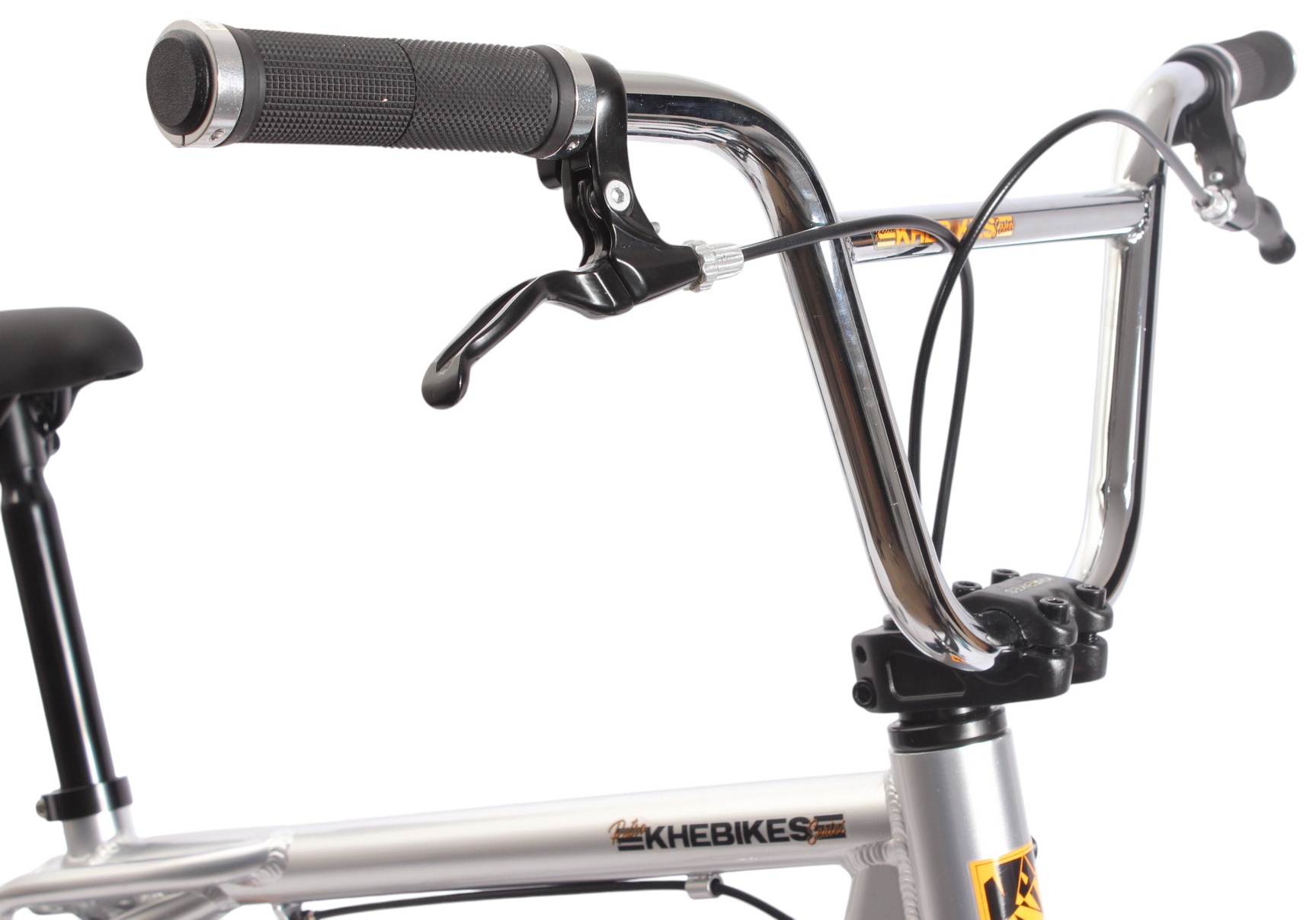

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

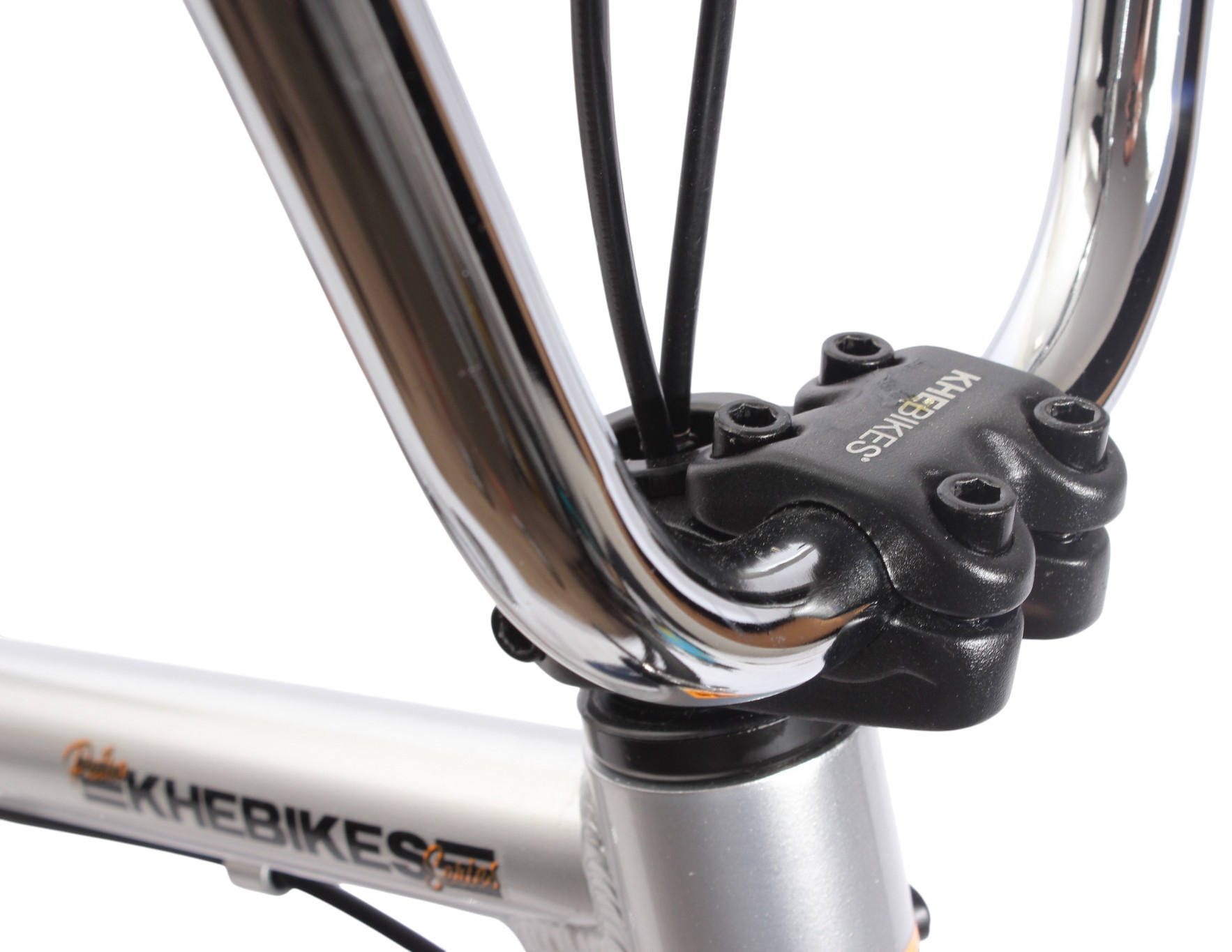

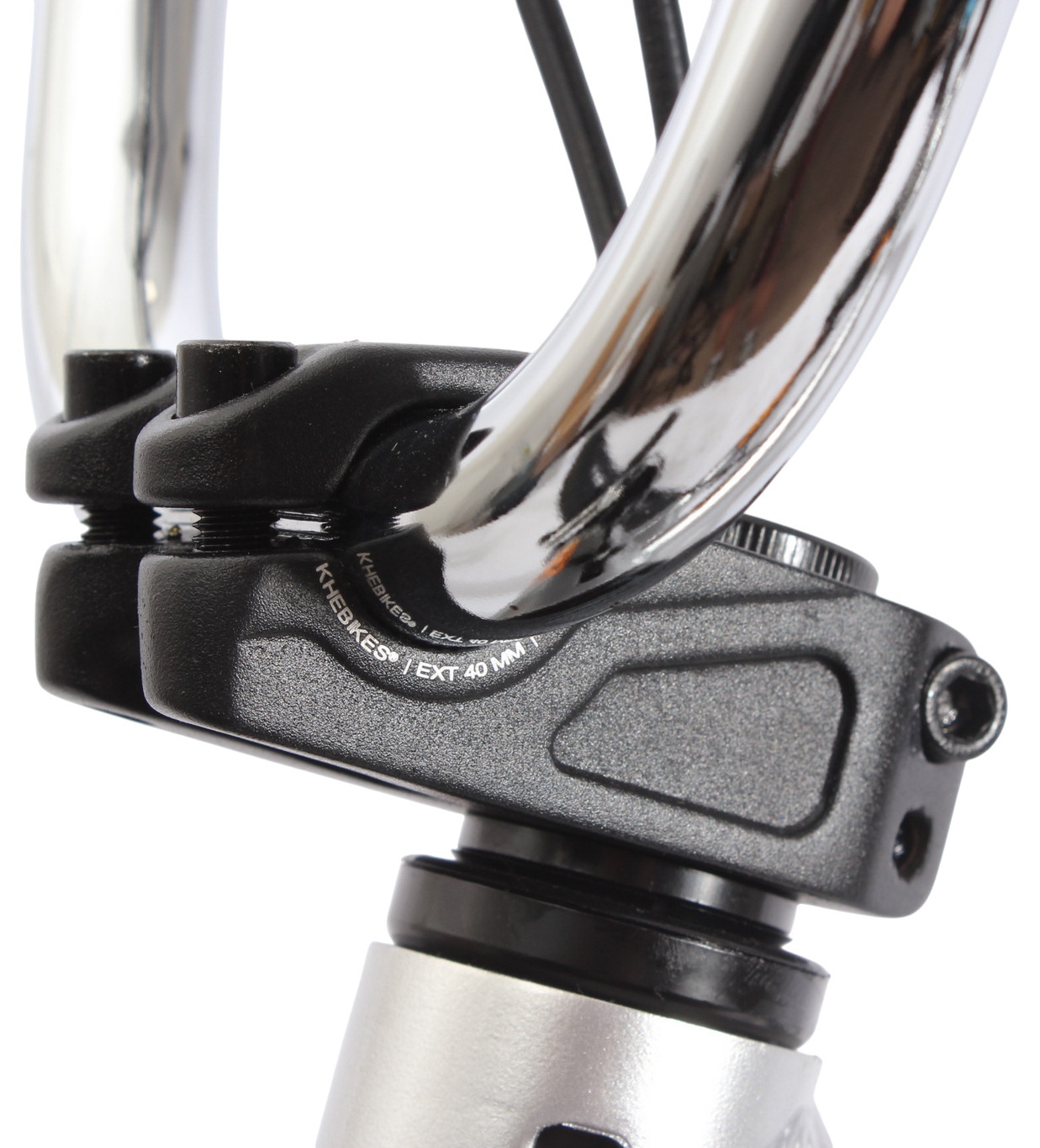

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | Lock On 140mm high quality rubber with aluminum clamps and KHEbikes laser logo |
| Brake levers: | Aluminum with adjusting screw |

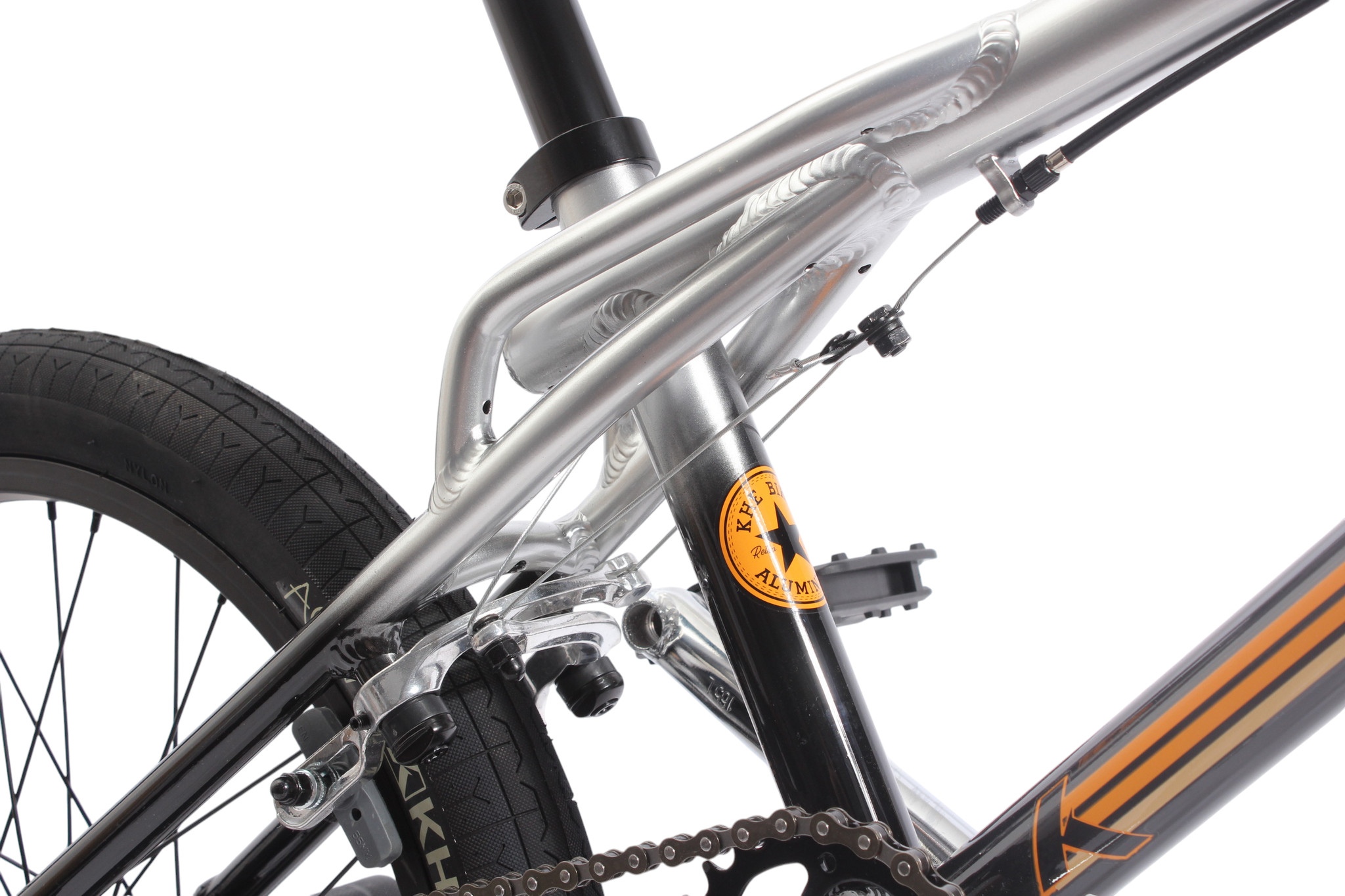

| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Front brake: | KHE RADIUS Aluminum U-Brake |

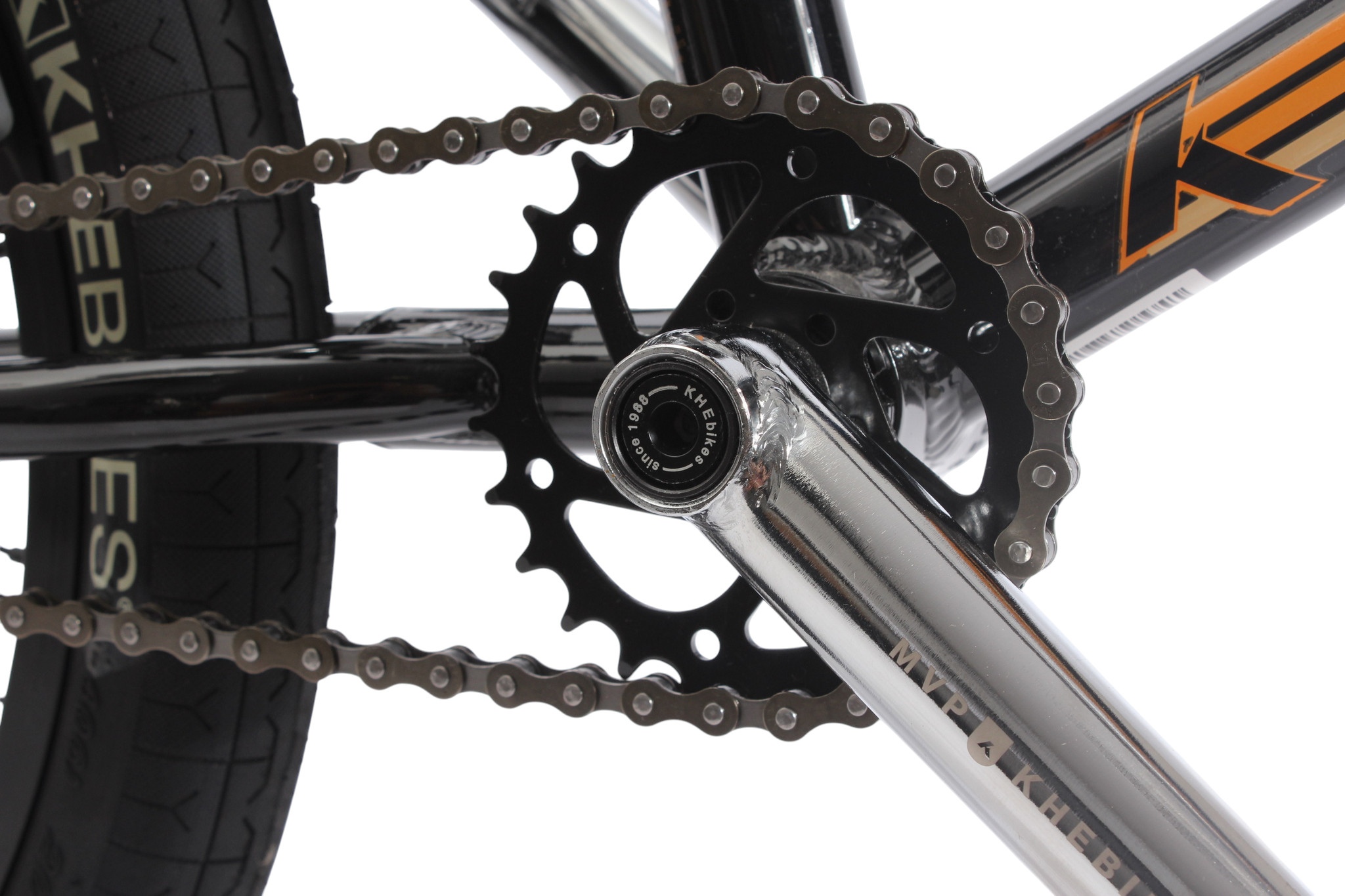

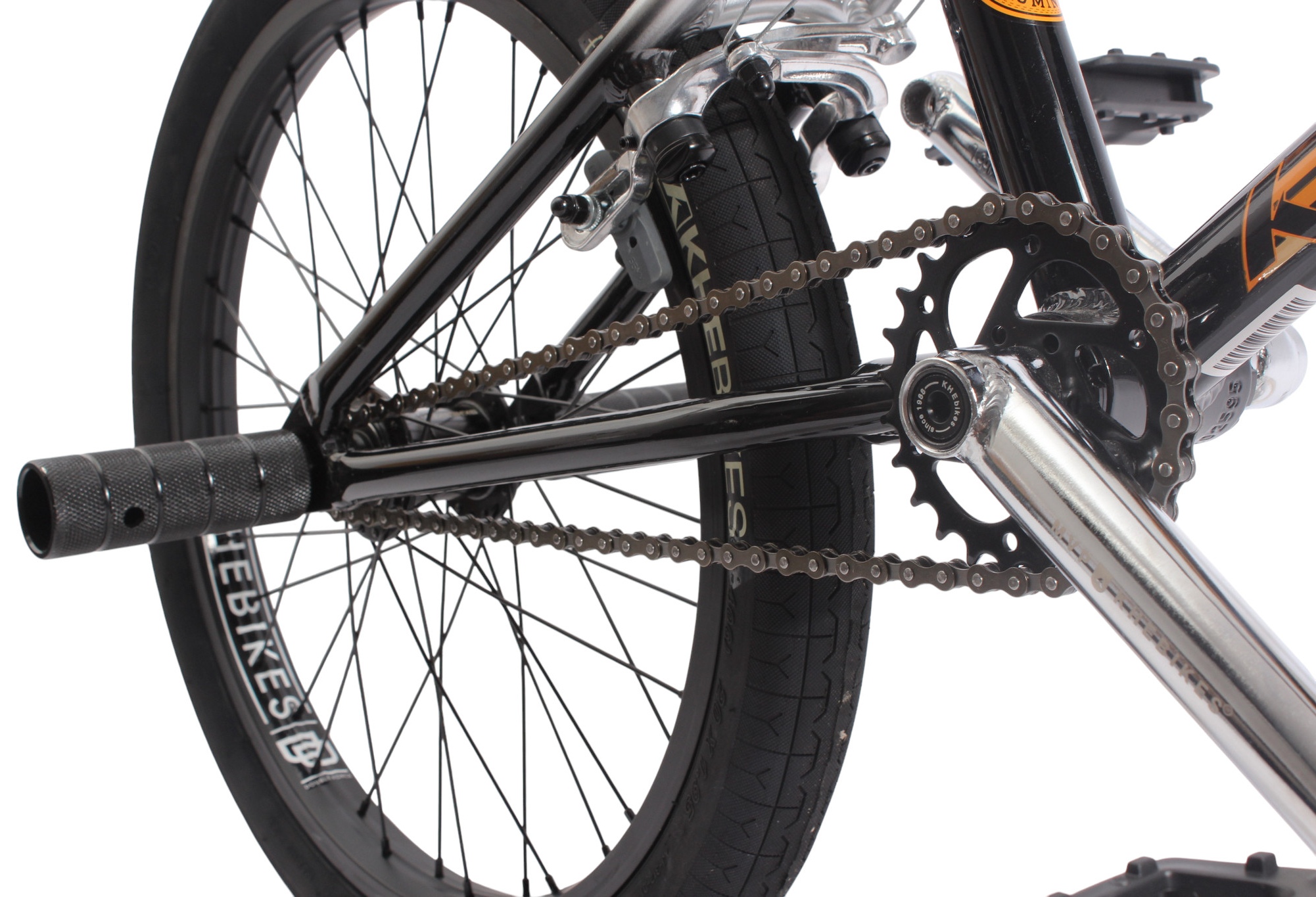

| Crank: | KHE 3-piece CrMo 48 tooth hollow crank 165mm, chrome finish |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |
| Chainring: | 25T teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

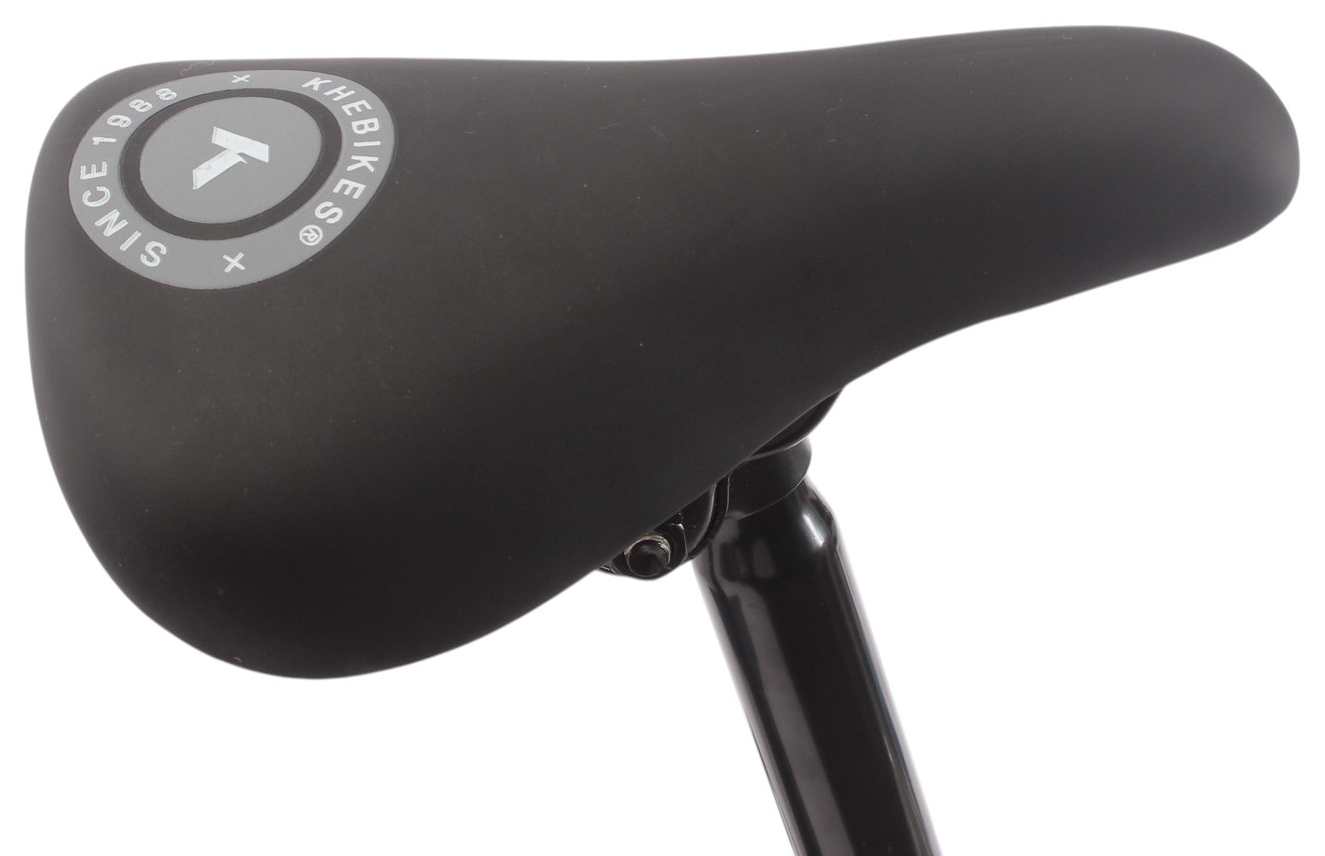

| Saddle: | Padded 210 x 140mm with rails (adjustable) + embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 300mm |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

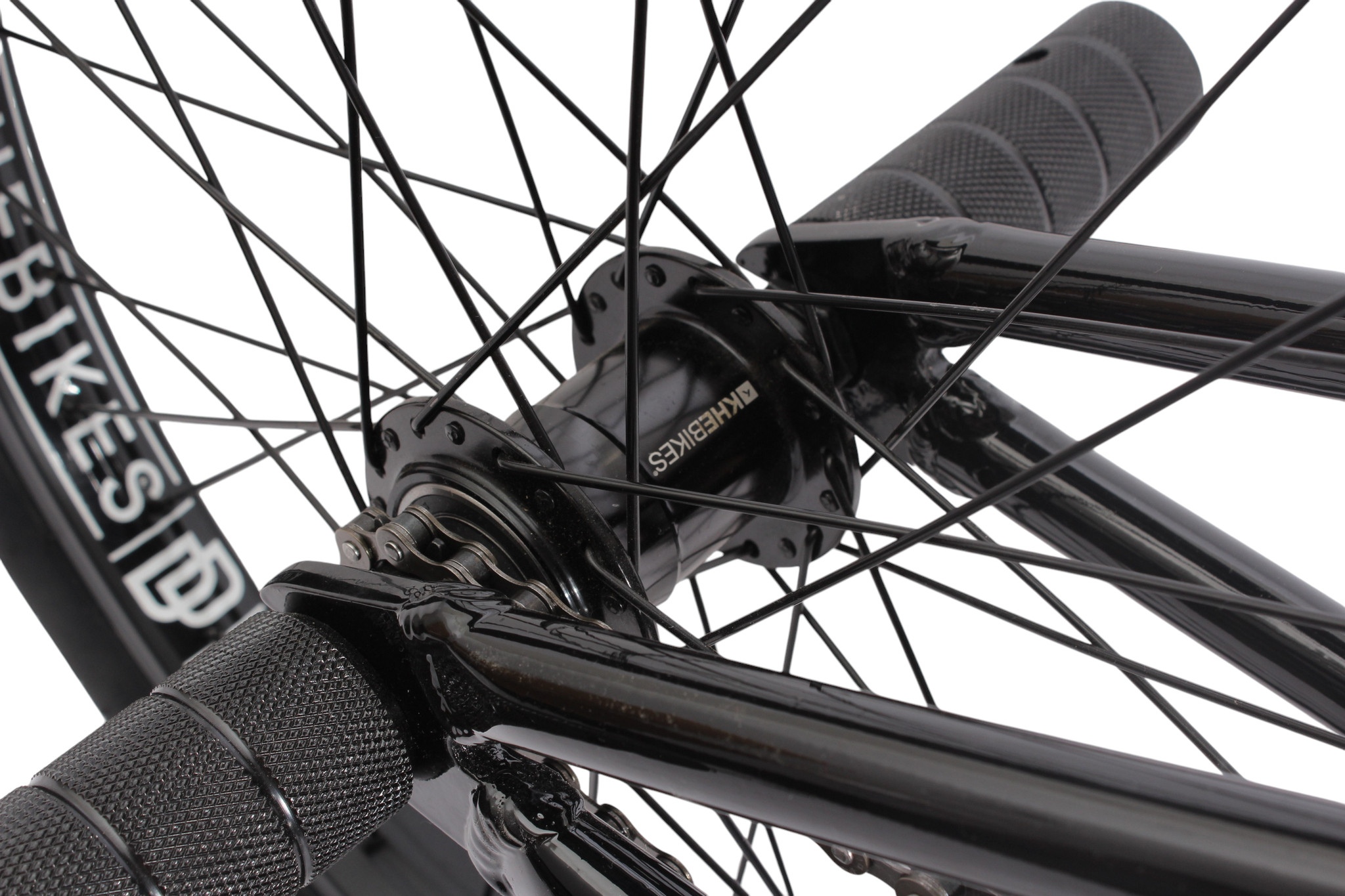

| Rear wheel hub: | KHE GREYHOUND Freecoaster 9T, S/B sealed bearings, 170 mm, 14 mm male, 36 hole |
| Hub type: | Freecoaster, freewheel |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch × 1.95" |
| Material: | Aluminum |
| Tire size: | 20 inch |
| Category: | Flatland, Park, Pumptrack |
| Weight: | 11kg |
| Model Year: | 2025 |
