£429.00*
Available, delivery time: 2-5 business days **
Accessories
INFORMATION: B-goods BMX bike / defective goods
This BMX bike is a B-goods BMX of category N1. The BMX was only sent by a shipping service provider and has been returned to KHEbikes. This B-goods BMX bike of category N1 has been repackaged and is 100% functional. You receive the full warranty and revocation Claim.
If you have any further questions about the BMX bike, please contact our support team at Service@khebikes.de

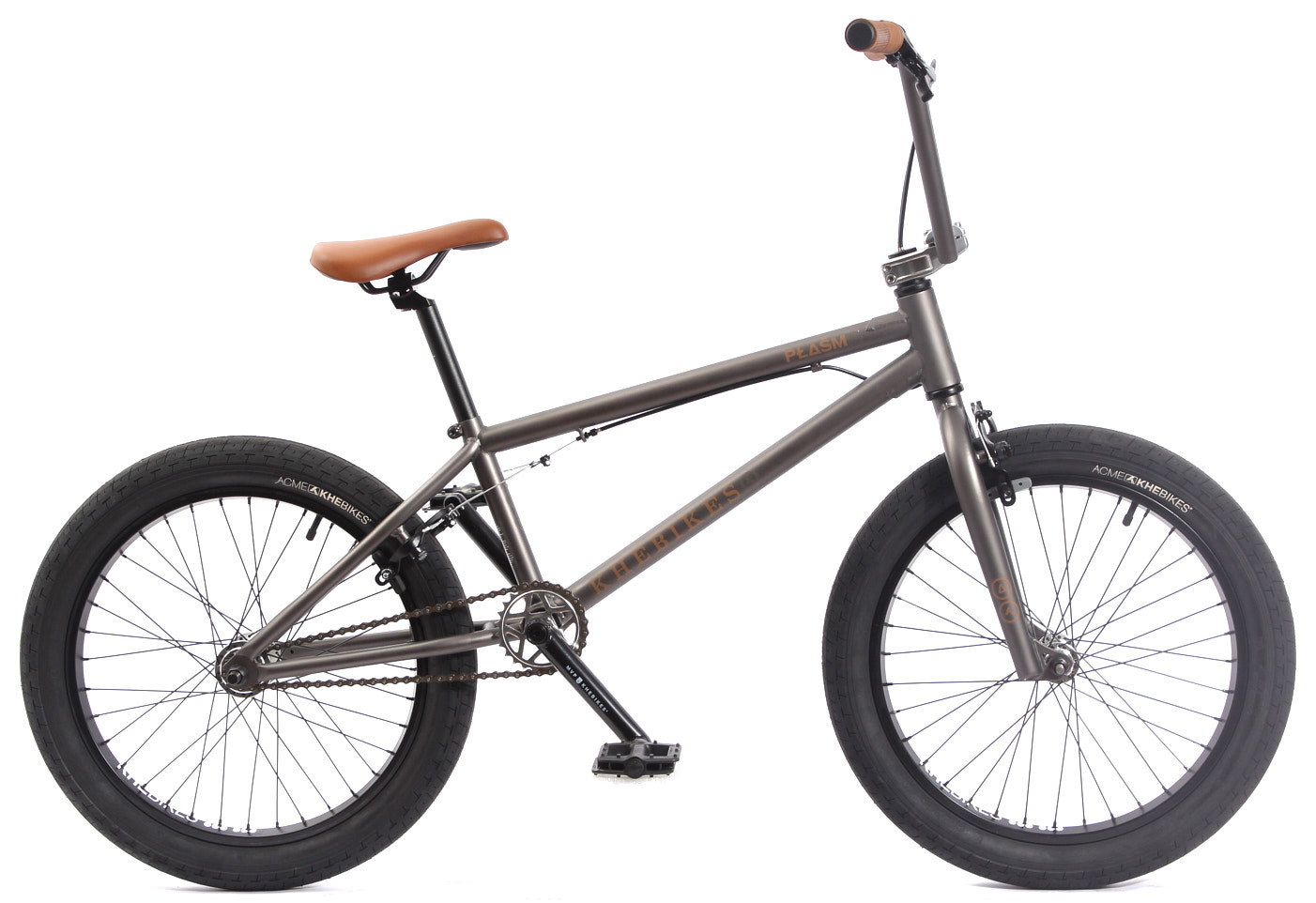

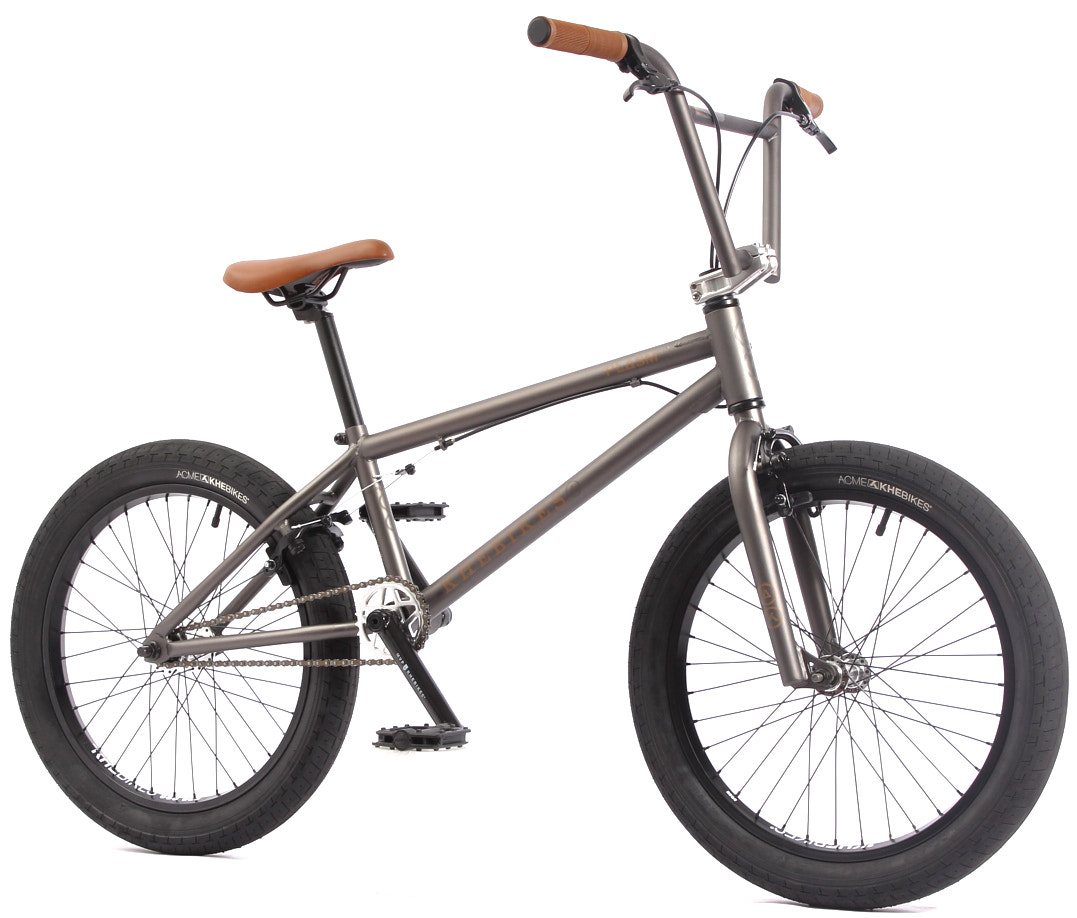

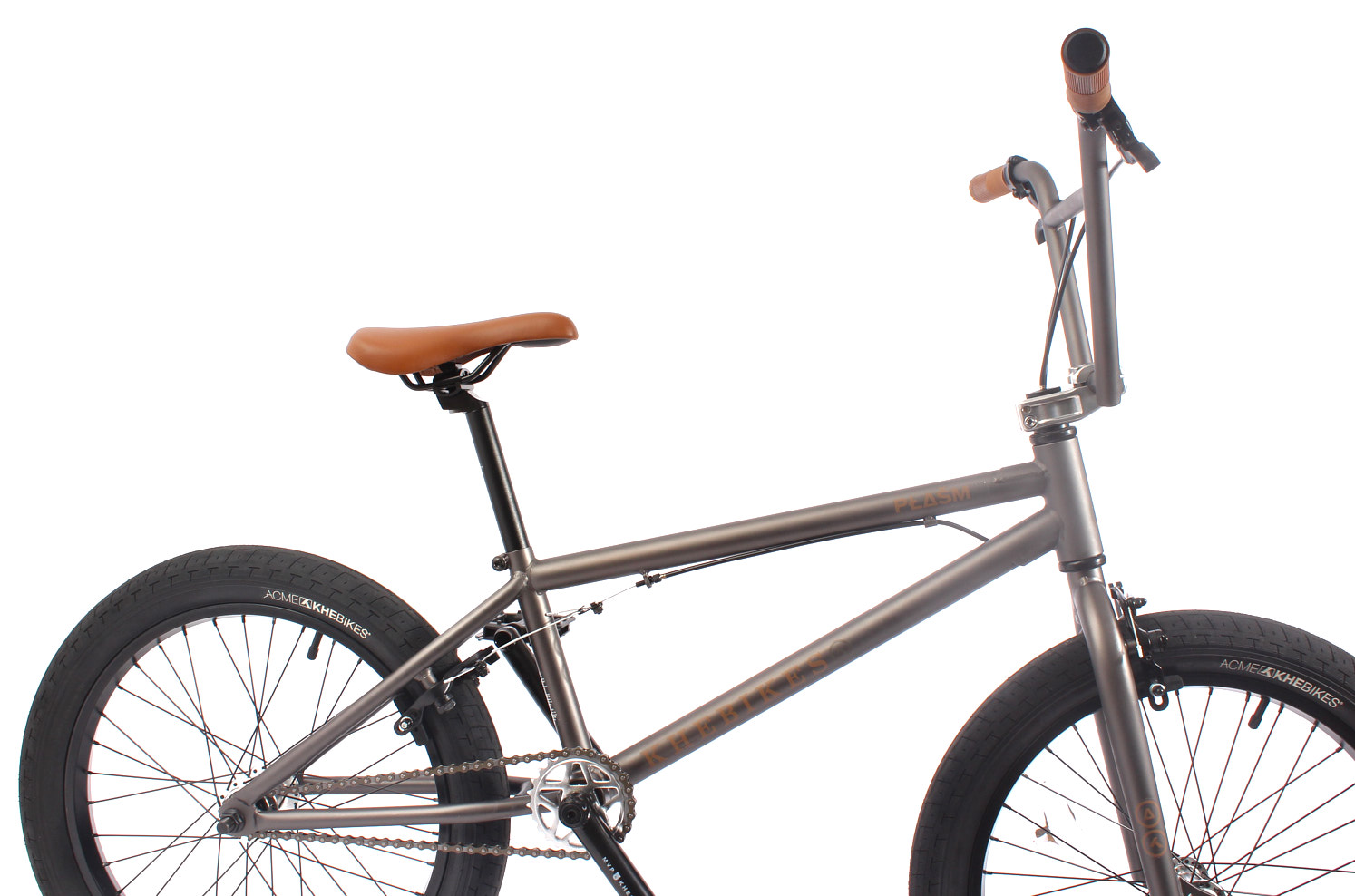

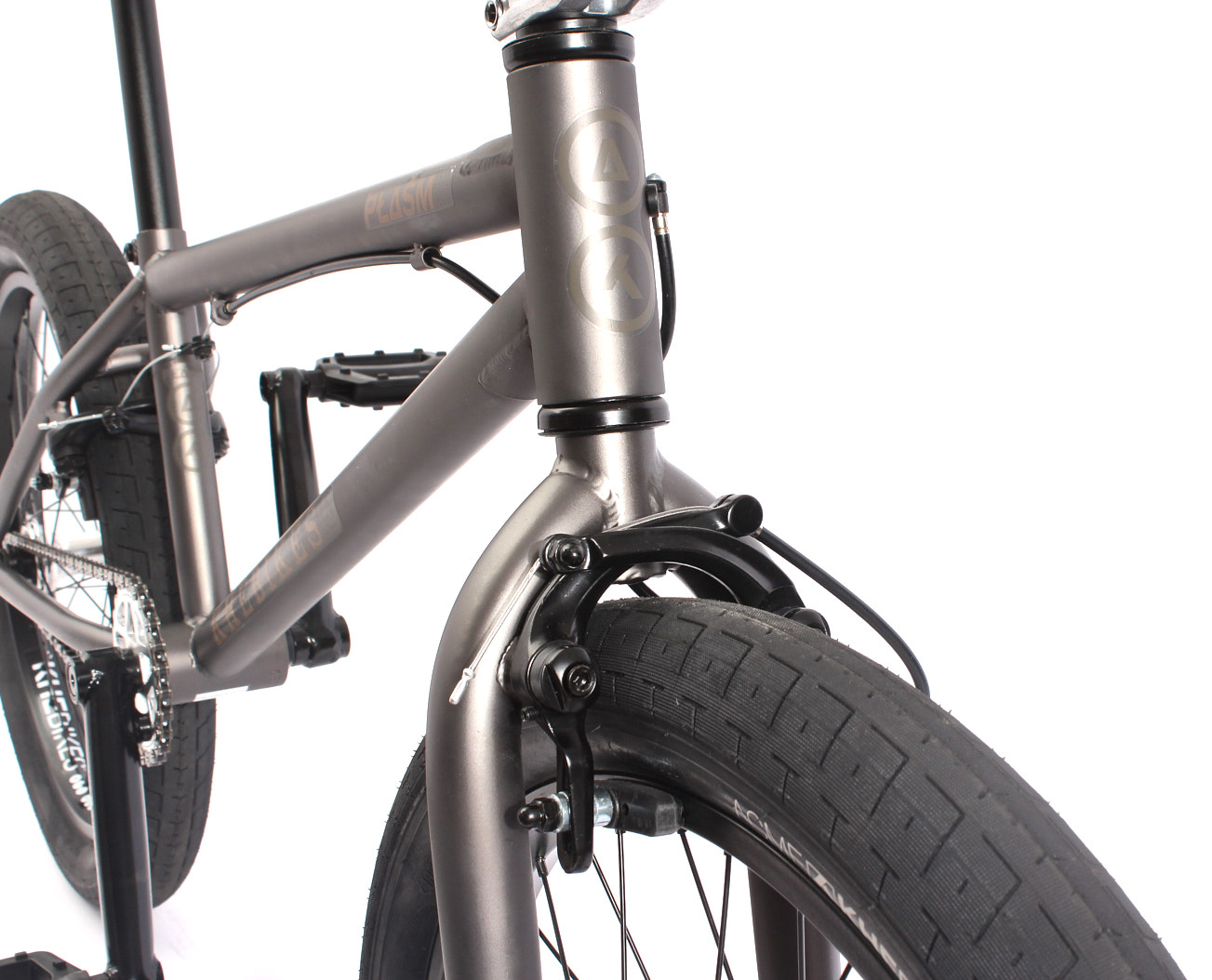

Our new KHE PLASM 20 inch was created especially for the taller riders among us and is suitable for riders up to and over 6.7ft / 2 metres!
The KHE PLASM is a Street/ Park/ Dirt/ Pump Track BMX bike. It has a long frame with a top tube of 21.25" (540mm) and an extra high 10" handlebar. This means it can be ridden by riders over 6.7ft / 2 metres tall! It has a great specification with high quality parts like the KHE BIG400 rims, 3-piece CrMo crank, KHE ACME 2.40" tyres, sealed hub bearings and the 10" inch multiple-butted MVP 4pc handlebar. Despite the long frame, rotor & U-brakes (front & rear), the weight is only approx. 24.47lbs / 11.1kg! Many parents who want to ride BMX with their kids have asked us for a bigger BMX bike, this is that BMX bike!
Recommended rider height: 5.74ft - 6.73ft / 175-205cm
Maximum total rider weight: 286.6lbs / 130kg
Application: Street / Park / Dirt / Pump Track

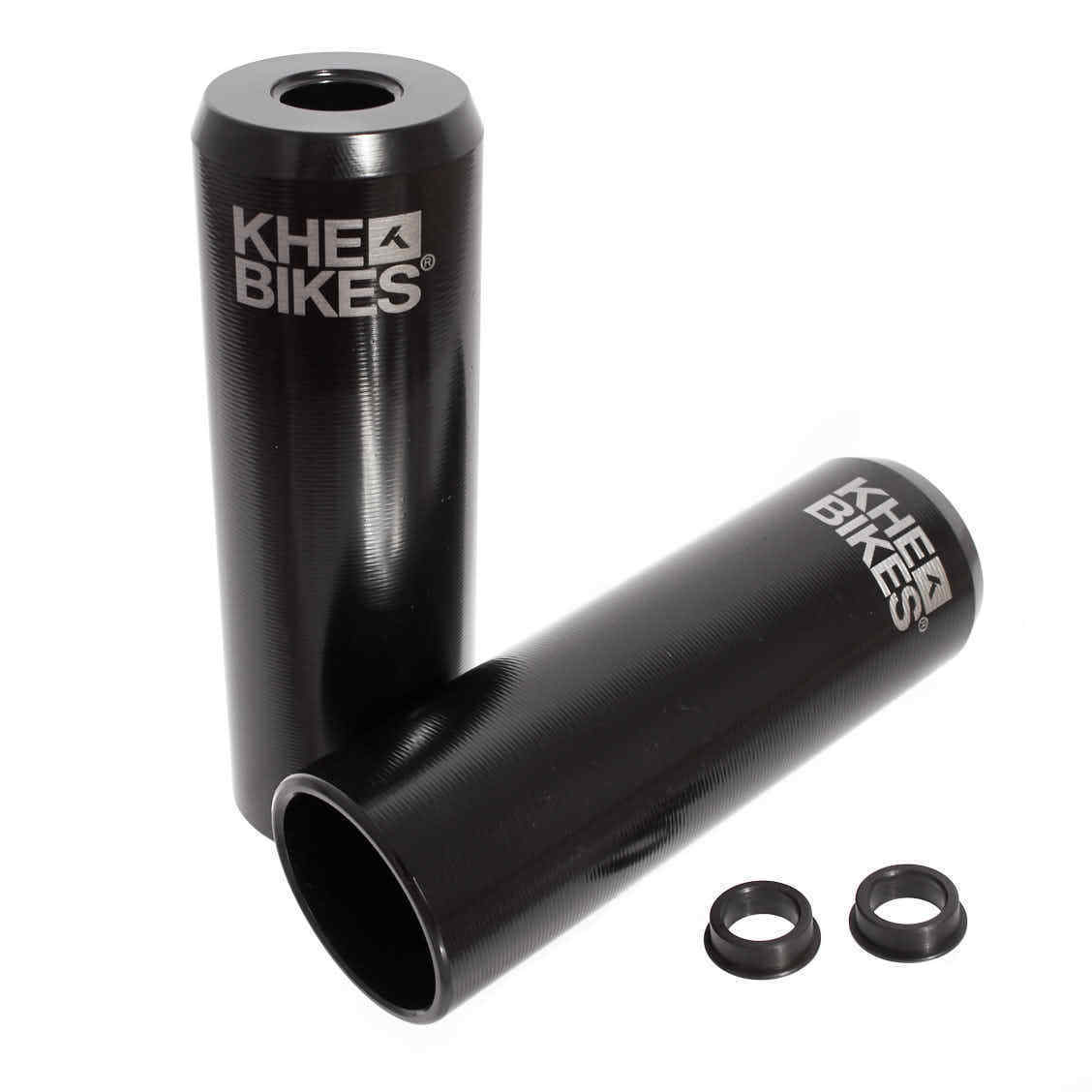

Pegs: Suitable for the KHE PLASM 20" are front 10mm and rear 14mm pegs, we recommend the CNC PRO plug pegs. (Adapter for front and rear included)

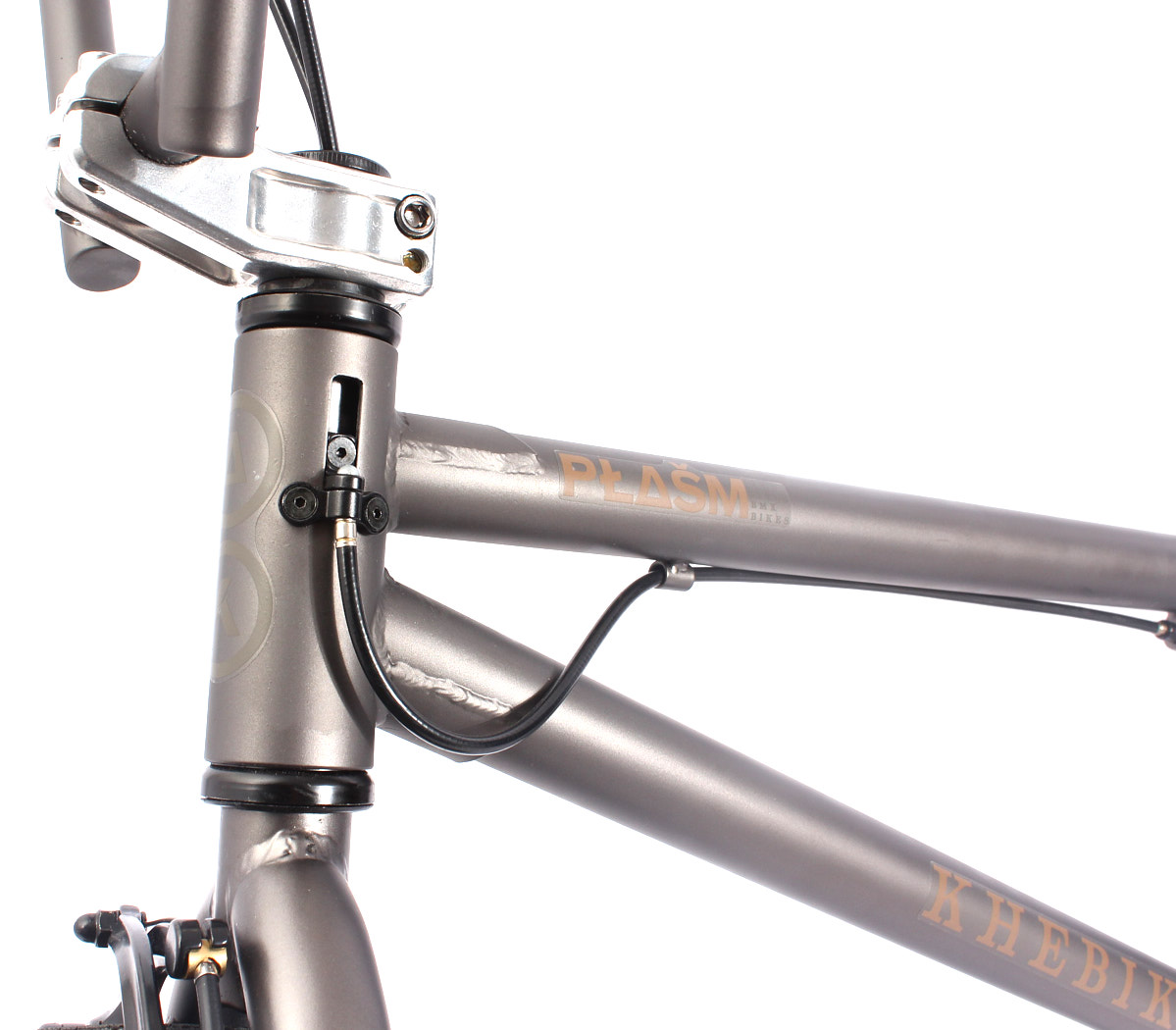

| Frame: | Main tubes made of CrMo 4130 steel, top tube 21.25", RC 13.8", HT 75° |
|---|---|

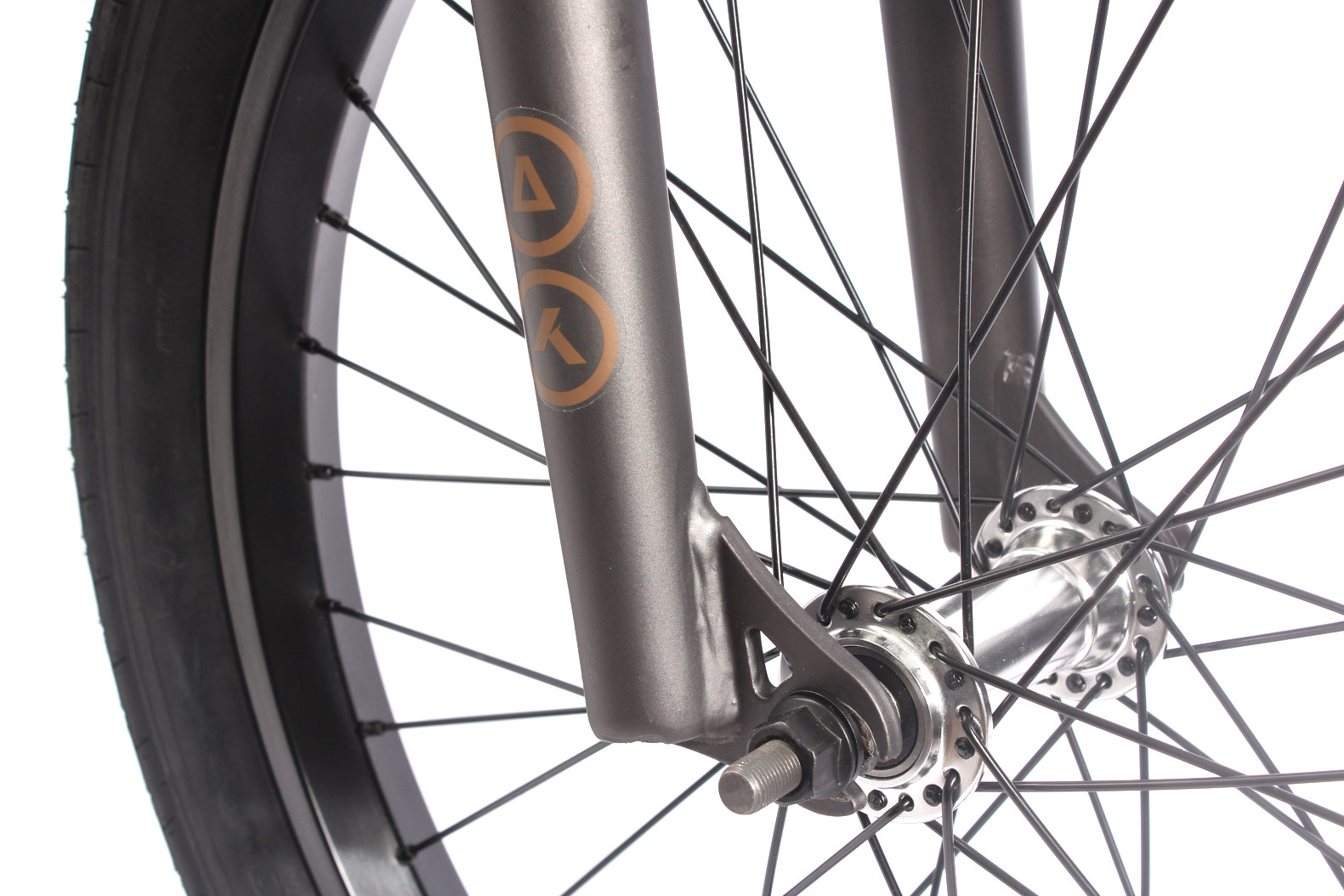

| Fork: | CNC steerer made of CrMo steelRotor: equipped with the AFFIX Pro Free60 Rotor System |

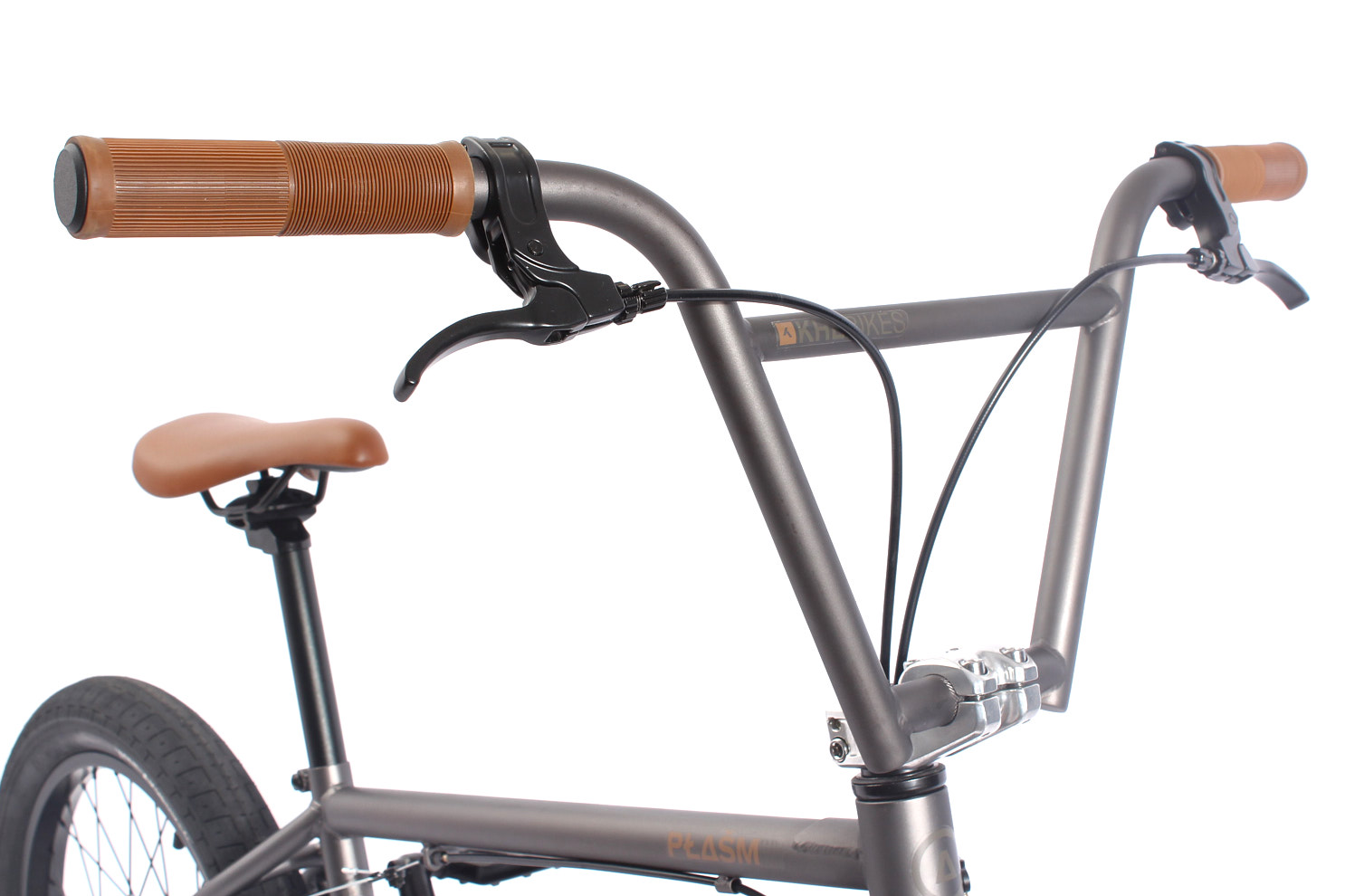

| Handlebars: | KHE multiple butted 4-piece handlebar, height 10" (254mm) x width 750mm, 10° backsweep, 2° upsweep |
| Stem: | Top Loader |
| Headset: | 1 1/8“ |
| Rotor: | AFFIX |
| Rear brake: | Aluminium U-Brake |
| Front brake: | Aluminum U-brake (pre-adjusted and mounted!) |
| Bottom bracket: | MID BB |

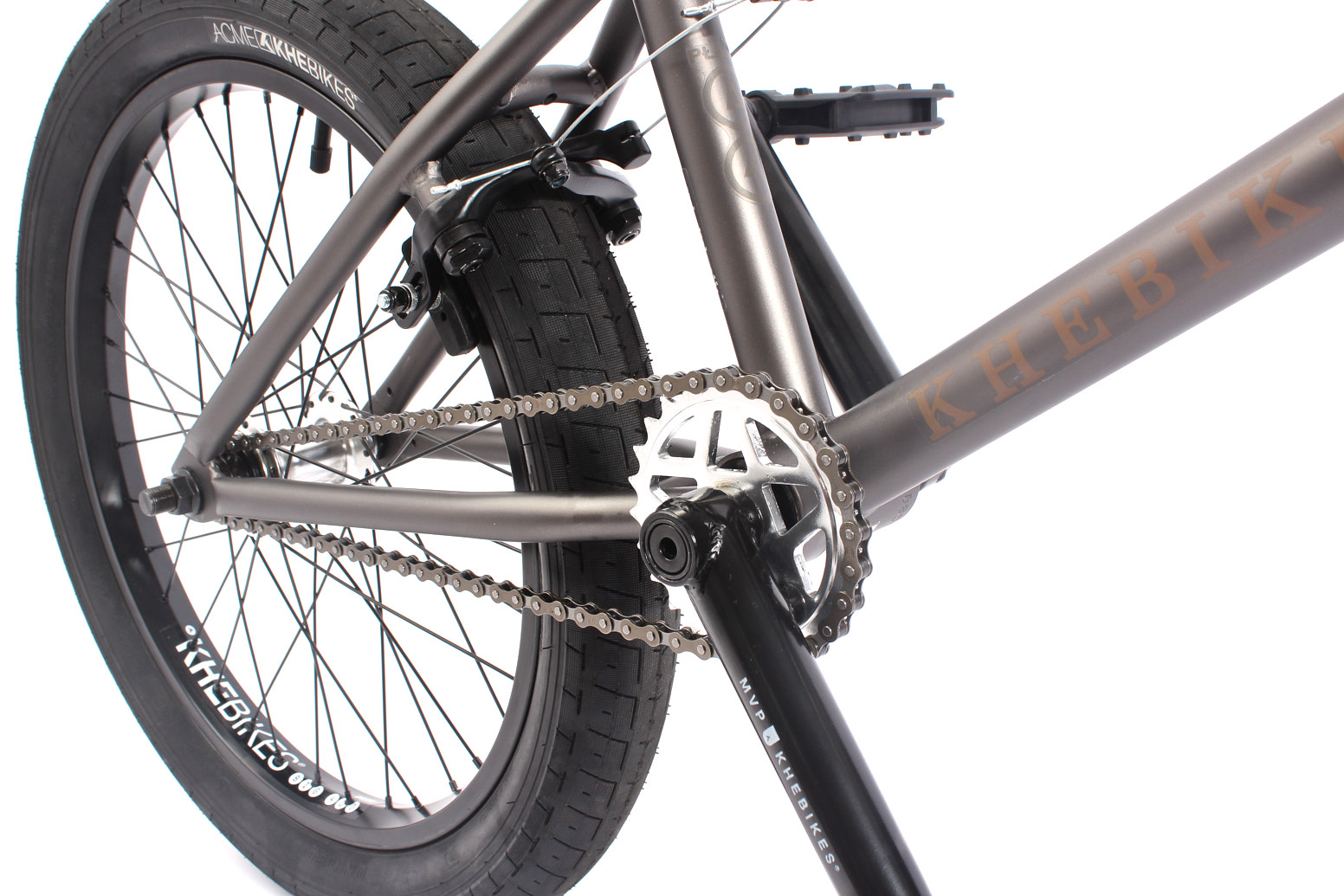

| Chainring: | 25T aluminum CNC |
| Chain: | YBN |

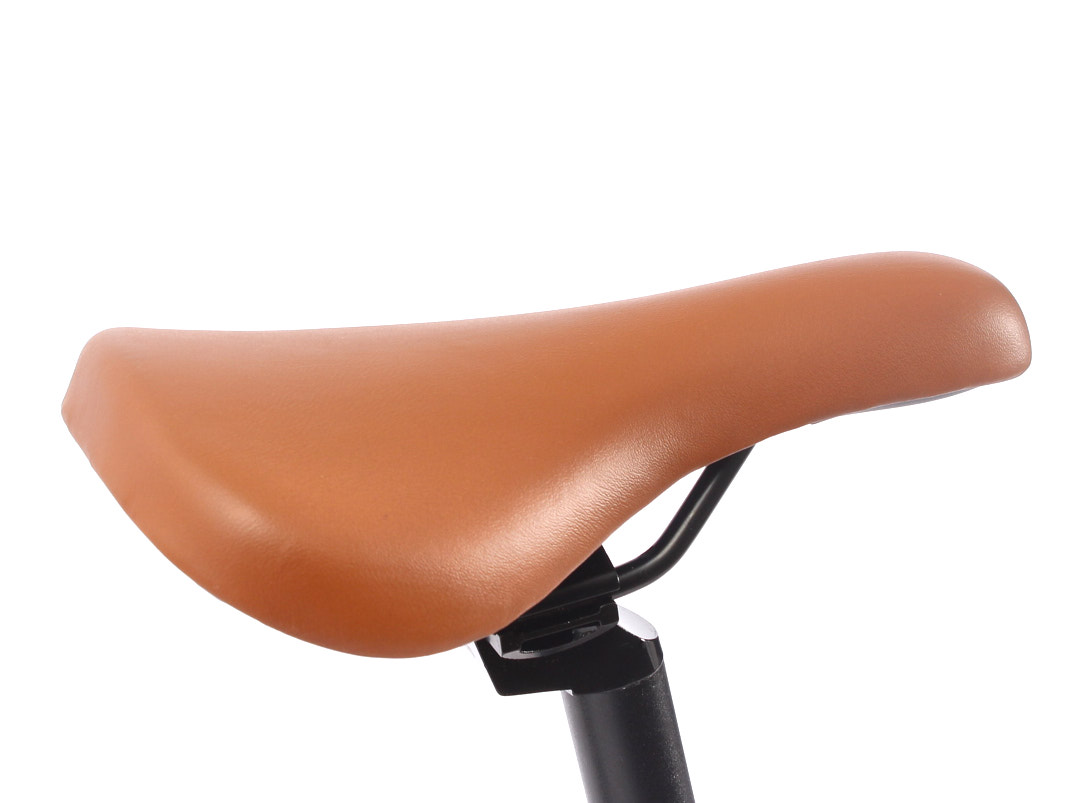

| Saddle: | adjustable |

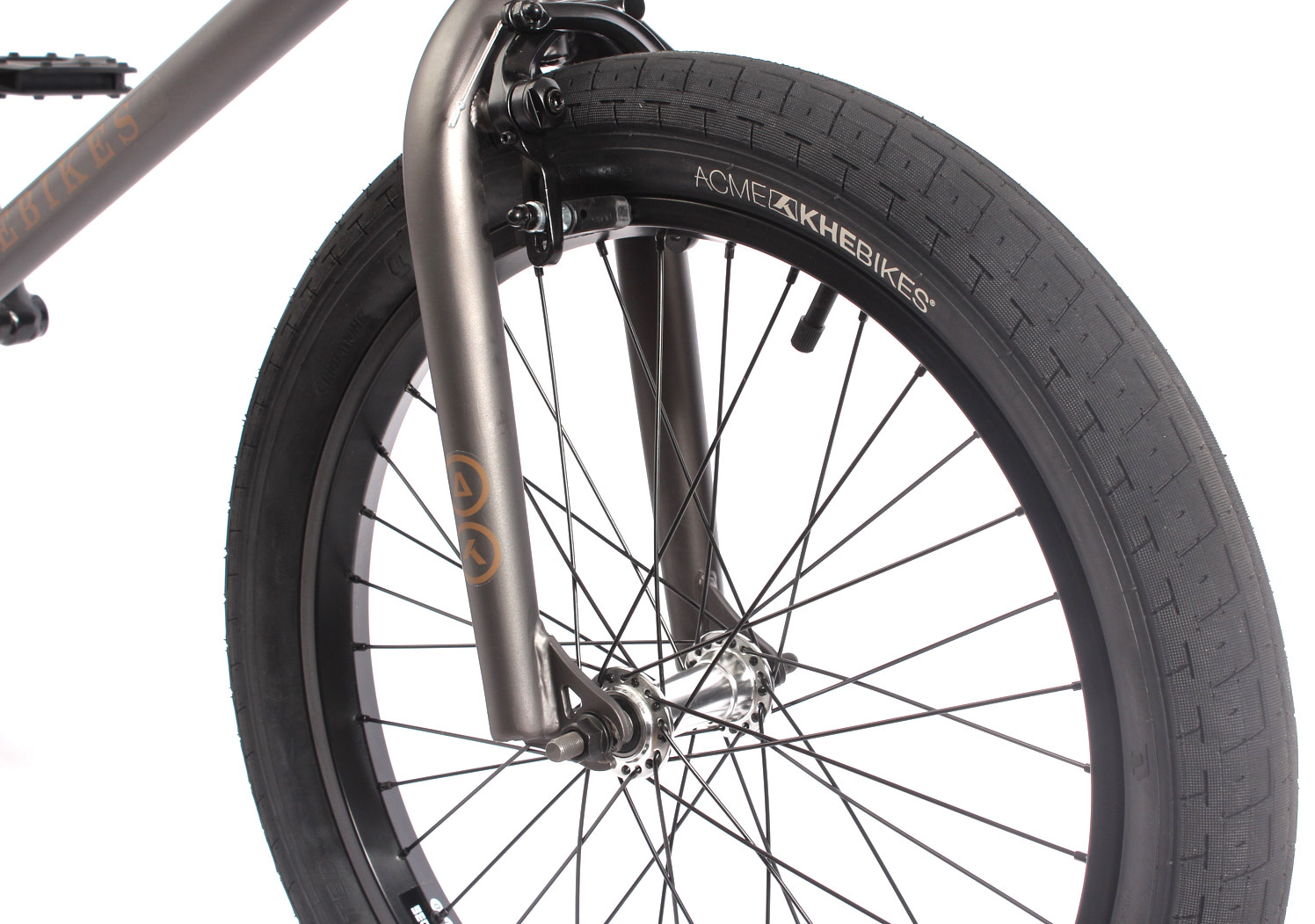

| Front wheel: | KHE BIG400 rim, 36 spoke hub, sealed bearings, 10mm axle |
| Rear wheel: | KHE BIG400 rim 35mm wide, 9T cassette hub, 14mm axle! |

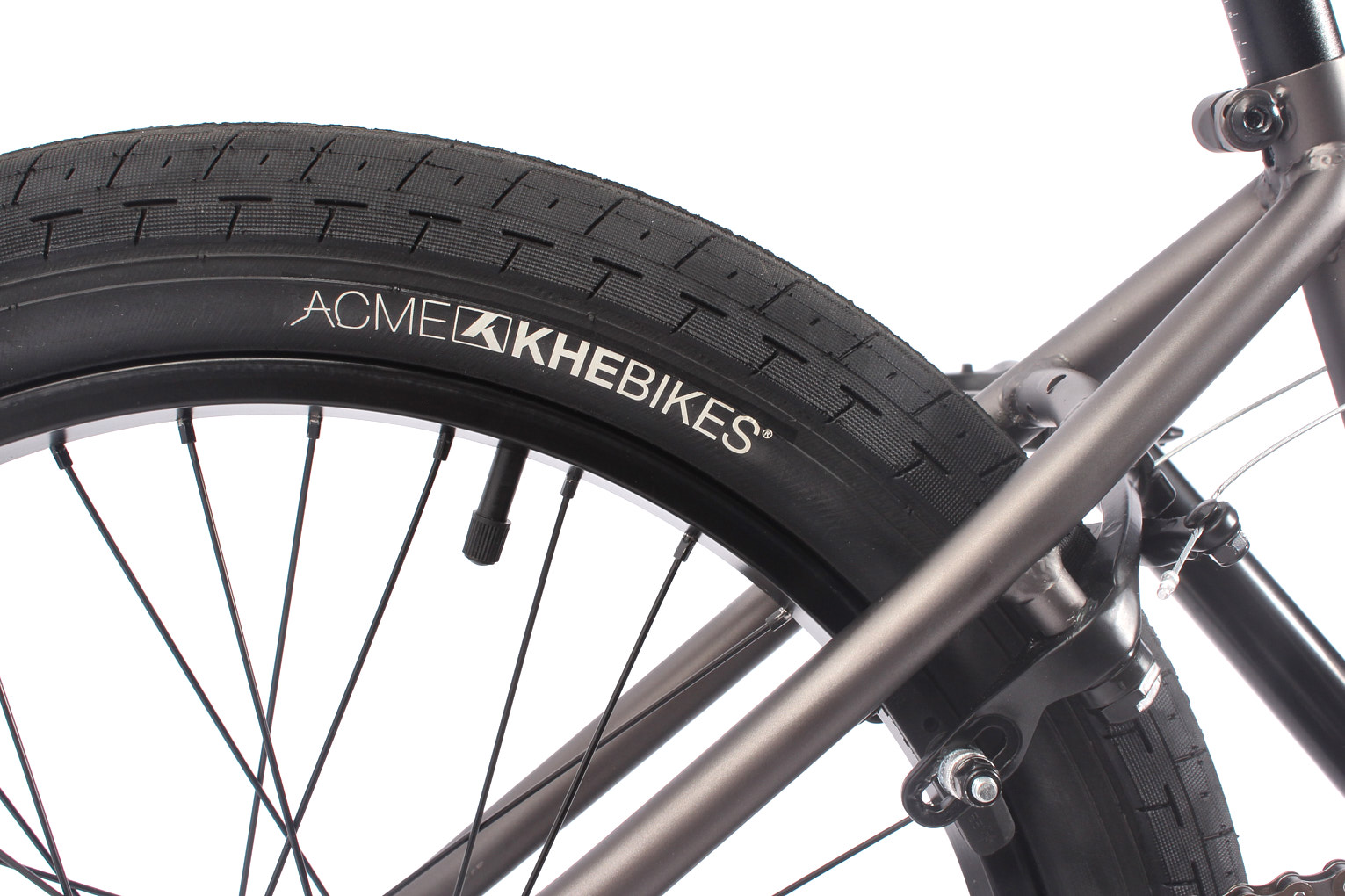

| Tyres: | KHE ACME 2,40“ |
| Category: | Outlet BMX Bikes N1 - Returns; shipping only by service providers |
| Size: | 20"; 5'5" - 6'9" in |
| Colour: | Anthracite |
| Weight: | 24.47lbs / 11,1kg |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight: 130kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
