£10.95*
% £12.67* (13.58% saved)Available, delivery time: 2-5 business days **

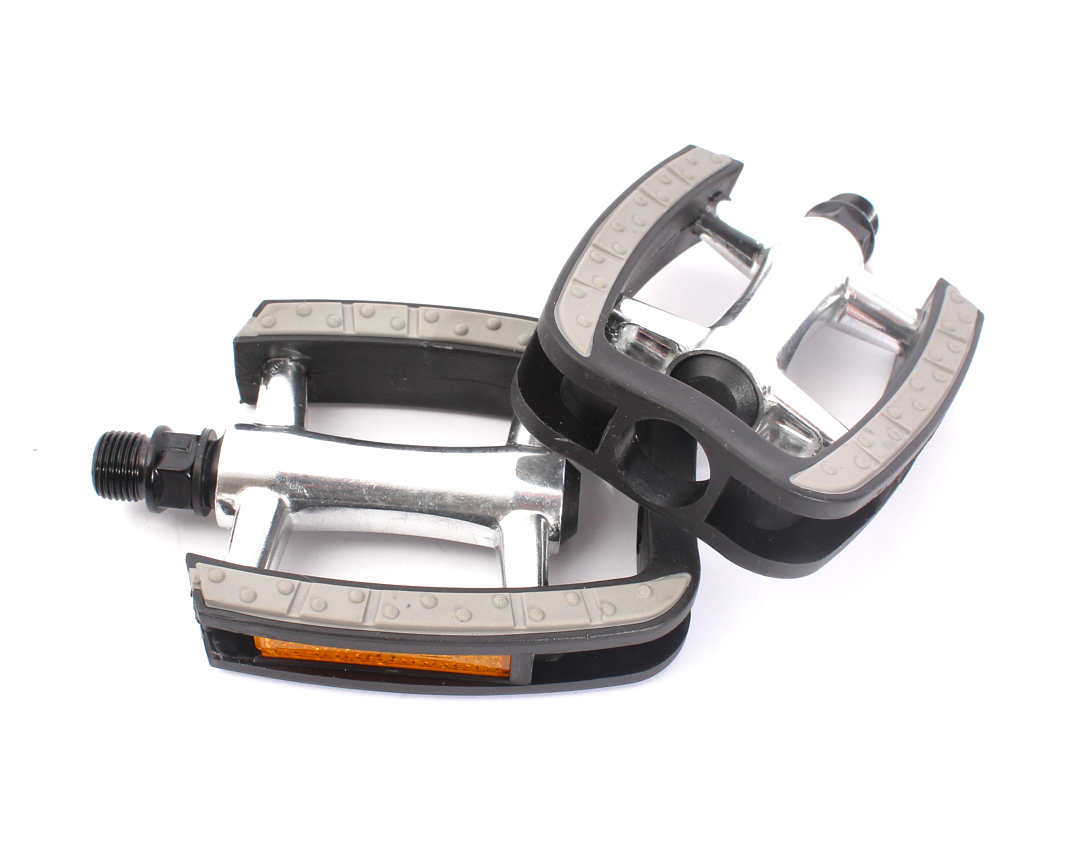

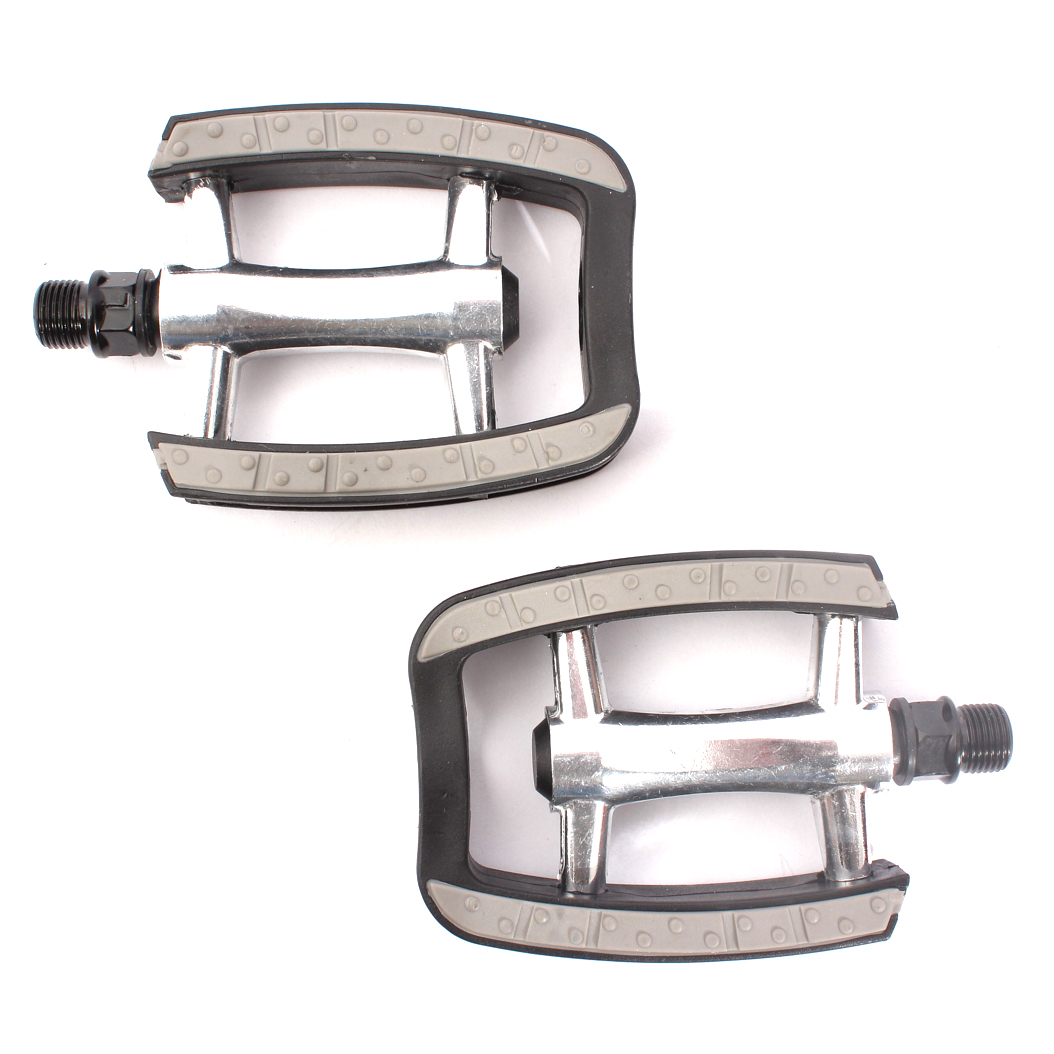

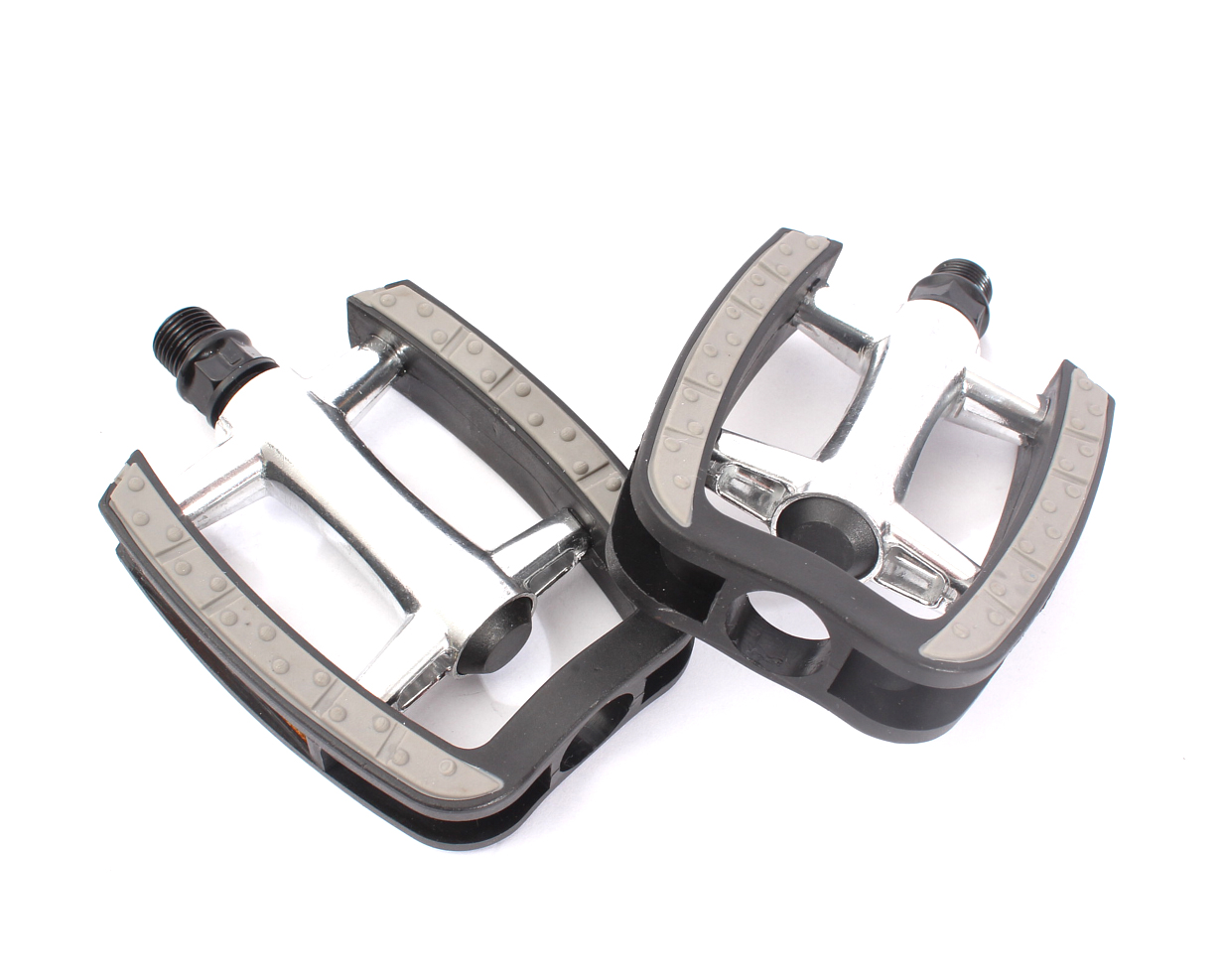

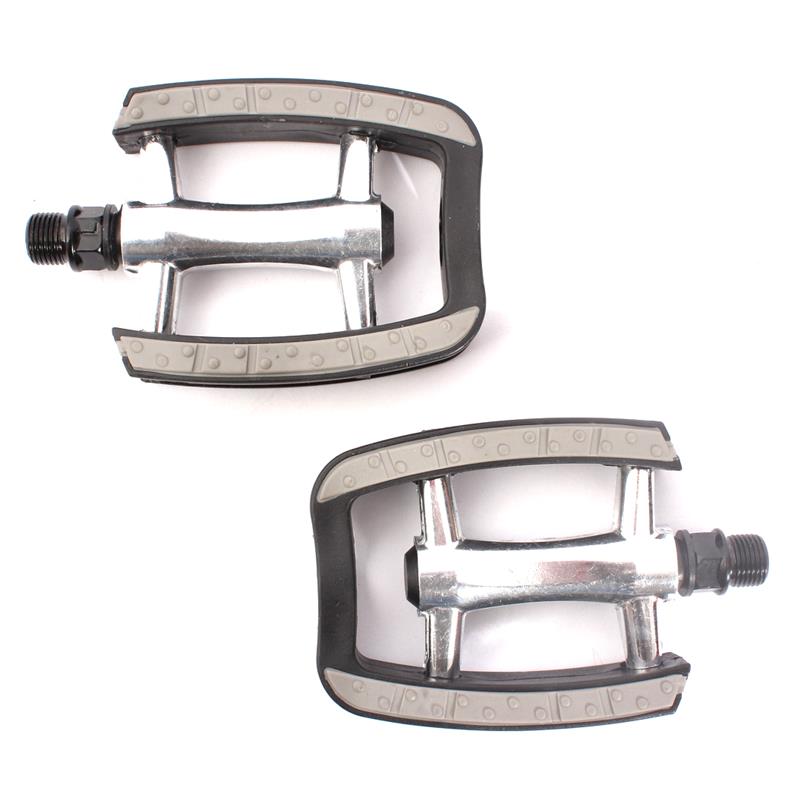

MTB Bike Pedals KHE A9 9/16 inch aluminum
This MTB pedal is approved for use in accordance with the Road Traffic Licensing Regulations (StVZO) in Germany. Here is a summary of the technical details:
- axle: chrome-molybdenum steel (CrMo) for increased stability and durability.
- Mounting: It can be mounted with an Allen key (probably 6 mm) as well as with a 15 mm open-end wrench.
- Reflectors: Integrated to meet StVZO requirements, which is important for use on public roads.
- Anti-slip pad: Provides additional grip, particularly useful off-road or in wet conditions.
- Pedal body: Made of aluminum, which ensures a good ratio of weight to stability.
- Pedal axle: Made of CrMo (chrome-molybdenum), known for its high load capacity.
- Pedal cage: Made of thermoplastic, a material that is light yet strong.
- Thread size: Standard 9/16” axle, suitable for most MTB cranks.
- Bearing: Equipped with ball bearings to ensure low-friction and long-lasting rotation.
- Dimensions: Width/depth 95 mm, length 80 mm.
The pedal offers a good combination of lightweight construction, durability and the necessary safety features for road use.
| Material: | Plastic/aluminum |
|---|---|
| Colour: | Silver |
| Weight: | 10.93 oz / 310g |
| Product group: | MTB pedals |
| Axle diameter: | 9/16 Zoll |
| Width: | 3.74" / 95 mm |
Use: Only suitable for 9/16" threads and 3-piece cranksets. Not for 1-piece cranks.
Installation: Install pedals according to thread direction (R/L). Tighten securely with 6 mm Allen key or 15 mm wrench.
Reflectors: Check reflectors regularly. Do not ride on public roads without installed reflectors.
Safety: Inspect pedals before each ride for wear or looseness. Replace if needed.
Note: Pedals are StVZO-approved and road legal in Germany.
