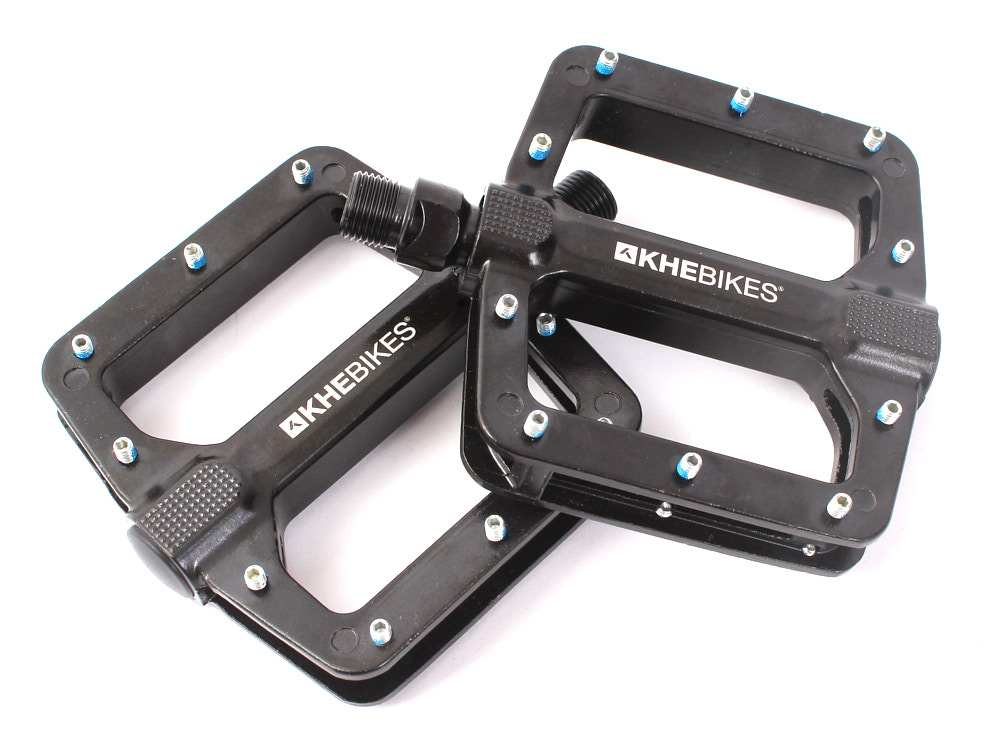

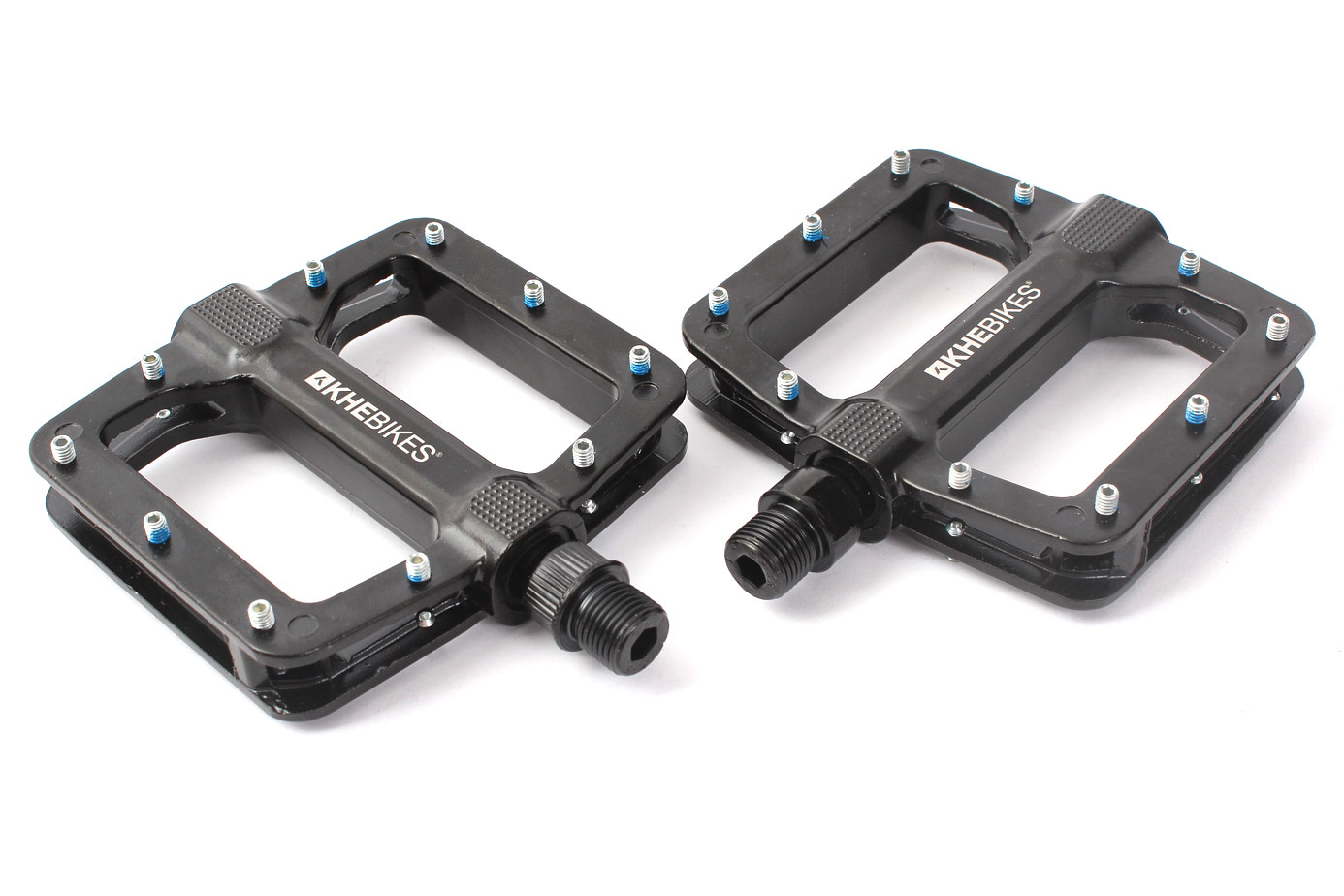

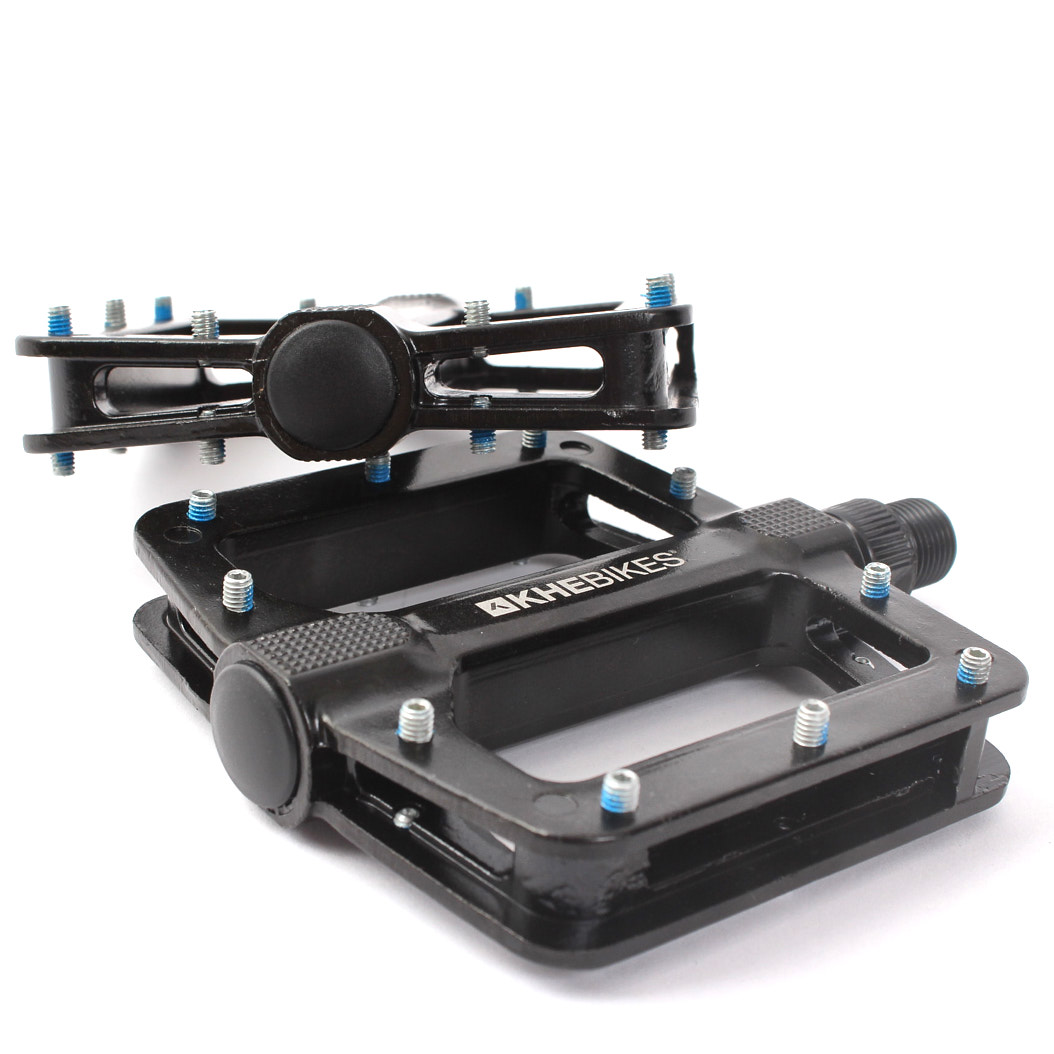

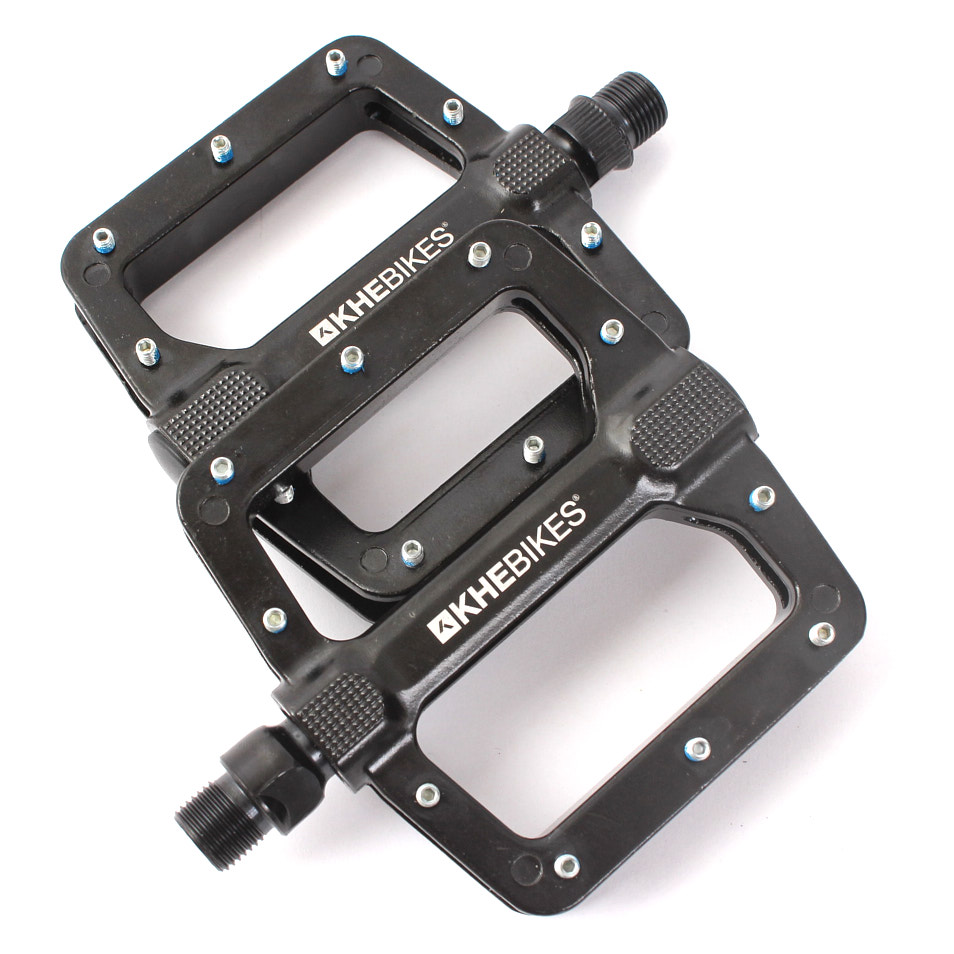

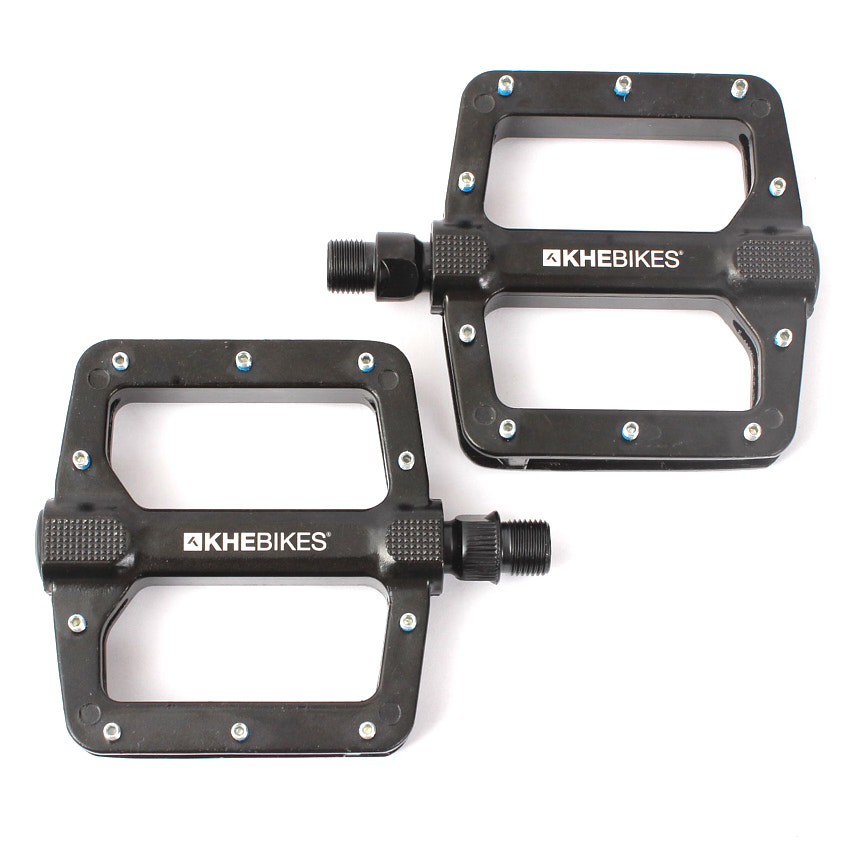

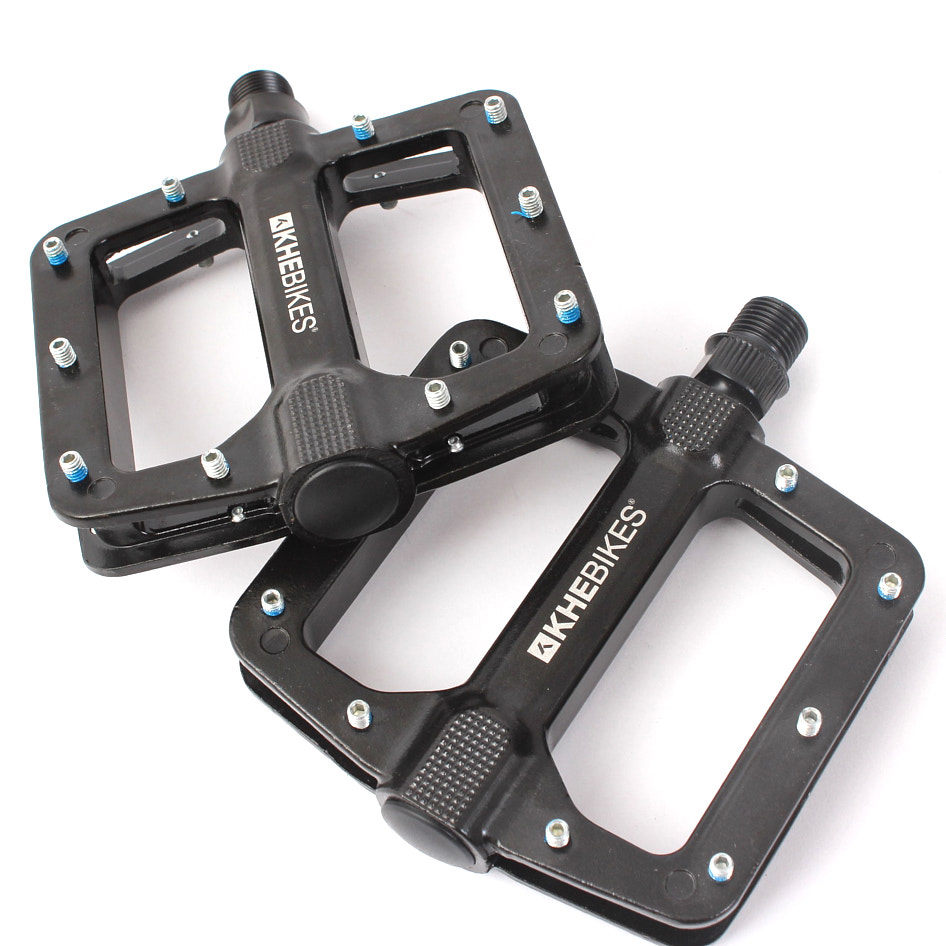

KHE MVP 9/16" Inch Sealed Aluminum Pedals
The KHE MVP Aluminum Pedals are very lightweight due to their flat 18mm design. The screwed-in pins provide excellent grip. They are equipped with 4130 CrMo axles. The aluminum body makes the pedals very stable, which is especially important for grinds. The pedals can be tightened with a 15mm wrench or a 6mm Allen key.
Overview of data:
- Brand: KHE
- Dimensions: 101mm x 92mm
- Height: 18mm (very flat)
- Material: 7005 Aluminum
- Axle Material: 4130 CrMo
- Thread Size: 9/16" Inch
- Sealed Bearings
- Screwed-in Steel Pins
- Weight: only 458g (pair)
- Suitable for 3-piece cranks
- Top product from KHE!
| Material: | 7005 Aluminum |
|---|---|
| Colour: | Black |
| Weight: | 13.83 oz / 392 g |
| Axle diameter: | 9/16 Zoll |
| Width: | 3.98" / 101mm |
| Height: | 0.71" / 18mm |
| Length: | 3.62" / 92mm |
Ensure Compatibility:
These aluminum pedals are designed exclusively for use on BMX bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
