£10.95*
Available, delivery time: 2-5 business days **
Lightweight cold forged KHE brake lever set made of 6061 aluminum. The set includes an adjustment screw for the brake cable.
Product number:
M360186PR
EAN:
4260640291961

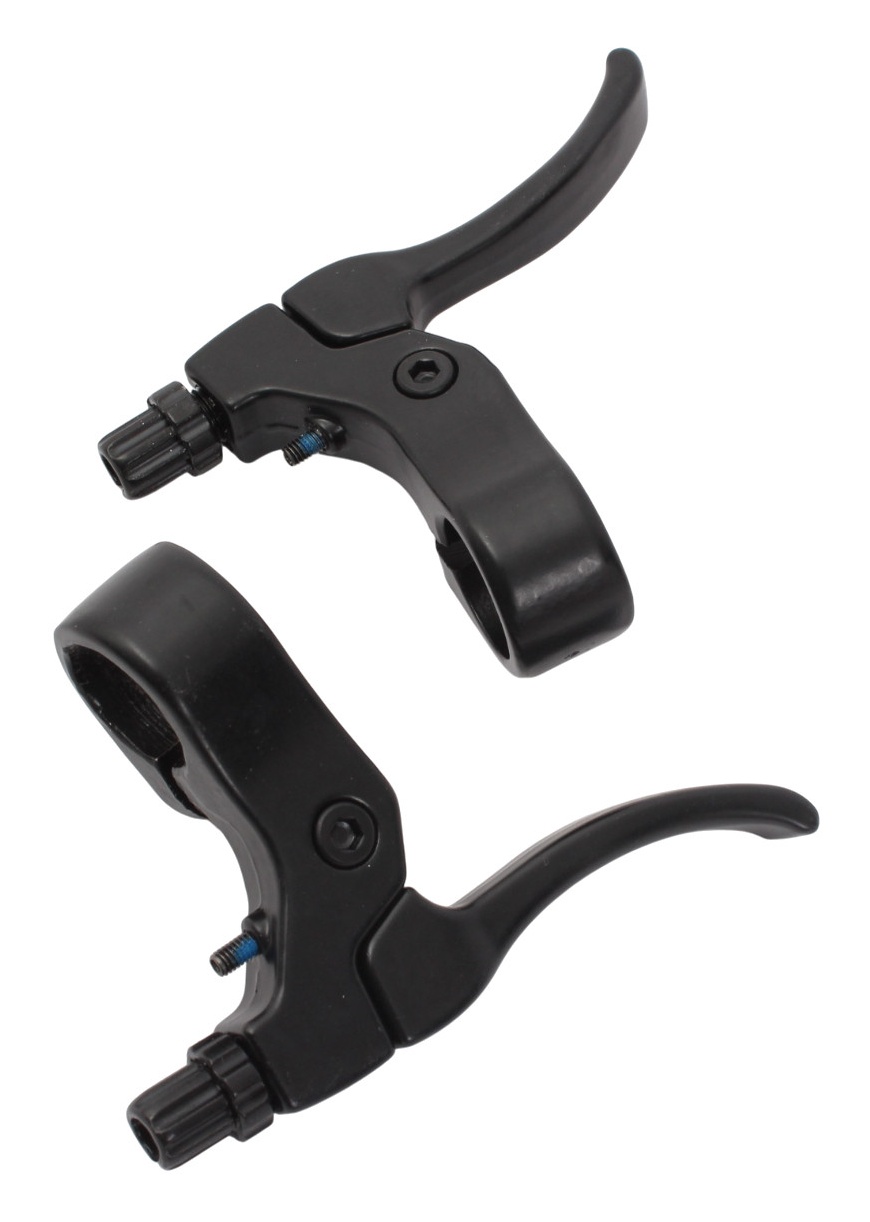

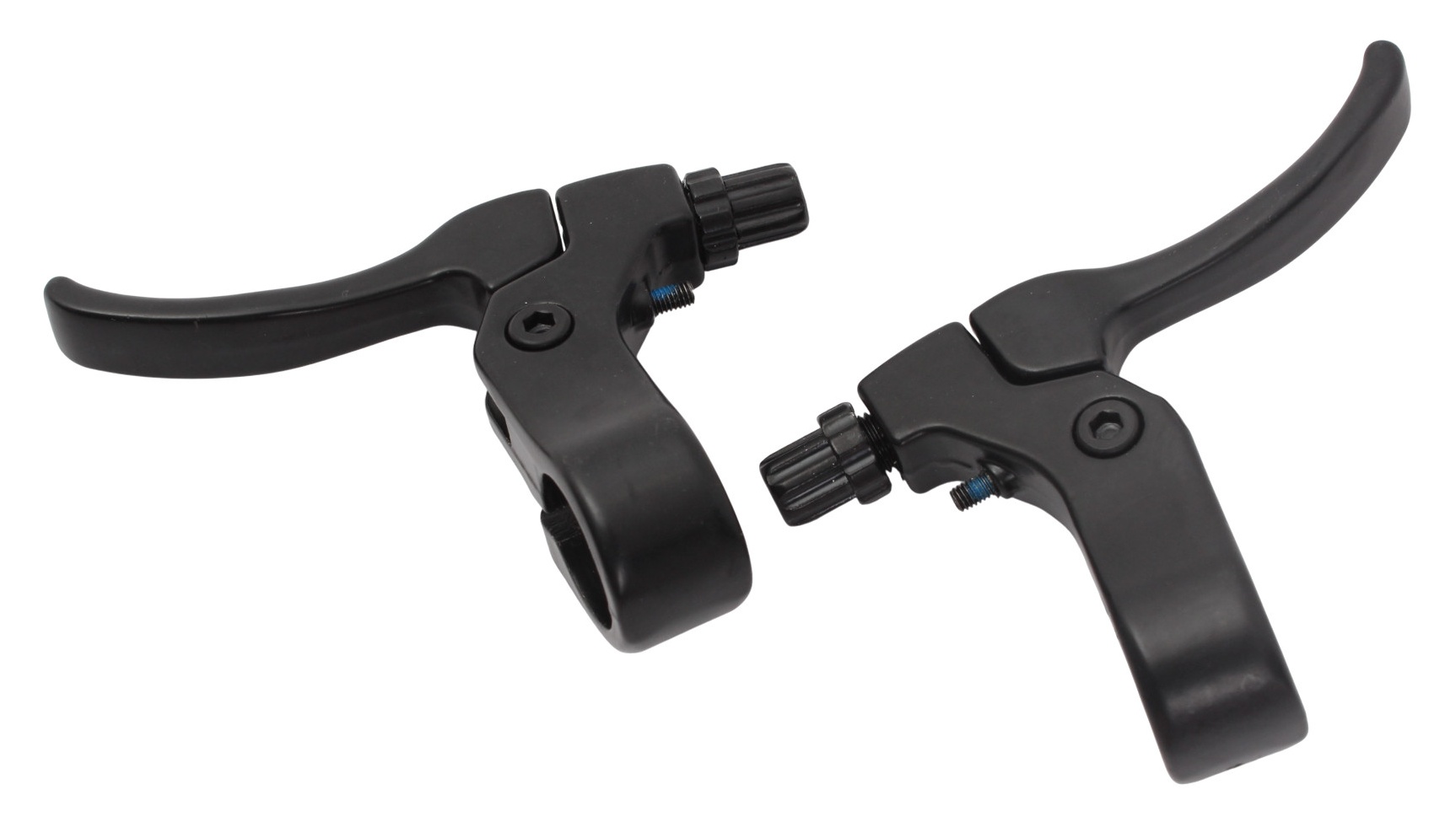

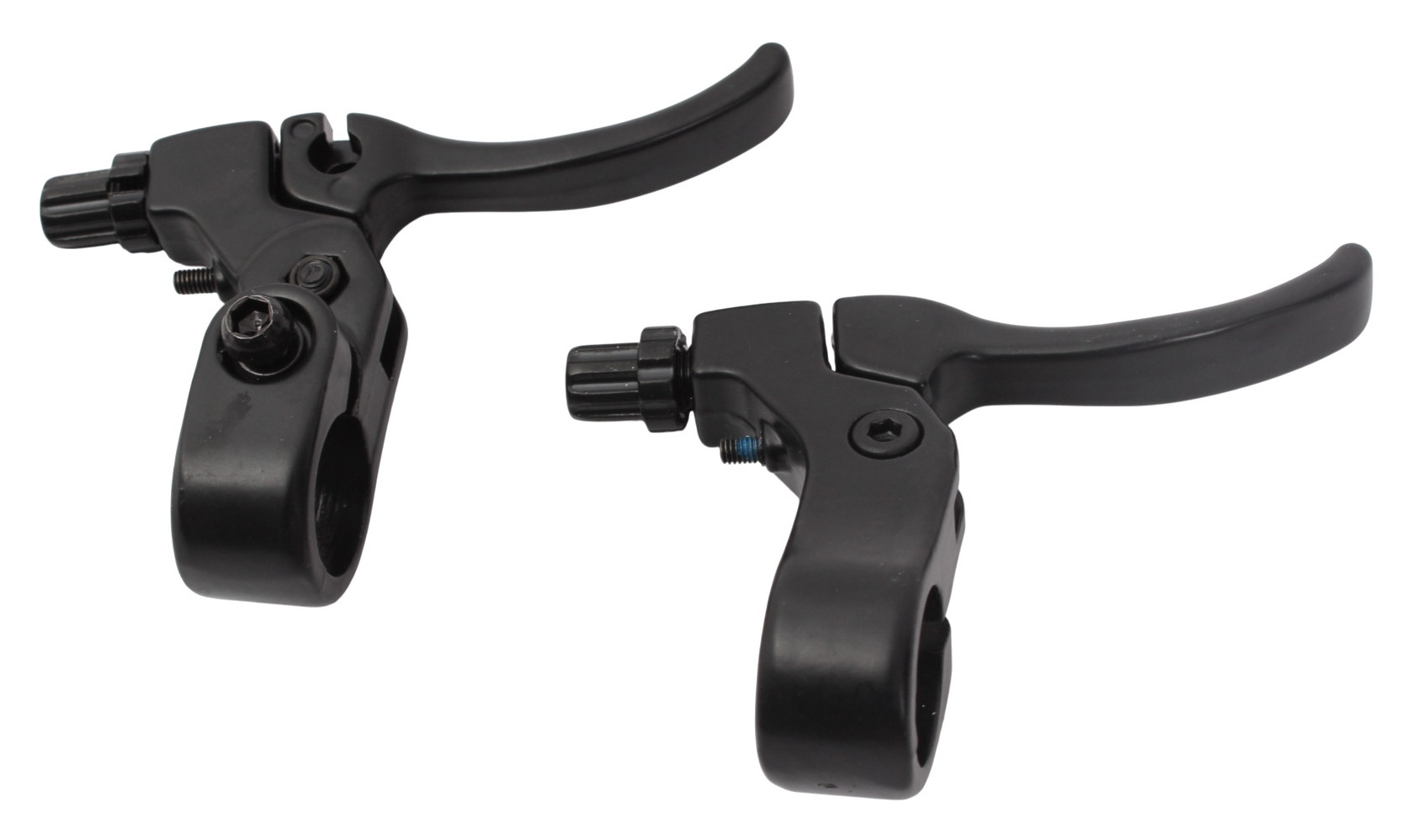

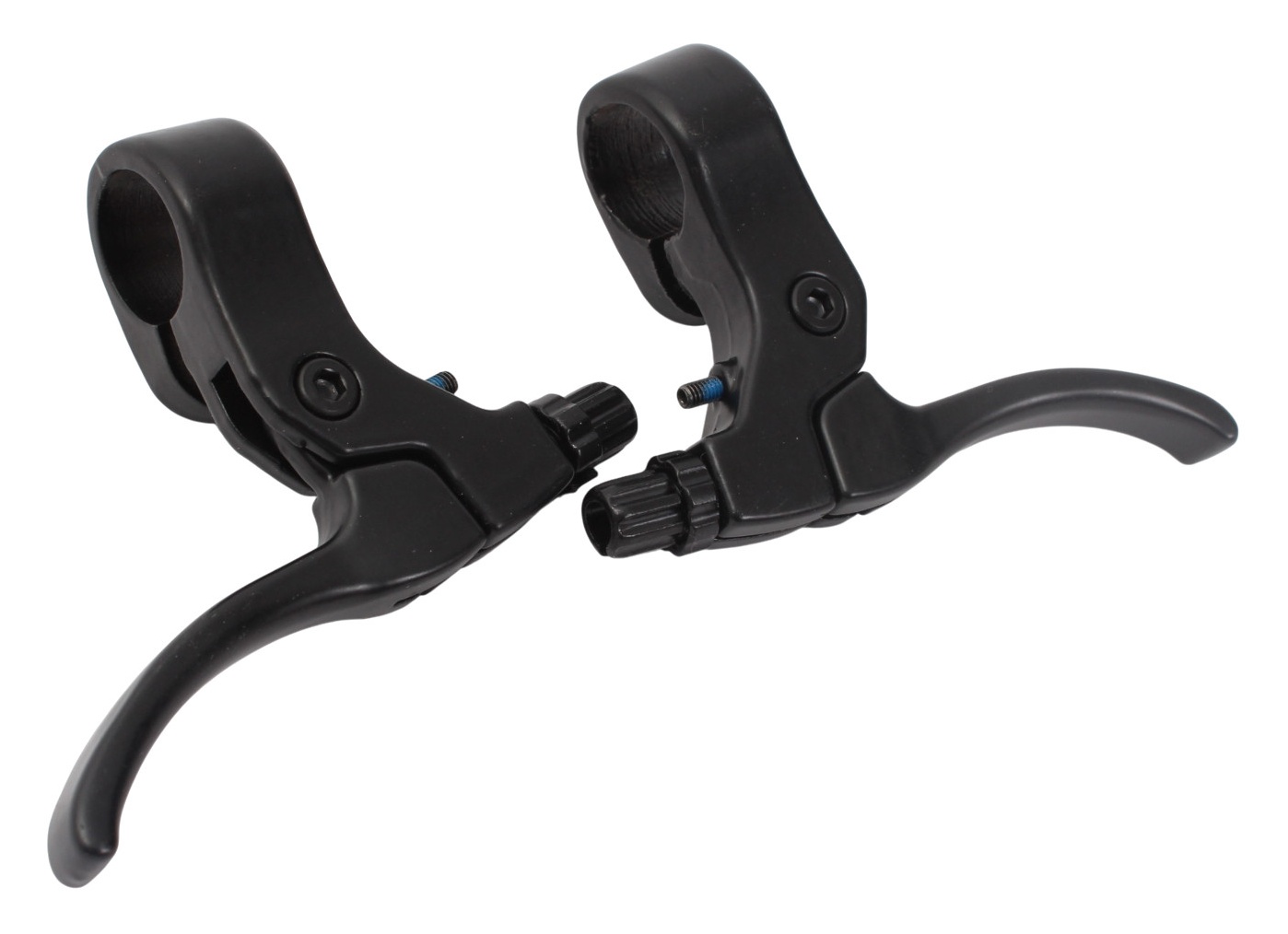

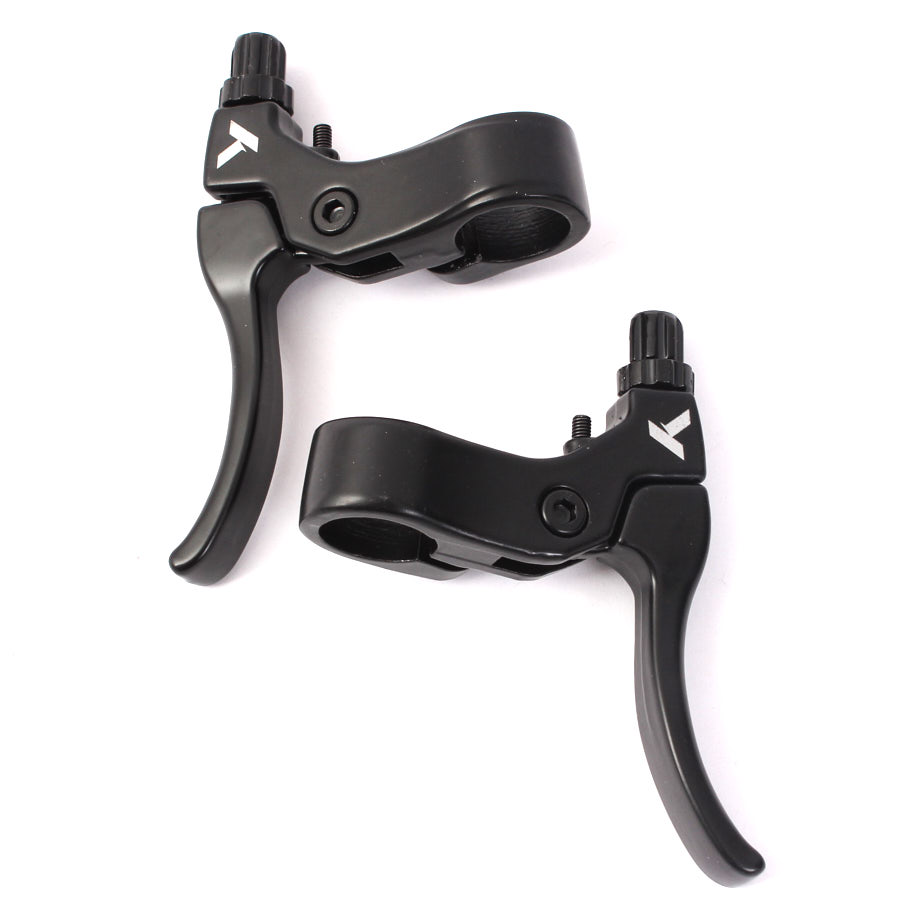

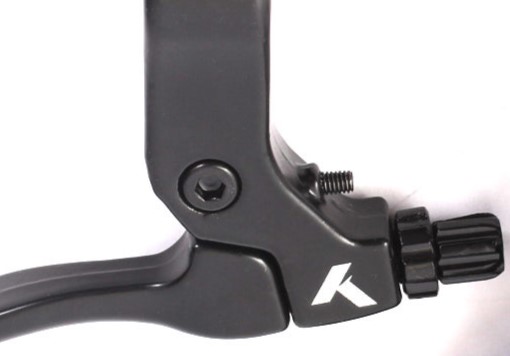

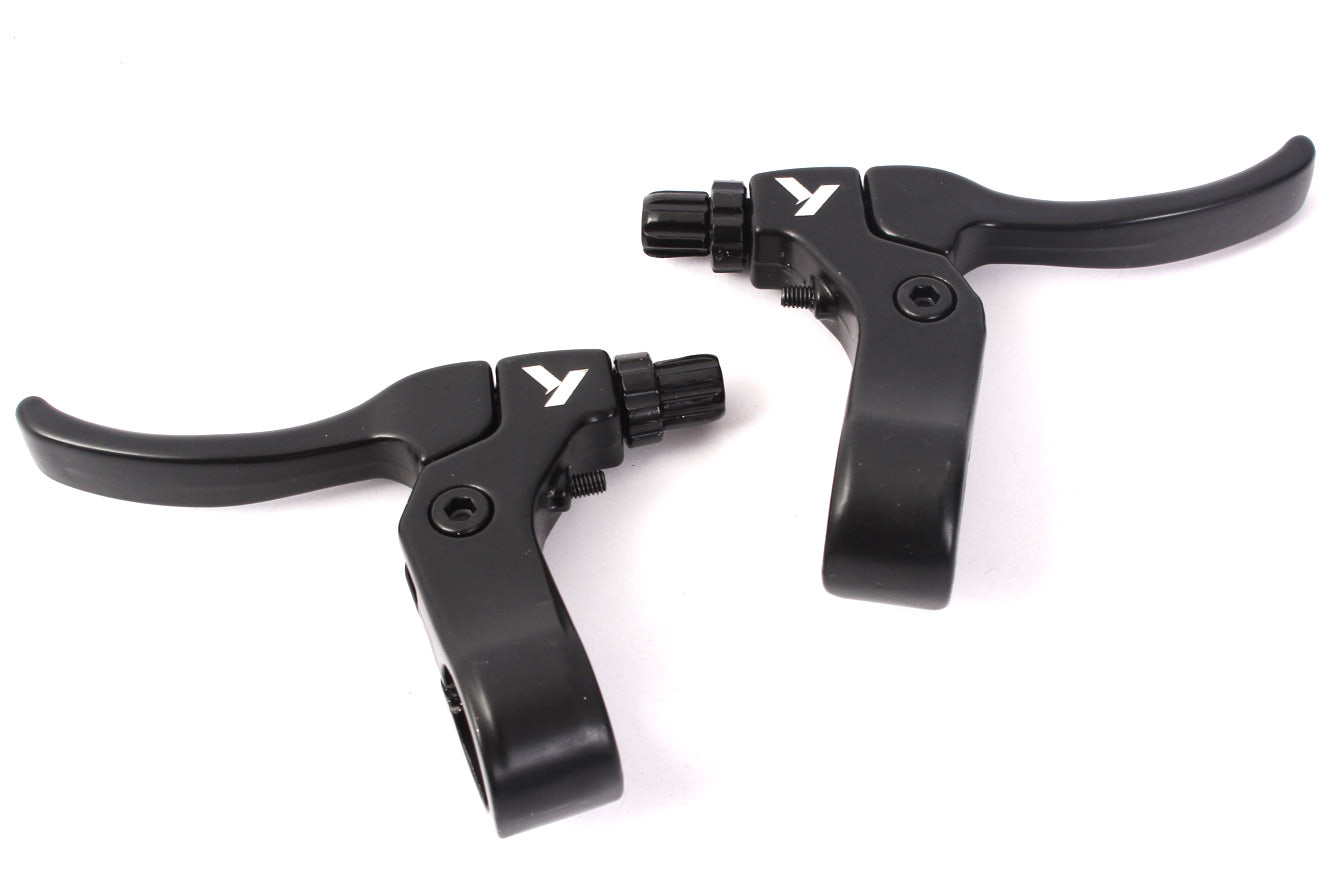

Product information "BMX brake lever set KHE PRISM"
KHE PRISM Brake Lever Black SET (without K logo)
Very lightweight brake lever set made of high-quality 6061 aluminium.
Key specifications:
- Brand: KHE
- 2-finger design
- Delivery contents: Pair
- Colour: Black
- Size: For 22.2mm (0.87") handlebars
- Material: 6061 aluminium
- Cold-forged
- Weight: Only 0.19 lbs (84g) per piece
- With adjustment screw for brake cable
- IMPORTANT: Brake levers come without "K logo".
| Brake type: | U-brake |
|---|---|
| Material: | 6061 Aluminium |
| Size: | for 0.87" / 22.2mm handlebar |
| Colour: | Black |
| Weight: | 5.93 oz / 168g |
| Side: | Pair |
Product Safety Instructions for BMX Brake Lever Set KHE PRISM:
Suitable for U-brakes: These aluminum brake levers generate the perfect pulling force needed to correctly engage U-brakes, making them ideal for BMX bikes with this type of brake.
Installation: Attach the brake lever in a comfortable position on the handlebar and guide the brake cable through the lever and cable housing to the brake body. Secure the brake cable at the brake body, adjust the cable tension, and fine-tune it at the lever if needed. Finally, test the brake function and secure any excess cable end with an end cap.
Do not make modifications: Do not perform modifications such as drilling or cutting on the brake lever.
Regular Inspection: Regularly check the lever and brake cable for wear, corrosion, and general functionality.
Replace the brake lever immediately if damaged.
