£399.00*
Available, delivery time: 2-5 business days **
Accessories

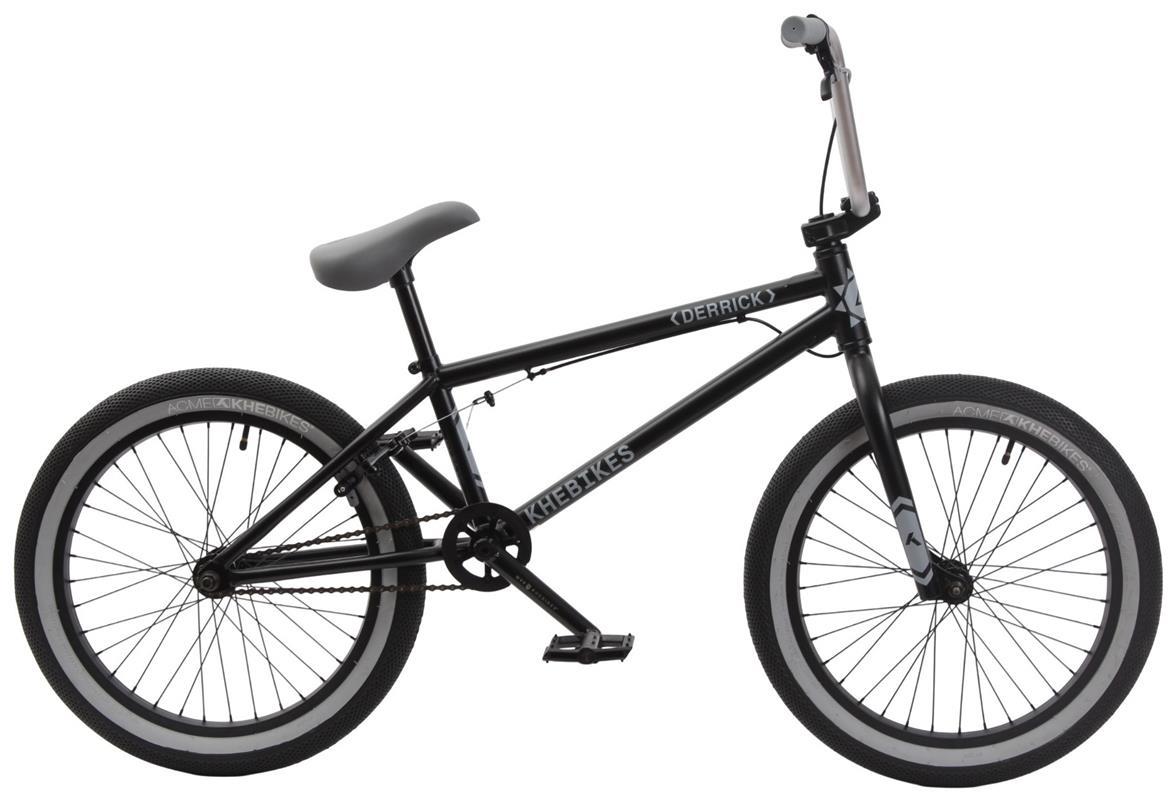

KHE DERRICK 20 Inch
KHE DERRICK 20 inch is a lightweight and durable freestyle BMX from the KHE 2025 BMX Series, designed for beginners and advanced riders. Weighing only 24.47 lbs (11.1 kg), it features a robust HiTen steel frame with a 20.6 inch top tube and wide 20 x 2.40 inch tyres, offering excellent control and a modern riding feel in street, park, dirt and freestyle. The 3-piece CrMo crank with 170 mm (6.69 inch), the 25T chainring with grindguard and the 9T cassette hub ensure direct power transfer, while front and rear U-brakes provide reliable braking performance.
- Weight: 24.47 lbs (11.1 kg)
- Frame: HiTen steel, 20.6 inch top tube
- Tyres: 20 x 2.40 inch
- Brakes: Front and rear U-brake
- Drivetrain: 3-piece CrMo crank 170 mm (6.69 inch), 25T chainring with grindguard, 9T cassette hub
- Usage: Park, Street, Dirt, Freestyle
- Rider height: approx. 4'11"–6'3" (150–190 cm)
- Maximum rider weight: 176 lbs (80 kg)
- Pegs: front 10 mm, rear 14 mm
- Pre-assembly: approx. 90% pre-assembled

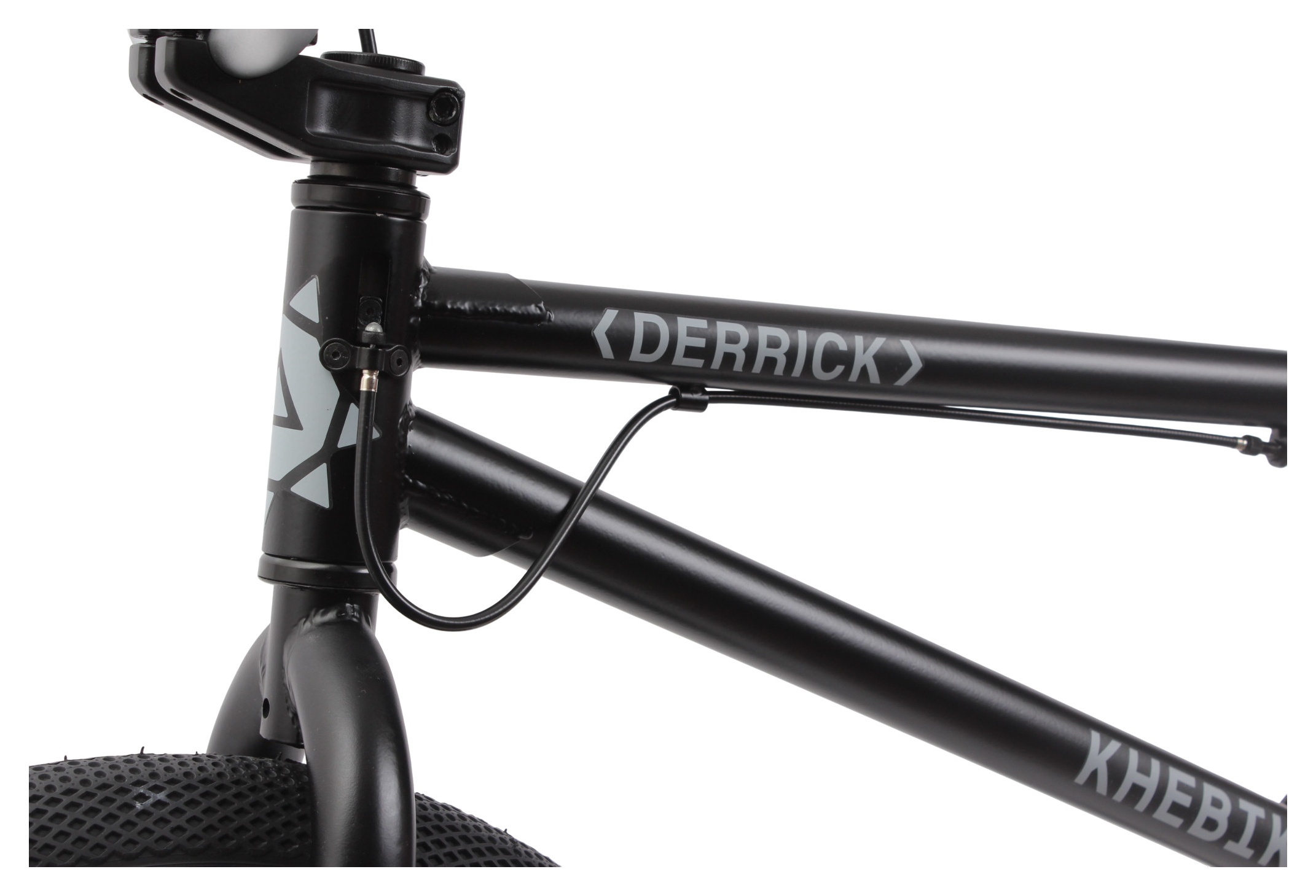

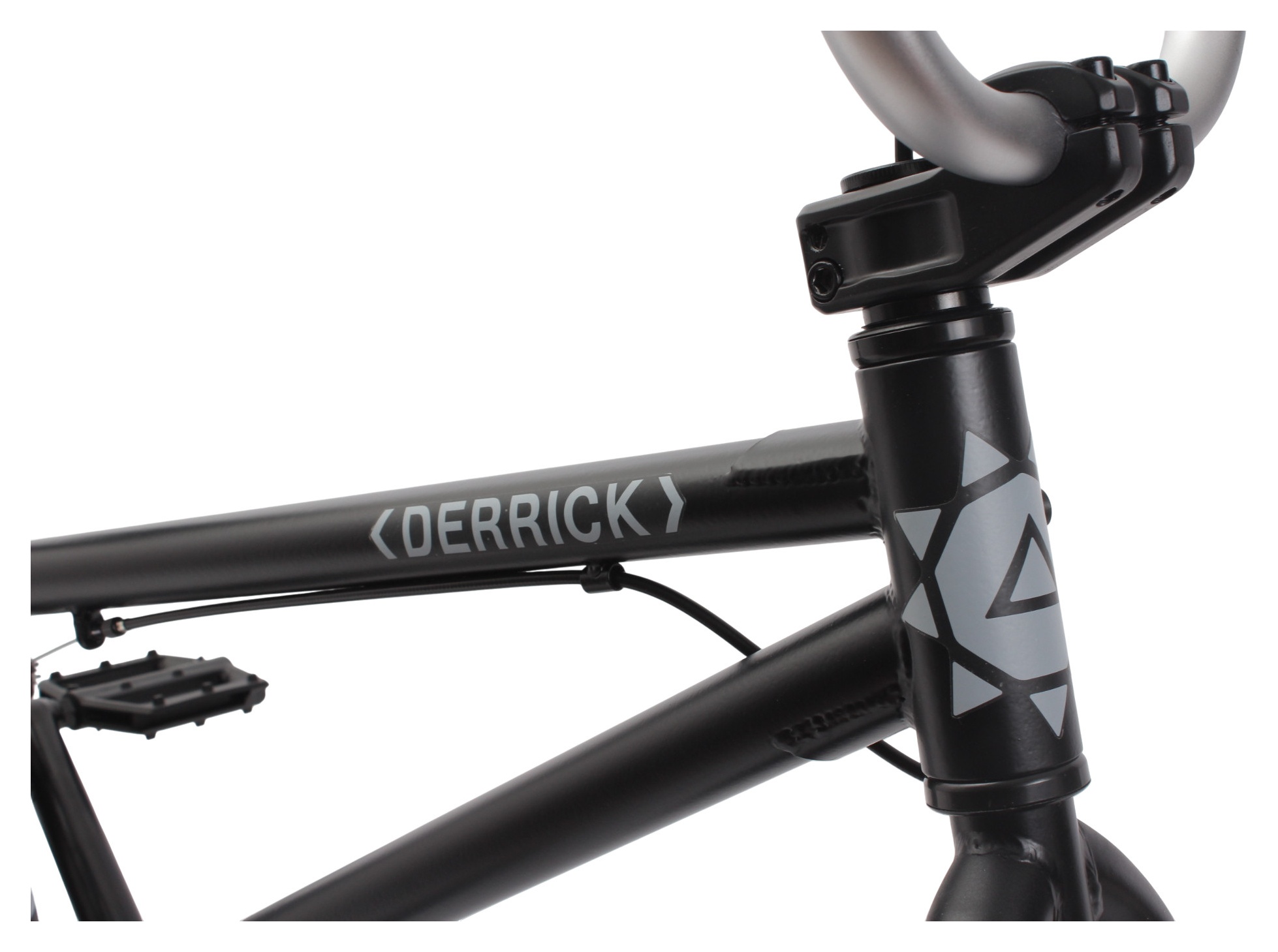

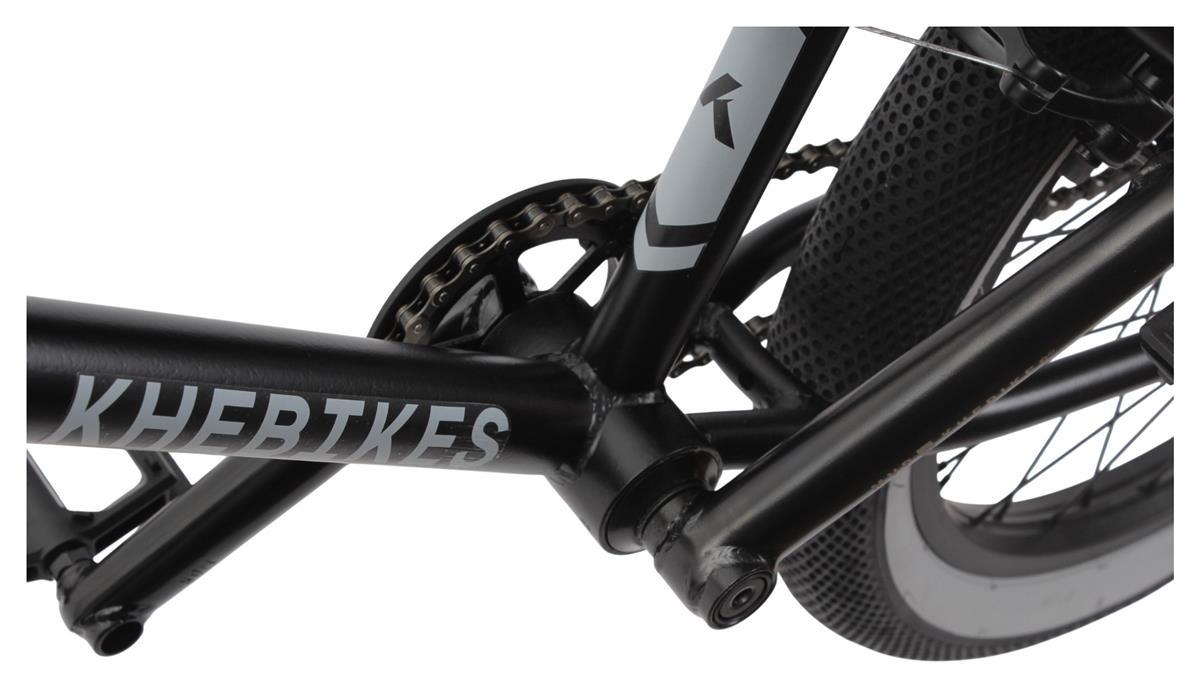

| Frame: | HiTen steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 20,6" (524mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

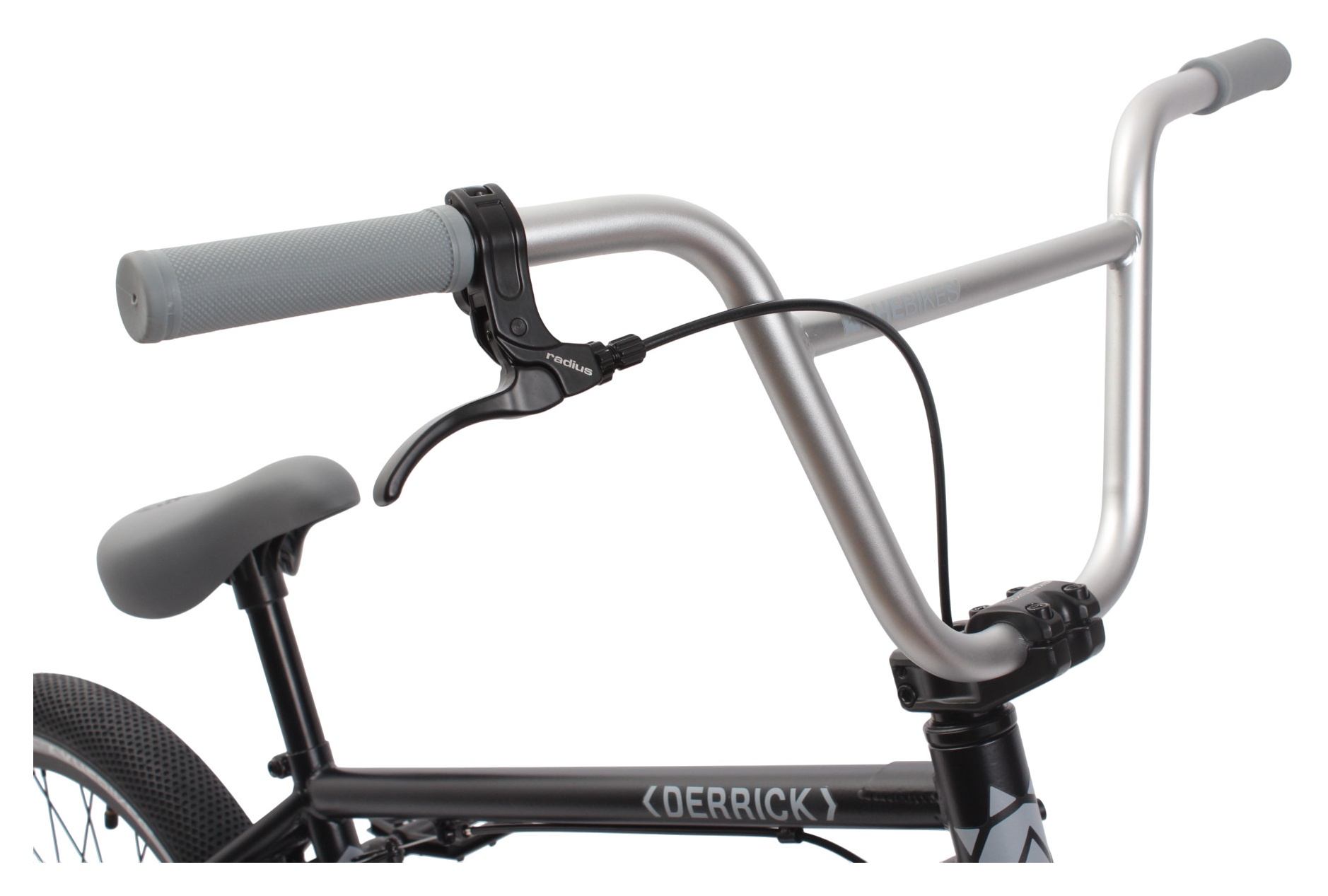

| Handlebars: | KHE HiTen steel 736mm width (29”) x 228mm (9”) height, Backsweep 9”, Upsweep 2” |

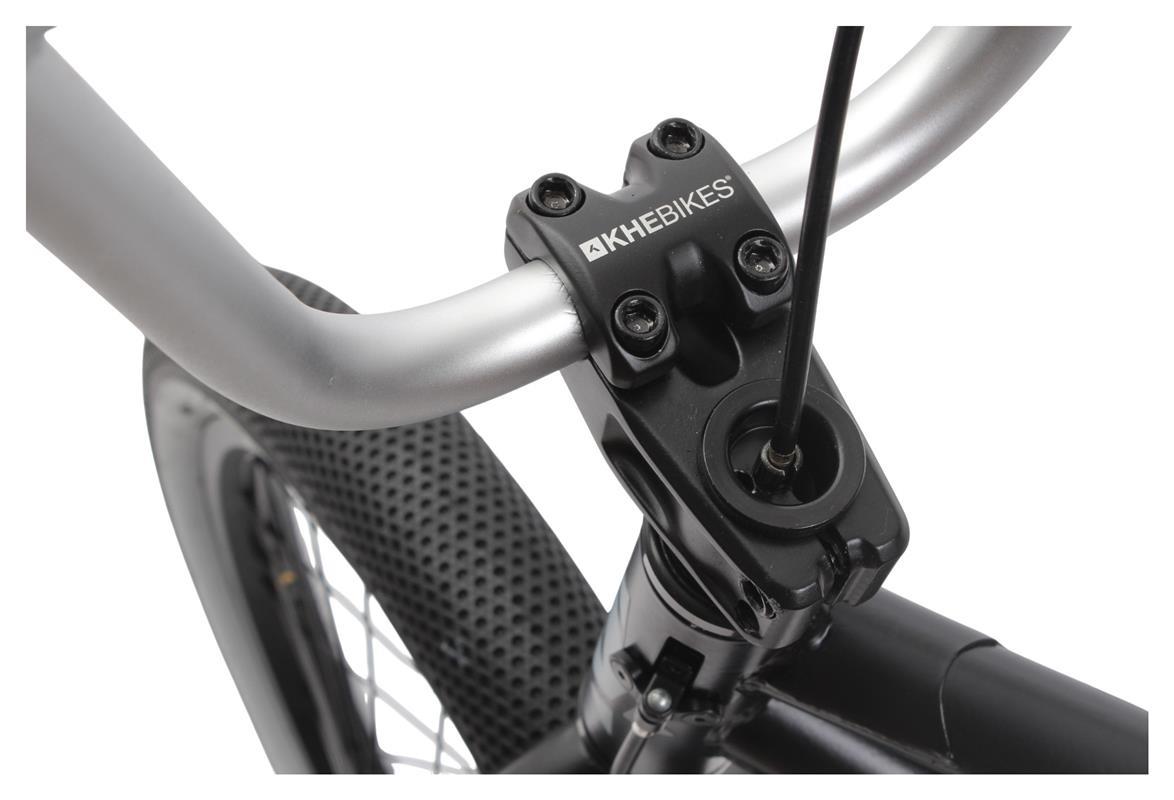

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | with flange 120mm, rubber diamond cut profile |

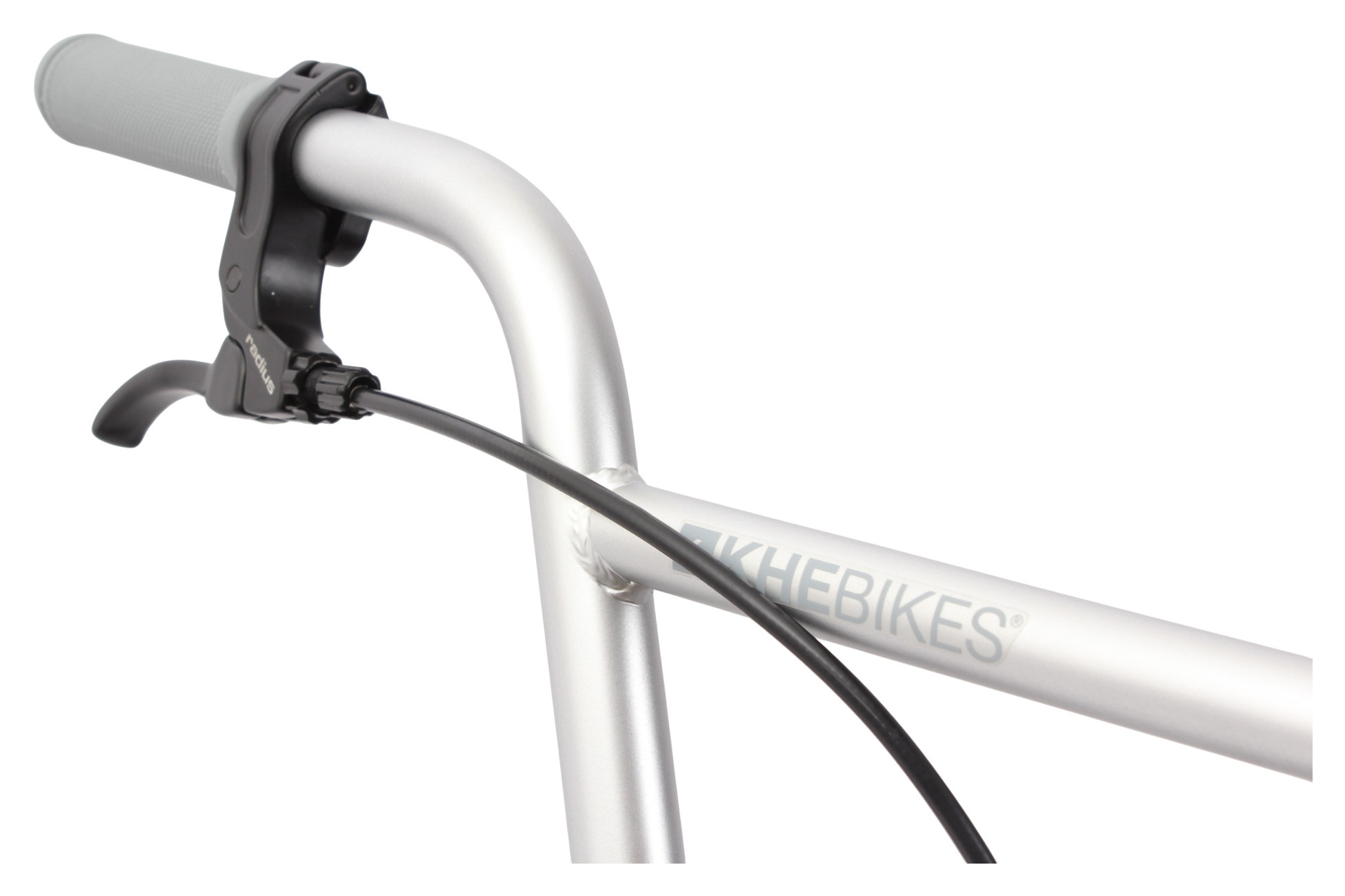

| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

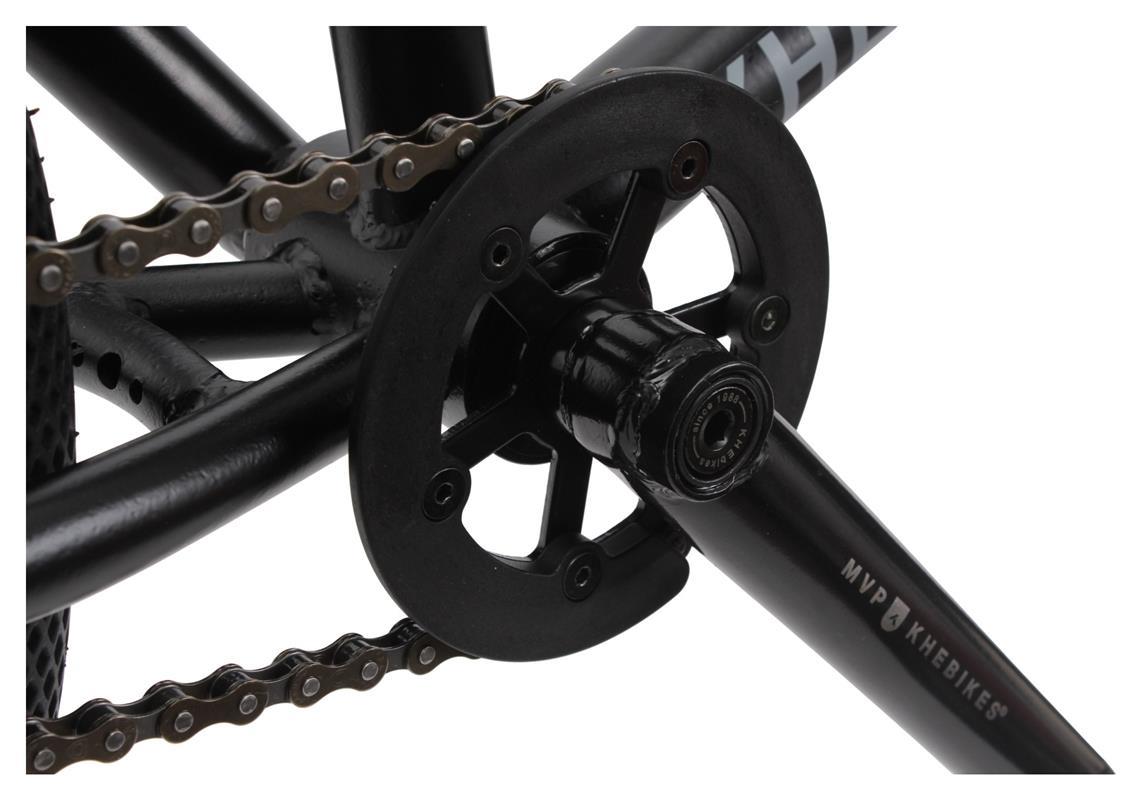

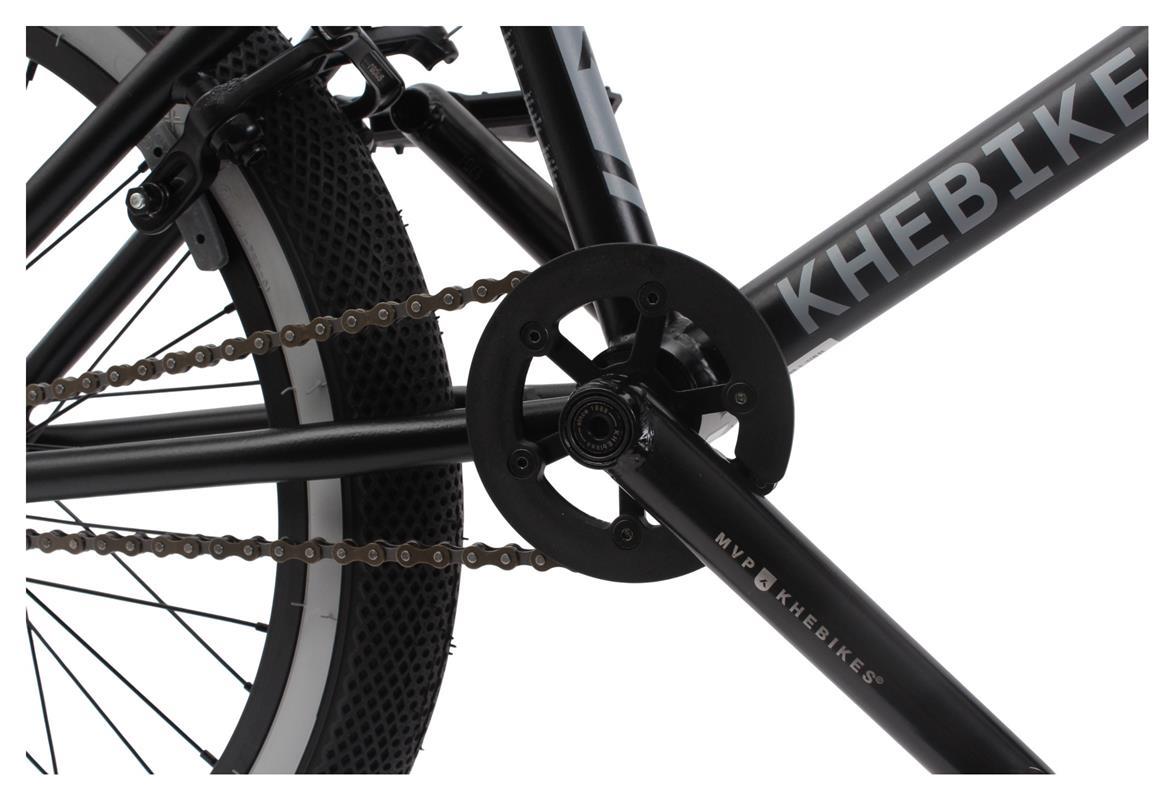

| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |
| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

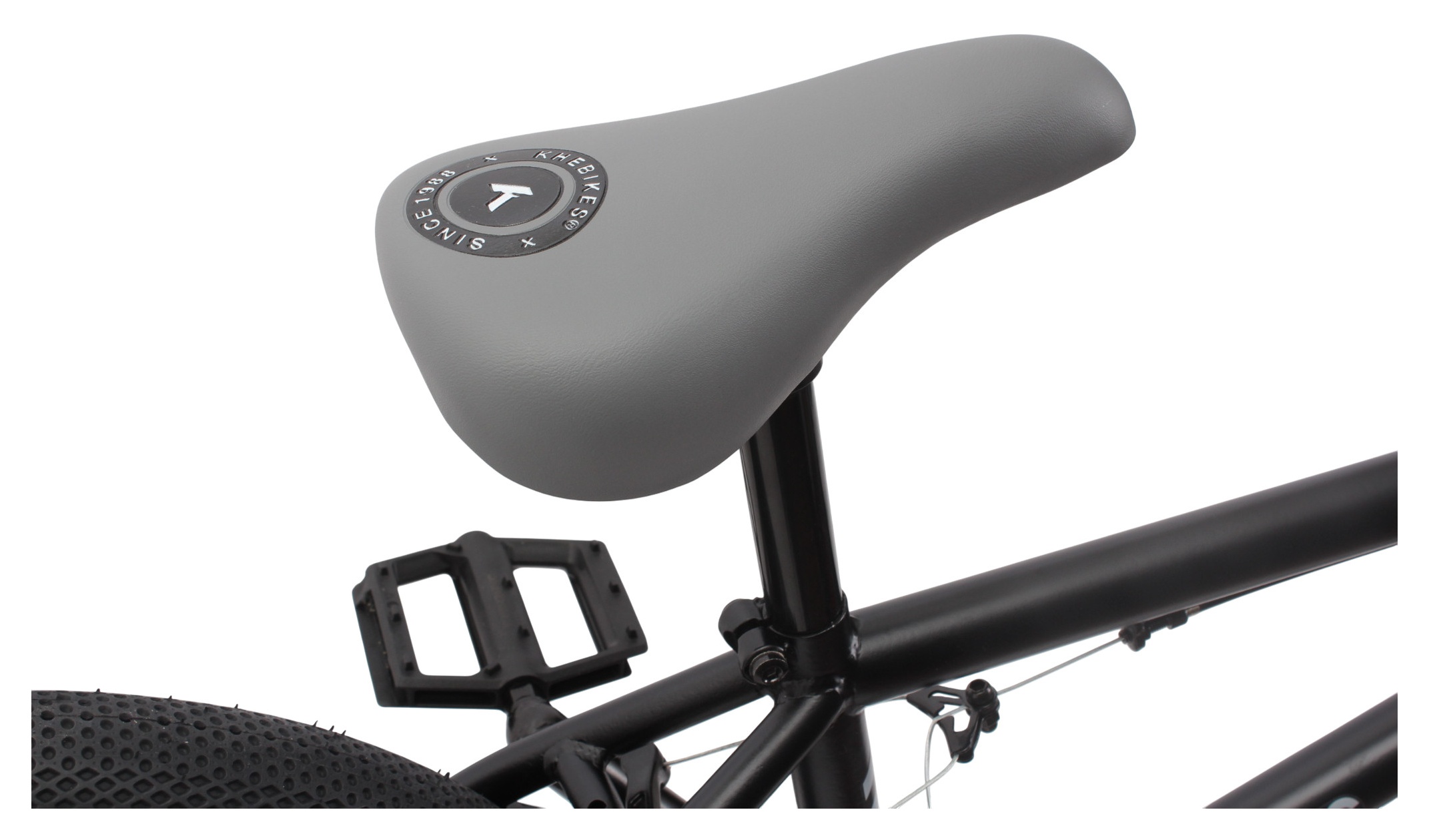

| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

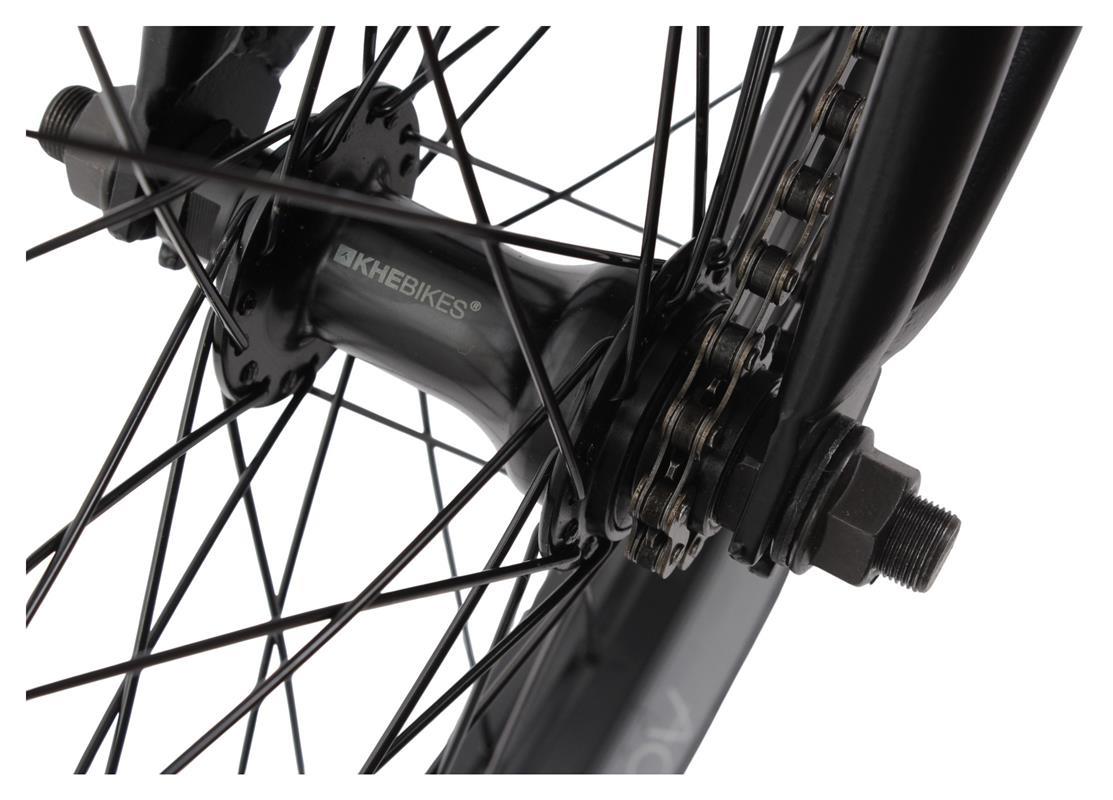

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |

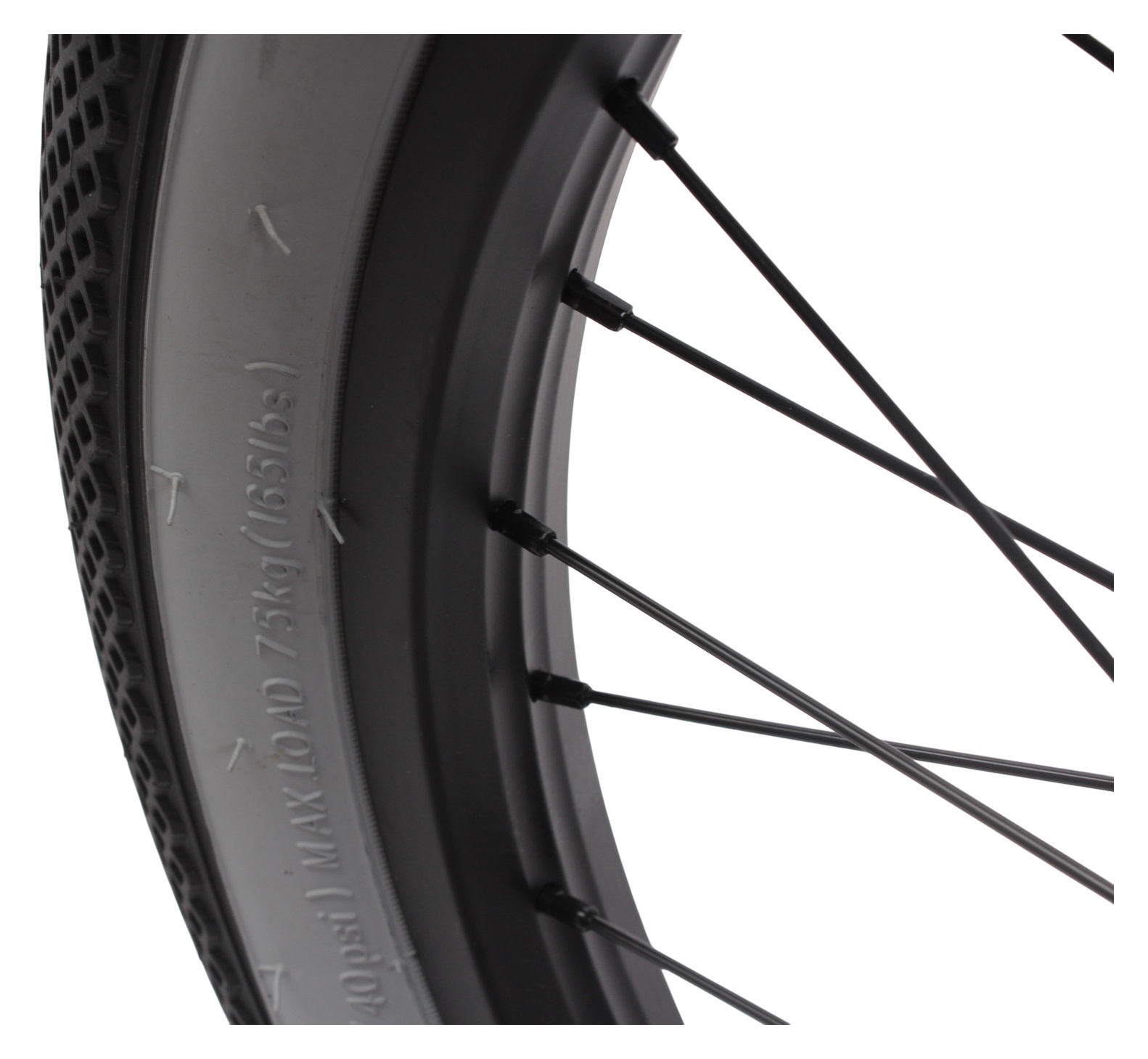

| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Matt black |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended Use: This BMX bike is designed for teenagers and adults with a height from approx. 4'11" (150 cm). It is suitable for street, park, dirt and freestyle use. Not approved for public road traffic.
Assembly and Inspection: The bike is delivered about 90 % pre-assembled. Before first use, handlebars, brakes, axles, pedals, chain and saddle must be fully installed and checked. Final assembly should be performed by a qualified workshop or experienced person.
Maintenance & Care: Clean the bike regularly with a damp cloth. Chain, bottom bracket and brakes should be lubricated and inspected regularly. Replace worn or damaged parts immediately. Do not store outdoors in wet conditions.
Maximum Load & Safety: This BMX is rated for a maximum rider weight of 220 lbs (100 kg). Before each ride, check all bolts, brakes and tyres for secure fit and function. Do not use the bike if any damage is visible.
