KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, refined engineering and outstanding riding dynamics. The new 2025 models feature optimized geometry, well-thought-out details and high-quality components – directly from the manufacturer for maximum performance on any terrain.

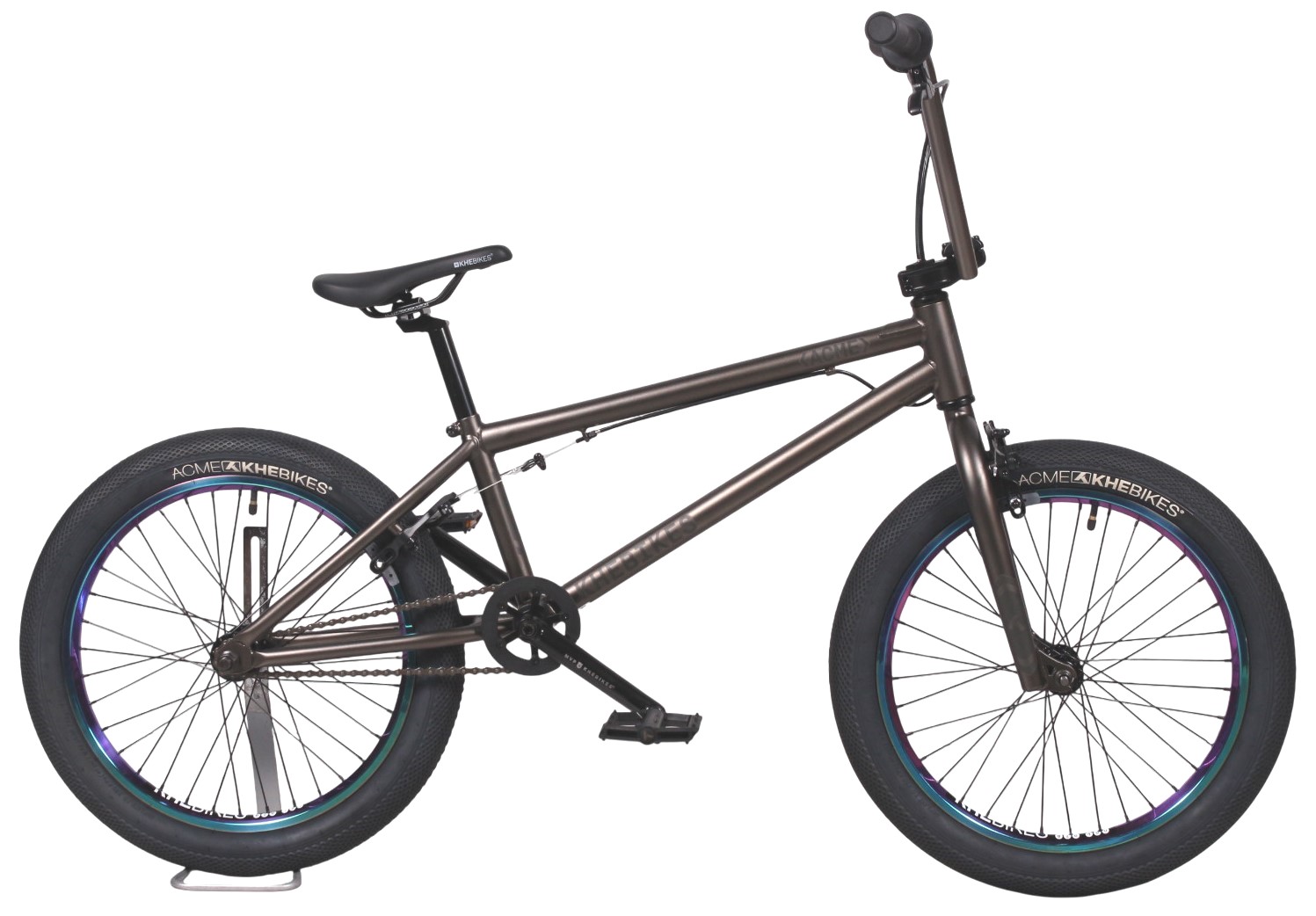

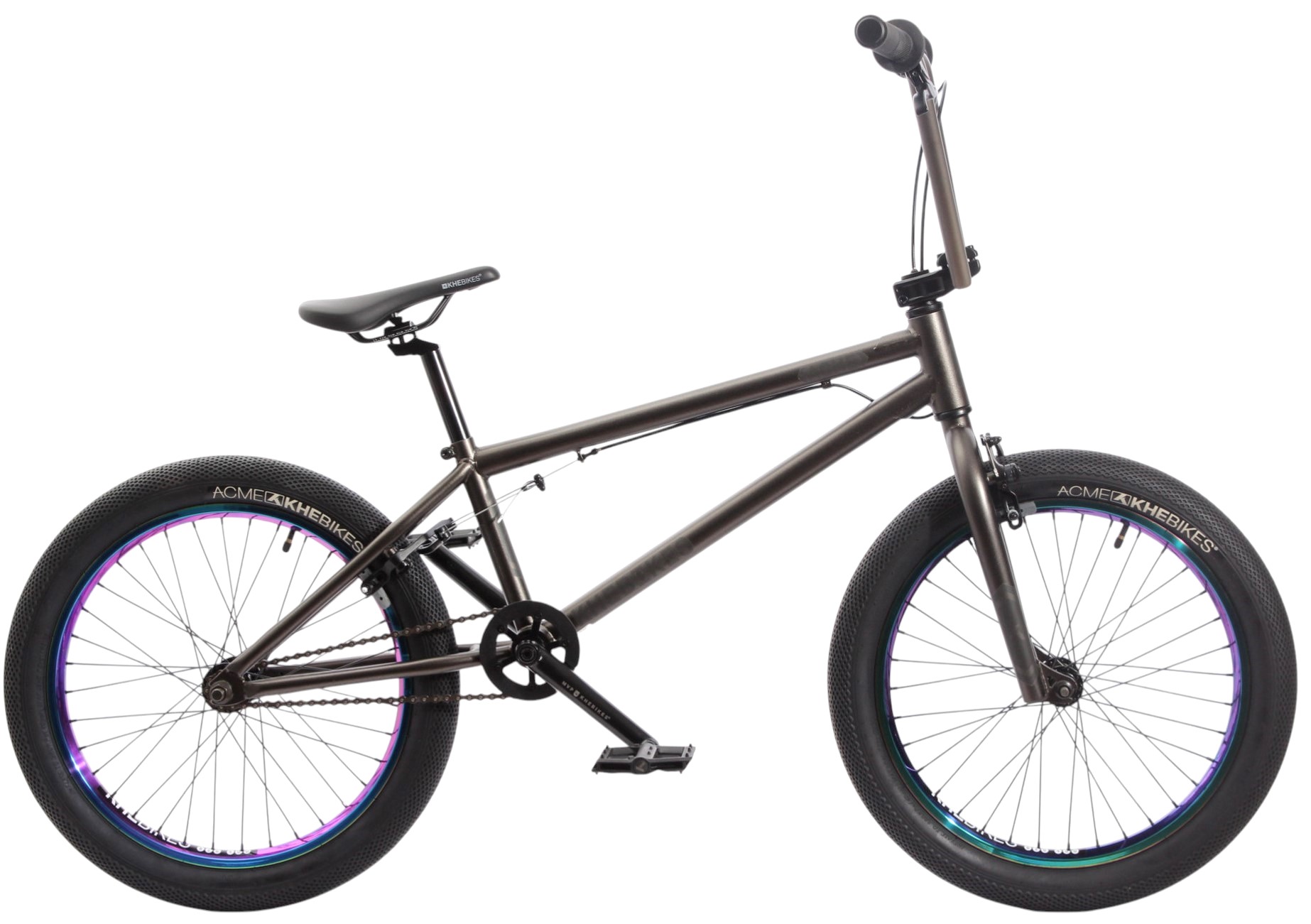

KHE ACME 20 Inch – BMX for Tall Riders up to 2.05 m
The KHE ACME 20 inch was specifically developed for taller and heavier BMX riders. It is suitable for riders up to 2.05 m (6’9”) in height and a maximum rider weight of 130 kg (286 lbs) – ideal for anyone looking for a long, stable yet lightweight BMX.
The ACME is a versatile street, park, dirt and pump track BMX. The long frame with a 21.25" top tube (540 mm) combined with the extra high 10" handlebar provides a comfortable, upright riding position and excellent control – even for riders over 2 meters tall.
Frame, fork and handlebar are finished in anthracite grey, perfectly matched with the eye-catching oil slick rims. Tires, grips, saddle and all other components are kept in black, creating a clean and high-end appearance.
High-quality components include BIG400 oil slick rims, a 3-piece CrMo crankset, precision sealed hubs, and the 10" multiple-butted MVP 4-piece handlebar. The chainring with integrated grind guard reliably protects the chain during grinds.
Despite the long frame, rotor system, and U-brakes front and rear, the bike weighs only approx. 11.1 kg. For many parents riding BMX together with their kids, the KHE ACME is the perfect bike.
Recommended rider height: 175–205 cm
Maximum rider weight: 130 kg
Riding style: Street / Park / Dirt / Pump Track
Why choose the ACME 20 inch by KHEbikes:
• Designed for tall riders up to 2.05 m & 130 kg
• Extra long frame with 21.25" top tube for optimal ergonomics
• 10" high handlebar – ideal for tall riders
• Anthracite grey frame, fork & handlebar – clean and modern
• Oil slick rims – special visual highlight
• KHE ACME tires, 2.40" wide for grip and comfort

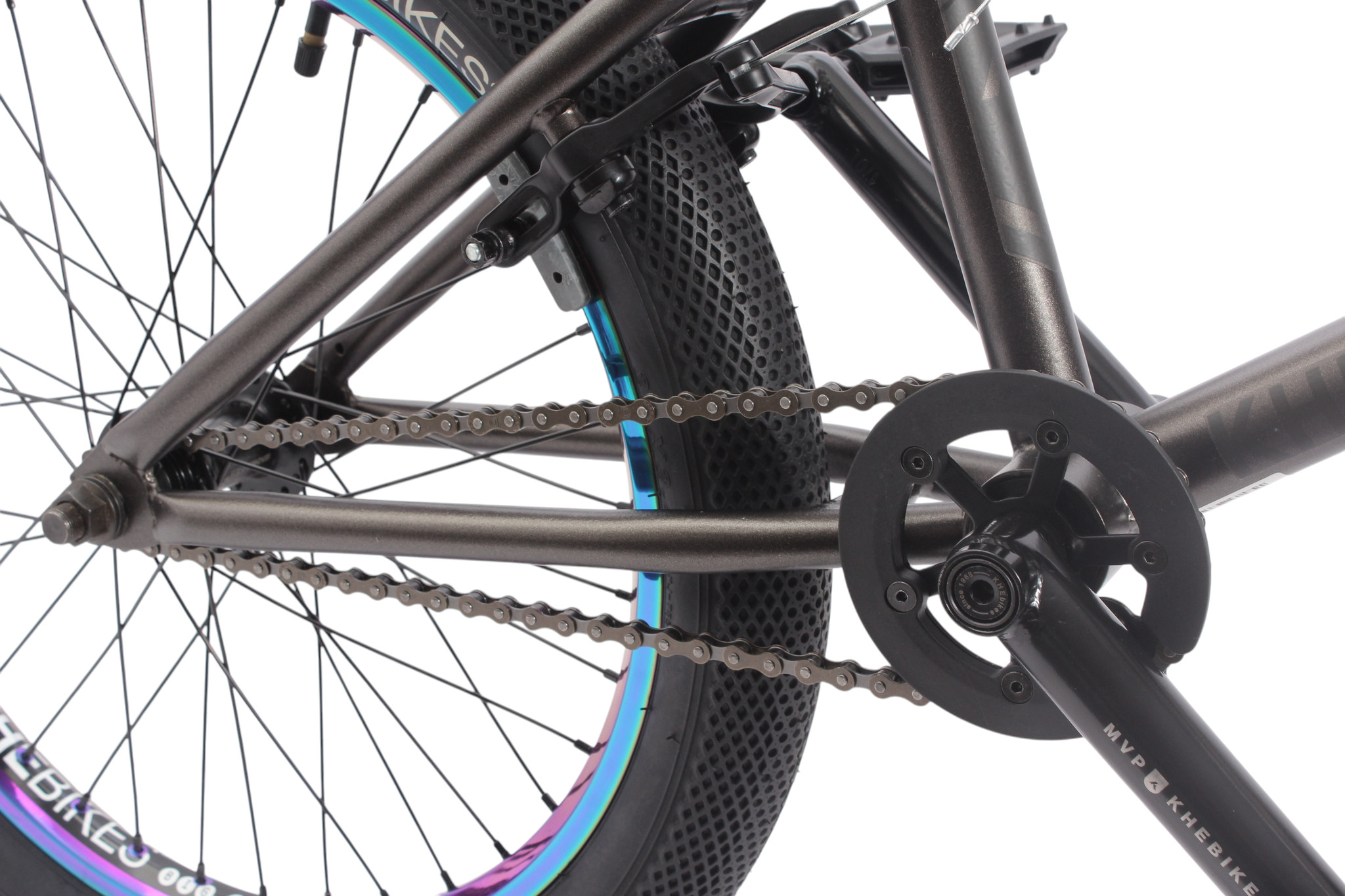

• Chainring with grind guard – protects the chain while grinding
• Rotor system & U-brakes front and rear
• Only approx. 11.1 kg despite top-level equipment
Pegs:
Suitable pegs for the KHE ACME 20" are 10 mm front and 14 mm rear.
We recommend the CNC PRO plug-in pegs.
(Adapters for front and rear included)

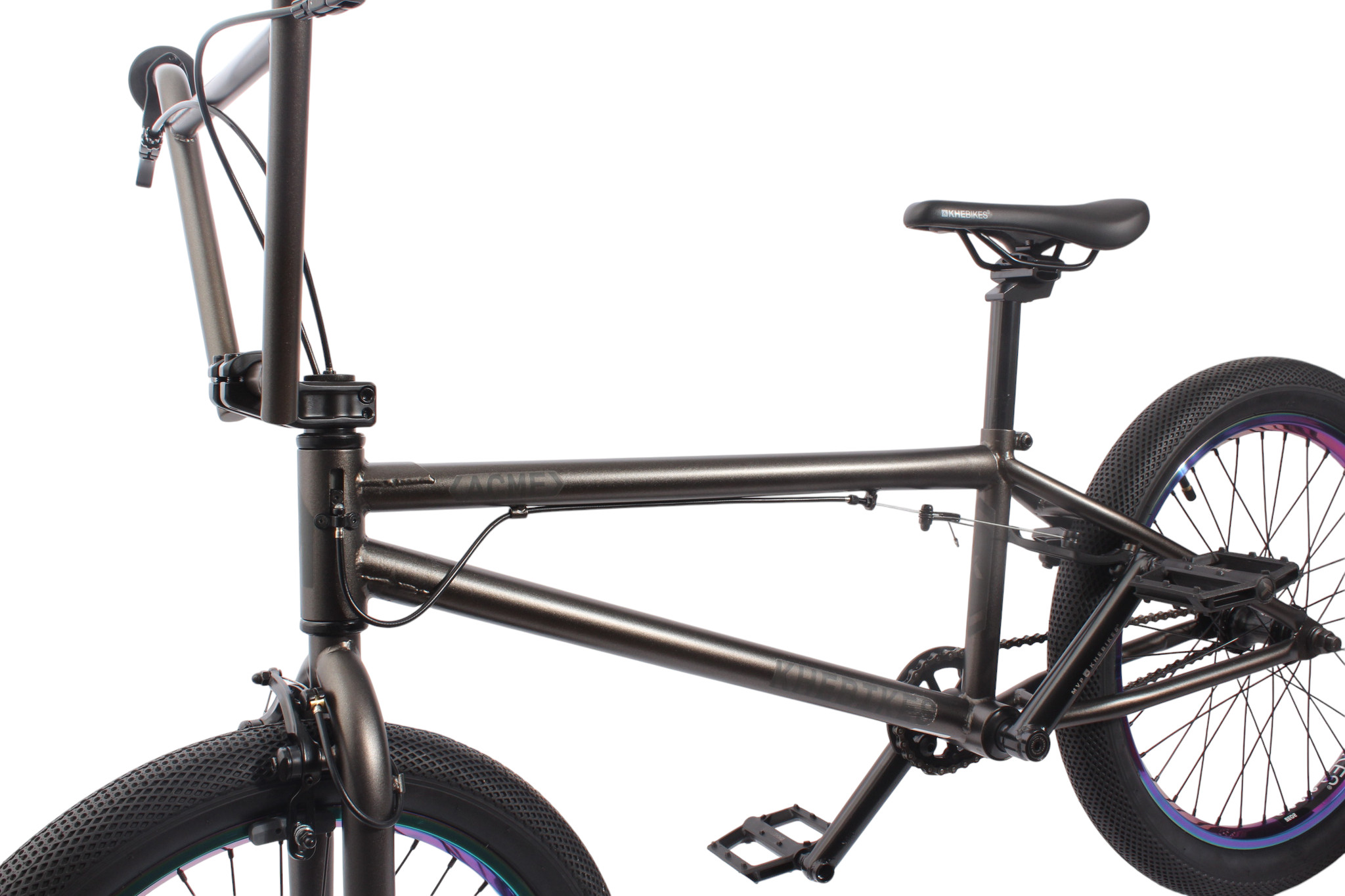

| Frame: | HiTen steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 21,5" |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

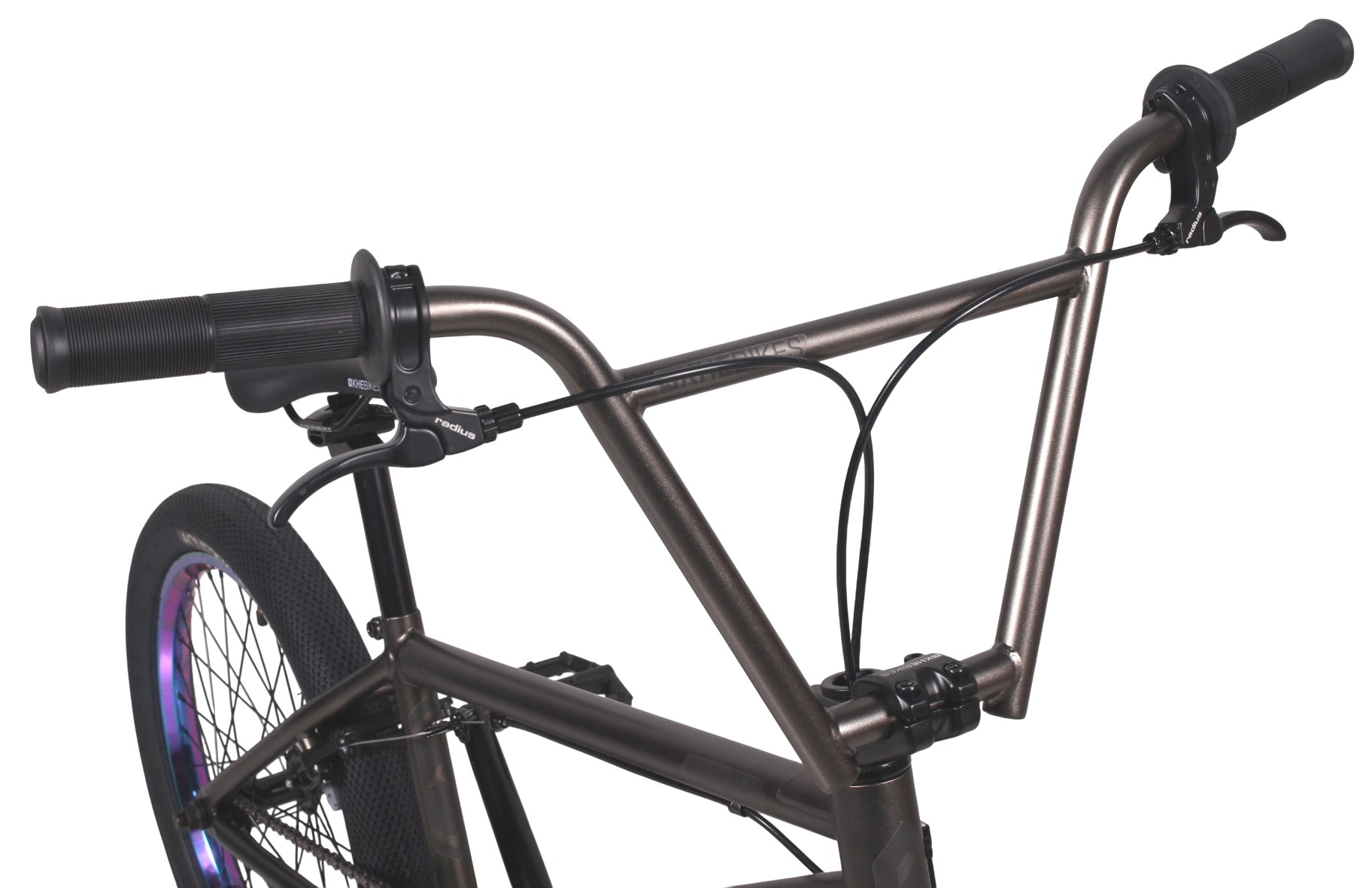

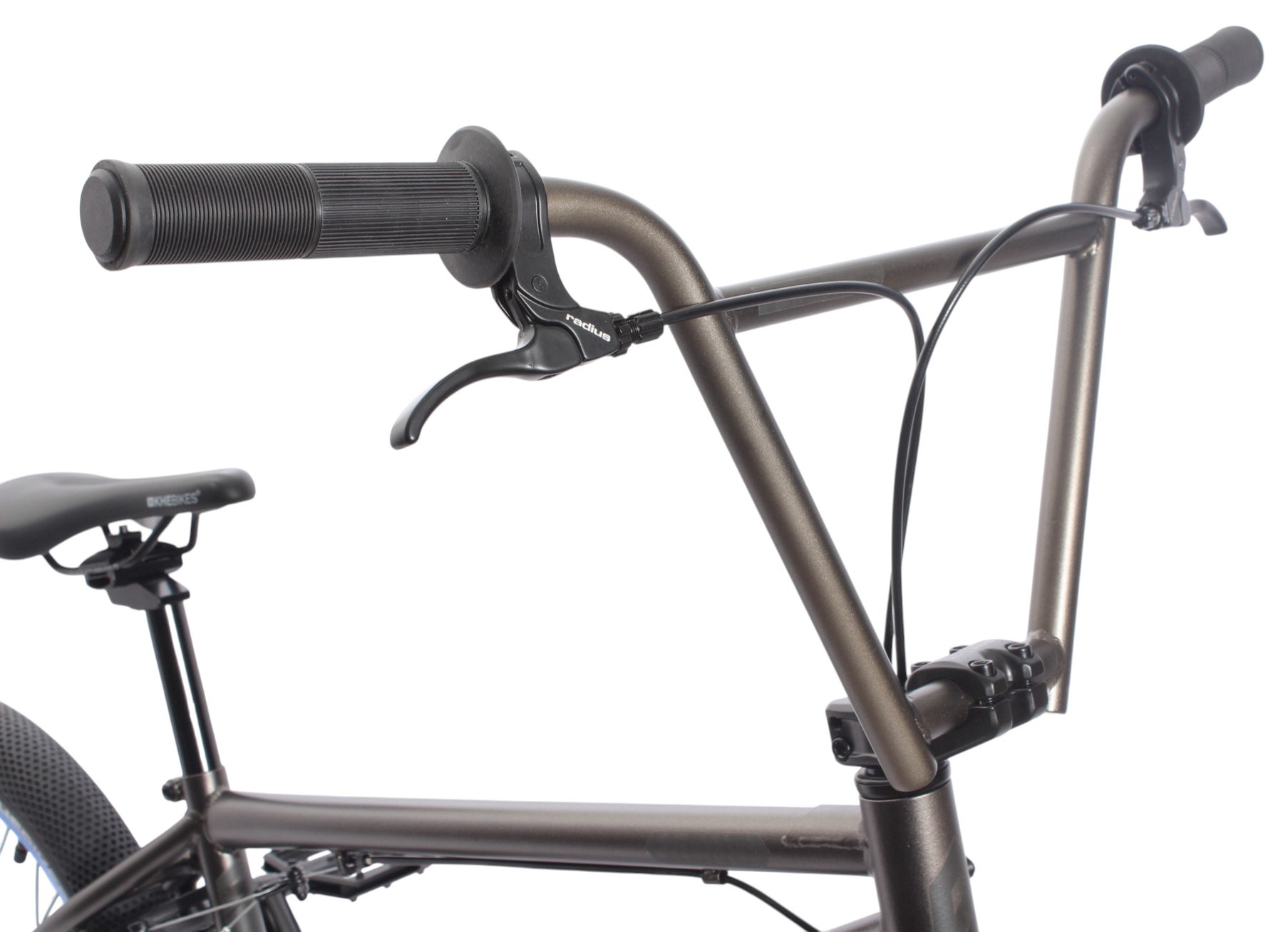

| Handlebars: | KHE multiple butted 4-piece handlebar, height 10" (254mm) x width 750mm, 10° backsweep, 2° upsweep |

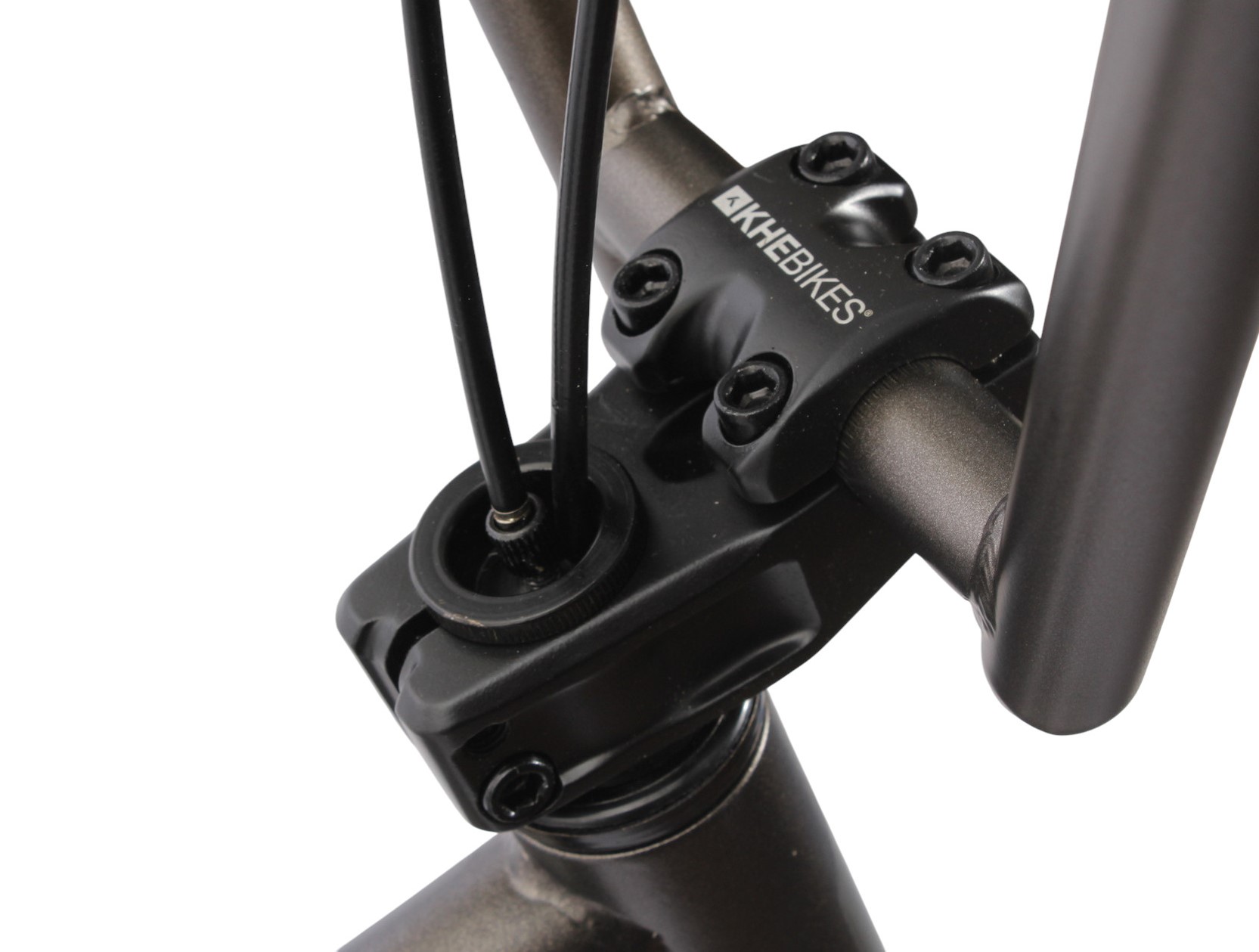

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |

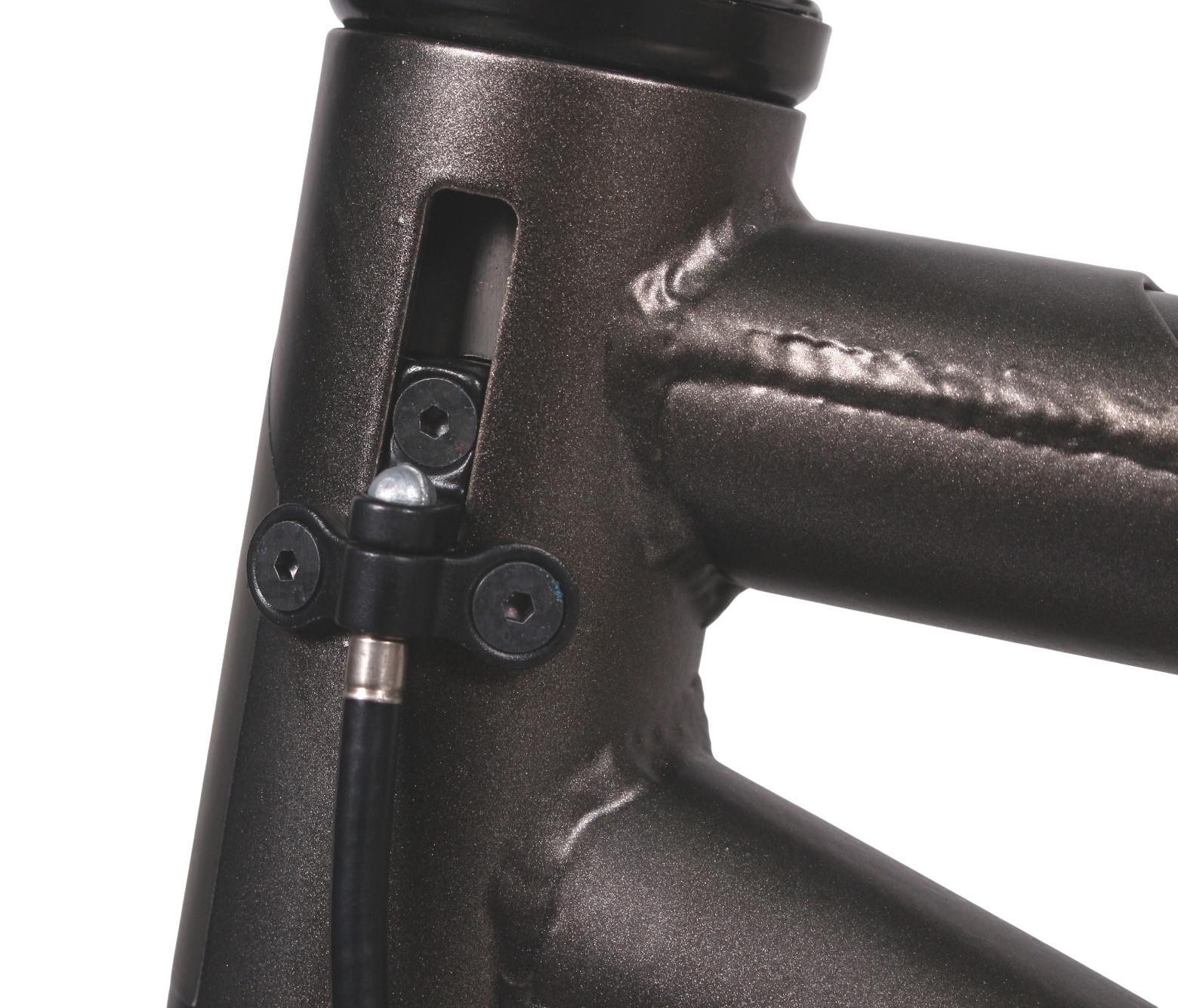

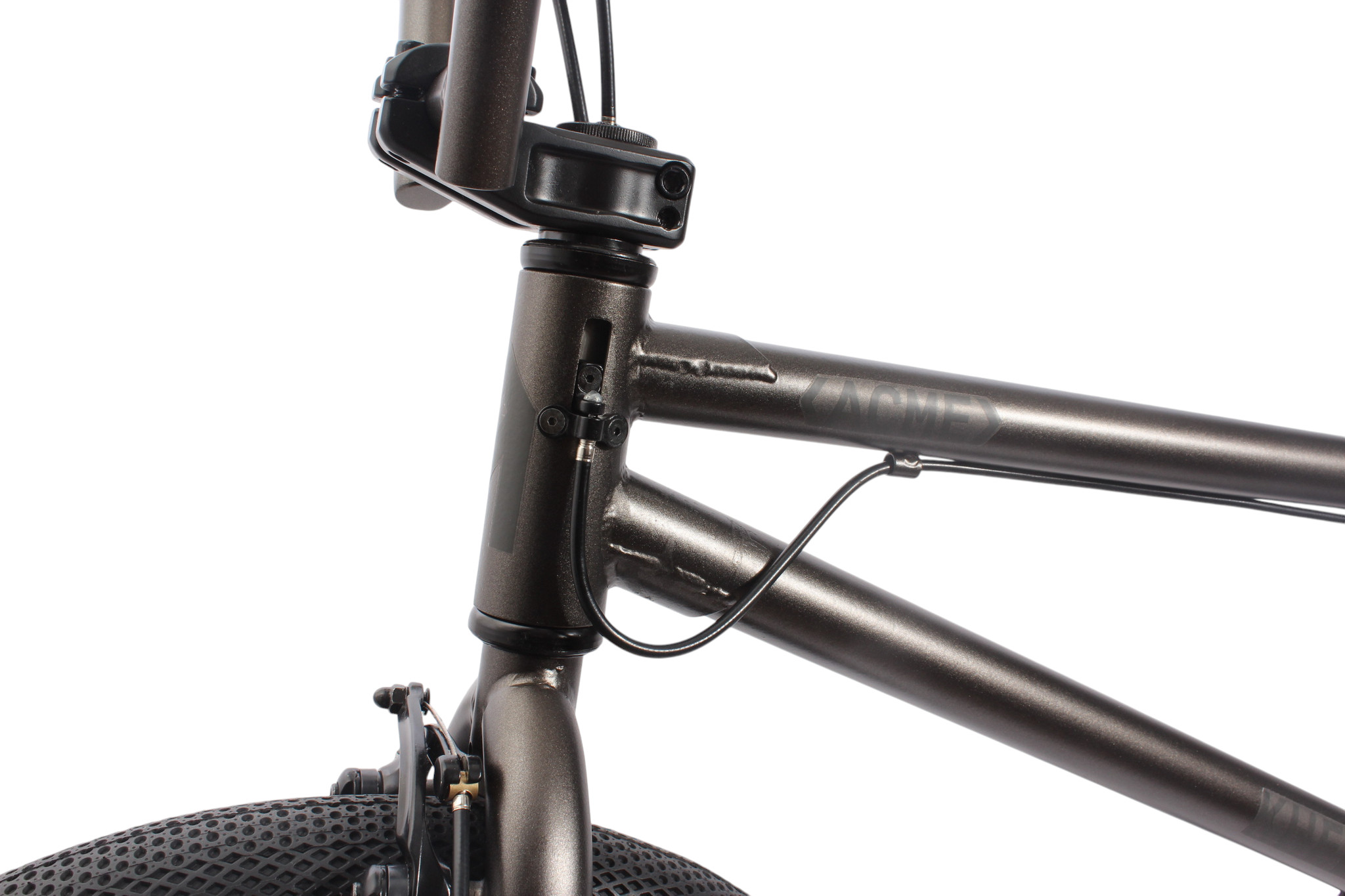

| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | Propalm Mushroom Style140mm |

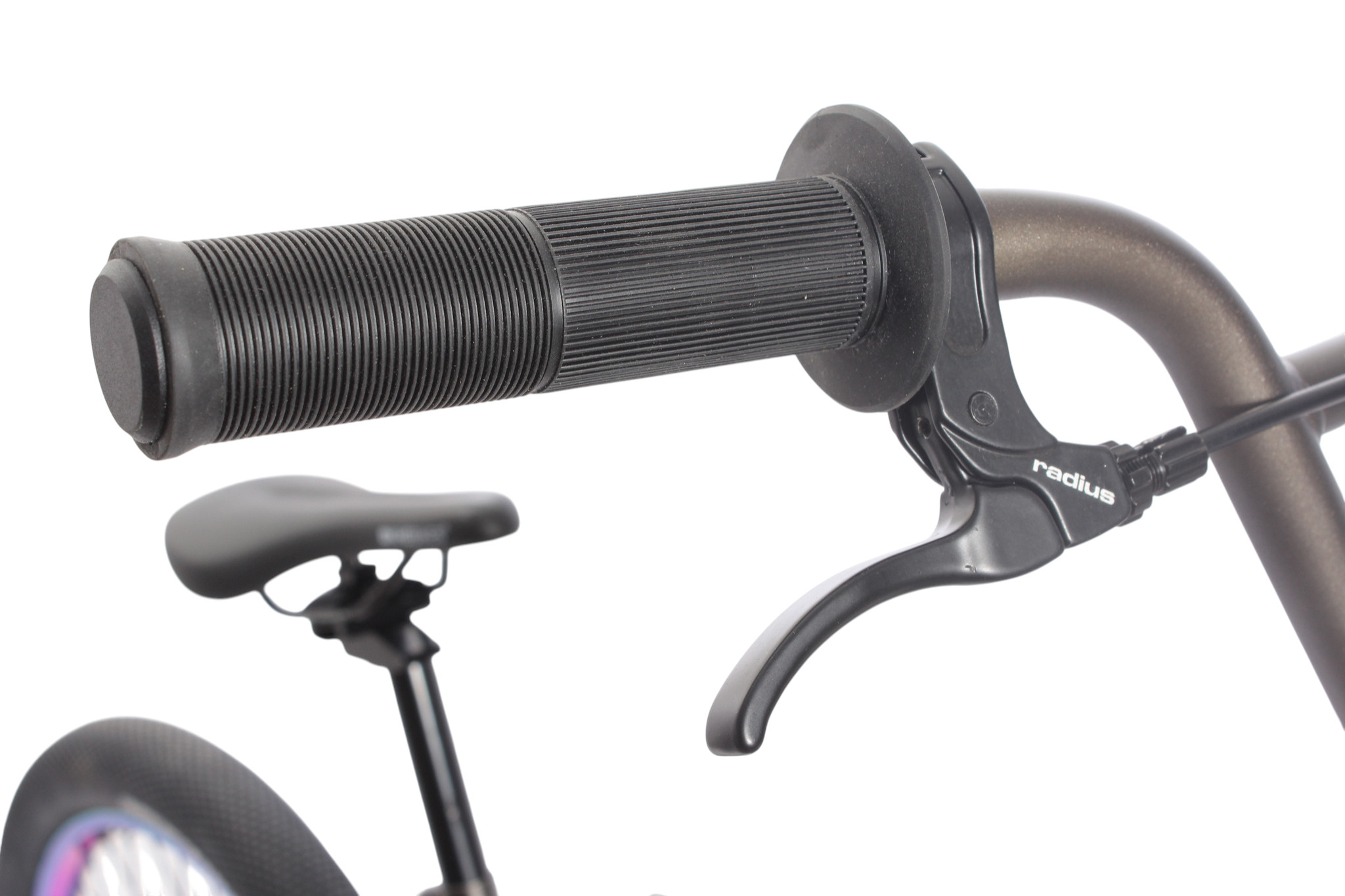

| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

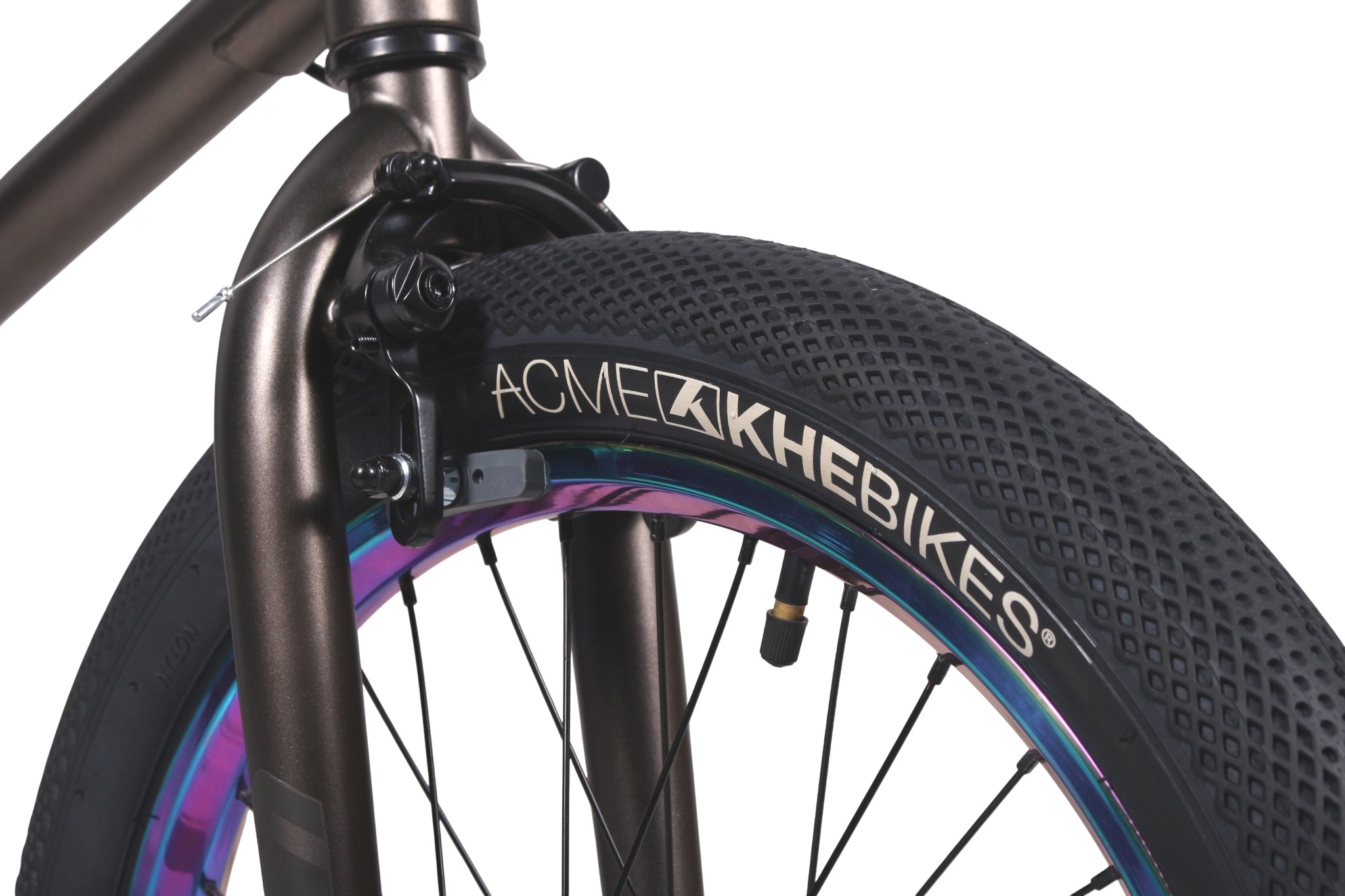

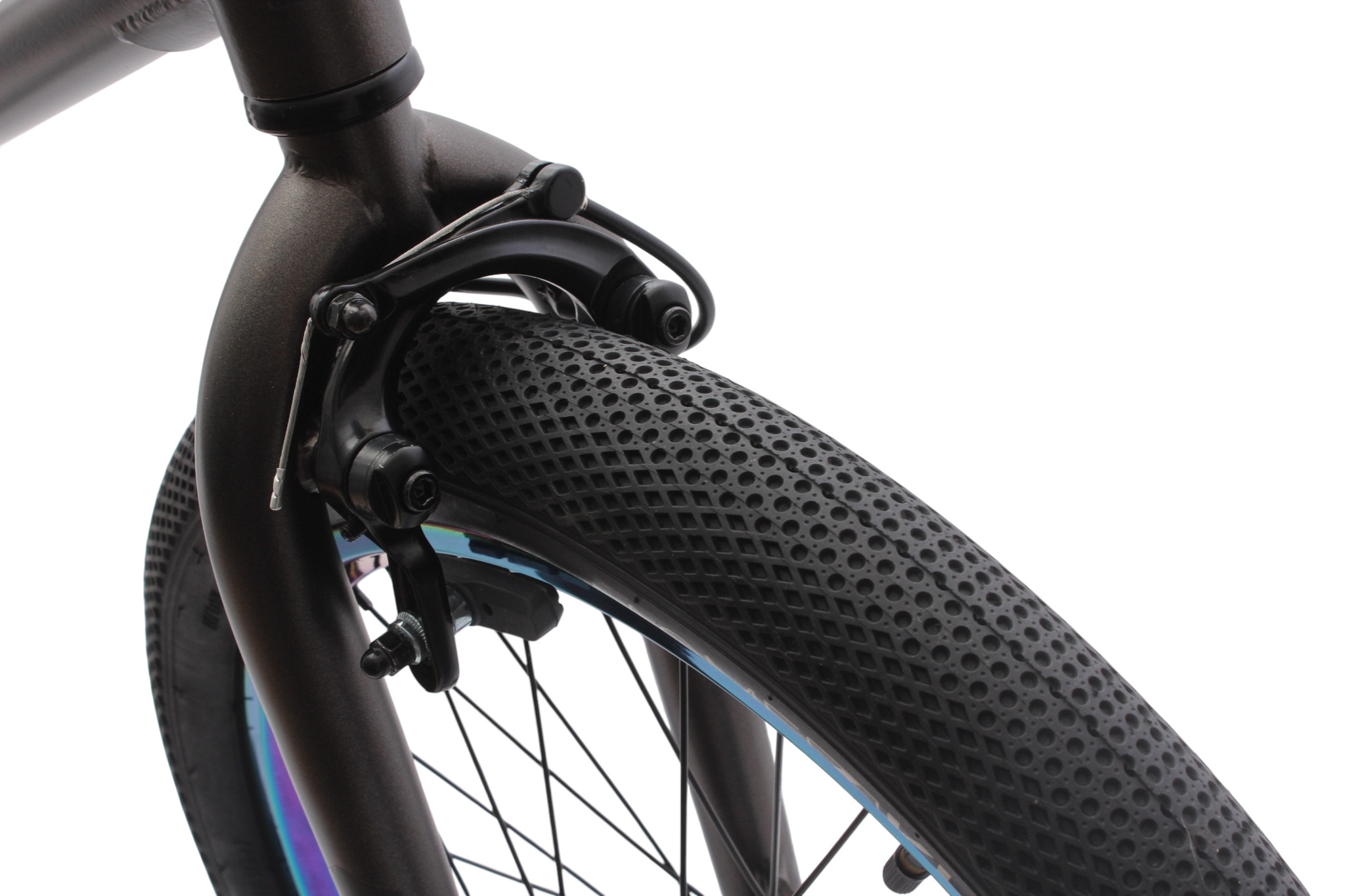

| Front brake: | KHE RADIUS Aluminum U-Brake |

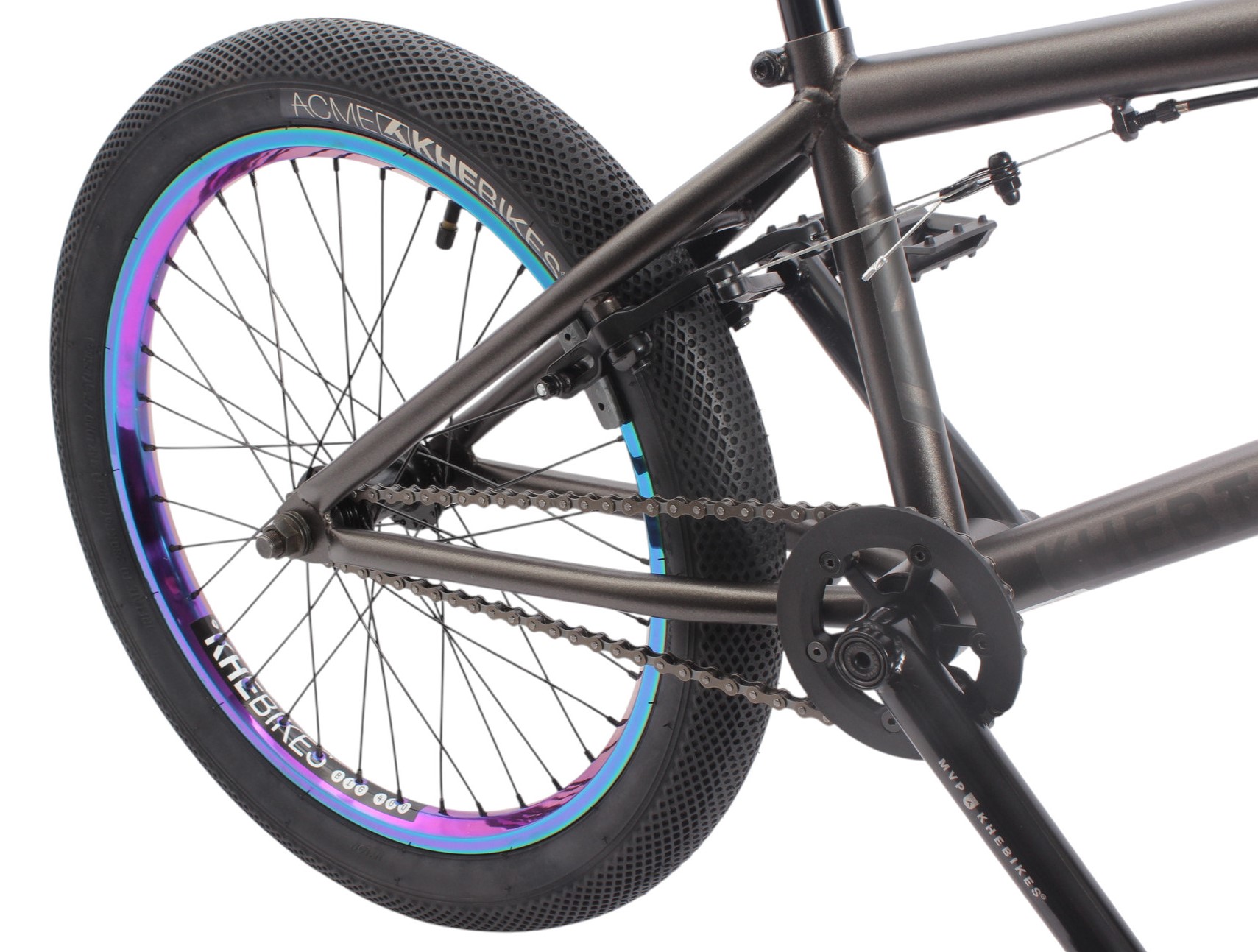

| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |

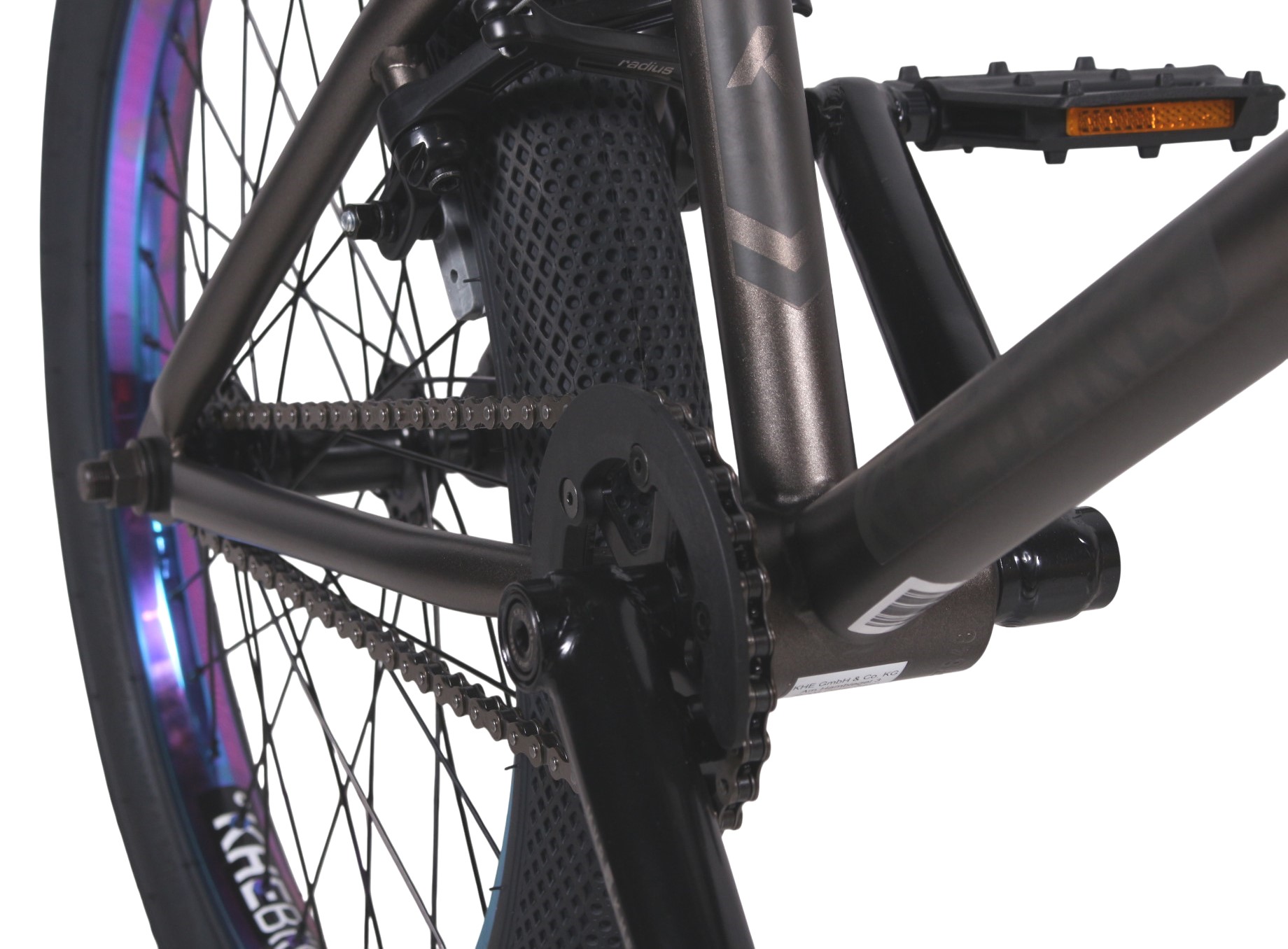

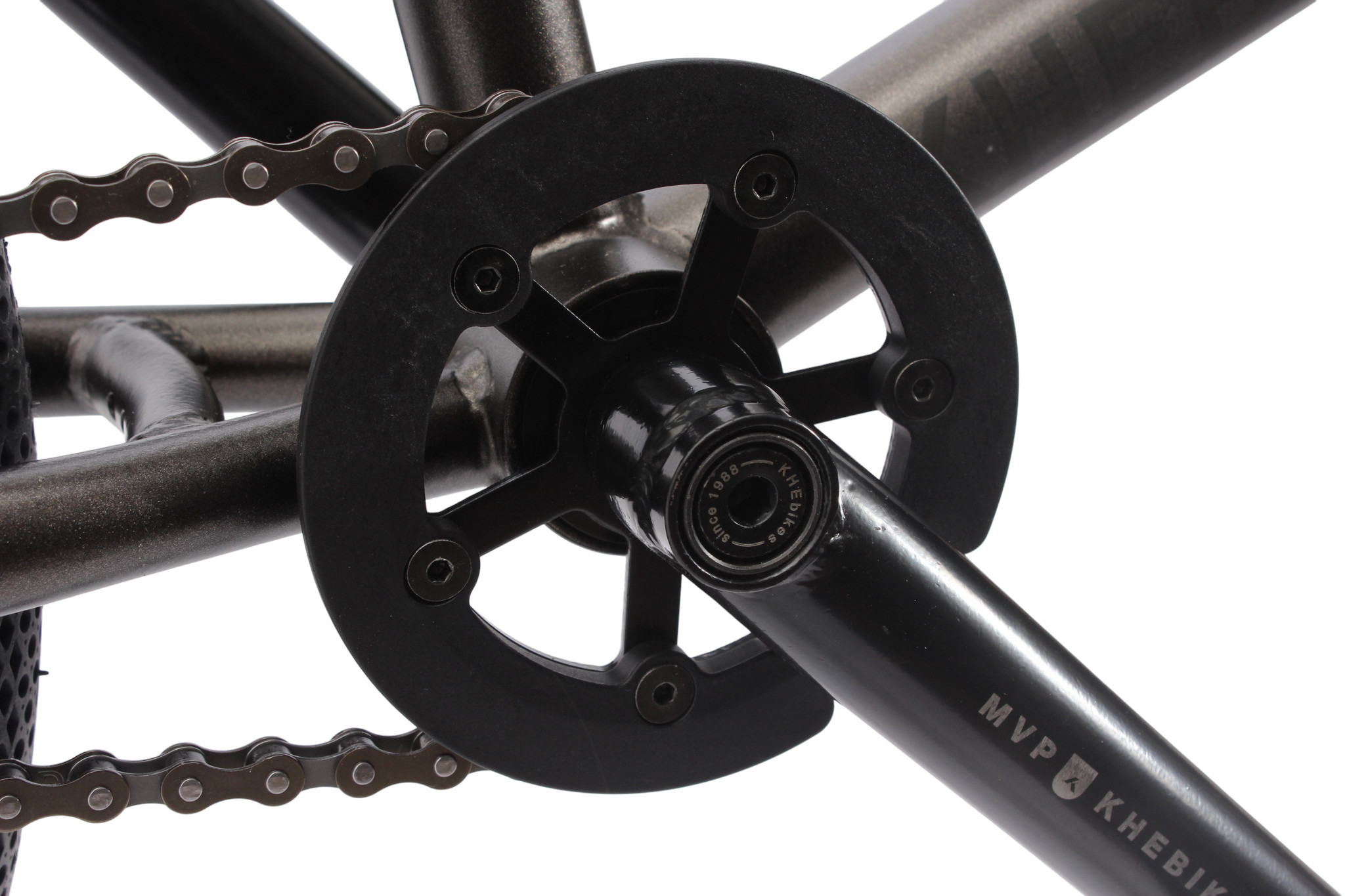

| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |

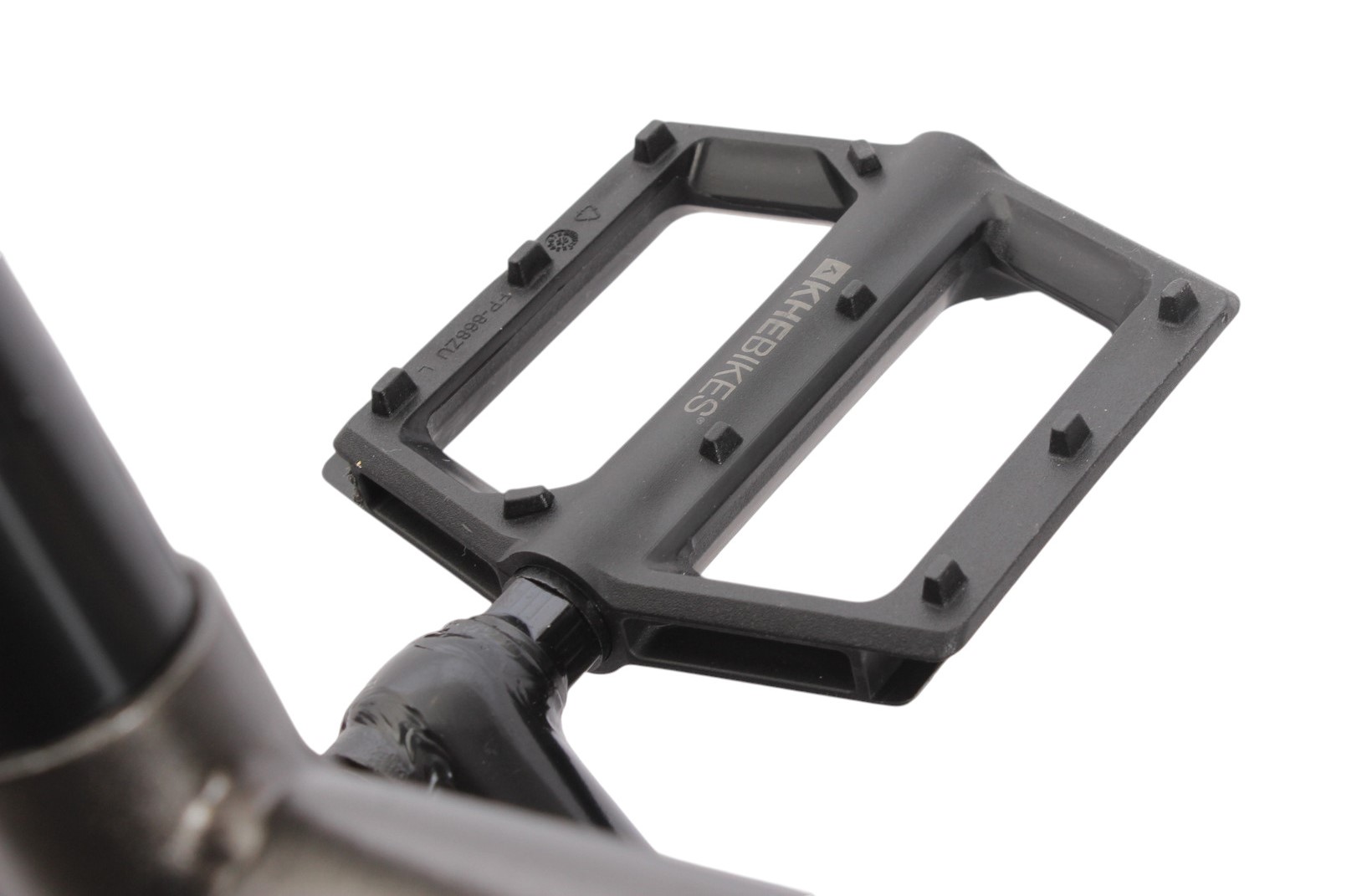

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

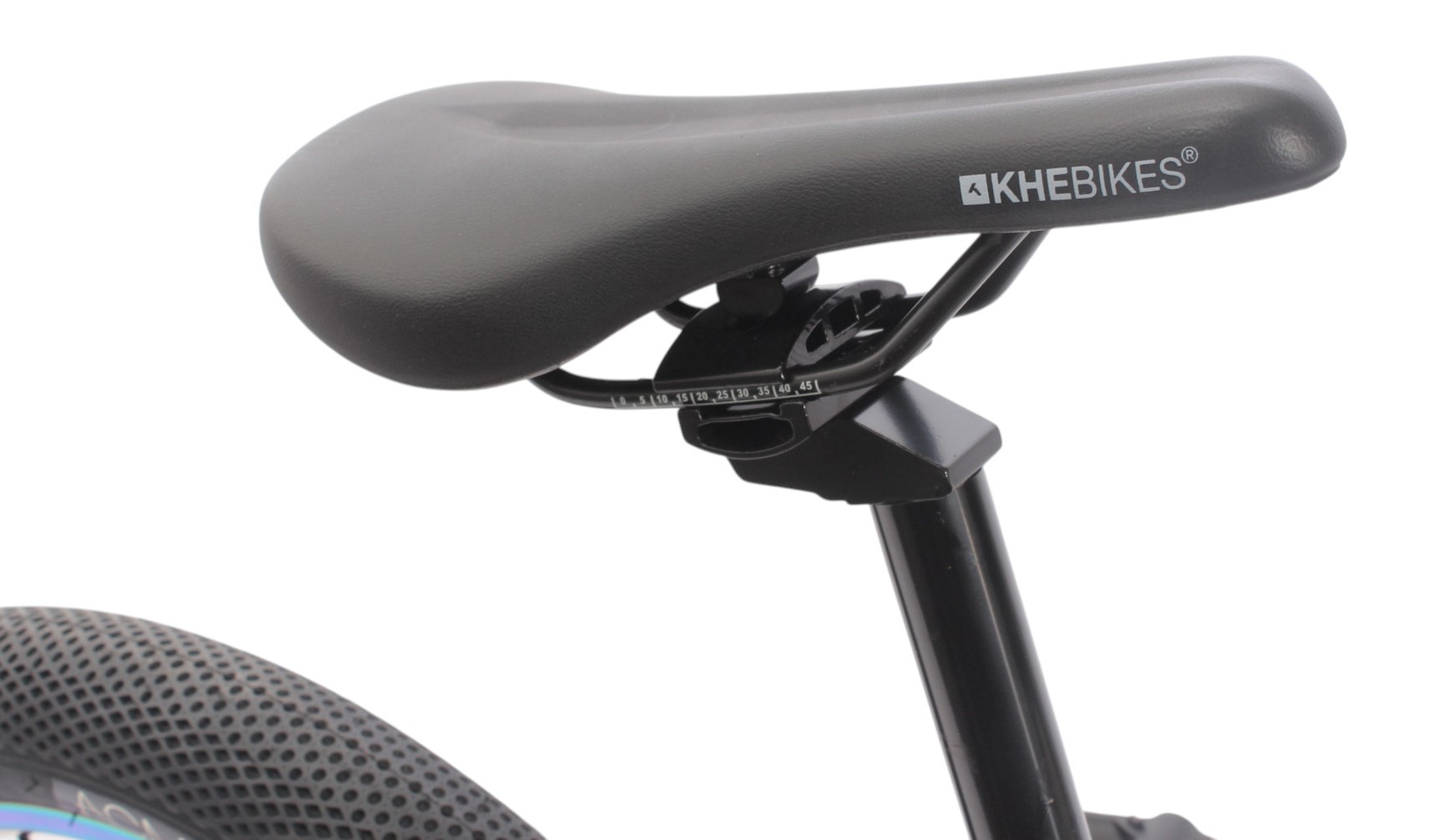

| Saddle: | padded, adjustable tilt |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |

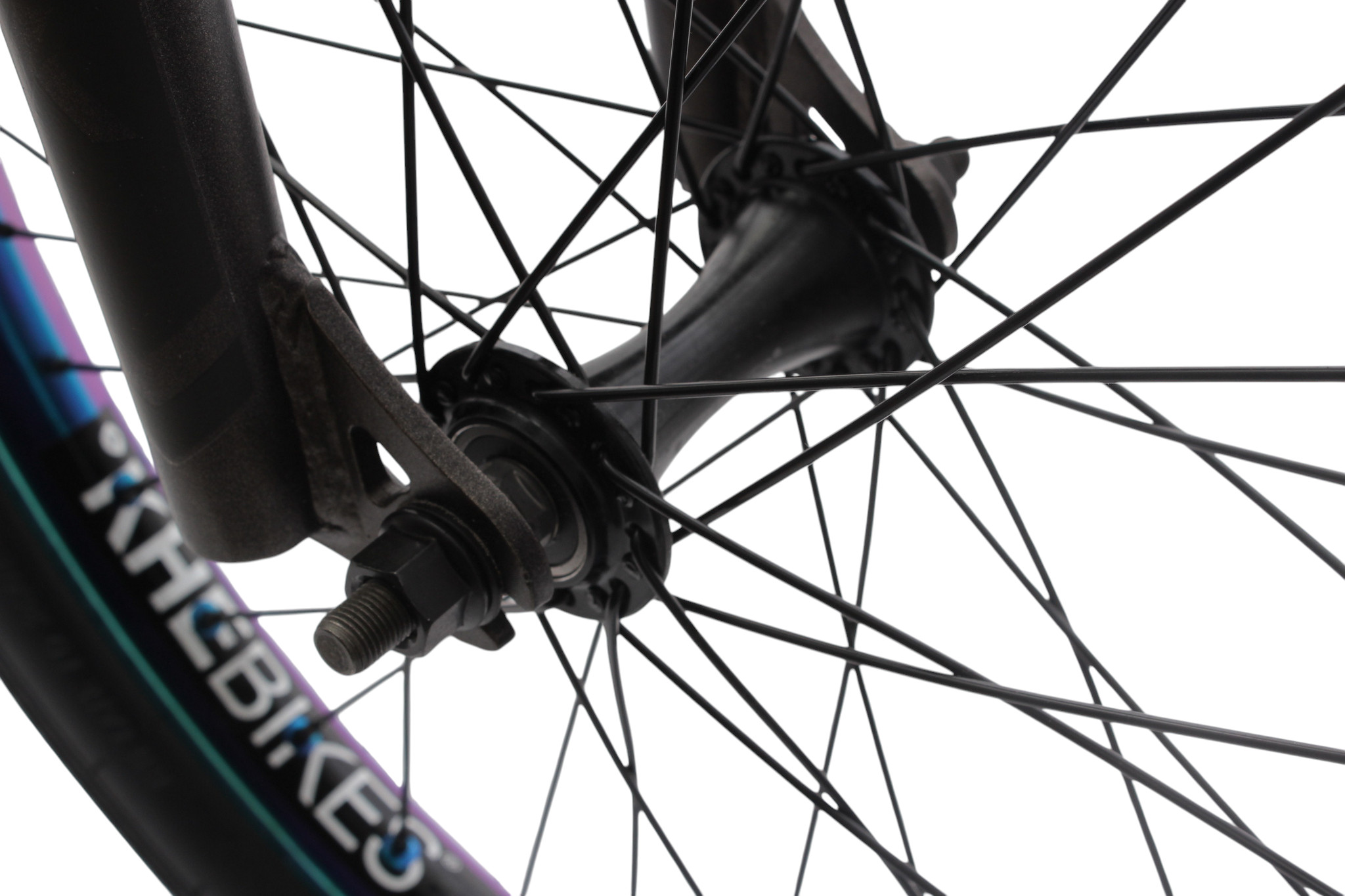

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

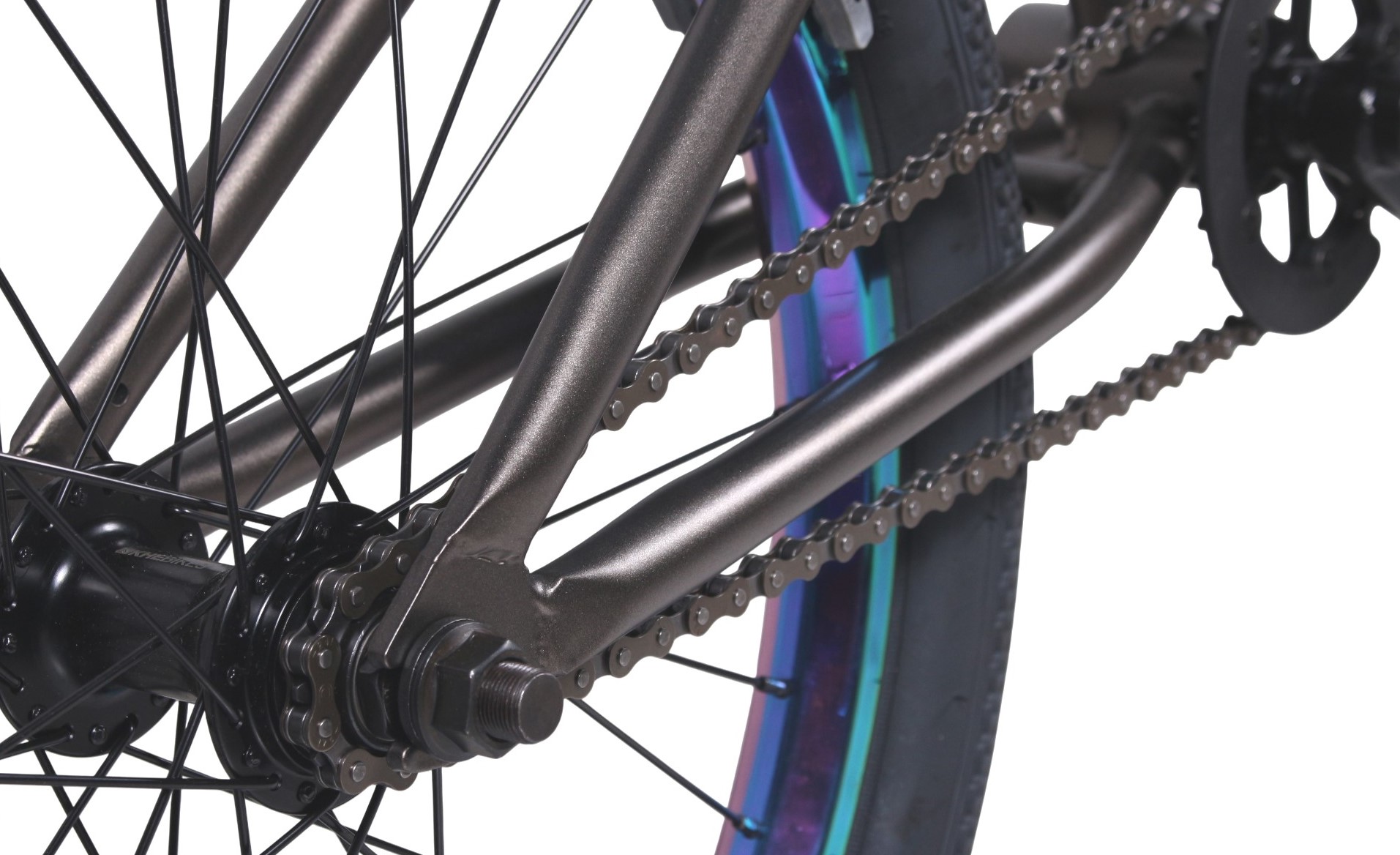

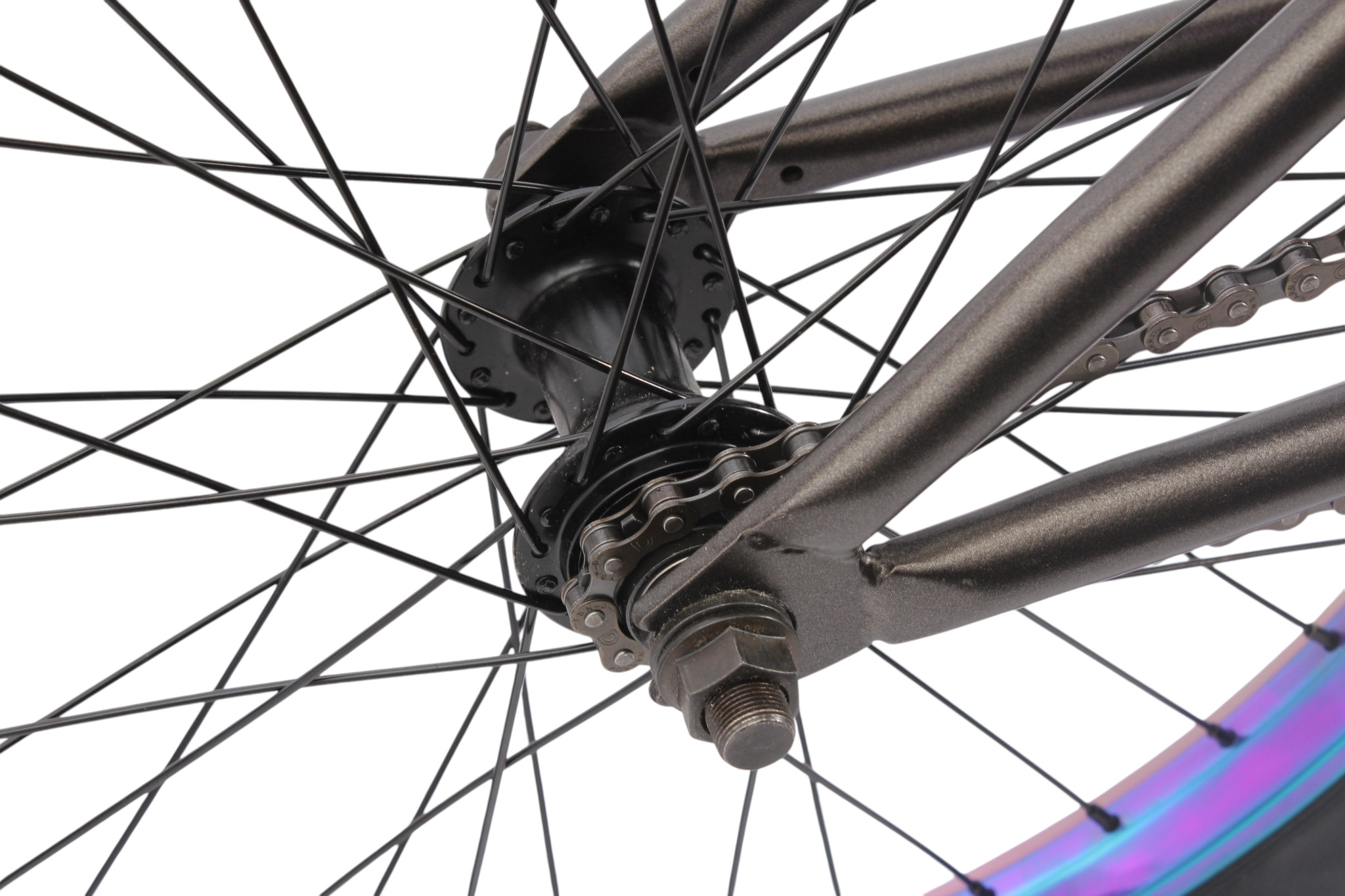

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Matt black |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
